Understanding 4-Wheel Alignment Systems

When it comes to vehicle maintenance, many drivers focus on oil changes, tyre rotations, and brake inspections, often overlooking a critical service: wheel alignment. While front-end alignment is commonly discussed, a comprehensive 4-wheel alignment system is vital for modern vehicles, ensuring all four wheels are precisely angled relative to each other and the road. This intricate process is far more than just straightening your steering wheel; it's about optimising your car's handling, extending tyre life, improving fuel efficiency, and ultimately, enhancing your safety on the road.

Understanding what a 4-wheel alignment entails, why it’s necessary, and how it’s performed can empower you to make informed decisions about your vehicle's care. It’s a precision service that addresses the subtle angles of your wheels, which, if incorrect, can lead to a host of problems from uneven tyre wear to dangerous handling characteristics. Let's delve deeper into this essential aspect of vehicle maintenance.

What Exactly Is Wheel Alignment?

At its core, wheel alignment refers to the adjustment of the angles of the wheels so that they are perpendicular to the ground and parallel to each other. The goal is to ensure that all four wheels point in the same direction and are positioned correctly relative to the vehicle's centreline. When a vehicle leaves the factory, its wheels are meticulously aligned to specific manufacturer specifications. However, over time, various factors can cause these angles to shift.

Hitting potholes, brushing against kerbs, minor accidents, or even the natural wear and tear of suspension components can knock your alignment out of sync. A proper alignment ensures that your tyres meet the road at the correct angle, which is fundamental for stable handling, even tyre wear, and efficient driving.

Why Is 4-Wheel Alignment Crucial?

You might wonder why all four wheels need attention, especially if your car is primarily front-wheel drive. While front-wheel alignment addresses the steering angles of the front wheels, a 4-wheel alignment considers the relationship between all four wheels. Many modern vehicles, including most front-wheel-drive cars, have adjustable rear suspensions. If the rear wheels are not aligned correctly, they can pull the vehicle off-centre, forcing the front wheels to compensate, leading to a condition known as 'crabbing' or 'dog tracking'.

A misaligned rear axle can severely impact vehicle stability and handling. Even if the front wheels are perfectly aligned, a misaligned rear can cause the car to pull or drift, leading to excessive tyre wear and a less predictable ride. For all-wheel-drive (AWD) and rear-wheel-drive (RWD) vehicles, 4-wheel alignment is even more critical as power is distributed to both or all axles, making precise alignment of all wheels paramount for optimal performance and preventing premature wear on drivetrain components.

Key Alignment Angles Explained

A 4-wheel alignment involves checking and adjusting several key angles. These angles, though measured in fractions of a degree, have a significant impact on your vehicle's performance and the longevity of your tyres.

Camber

Camber refers to the inward or outward tilt of the wheel when viewed from the front of the vehicle. It's measured in degrees relative to the vertical.

• Positive Camber: The top of the wheel tilts outwards. Too much positive camber can cause wear on the outer edge of the tyre.
• Negative Camber: The top of the wheel tilts inwards. Too much negative camber can cause wear on the inner edge of the tyre.

Correct camber ensures even tyre contact with the road, distributing the vehicle's weight across the tyre's tread for optimal grip and even wear.

Caster

Caster is the angle of the steering axis when viewed from the side of the vehicle. It influences the steering's stability, effort, and self-centring ability. Think of it like the angle of a bicycle's front fork.

• Positive Caster: The top of the steering axis tilts towards the rear of the vehicle. This provides stability, especially at higher speeds, and helps the wheels return to a straight-ahead position after turning.
• Negative Caster: The top of the steering axis tilts towards the front. This makes steering lighter but can reduce stability.

Proper caster is vital for stable straight-line driving and predictable steering response.

Toe

Toe is the most critical alignment angle for tyre wear. It refers to how much the front of the tyres points inward or outward relative to each other when viewed from above.

• Toe-in: The front of the wheels are closer together than the rear. This can cause wear on the outer edge of the tyre, often described as a 'feathered' pattern.
• Toe-out: The front of the wheels are further apart than the rear. This can cause wear on the inner edge of the tyre, also resulting in a feathered pattern.

Correct toe ensures that the wheels roll parallel to each other, minimising scrubbing and maximising tyre life.

Thrust Angle

Unique to 4-wheel alignment, the thrust angle is the direction that the rear wheels are pointing relative to the vehicle's centreline. Ideally, the thrust angle should be zero, meaning the rear wheels are perfectly aligned with the front wheels and the vehicle's body.

If the thrust angle is off, it means the rear axle is not parallel to the front axle. This will cause the vehicle to 'dog track' or 'crab', where the rear of the car appears to be following a different path than the front. To compensate, the driver will often have to turn the steering wheel slightly off-centre to drive in a straight line, leading to an crooked steering wheel and increased tyre wear on all four tyres.

How Is a 4-Wheel Alignment Performed?

A modern 4-wheel alignment is a highly precise procedure performed using specialised equipment. Here’s a general overview of the process:

1. Pre-Inspection: Before any adjustments are made, a technician will typically inspect the suspension and steering components for wear or damage. Worn ball joints, tie rod ends, or suspension bushes can prevent a proper alignment from being achieved.

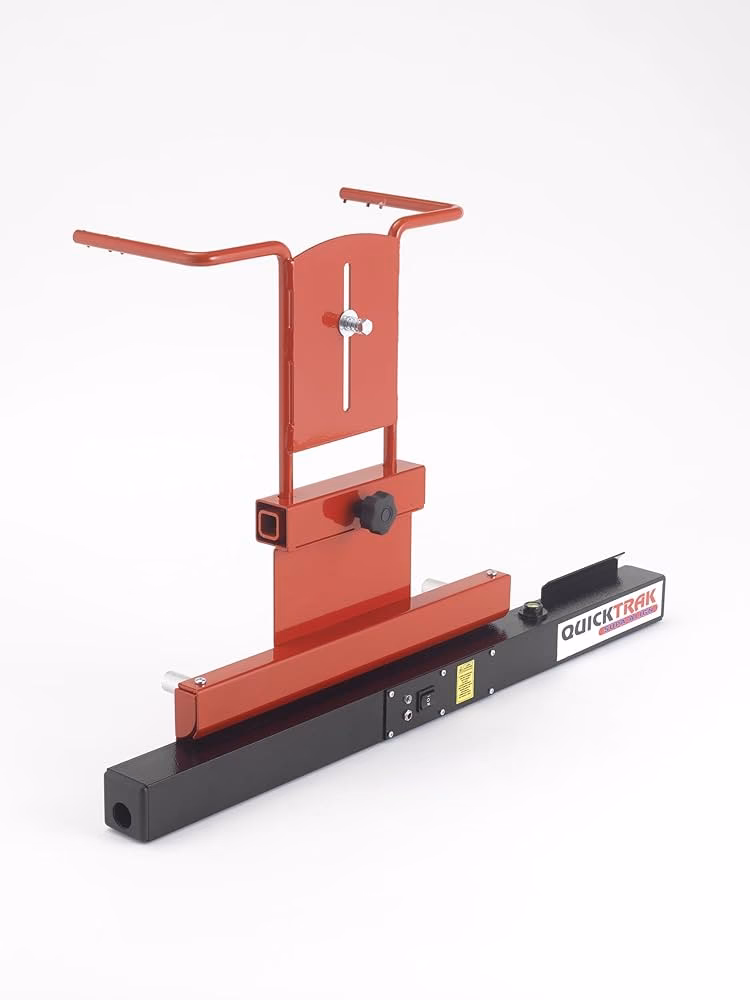

2. Mounting Sensors: High-tech sensors, often laser-based, are mounted to each of the vehicle’s wheels. These sensors communicate with a computer.
3. Measurements: The computer system takes precise measurements of all the alignment angles (camber, caster, toe, and thrust angle) for each wheel. It then compares these readings to the manufacturer's specifications for your specific vehicle model.
4. Adjustments: The technician then makes precise adjustments to the suspension components (such as tie rods and control arms) to bring the angles back within the specified range. This process is often interactive, with the computer providing real-time feedback on the adjustments.
5. Post-Alignment Check: Once all adjustments are complete, a final set of measurements is taken to confirm that all angles are within tolerance. A printout detailing the 'before' and 'after' readings is usually provided to the customer.

The entire process typically takes around an hour, though it can vary depending on the vehicle and the extent of the adjustments needed.

Signs You Need a 4-Wheel Alignment

Your vehicle often gives clear indications when its alignment is out. Paying attention to these signs can save you money and prevent more serious issues:

• Vehicle Pulling or Drifting: If your car consistently pulls to one side when driving on a straight, flat road, it's a strong indicator of misalignment.
• Uneven Tyre Wear: This is one of the most common and costly symptoms. Look for uneven wear patterns across the tyre tread, such as one edge being more worn than the other, or a 'feathered' appearance.
• Crooked Steering Wheel: If your steering wheel isn't centred when you're driving straight, your alignment is off. This is a tell-tale sign of an incorrect thrust angle.
• Loose or Sloppy Steering: If the steering feels less responsive or you have to constantly correct the steering to keep the vehicle straight, alignment could be a factor.
• Squealing Tyres: Tyres that squeal, especially during turns, can indicate excessive toe angle, causing the tyres to scrub rather than roll smoothly.

Benefits of a Proper 4-Wheel Alignment

Investing in regular 4-wheel alignment offers a multitude of benefits that contribute to your driving experience, safety, and wallet:

• Improved Handling and Steering: A properly aligned vehicle will handle predictably, steer more accurately, and feel more stable on the road. This translates to a more comfortable and confident driving experience.
• Extended Tyre Life: Misalignment is a leading cause of premature and uneven tyre wear. By ensuring your tyres contact the road correctly, alignment maximises their lifespan, saving you significant money on replacements.
• Enhanced Fuel Efficiency: When wheels are misaligned, they create more rolling resistance, forcing your engine to work harder. Proper alignment reduces this resistance, leading to better fuel economy.
• Increased Safety: A vehicle that pulls or has unpredictable steering is inherently less safe. Correct alignment ensures your car responds as expected, which is crucial for emergency manoeuvres and overall road safety.
• Reduced Wear on Suspension Components: When wheels are fighting each other due to misalignment, it puts undue stress on various suspension and steering components, leading to premature wear and potentially costly repairs.

When Should You Get a 4-Wheel Alignment?

While there's no strict rule, several situations warrant a 4-wheel alignment check:

• After Hitting a Pothole or Kerb: Any significant impact can throw your alignment off.
• After Replacing Suspension or Steering Components: New parts like tie rods, ball joints, or control arms necessitate an alignment.
• When Installing New Tyres: To ensure your new tyres last as long as possible and wear evenly from the start.
• Regularly: Many manufacturers recommend an alignment check every 12,000 to 15,000 miles or at least once a year, even if you don't notice any obvious symptoms.
• If You Notice Any of the Symptoms: Don't delay if you experience pulling, uneven tyre wear, or a crooked steering wheel.

Symptoms of Misaligned Wheels: A Comparison

Frequently Asked Questions About 4-Wheel Alignment

Q1: Is a 4-wheel alignment necessary for all cars?

A1: While traditionally more common for vehicles with adjustable rear suspension (which includes most modern cars, especially FWD, RWD, and AWD vehicles), it's highly recommended for almost all vehicles. Even if a car's rear suspension isn't fully adjustable, checking the rear thrust angle is crucial to ensure it’s tracking correctly relative to the front. Many shops will still perform a '4-wheel alignment' even if only front adjustments are possible, as it provides a full diagnostic picture.

Q2: How long does a 4-wheel alignment take?

A2: Typically, a 4-wheel alignment takes about an hour to an hour and a half. This includes the initial inspection, setting up the equipment, taking measurements, making adjustments, and the final verification. If there are seized bolts or worn components that need addressing before the alignment can be performed, it could take longer.

Q3: Can I do a 4-wheel alignment myself?

A3: A precise 4-wheel alignment requires specialised, calibrated equipment and expert knowledge. While basic toe adjustments can sometimes be attempted by experienced DIY mechanics, achieving the precise measurements for camber, caster, and thrust angle, and ensuring all angles are within manufacturer specifications, is virtually impossible without professional tools. It's highly recommended to have this service performed by a certified technician.

Q4: How often should I get a 4-wheel alignment?

A4: As a general guideline, it's advisable to have your alignment checked annually or every 12,000 to 15,000 miles, whichever comes first. However, if you hit a significant pothole, have new tyres fitted, or notice any of the symptoms of misalignment, you should get it checked immediately, regardless of the last service date.

Q5: Is wheel balancing the same as wheel alignment?

A5: No, they are different services. Wheel balancing addresses the distribution of weight around the tyre and wheel assembly. An unbalanced wheel can cause vibrations and uneven tyre wear. Wheel alignment, as discussed, adjusts the angles of the wheels themselves relative to the vehicle and the road. While both are crucial for tyre longevity and vehicle performance, they correct different issues.

Conclusion

A 4-wheel alignment system is a fundamental aspect of maintaining your vehicle's health and ensuring a safe, comfortable, and economical driving experience. It’s not just about correcting a crooked steering wheel; it’s a detailed process that fine-tunes the complex relationship between your wheels and the road. By understanding the importance of camber, caster, toe, and especially the thrust angle, you can appreciate why this service is so vital.

Regular alignment checks, particularly after significant impacts or when fitting new tyres, will protect your investment in tyres, improve your car's handling dynamics, enhance fuel efficiency, and most importantly, contribute significantly to your safety on every journey. Don't underestimate the power of precision – keep your wheels perfectly aligned for optimal performance.
