The VE fuel injection pump is the beating heart of many diesel engines, particularly revered in the Land Rover 200Tdi and 300Tdi units for its robust design and tunable nature. However, like any mechanical component, it's not immune to the ravages of time and wear. One of the most common concerns for owners is a leaking pump, which can range from a minor annoyance to a significant issue compromising performance and potentially leading to costly repairs. Understanding how to identify a leak, the nuances of pump compatibility, and the true function of the 'TDI engine pin' is crucial for any discerning enthusiast or mechanic.
Is Your VE Fuel Injection Pump Leaking? How to Tell

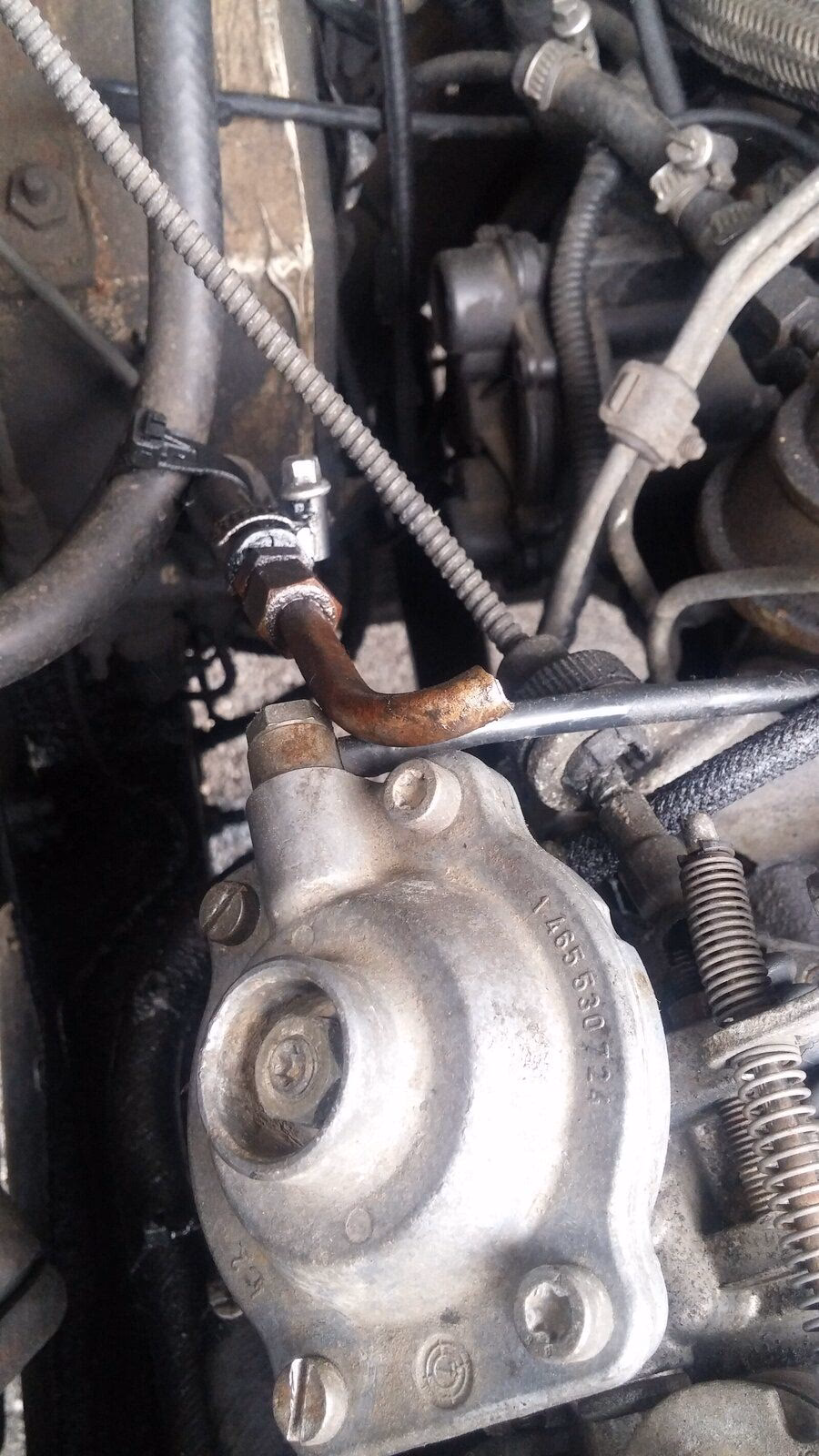

A leaking VE fuel injection pump is a common ailment, often manifesting as a tell-tale diesel smell or visible wetness around the pump body. Identifying the source of a leak early can save you a lot of hassle and expense. Leaks typically occur at various sealing points due to age, heat cycling, and the degradation of rubber or plastic components. Here’s how to pinpoint the issue:
Common Leak Locations & Symptoms:
- Rear O-ring (Pump Body Seal): This is one of the most frequently mentioned leak points, as highlighted by many owners. If you notice a persistent drip or a wet patch specifically at the rear of the pump where it meets the engine block, it's highly likely the rear O-ring needs replacing. This can be a fiddly job, requiring careful attention to re-timing the pump afterwards.
- Top Cover Gasket/Seals: The top cover, which houses the fuelling adjustment mechanisms, is another common culprit. Over time, the gasket or seals beneath this cover can perish, leading to fuel weeping from the top of the pump. This might be less of a drip and more of a general dampness or residue.
- Throttle Shaft Seal: Fuel can sometimes leak from around the throttle shaft where it enters the pump body. This often appears as a small, localised wetness.
- Advance Piston Cover: Located on the side of the pump, the cover for the advance piston can also develop leaks, though less common than the top cover or rear O-ring.
- Delivery Valve Seals: Where the high-pressure fuel lines connect to the pump, there are individual delivery valves with seals. While less prone to general leaks, these can sometimes weep if not correctly seated or if the seals have hardened.
Beyond visual inspection, a strong diesel odour around the engine bay, even without visible drips, can be an early indicator of a slow leak that is evaporating before it can form a visible puddle. Always ensure the engine bay is clean before inspection to easily spot fresh leaks.
200Tdi vs. 300Tdi Injector Pumps: Are They the Same?
A common question amongst Land Rover enthusiasts concerns the interchangeability and differences between the 200Tdi and 300Tdi VE fuel injection pumps. The short answer is they are remarkably similar, but with a few key distinctions that are worth noting.
From a mechanical standpoint, the core design of the VE pump used on both engine variants is almost identical. Both utilise a rotary distributor type pump, renowned for its simplicity and reliability. However, there are minor differences, primarily related to emissions control and engine management systems specific to each generation.
Key Similarities and Differences:
The primary difference often cited between the two pumps relates to the inclusion of EGR (Exhaust Gas Recirculation) bits on some 300Tdi models. Early 300Tdi engines often featured a more basic pump, very similar to the 200Tdi. Later 300Tdi pumps, particularly those found in vehicles designed for stricter emissions regulations, might have additional ports or mechanisms to accommodate EGR systems. This doesn't fundamentally change the pump's fuelling characteristics but can affect direct bolt-on compatibility if you're trying to swap pumps without considering these ancillary connections.
Beyond EGR, the internal calibration and governor settings might vary slightly to match the specific power and torque characteristics of the 200Tdi (90-series, Discovery 1, etc.) versus the 300Tdi (Discovery 1, Defender, etc.). However, these differences are often minor enough that with slight adjustments, a 200Tdi pump can be made to work effectively on a 300Tdi, and vice-versa, especially if the EGR system is not a concern or is being removed.
Interchangeability Considerations:
While often interchangeable, it's crucial to consider the following when swapping pumps:
- Ancillary Connections: Check for any differences in vacuum lines, electrical connectors (e.g., for the immobiliser solenoid on some models), or fuel line routing.
- Mounting Brackets: Ensure the mounting points on the engine block and the pump itself are identical. Minor differences might require fabrication or modification.
- Calibration: Even if physically interchangeable, the pump's internal calibration for fuelling and idle speed might need adjustment to suit the specific engine and vehicle. This is where professional tuning comes into play to ensure optimal performance and fuel economy.
| Feature | 200Tdi VE Pump | 300Tdi VE Pump |
|---|---|---|
| Core Design | Rotary Distributor (VE) | Rotary Distributor (VE) |
| Mechanical Similarity | High | High |
| EGR Compatibility | Typically none | Some models include EGR provisions |
| Calibration | Specific to 200Tdi characteristics | Specific to 300Tdi characteristics |
| Interchangeability | Often interchangeable with minor adjustments | Often interchangeable with minor adjustments |
The TDI Engine Pin: Decoding its True Purpose
The 'TDI engine pin' is a source of much misunderstanding and often leads to incorrectly timed engines, resulting in vehicles that feel significantly underpowered. Contrary to popular belief, the pin is emphatically NOT a timing tool or an indicator that the injection pump is correctly timed. Its sole purpose is a simple, yet critical, one: to act as a lock mechanism for the spring-loaded injection pump during operations like changing the timing belt.
Its True Function: A Locking Mechanism
When you insert the pin into the injection pump's pulley, it's designed to lock the pump's internal shaft in a specific position, preventing it from rotating while the timing belt is removed or installed. This ensures that when the new belt is fitted, the pump remains in roughly the correct orientation relative to the crankshaft and camshaft. It is a convenience tool for belt replacement, not a precision instrument for setting injection timing.
The Misconception and Its Consequences:
Many mechanics and DIYers mistakenly believe that if the pin slides in perfectly at Top Dead Centre (TDC) of cylinder one, the engine's timing is spot on. This is a dangerous assumption. An engine might start and run easily with the pin inserted, but its true performance will be severely compromised. Insufficient fuelling due to incorrect timing means the engine is effectively 'detuned' and lacks power, struggling to accelerate or reach higher speeds.
The problem arises because the injection pump's timing is dynamic and requires precise adjustment beyond the crude locking provided by the pin. The timing adjustment at the pump pulley typically allows for about 3mm of movement, which is built in to compensate for minor belt irregularities and to fine-tune the injection point for optimal combustion. If an engine feels sluggish even after a timing belt change where the pin was used, it's highly probable the timing is off.
Correcting Timing Beyond the Pin:
If the engine timing is significantly off – for example, the pump is off by a full tooth on the timing belt – even maximum adjustment at the pulley (fully advanced or retarded) won't compensate. In such cases, the engine needs more drastic intervention. This involves fully retarding the timing at the pulley, then removing and re-fitting the timing belt, ensuring the pump is correctly aligned from the start. Once the belt is re-fitted, the precise timing is then set using a dial gauge (or similar accurate method) to measure the pump plunger lift, ensuring it injects fuel at precisely the right moment relative to the engine's rotation.
A properly tuned TDI engine, with correct injection timing and fuelling, is a powerful and enjoyable driving experience. Many owners who have driven 'dogs' their whole lives are astonished by the power and responsiveness of a correctly set-up engine. The difference is solely in the tuning, not in the inherent quality of the engine. Don't rely on the pin for timing; it's a shortcut that leads to disappointment.
Troubleshooting & Maintenance Tips for Your VE Pump
Maintaining your VE fuel injection pump is key to its longevity and your engine's performance. Beyond addressing leaks, regular checks and understanding the signs of trouble can prevent more serious issues.
General Maintenance Advice:
- Fuel Quality: Always use good quality, clean diesel fuel. Contaminants can quickly damage the precision internals of the pump.
- Fuel Filter: Replace your fuel filter regularly as per manufacturer recommendations. A clogged filter can starve the pump of fuel, leading to cavitation and wear.
- Visual Inspections: Periodically check the pump and surrounding lines for any signs of leaks, chafing, or damage.
- Belt Tension: Ensure the timing belt is correctly tensioned. Improper tension can affect timing accuracy and lead to premature belt wear.
When to Seek Professional Help:
While some minor leak repairs (like an accessible O-ring) can be a DIY task for the mechanically inclined, complex issues or precise timing adjustments are best left to experienced professionals. Many general mechanics might shy away from fine-tuning injection pumps, preferring to simply replace components. However, finding a specialist who understands diesel injection systems can make all the difference to your engine's running.
Frequently Asked Questions (FAQs)
Q: Is a small leak from my VE pump a major concern?
A: Any leak, no matter how small, should be addressed. Small leaks can worsen over time, lead to fuel loss, and potentially allow air to enter the fuel system, causing running issues. They also pose an environmental hazard and can make your engine bay look unsightly.
Q: Can I use a 300Tdi pump on a 200Tdi engine or vice versa?
A: Yes, generally, they are largely interchangeable due to their similar core design. However, you may need to account for minor differences in ancillary connections (like EGR provisions on some 300Tdi pumps) and ensure proper calibration for optimal performance on your specific engine.
Q: How often should I check my injection pump timing?
A: Timing should ideally be checked whenever the timing belt is replaced, or if you suspect performance issues such as lack of power, excessive smoke, or poor fuel economy. It's not a 'check every year' item unless problems arise.
Q: What are the symptoms of incorrect injection timing?
A: Common symptoms include reduced engine power, poor acceleration, excessive black or white smoke from the exhaust, rough idling, increased fuel consumption, and difficulty starting (especially when cold).
Q: Can I fix a leaking pump myself, or do I need a specialist?
A: Minor leaks, such as a top cover gasket or an accessible O-ring, can be tackled by a competent DIY mechanic. However, repairs involving internal components, shaft seals, or requiring precise re-timing with a dial gauge are often best left to a diesel injection specialist or experienced mechanic.
Understanding your VE fuel injection pump, its common issues, and its proper maintenance is vital for the longevity and performance of your diesel engine. By being vigilant about leaks and respecting the true purpose of the 'TDI engine pin', you can ensure your vehicle runs as powerfully and efficiently as it was designed to.
