Retaining Wall Backfill Explained

The construction of a retaining wall is a significant undertaking, and one of the most frequently asked questions pertains to the correct type of backfill to use. While there's a wealth of information available online, it can often be contradictory or tailored to specific, niche applications. This article aims to demystify the process, clearly outlining the different backfill zones and the optimal materials for each, ensuring your retaining wall stands the test of time.

Understanding the Zones of a Retaining Wall

A well-constructed retaining wall isn't just about the facing blocks; it's about the engineered system behind them. This system relies on distinct zones, each with a specific purpose:

1. Base Material

This is the foundation upon which your retaining wall is built. Its primary role is to provide a perfectly level and stable surface for the initial course of blocks. A solid base prevents settling and shifting, which are detrimental to the wall's integrity. For comprehensive guidance on foundations, it's advisable to consult detailed resources on the subject.

2. Wall Rock

This zone is exclusively for block retaining walls that feature hollow cores. The purpose of filling these cores with wall rock is twofold: it adds crucial weight to the wall, increasing its stability, and it enhances frictional resistance between the blocks. While the blocks themselves remain relatively light, the aggregate fill within them contributes significantly to the overall strength.

3. Drainage Stone

Positioned directly behind the retaining wall, this zone typically extends about 12 inches back. The critical function of drainage stone is to facilitate the unimpeded flow of water. It allows rainwater and any moisture that penetrates the wall to reach the drainage pipe, which then carries the water away from the wall's structure. Proper drainage is paramount to prevent hydrostatic pressure buildup, a common cause of retaining wall failure.

4. Retained Soil

In situations where the retaining wall is built on a site that requires imported fill (a "fill site"), you'll need additional material behind the drainage stone. Ideally, you'll utilise existing soil from your property if it's suitable, but often, you'll need to source specific backfill materials. This zone is essentially the soil that the wall is holding back.

Acceptable Backfill Types for Each Zone

Choosing the right aggregate is crucial. Not all crushed stone or gravel is created equal. Here's a breakdown of suitable materials for each zone:

Base Material: The Stable Foundation

For the base material, you need an aggregate that compacts well and provides a firm, level surface. Acceptable options include:

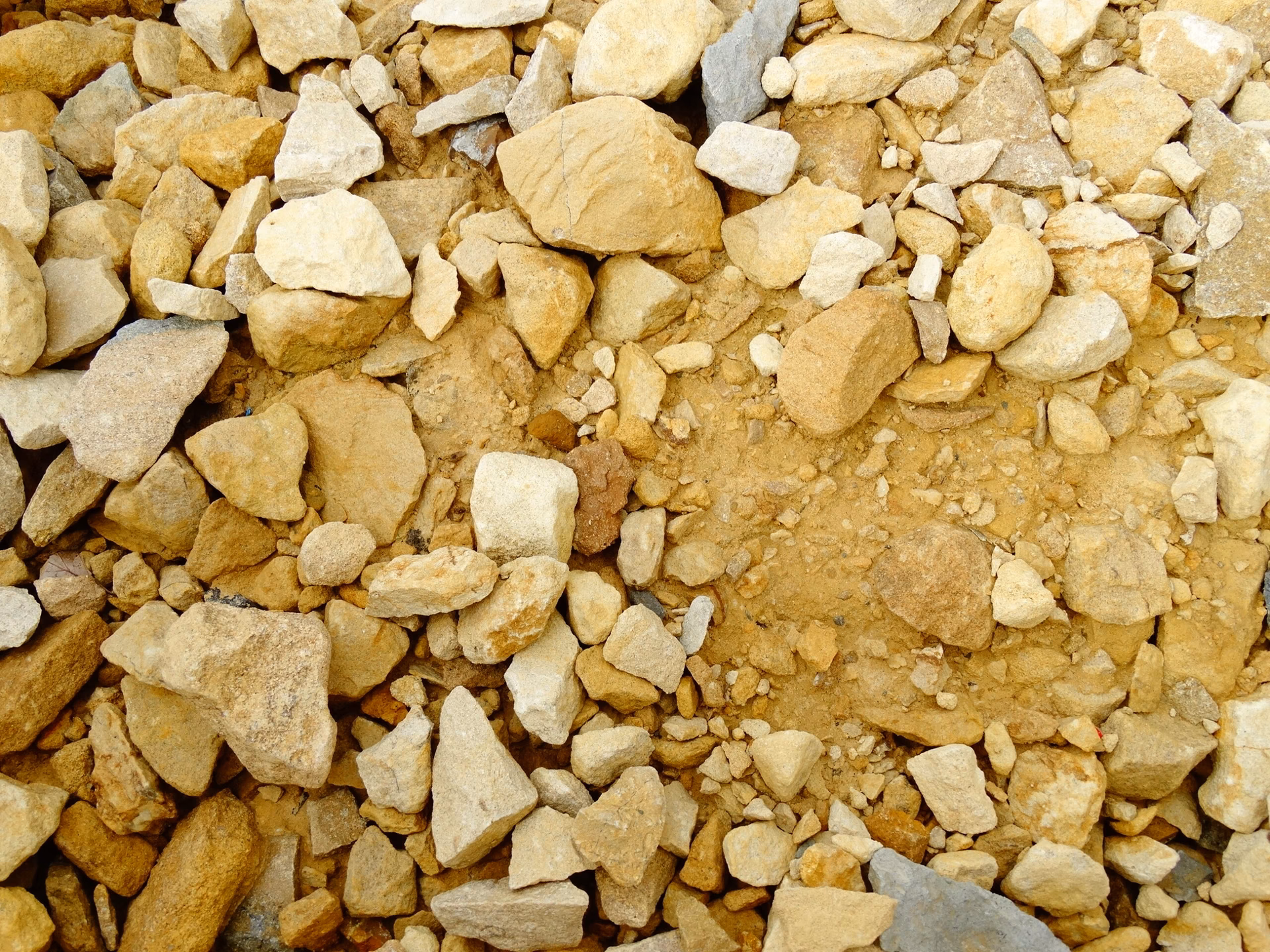

• Rock screenings (3/4" minus): This material, also known as "crush and run" or "ABC stone," contains a range of particle sizes, including fine dust. This characteristic allows it to compact exceptionally well, forming a dense base.
• Paver base: Specifically designed for laying pavers, this is a suitable alternative for retaining wall bases.
• 3/4" crushed rock: Clean, angular crushed rock with a maximum particle size of 3/4 inch.
• #57 or #78 stone: These are common aggregate sizes, typically consisting of clean, crushed stone with minimal fines.
• Class I, II, or III backfill: These classifications refer to engineered fill materials that meet specific compaction and drainage criteria.

Materials to avoid for base material:

• Smooth river rock: Its rounded nature prevents good compaction and stability.
• Pea gravel: Similar to river rock, the smooth, rounded particles don't lock together effectively.
• Uniform sand: While it can compact, it lacks the angularity needed for optimal interlocking and can be prone to migration.

While rock screenings offer excellent initial levelling due to their fines content, clean crushed rock often performs better in the long run, offering superior drainage and stability.

Wall Rock: Filling the Gaps

For filling the hollow cores of block retaining walls, the material must be angular to promote interlocking and friction. Suitable options include:

• 3/4" crushed rock: Its angularity ensures good contact and friction between block cores.
• #57 or #78 stone: These clean, crushed aggregates are ideal for this purpose.
• Clean crushed limestone: A good source of angular aggregate.
• Class I or II backfill: Engineered fill that meets the necessary angularity and compaction requirements.

Materials to avoid for wall rock:

• Pea gravels: Too smooth and rounded.
• River rock: Also too smooth and rounded.

Drainage Stone: The Water's Escape Route

This is arguably the most critical backfill component for the longevity of your wall. Drainage stone must be free-draining, meaning it allows water to pass through with minimal resistance. Key characteristics include:

• Angularity: Essential for preventing the material from migrating and ensuring voids for water flow.
• Minimal Fines: The amount of material passing through a No. 200 sieve (often referred to as "dust" or "fines") should ideally be less than 10%. Excessive fines clog the voids, impeding drainage.

Acceptable drainage stone types are often referred to by various names, but they share these properties:

• #57 stone: A common and effective choice for drainage.
• Clean crushed rock: Angular, with minimal fines.
• 3/4" clean: Specifies a clean crushed rock with a maximum size of 3/4 inch.
• Well-graded compactable aggregate (0.25" – 1.25"): This range, when angular and clean, performs exceptionally well.
• Clean crushed limestone: A good angular aggregate for drainage.
• Class I or II backfill: Engineered for drainage and compaction.

Materials to avoid for drainage stone:

• Pea gravel or river rock: Their smoothness hinders compaction and makes them difficult to retain. More importantly, the smooth surfaces create fewer flow paths for water, leading to potential clogging.
• Sand with high fines content: Will impede drainage.

The importance of clean, angular aggregate for drainage cannot be overstated. It ensures the hydrostatic pressure that can build up behind a wall is effectively relieved.

Retained Soil: The Backfill Behind the Drain

This zone is the soil that the retaining wall is actually holding back. The ideal scenario is to use suitable soil already present on your property. However, if you need to purchase backfill for this zone, look for:

• Processed fill: Engineered soil mixtures designed for stability.
• Gravel: Provides good drainage and compaction.
• Sand: Can be suitable, provided it doesn't contain excessive fines.
• Screenings: Can also be used here if it meets compaction requirements.

Materials to avoid for retained soil:

• Clay: Expands and contracts significantly with moisture changes, leading to instability.
• Organic material (mulch, compost, topsoil): Decomposes over time, reducing its structural integrity and potentially creating voids.
• Soft soils: Lack the necessary load-bearing capacity.

The Case for a Single Backfill Material

While it's possible to use different materials for the base, wall rock, and drainage stone zones, a simplified approach often yields excellent results. Recommending a single, versatile material for all three zones is a practical strategy. A clean crushed rock that fits the criteria for both base material and drainage stone is an excellent choice. Examples include:

• #57 or #78 stone
• 3/4" crushed rock
• Clean crushed limestone

Using one material streamlines the purchasing and installation process, reducing the chance of errors and ensuring consistent performance across all critical zones.

Where to Purchase Your Backfill

The quantity of backfill required will dictate the most cost-effective purchasing method:

For Smaller Projects:

Most local hardware stores (like B&Q or Homebase in the UK context, or Home Depot/Lowe's in North America) stock crushed rock in convenient bags. These are typically sold in 0.5 cubic foot bags. If you don't have a vehicle large enough to transport numerous bags, inquire about their delivery services.

For Larger Projects:

If your project demands more than approximately 0.25 cubic yards (which equates to roughly 6.75 cubic feet), it's far more economical to source your aggregate from a landscape supply company. These suppliers often have a minimum order quantity, usually around 0.25 cubic yards. You'll find that the price per cubic yard at a landscape supplier is a fraction of what you'd pay at a home improvement store. Many landscape suppliers also offer delivery for larger quantities, typically for orders exceeding 5 cubic yards.

Frequently Asked Questions

Q1: Can I use sand as backfill?

Clean sand can be acceptable for the retained soil zone, but it's generally not recommended for the base or drainage zones. For drainage, angular crushed stone is far superior. For the base, angular materials compact better and provide a more stable foundation.

Q2: Is pea gravel a good option for drainage?

No, pea gravel is not a good option for drainage stone. Its smooth, rounded particles do not compact well and, more importantly, do not allow for efficient water flow compared to angular crushed stone. It can also be difficult to retain.

Q3: What is the difference between 3/4" minus and 3/4" clean crushed rock?

3/4" minus (rock screenings) contains a significant amount of fine material (dust), which allows it to compact very densely. This makes it excellent for a base material. 3/4" clean crushed rock, on the other hand, has had most of the fines removed. This makes it more suitable for drainage applications where free water flow is essential.

Q4: How much backfill do I need?

The amount of backfill needed depends on the dimensions of your retaining wall and the depth of your excavation. You'll need to calculate the volume for each zone (base, wall rock, drainage stone, retained soil) and add a small percentage for compaction and waste. Consult your retaining wall system's manufacturer for specific recommendations.

Q5: Do I need a drainage pipe?

Yes, a drainage pipe (often a perforated pipe) is almost always essential in a retaining wall system. It collects the water that flows through the drainage stone and carries it away from the wall, preventing the buildup of dangerous hydrostatic pressure.

By understanding these different zones and selecting the appropriate backfill materials, you can ensure the structural integrity and longevity of your retaining wall project. Prioritising angular, clean aggregates, especially for the drainage zone, is key to a successful outcome.
