DIY Exhaust Leak Repair: No Welding Needed!

An exhaust leak can be a frustrating and potentially dangerous problem for any vehicle owner in the UK. The telltale signs, including a loud and obnoxious noise, reduced fuel efficiency, and the unmistakable smell of exhaust fumes, can be both irritating and hazardous to your health and the environment. While welding is a common and often permanent method to repair exhaust leaks, not everyone has access to welding equipment or the expertise to use it. Fortunately, there are several alternative DIY solutions that can help you get your vehicle back on the road safely and quietly without the need for a welding torch. In this comprehensive guide, we'll explore these methods, providing you with the knowledge to tackle this common automotive issue head-on.

Ignoring an exhaust leak isn't just about the noise; it can lead to serious issues. Exhaust fumes contain carbon monoxide, a colourless and odourless gas that can be fatal if it enters the vehicle's cabin. Furthermore, a leaking exhaust can affect your car's performance, leading to decreased fuel economy and potentially causing your vehicle to fail its annual MOT test due to excessive emissions or noise. Early detection and repair are key to maintaining both your safety and your vehicle's health.

Pinpointing the Problem: Identifying the Exhaust Leak

Before attempting any repair, it’s absolutely crucial to pinpoint the exact location of the exhaust leak. A precise diagnosis will save you time, effort, and material. Common signs of an exhaust leak include a loud hissing, tapping, or popping noise, which often becomes more pronounced during a cold start or under acceleration. You might also notice visible cracks, rust holes, or black sooty marks around the exhaust pipe, muffler, or catalytic converter. Another significant indicator is the smell of exhaust fumes entering the cabin of the vehicle, particularly when stationary or at low speeds.

To locate the leak effectively, ensure your vehicle is safely parked on a level surface and cool to the touch. Ideally, raise the vehicle using a jack and axle stands for better access and safety. Never work under a vehicle supported only by a jack. With a bright flashlight, thoroughly inspect the entire exhaust system, from the engine manifold down to the tailpipe. Pay close attention to joints, welds, clamps, flex pipes, and the muffler itself, as these are common failure points.

For a more precise method, especially for smaller, less obvious leaks, you can try the soap and water test. Mix some washing-up liquid with water in a spray bottle. With the engine running (but cool enough to touch the exhaust system safely), spray the soapy mixture along the exhaust pipe. Bubbles will form at the exact spot of the leak as exhaust gases escape. Alternatively, if you have access to one, a smoke machine can be used to pump smoke into the exhaust system, making leaks visible. Always ensure good ventilation when the engine is running.

Gathering Your Arsenal: Essential Tools and Materials

To successfully fix an exhaust leak without welding, you'll need some basic yet specific tools and materials. Having everything ready before you start will make the process smoother and more efficient:

• Safety Gloves and Goggles: Your safety is paramount. Exhaust systems can be sharp, rusty, and extremely hot. Gloves protect your hands, and goggles shield your eyes from debris.
• Wire Brush or Sandpaper: Essential for preparing the surface. A clean, rough surface ensures better adhesion for any sealant or tape. Aim for medium to coarse grit sandpaper (e.g., 80-120 grit).
• High-Temperature Epoxy or Heat-Resistant Putty: These are specifically designed to withstand the extreme temperatures of an exhaust system. They typically come in two parts that you mix together or as a pre-mixed compound. Look for products rated for temperatures exceeding 500°C.
• Exhaust Repair Tape: A flexible, heat-resistant tape often made from fibreglass or aluminium. It's designed to wrap around the pipe and harden with heat, creating a seal.
• A Clamp or Two (Optional but Recommended): U-bolt clamps or band clamps can provide additional mechanical support, especially for repairs involving sheet metal, reinforcing the patch and preventing it from loosening due to vibrations.
• A Piece of Sheet Metal (Optional): For larger holes or cracks, a small piece of galvanised or stainless steel sheet metal can provide a robust backing for your repair. You'll need tin snips or strong shears to cut it.
• Degreaser/Brake Cleaner: To ensure the repair area is absolutely free of oil, grease, and grime before applying any sealant.

Step-by-Step DIY Repair Methods

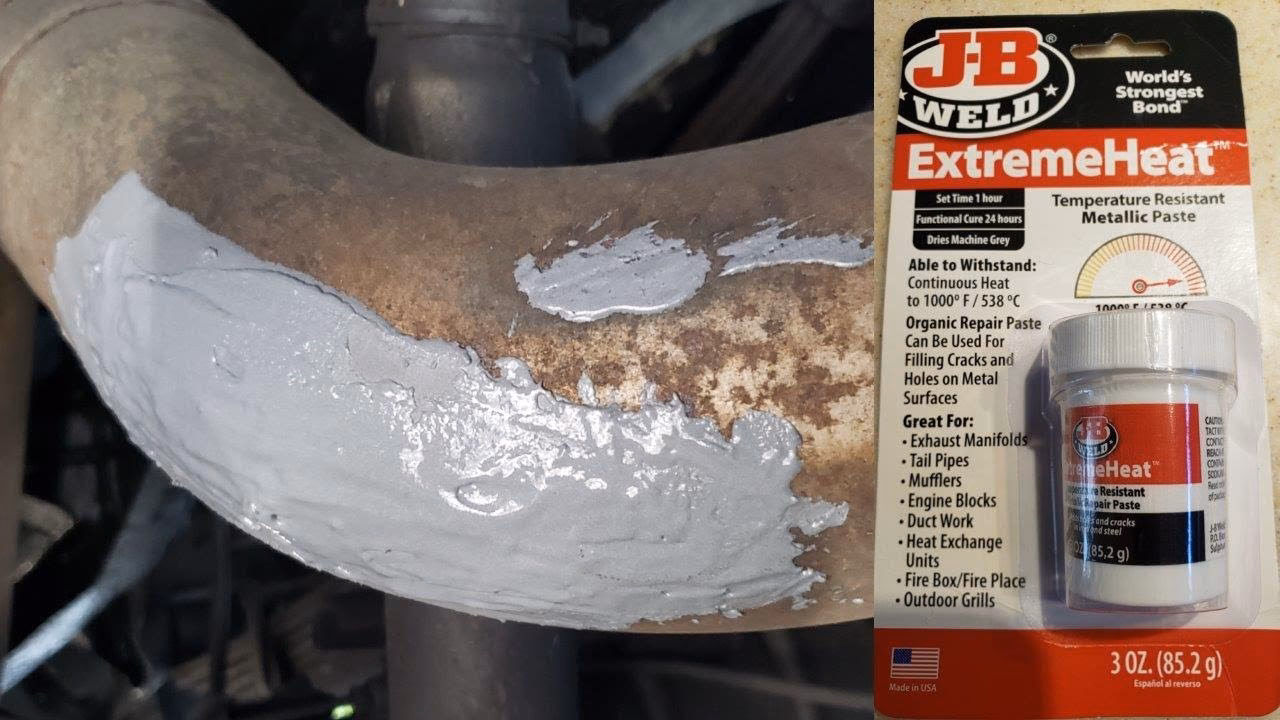

Method 1: Utilising High-Temperature Epoxy or Heat-Resistant Putty

High-temperature epoxy or heat-resistant putty is an excellent choice for sealing small to medium-sized exhaust leaks, especially pinholes or narrow cracks. Its ability to create a strong, rigid bond makes it quite effective.

1. Clean the Area Thoroughly: This step cannot be overstated. Before applying any patch or sealant, the area around the exhaust leak must be meticulously clean and free from grease, dirt, rust, and loose debris. Use your wire brush or sandpaper to aggressively remove all rust and flaking material. Then, use a degreaser or brake cleaner to wipe down the area, ensuring no oily residue remains. A clean surface is paramount for proper adhesion.
2. Mix and Apply the Epoxy/Putty: If you're using a two-part epoxy, mix the components precisely according to the manufacturer's instructions. This usually involves kneading them together until a uniform colour is achieved. For pre-mixed putty, simply open the container. Apply a generous amount of the epoxy or putty directly to the leak, ensuring it completely covers the damaged area and extends a bit onto the surrounding undamaged pipe for a secure overlap. Work the material into any cracks or holes to fill them completely.
3. Curing Time is Crucial: Allow the epoxy or putty to cure for the recommended time, which is typically 24 hours. Some products may require heat from the engine to fully harden, while others cure at ambient temperatures. Read the product instructions carefully. A strong, heat-resistant bond depends on proper curing. Avoid driving the vehicle or exposing the repair to significant vibrations during this period.

Method 2: The Convenience of Exhaust Repair Tape

Exhaust repair tape is specifically designed for sealing exhaust leaks and is a convenient and effective solution, particularly for minor cracks or small holes. It's often a quicker fix, though sometimes less durable than epoxy for larger issues.

1. Prepare the Surface: Just like with epoxy, clean the area around the leak thoroughly with a wire brush or sandpaper to remove rust and debris. Wipe it down with a degreaser to ensure it's free of any contaminants.
2. Wrap the Tape Tightly: Ensure the exhaust system is completely cool to avoid burns. Unroll the exhaust repair tape and wrap it tightly around the damaged area. Start a few inches before the leak and wrap beyond it, ensuring significant overlap on itself and the undamaged pipe. Apply multiple layers, pulling the tape taut with each pass to create a secure, airtight seal. The tension helps activate the adhesive and ensures a snug fit.
3. Secure (If Necessary): Some tapes are self-adhesive and self-curing. For others, or for added peace of mind, you might want to use a metal clamp (such as a band clamp) over the wrapped tape to hold it firmly in place, especially on larger sections or if the tape feels less secure.
4. Heat Activation: Most exhaust tapes require the heat from the exhaust system to fully cure and harden. After application, run the engine for 10-20 minutes, allowing the exhaust to heat up and activate the tape's sealing properties. You might notice some smoke or a slight smell during this initial heating phase; this is usually normal as the resins cure.

Method 3: The Hybrid Approach - Combining Epoxy/Putty with Exhaust Tape

For a more robust and longer-lasting DIY repair, especially for slightly larger or awkwardly shaped leaks, combining high-temperature epoxy/putty with exhaust repair tape offers the best of both worlds – the filling capability of putty and the structural reinforcement of tape.

1. Clean and Prepare: As always, meticulously clean the area around the leak using a wire brush/sandpaper and degreaser.
2. Apply Epoxy/Putty: Apply the high-temperature epoxy or putty directly into and around the leak, ensuring it fills the gap completely and creates a smooth, sealed surface. Don't let it fully cure yet; you want it slightly pliable for the next step.
3. Wrap with Exhaust Tape: While the epoxy/putty is still tacky, immediately wrap the exhaust repair tape tightly over the freshly applied sealant. The tape will help hold the putty in place and provide an additional layer of heat-resistant reinforcement. Apply multiple layers, ensuring good overlap.
4. Cure and Heat Activate: Allow the combined repair to cure as per the epoxy's instructions, followed by heat activation from the engine to fully harden the tape. This multi-layered approach provides a stronger, more resilient seal against heat and vibrations.

Method 4: Reinforcing with Sheet Metal and Clamps for Larger Damage

For larger or more severe exhaust leaks, particularly long cracks or bigger holes, simply using tape or putty might not be enough. Reinforcing the repair with a piece of sheet metal provides significant mechanical strength and a more durable patch.

1. Prepare the Area: Clean the damaged section of the exhaust pipe thoroughly, removing all rust, dirt, and grease.
2. Cut and Shape Sheet Metal: Measure the damaged area and cut a piece of galvanised or stainless steel sheet metal that is slightly larger, allowing for a good overlap (at least 2-3 cm on all sides). If the pipe is curved, you may need to gently bend or shape the sheet metal to conform to the contour of the pipe.
3. Apply Sealant and Position Metal: Apply a generous layer of high-temperature epoxy or heat-resistant putty to the damaged area on the exhaust pipe. Then, firmly press the cut piece of sheet metal over the sealant, ensuring it covers the entire leak and the surrounding area.
4. Secure with Clamps: Immediately use one or more U-bolt clamps or band clamps to secure the sheet metal tightly in place. The clamps provide the necessary pressure to hold the sheet metal against the pipe while the epoxy cures, and they offer long-term mechanical support against vibrations and movement. Tighten the clamps securely but avoid overtightening, which could deform the pipe.
5. Curing: Allow the epoxy to cure fully as per the manufacturer's instructions. This method offers a more robust and potentially longer-lasting repair for significant damage.

Testing Your Handiwork: Checking the Repair

Once your chosen repair method is complete and has had ample time to cure, it's essential to test its effectiveness. This step ensures your safety and confirms that the leak has been successfully sealed.

1. Visual Inspection: Before starting the engine, visually inspect the repaired area. Ensure the sealant has hardened, the tape is securely wrapped, or the sheet metal patch is firmly clamped.
2. Initial Startup: Start your vehicle in a well-ventilated area. Listen carefully for any remaining unusual noises – the telltale hiss or pop of an exhaust leak.
3. Smell Test: Pay close attention to the smell of exhaust fumes, both inside and outside the vehicle. There should be no lingering odour if the repair is successful.
4. Soap and Water Re-test: For absolute certainty, repeat the soap and water test on the repaired area. With the engine running (and still cool enough to safely touch the pipe), spray the soapy water over the patch. The absence of bubbles indicates a successful seal.
5. Road Test: If all checks are positive, take your vehicle for a short drive. Listen for any noises under acceleration or deceleration, and continue to monitor for any exhaust smells.

If the repair is successful, your vehicle should sound and smell normal, and you'll notice an improvement in its overall performance and potentially fuel efficiency. However, if you still detect a leak, you may need to re-evaluate the repair, add more material, or consider a different method.

Comparative Overview of DIY Exhaust Repair Methods

Here's a quick comparison of the DIY methods discussed, to help you choose the best approach for your specific exhaust leak:

When to Call in the Professionals: Knowing Your Limits

While these DIY methods can be remarkably effective for minor to moderate exhaust leaks, it’s important to acknowledge their limitations. They are often best viewed as temporary or short-term solutions, particularly for more extensive damage or critical components. If you encounter any of the following, it’s best to consult a professional mechanic:

• Large Holes or Extensive Cracks: If the damage is significant, a DIY patch may not hold up to the pressure, heat, and vibrations of the exhaust system.
• Structural Damage: If the exhaust pipe itself is severely corroded, bent, or broken, a surface repair won't address the underlying structural integrity issue.
• Leaks Near Critical Components: Leaks near the engine manifold, catalytic converter, or oxygen sensors require precise repairs to ensure proper engine function and emissions control. DIY fixes in these areas can often do more harm than good.
• Recurring Leaks: If you find yourself repeatedly patching the same area, it's a sign that the underlying material is too compromised for a DIY fix, or there's a larger systemic issue at play.
• MOT Failure: A significant exhaust leak will almost certainly lead to an MOT failure in the UK. If your DIY repair doesn't pass muster, professional welding or replacement will be necessary.

A professional mechanic has access to specialised welding equipment and the expertise to provide a permanent, durable repair, or advise on the replacement of components if necessary. They can also diagnose any underlying issues that might be contributing to the leaks, such as worn hangers or excessive engine vibration.

Frequently Asked Questions About Exhaust Leaks and DIY Repairs

Here are some common questions vehicle owners in the UK have about exhaust leaks and their DIY repair options:

Is an exhaust leak dangerous?

Yes, an exhaust leak can be dangerous. The primary concern is carbon monoxide (CO) gas, which is a byproduct of combustion. CO is colourless and odourless, and if it enters the vehicle's cabin, it can cause dizziness, nausea, unconsciousness, and even be fatal. It also poses a risk to the environment due to increased emissions.

How long do DIY exhaust repairs typically last?

The longevity of a DIY repair varies greatly depending on the size and location of the leak, the materials used, the quality of the application, and the driving conditions. Minor repairs with high-quality epoxy and tape might last anywhere from a few months to over a year. Repairs involving sheet metal and clamps tend to be more durable. However, none are considered permanent solutions like professional welding.

Can I drive with an exhaust leak?

Driving with an exhaust leak is not recommended. Beyond the safety risk of carbon monoxide, it can lead to reduced fuel efficiency, decreased engine performance, and excessive noise, which could attract attention from authorities. It will also likely cause your vehicle to fail its MOT test.

Will a DIY exhaust repair pass an MOT?

A DIY exhaust repair *might* pass an MOT if it effectively seals the leak, is structurally sound, and doesn't show signs of leakage (e.g., escaping gas or excessive noise). However, MOT inspectors are trained to spot poor or temporary repairs. A professional, welded repair or component replacement is always the safest bet for passing the MOT.

What causes exhaust leaks in the first place?

Exhaust leaks are commonly caused by corrosion due to exposure to road salt, moisture, and extreme temperature changes. Vibrations from the engine and rough roads can also cause stress cracks or loosen joints. Impact damage from speed bumps or potholes can also directly cause holes or breaks in the system.

Can I use normal duct tape or household glues for an exhaust leak?

Absolutely not. Standard tapes and glues are not designed to withstand the extreme heat generated by an exhaust system. They will quickly melt, burn, or simply fail, providing no effective seal and potentially creating a fire hazard. Always use products specifically rated for high-temperature automotive applications.

Conclusion

Fixing an exhaust leak without welding is certainly possible with the right tools, materials, and a bit of patience. These DIY methods offer practical, cost-effective solutions for minor to moderate leaks, buying you time or even providing a surprisingly durable fix. However, it's crucial to understand that they may not be a long-term solution for more extensive damage or structural issues. Regular maintenance, including periodic visual inspections of your exhaust system, and early detection of any issues can help prevent leaks from becoming severe problems. Ultimately, ensuring a safe, quiet, and efficient vehicle exhaust system is paramount for both your peace of mind and compliance with UK road regulations.
