Brake Actuated LSD: Your Car's Hidden Hero

In the relentless pursuit of enhanced vehicle safety and performance, automotive technology continues to evolve at an astonishing pace. Among the many ingenious solutions developed for vehicle dynamic control, the Brake Actuated Limited Slip Differential, often abbreviated as BALSD, stands out as a clever and increasingly prevalent system found in modern automobiles. But what exactly is it, and how does it contribute to a safer, more controlled driving experience? This article delves into the intricacies of BALSD, exploring its operational principles, its numerous advantages, and how it differs from other, more traditional forms of limited slip differentials.

Understanding the BALSD: How It Works

At its core, the Brake Actuated Limited Slip Differential is not a mechanical differential in the traditional sense, but rather a sophisticated electronic system that leverages a vehicle's existing brake infrastructure to emulate the behaviour of a limited slip differential. Its primary function is to manage traction efficiently, especially when one or more wheels lose grip on challenging surfaces such as wet roads, mud, snow, or even loose gravel.

The magic happens through the vehicle's electronic control system, typically the Electronic Stability Control (ESC) or Traction Control System (TCS). When sensors detect that a particular wheel has begun to slip – rotating significantly faster than the others, indicating a loss of traction – the BALSD system intelligently intervenes. It automatically applies a precise amount of brake force to that specific slipping wheel. By braking the spinning wheel, the system effectively creates resistance, making it harder for that wheel to turn. This resistance causes the open differential (which is still present in the vehicle) to redirect engine power to the wheel on the same axle that has better grip. The result is a redistribution of power to the wheels that can actually utilise it, significantly enhancing the vehicle's overall traction and stability without the need for complex, heavy mechanical components.

Key Technical Advantages of BALSD

The widespread adoption of BALSD in contemporary vehicles isn't by chance; it offers several compelling advantages, particularly for mainstream passenger cars and SUVs:

Cost-Effectiveness

One of the most significant benefits of BALSD is its economic viability. Unlike mechanical limited slip differentials, which require additional complex gear sets, clutch packs, or specialised components, BALSD utilises hardware that is already present in most modern vehicles: the brake system and the electronic control units (ECUs) responsible for ESC and TCS. This eliminates the need for expensive dedicated mechanical parts, leading to lower manufacturing costs for carmakers and, consequently, more affordable vehicles for consumers.

Simplified Maintenance

Fewer dedicated mechanical parts inherently mean a simpler system with fewer points of failure. BALSD systems, by relying on existing electronic and hydraulic brake components, typically exhibit lower maintenance requirements and reduced likelihood of mechanical wear and tear associated with traditional LSDs, such as clutch plate degradation or gear wear. This can translate into lower long-term ownership costs and greater reliability.

Rapid and Precise Response

Because BALSD operates through electronic control and the vehicle's braking system, its response time to wheel slip is virtually instantaneous. The ECUs can detect slip and apply corrective brake force within milliseconds, far quicker than many mechanical systems can react. This rapid intervention is crucial for maintaining vehicle control, especially in sudden loss-of-traction scenarios, enhancing both safety and driving confidence.

Enhanced Safety and Control

On slippery, uneven, or challenging road conditions, BALSD plays a vital role in preventing vehicle loss of control. By effectively managing wheel slip and ensuring power is delivered to the wheels with grip, it significantly improves the vehicle's ability to accelerate, climb, and maintain directional stability. This proactive management of torque distribution helps drivers navigate hazardous situations with greater confidence, reducing the risk of skids or uncontrolled spins.

BALSD vs. Other Limited Slip Differentials

While BALSD offers a clever and cost-effective solution, it's important to understand how it stacks up against other types of limited slip differentials. Each design has its own unique characteristics, strengths, and weaknesses.

Torsen Limited Slip Differential (Torsen LSD)

The Torsen (Torque-Sensing) LSD is a purely mechanical system that uses an intricate arrangement of worm gears and helical gears. It's renowned for its progressive and smooth torque transfer, as it biases power to the wheel with more traction even before slip occurs. Torsen differentials are torque-sensitive, meaning the more input torque applied, the harder the internal gears bind, increasing the limited slip effect. They require no electronic control and are highly durable, making them popular in high-performance cars and serious off-road vehicles. However, they can be more expensive to manufacture and are less effective if one wheel completely loses traction (e.g., becomes airborne), as they need some resistance to work.

Clutch-Type Limited Slip Differential

This type of LSD employs friction plates or clutches to limit the speed difference between the output shafts. When a speed difference occurs, the clutches engage, transferring torque to the wheel with more grip. Clutch-type LSDs offer a strong and tunable limited slip effect, making them a favourite for racing and high-performance applications where precise control over the locking action is desired. They can be configured as 1-way (locks on acceleration only), 1.5-way (locks more on acceleration than deceleration), or 2-way (locks equally on acceleration and deceleration). The main drawback is that the friction plates wear out over time, necessitating regular maintenance and replacement.

Cone-Type Limited Slip Differential

Similar in principle to the clutch-type, the cone-type LSD uses cone-shaped gears that are pressed together to create friction and limit slip. They are often more compact than clutch-type units, making them suitable for vehicles with limited space. While effective, their limited slip effect is generally not as strong or as tunable as that of Torsen or clutch-type LSDs, and like clutch-types, they are subject to wear.

Viscous Limited Slip Differential (VLSD)

A simpler mechanical design, the viscous LSD relies on the hydrodynamic friction of a high-viscosity silicone fluid. It contains a stack of interleaved, perforated discs, half connected to one output shaft and half to the other. When a speed difference occurs, the fluid heats up and thickens, causing the discs to 'drag' against each other, transferring torque. VLSDs offer a soft, progressive engagement but can overheat under sustained slip, leading to a temporary or even permanent loss of their limited slip effect. They are typically sealed units and are not serviceable, meaning the entire unit must be replaced if it fails.

Electronically Controlled Limited Slip Differential (eLSD)

Representing a more advanced solution, an eLSD typically combines a mechanical differential (often an open or planetary gear set) with an electronically controlled clutch pack. Unlike BALSD, which uses the brakes, an eLSD directly controls the torque split within the differential itself. A dedicated ECU monitors various vehicle sensors (wheel speed, steering angle, throttle position, etc.) and actively engages or disengages the clutch pack to precisely control the amount of lock-up. This offers superior flexibility and performance compared to passive mechanical LSDs, allowing the system to distinguish between a wheel spinning due to slip and one turning faster in a corner. It can apply lock-up exactly when and where needed, optimising both traction and handling. However, eLSDs are significantly more complex and expensive.

Torque Vectoring Differential

Often confused with eLSD, a torque vectoring differential is the pinnacle of differential technology. While an eLSD primarily biases torque from a faster-spinning wheel to a slower one by limiting slip, a torque vectoring differential can actively distribute torque to each wheel independently, even providing more torque to the *outside* wheel in a turn to help rotate the vehicle. This is achieved through additional gear sets and actuators (clutches or motors) that can overdrive or underdrive individual wheels. It offers unparalleled control over vehicle dynamics, enhancing agility and reducing understeer, but comes with significant complexity, weight, and cost.

Comparative Overview of Differentials

To better illustrate the differences, here's a comparative table:

Applications of BALSD

The Brake Actuated Limited Slip Differential is predominantly found in modern passenger cars, SUVs, and some light-duty four-wheel-drive systems. Its design ethos is centred around enhancing daily driving safety and stability, rather than extreme performance. It proves particularly effective in typical city traffic, general complex road conditions, and during adverse weather, significantly improving vehicle traction and preventing loss of control due to wheel slippage. For the average motorist, BALSD provides a noticeable improvement in confidence and control on less-than-ideal surfaces, making everyday commutes safer and less stressful.

The Real-World Driving Experience with BALSD

From a driver's perspective, a BALSD system is often seamlessly integrated, working in the background without explicit input. When no lock-up is needed, it allows for complete uncoupling and independence between the wheels, behaving like an open differential. When slip is detected, it provides an infinitely variable and adjustable bias by judiciously applying the brakes.

However, it's crucial to understand the inherent trade-offs. While effective for general road use, BALSD has limitations, particularly in high-performance or sustained low-traction scenarios. The primary downside is that it achieves its effect by converting engine power into heat via the brakes. If one wheel is constantly slipping and the system is continuously braking it, this leads to:

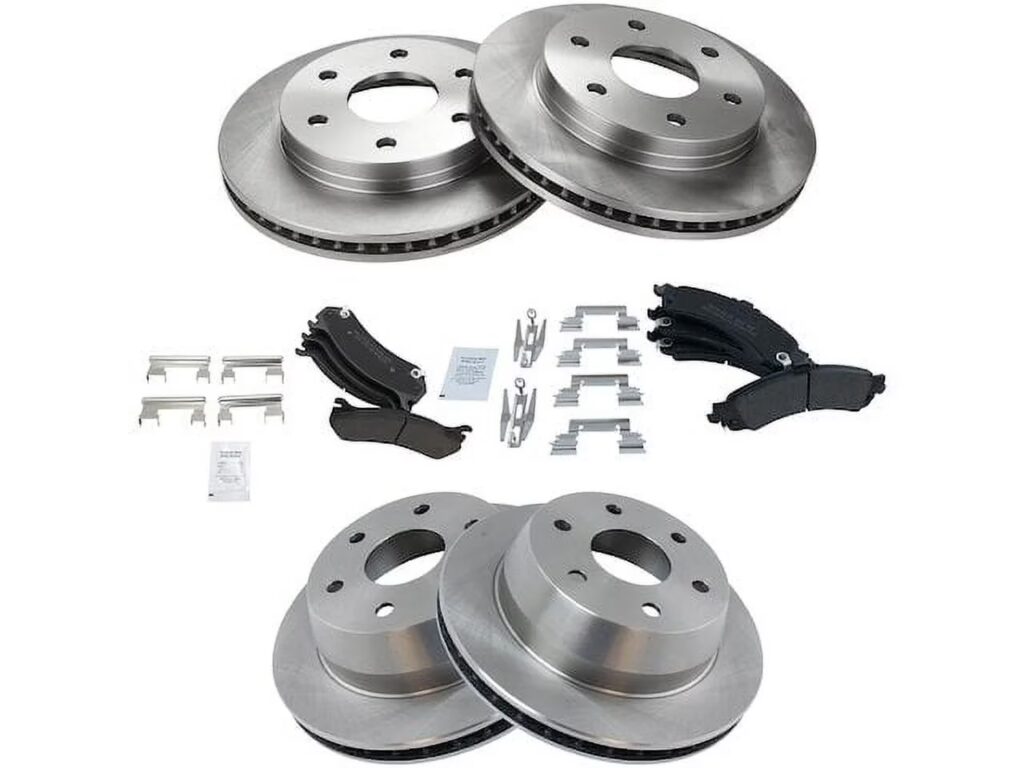

• Accelerated Brake Wear: The brake pads and discs on the slipping wheel will experience increased friction and wear, potentially requiring more frequent replacement.
• Heat Build-up: Sustained braking can lead to significant heat build-up in the brake system, which can cause brake fade (reduced braking effectiveness) and potentially damage components.
• Power Loss: The act of braking a spinning wheel effectively wastes some of the engine's power. Instead of all power being delivered to the road, a portion is dissipated as heat. For instance, if a mechanical LSD can achieve a certain torque bias by sending, say, 277 lb-ft to the outside wheel and 103 lb-ft to the inside, a BALSD aiming for the same effective bias might need to apply 87 lb-ft of braking force to the inside wheel. This 87 lb-ft of braking effectively turns useful engine power into heat, meaning less power is ultimately used for propulsion. In extreme cases, this could translate to a significant reduction in available horsepower for acceleration, as much as 75 hp at peak torque in some high-power examples, though such a severe and sustained loss is rare in typical driving.

While high-end cars like McLarens utilise brake-based torque vectoring systems effectively, they do so because they already possess immense braking thermal capacity, ample cooling airflow, and braking power. For the typical consumer car, a continuously working BALSD can quickly overwhelm the standard braking system's capacity, leading to the issues mentioned above. Therefore, while good for occasional interventions, it's not ideal for track use or prolonged extreme off-roading where mechanical or electronic LSDs shine.

Frequently Asked Questions (FAQs)

Is a Brake Actuated LSD a 'true' limited slip differential?

Technically, no. A traditional mechanical limited slip differential uses internal gears or clutches to physically limit the speed difference between the wheels. A BALSD is an electronic system that uses the vehicle's brakes to *simulate* the effect of a limited slip differential, working in conjunction with an open differential.

Does BALSD increase brake wear?

Yes, if the system is frequently activated due to driving on slippery surfaces or aggressive driving, it will increase the wear on your brake pads and discs on the wheels that are being braked. However, for most everyday driving, this impact is minimal.

Can I add a BALSD to my car if it doesn't have one?

BALSD is an integrated electronic system that requires specific software and hardware (like wheel speed sensors and a sophisticated ECU) that are usually factory-fitted. It's generally not a practical or cost-effective aftermarket upgrade for vehicles not originally equipped with it.

How does BALSD differ from Traction Control (TCS)?

Traction Control (TCS) primarily aims to prevent wheel spin during acceleration by reducing engine power or briefly applying brakes to the spinning wheel. BALSD, while often part of the same electronic system, focuses on redistributing torque *after* slip is detected to ensure that the wheel with grip receives power, thereby enhancing forward momentum and stability.

Is BALSD suitable for off-road driving or racing?

While BALSD can offer some benefit in light off-road conditions or occasional spirited driving, it's not designed for sustained, high-stress scenarios like serious off-roading or track racing. The heat generated and power lost through continuous brake application would quickly become a limiting factor. Dedicated mechanical or electronic limited slip differentials are far more suitable for such demanding applications.

Conclusion

The Brake Actuated Limited Slip Differential represents a smart, efficient, and cost-effective approach to enhancing vehicle traction and stability. By cleverly repurposing existing brake and electronic control systems, it provides a significant safety and performance boost for the majority of modern road users. While it may not offer the brute force or ultimate tunability of its mechanical or high-end electronic counterparts, BALSD perfectly balances technological sophistication with everyday practicality. It is a testament to how automotive engineers continue to innovate, making our journeys safer and more controlled, one wheel at a time.
