Precision Motorcycle Wheel Alignment Guide

Ever found your motorcycle feeling less like a precise extension of your will and more like a wayward boat on a choppy sea? That unnerving sensation of the front tucking in a corner, or the bike drifting wide, can transform a joyous ride into a heart-pounding ordeal. It’s a scenario many riders unfortunately encounter, often attributing it to road conditions or a new tyre, only to discover the root cause lies much closer to home: improper wheel alignment.

Achieving perfect wheel alignment is not merely about optimising performance; it's fundamentally about your safety. A motorcycle, by its very nature, relies on the harmonious interaction of its two wheels for stability and control. When either the front or rear wheel is out of sync, the consequences can range from accelerated tyre wear and chain degradation to dangerously unpredictable handling characteristics. This guide will walk you through the essential steps to ensure your motorcycle tracks true, enhancing both your confidence and your enjoyment on the road.

The Crucial Role of Wheel Alignment

Wheel alignment on a motorcycle refers to the precise positioning of both the front and rear wheels in relation to the bike's frame. Ideally, both wheels should be perfectly in line with each other and the centreline of the chassis. When they aren't, a myriad of issues can arise, significantly impacting the bike's dynamics. Imagine trying to run in a straight line with one foot pointing slightly outwards – you'd quickly find yourself veering off course. The same principle applies to your motorcycle.

Incorrect alignment places undue stress on various components, including the tyres, chain, sprockets, and even the suspension. Uneven tyre wear is one of the most visible symptoms, often manifesting as a 'cupped' or 'feathered' pattern on one side. More critically, poor alignment severely compromises the bike's handling. Cornering becomes less predictable, the bike might feel unstable at speed, or it could develop a tendency to pull to one side. These issues not only detract from the riding experience but also pose significant risks, particularly in emergency manoeuvres or high-speed situations. Ensuring your wheels are perfectly aligned is a cornerstone of responsible motorcycle maintenance.

Understanding Rear Spindle Alignment on Motorcycles

The rear spindle, or axle, is the shaft that passes through the rear wheel hub, securing it to the swinging arm. Its correct positioning within the swinging arm dropouts is paramount for maintaining chain tension and, more importantly, ensuring the rear wheel is aligned with the front. Many motorcycles utilise a chain drive, and the rear wheel's position directly influences the chain's path between the front and rear sprockets. If the wheel isn't aligned, the chain will run at an angle, leading to excessive wear on both the chain and sprockets, reducing their lifespan considerably.

However, the primary concern for rider confidence and precision handling is the bike's ability to track straight and corner predictably. A misaligned rear wheel will effectively cause the bike to 'crab' down the road, with the rear wheel not following directly behind the front. This can lead to the unsettling feeling of the bike wanting to 'fall' into corners or drift wide, as experienced by many riders. The design of rear chain alignment plates, which are often used to assist in this process, can sometimes be imprecise or prone to shifting if not properly secured. This highlights the importance of not relying solely on manufacturer markings but employing a reliable, measurable method for alignment.

Step-by-Step: Aligning Your Rear Wheel Spindle

Proper rear wheel alignment requires patience, a keen eye, and the right tools. Here’s a detailed approach to getting it right:

1. Preparation is Key: Begin by placing your motorcycle on a suitable stand, such as a paddock stand, so the rear wheel is off the ground and can spin freely. Gather your tools: a good quality metre rule or a long, accurate straight edge, appropriate spanners or sockets for your axle nut and chain adjuster nuts, and crucially, a torque wrench.
2. Loosen the Essentials: First, loosen the rear axle nut, which is typically quite large. You don't need to remove it, just loosen it enough so the wheel can move forward and backward. Next, loosen the lock nuts on both chain adjusters. These are usually smaller nuts located at the rear of the swinging arm, which prevent the adjuster bolts from moving.
3. Adjusting for Alignment: Now, using the adjuster bolts, carefully move the rear wheel until the chain has the correct amount of slack as specified in your motorcycle's service manual. This is usually measured as a certain amount of vertical play at the tightest point of the chain. This initial step ensures your chain tension is correct before focusing on alignment.
4. The Crucial Measurement: This is where the magic happens. The most accurate method involves measuring from the centre of the swinging arm pivot bolt (the bolt that connects the swinging arm to the frame) to the centre of the rear wheel spindle on both sides of the bike. Use your metre rule for this. Place one end of the rule against the centre of the swinging arm pivot and extend it to the centre of the rear wheel spindle. Take your measurement, then repeat on the other side.
5. Achieving Symmetry: Adjust the chain adjuster bolts in small, equal increments on each side until both measurements are identical. It’s a process of trial and error, moving one side slightly, then the other, re-measuring each time until perfect symmetry is achieved. This ensures the rear wheel is equidistant from the swinging arm pivot on both sides, thus aligning it correctly with the front wheel.
6. Gentle Tightening and Final Torque: Once you are satisfied that both measurements are identical and the chain tension is correct, gently tighten the rear axle nut. The key here is 'gently' – just enough to hold the wheel in place without allowing the alignment plates to twist or shift. This temporary tightening prevents the wheel from moving while you secure the adjusters. Next, torque the chain adjuster bolts to the manufacturer's specified setting. This is vital to prevent them from loosening during riding. Finally, torque the main rear axle nut to the precise specification found in your bike's service manual. This final torque setting is critical for the wheel's security and will often be a high value.
7. Double-Check: After everything is torqued down, perform one last measurement from the swinging arm pivot to the rear spindle on both sides to confirm that nothing shifted during the final tightening process. Also, re-check your chain tension.

Don't Forget the Front: Ensuring Overall Handling

While rear wheel alignment is critical, the front wheel's alignment with the fork legs is equally important for holistic handling. If you've ever removed your front wheel, its reinstallation needs careful attention to ensure the fork legs remain parallel and the wheel spins freely without binding. A misaligned front wheel can counteract all your efforts on the rear, leading to a bike that still feels unpredictable or heavy to steer.

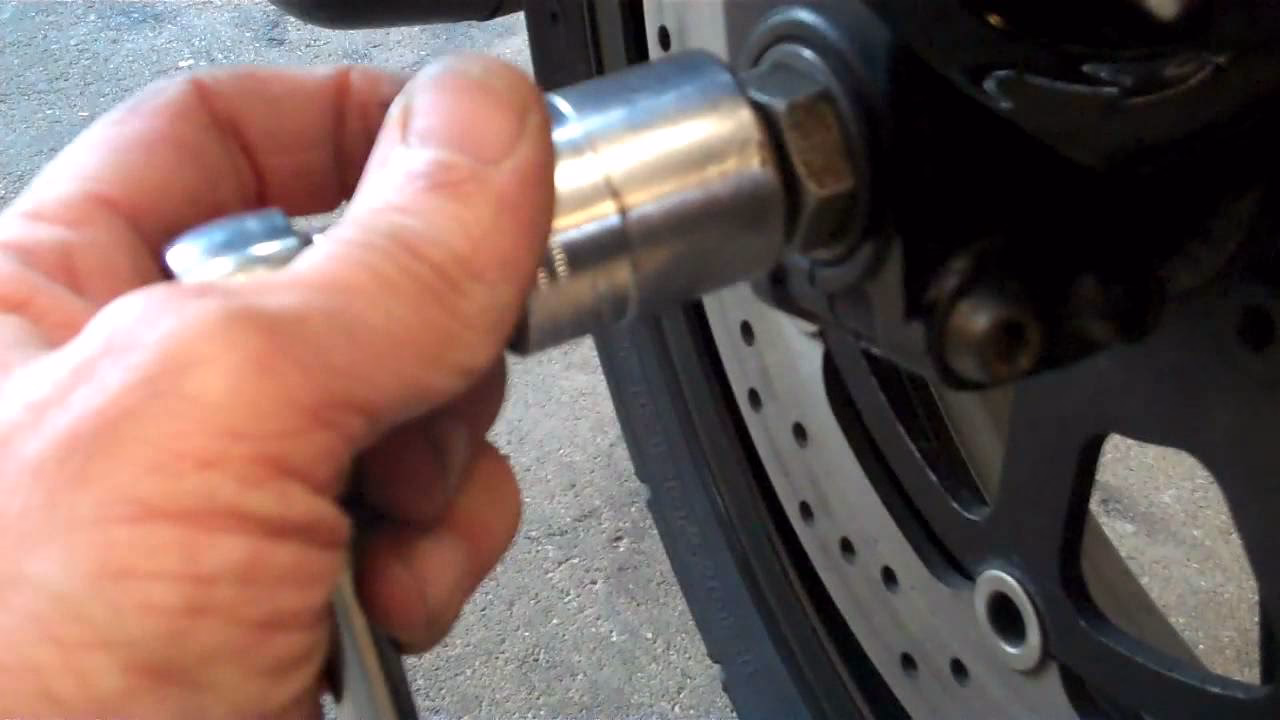

Here's a method to ensure proper front wheel alignment after reinstallation:

1. Prepare for Spindle Insertion: If you've removed your front brake caliper, it's a good practice to remove the brake pads from the caliper. This prevents accidental damage to the pads or pushing the pistons out if the brake lever is squeezed during the process.
2. Insert the Spindle: Carefully push the front spindle through the wheel hub and into the fork leg on the non-caliper side.
3. Align the Slot: Many front spindles have a slot or a flat section on one end. It's crucial to align this slot vertically (or as specified by your manufacturer) as you push the spindle through. This ensures the fork legs can 'float' and align themselves correctly later.
4. Initial Tightening: Once the spindle is through, lightly tighten the two pinch bolts on the fork leg side that has the slot. Do not fully torque them yet.
5. Compress the Forks: This is a vital step for aligning the fork legs. Place a chock or a small brick under the front wheel to support it. Then, while holding the front brake lever, push down firmly and repeatedly on the handlebars, compressing the front suspension several times. This action allows the fork legs to settle into their natural, parallel alignment around the spindle.
6. Final Tightening: While the suspension is slightly compressed or after releasing it, fully tighten the two pinch bolts on the nut side of the spindle first. Then, tighten the two pinch bolts on the slot end side that you initially tightened. Finally, install and torque the main front spindle nut to the manufacturer's specification.
7. Reinstall Brake Pads: If you removed them, reinsert your brake pads and ensure your brake lever feels firm before riding.

This meticulous process ensures that your fork legs are aligned, preventing binding and ensuring your front wheel is perfectly positioned for optimal steering and stability.

The Importance of Tyre Pressure and Condition

Even with perfectly aligned wheels, neglecting your tyres can severely undermine your bike's handling and safety. Tyre pressure is often overlooked but is arguably the single most impactful factor on a motorcycle's behaviour. As experienced by many, running tyre pressures that are 'way too high' (e.g., 37 psi when 30/33 psi is recommended) can lead to a reduced contact patch with the road, making the bike feel skittish, nervous in corners, and prone to losing grip. Conversely, under-inflated tyres can cause sluggish steering, excessive heat build-up, and rapid, uneven wear.

Always check your tyre pressure before every ride, or at least weekly, using an accurate gauge. Refer to your motorcycle's manual or the sticker on the swinging arm for the manufacturer's recommended pressures for both solo and two-up riding. These figures are carefully chosen to balance grip, comfort, and tyre longevity. Furthermore, regularly inspect your tyres for any signs of uneven wear, cracks, bulges, or embedded objects. Uneven wear patterns can be a strong indicator of underlying alignment issues or suspension problems, prompting further investigation. A fresh, properly inflated tyre provides the foundation for confident riding.

Common Pitfalls and How to Avoid Them

Even with the best intentions, mistakes can happen during alignment. Being aware of common pitfalls can save you time, frustration, and potential safety risks:

• Relying Solely on Alignment Marks: Many bikes have small hash marks on the swinging arm near the adjusters. While these offer a quick visual reference, they are notoriously inaccurate and should not be relied upon for precise alignment. Always use the measuring method described above.
• Not Torquing Adjusters and Axle Nuts: As learned the hard way, chain adjusters can loosen if not properly torqued, causing the wheel to shift out of alignment. The axle nut too must be torqued to specification to prevent the wheel from coming loose – a catastrophic failure. Always use a torque wrench for these critical fasteners.
• Inconsistent Measuring: Ensure your measuring tool (metre rule, straight edge) is truly straight and that you are measuring from the exact same points on both sides, consistently. Slight variations can lead to significant misalignment.
• Ignoring Front Wheel Alignment: Focusing only on the rear wheel misses half the picture. The entire system needs to be in harmony.
• Incorrect Chain Tension: Perform chain tension adjustment *before* final alignment. A chain that is too tight or too loose will negatively affect handling and component lifespan, regardless of wheel alignment.
• Rushing the Process: Precision requires patience. Don't rush through the steps. Take your time, double-check your measurements, and re-check torque settings.

Beyond Alignment: A Holistic Approach to Handling

While meticulous wheel alignment is a critical step towards superior motorcycle handling, it's part of a larger ecosystem. If your bike still doesn't feel 'right' after ensuring perfect alignment and tyre pressures, consider other factors. These might include worn steering head bearings, which can cause vague steering or a 'notchy' feel; suspension settings that are ill-suited to your weight or riding style; or even a bent frame or swinging arm from a previous incident. Addressing these elements systematically, often with the help of a qualified mechanic, can help you unlock the true potential and responsiveness your motorcycle is designed to deliver.

Frequently Asked Questions

Q: How often should I check my motorcycle's wheel alignment?
A: It's advisable to check your wheel alignment every time you perform routine chain maintenance, after any tyre changes, or if you notice any unusual handling characteristics. A quick check with a metre rule can become part of your regular pre-ride routine, especially if you ride frequently or aggressively.

Q: What tools do I absolutely need for accurate rear wheel alignment?
A: At minimum, you'll need a reliable metre rule or a long, accurate straight edge, appropriate spanners or sockets for your axle nut and chain adjuster nuts, and a high-quality torque wrench. A paddock stand or centre stand is also essential to lift the rear wheel off the ground.

Q: Can incorrect wheel alignment really cause rapid or uneven tyre wear?
A: Absolutely. When a wheel is misaligned, the tyre is constantly being dragged sideways, even if only by a tiny amount. This 'scrubbing' action leads to accelerated and often uneven wear patterns, significantly reducing the lifespan of your tyres and necessitating earlier, costly replacements.

Q: Is front wheel alignment as important as rear wheel alignment for overall handling?
A: Yes, both are equally critical. While rear wheel alignment ensures the bike tracks straight and power is efficiently transferred, front wheel alignment (specifically fork alignment) ensures precise steering, smooth suspension operation, and prevents unnecessary stress on the front wheel bearings and seals. A problem with either can compromise the entire riding experience.

Q: My chain adjusters seem to loosen on their own, even after I tighten them. What could be wrong?
A: If your chain adjusters are repeatedly coming loose, the primary suspect is insufficient torque. Ensure you are torquing them to the manufacturer's precise specification using a calibrated torque wrench. If the issue persists, inspect the adjuster bolts and nuts for worn threads, or the swinging arm dropouts for damage that might prevent them from seating correctly. In rare cases, a small amount of thread-locking compound might be used, but always consult your service manual first.
