Aircraft Fuel System Testing: A Comprehensive Guide

Ensuring the integrity and performance of a vehicle's fuel system is paramount, but nowhere is this more critical than in aviation. Amidst increasingly rigorous regulations and the inherent complexity of modern aircraft designs, fuel system testing has become an indispensable process to guarantee the reliability, endurance, and safety of aircraft. This guide will delve into how these vital tests are conducted, particularly focusing on the intricate processes involved in validating aircraft fuel systems, from individual components to the complete operational setup.

Understanding Aircraft Fuel System Testing Protocols

Due to the inherently complicated nature of aircraft fuel systems, testing must always be performed in-situ, utilising comprehensive test protocols that meticulously simulate all internal and external forces acting on the system. This isn't merely about checking for leaks; it's about predicting performance under real-world conditions.

Industry-leading experts and specialised laboratories employ innovative techniques to reproduce and precisely control virtually any condition an aircraft might experience during normal operation. This includes challenging scenarios such as fuel icing and extreme hot fuel testing. Throughout these demanding tests, specialists monitor and report on any unusual effects, ensuring that every nuance of the system's behaviour is understood and accounted for. This flexibility and scale allow for testing on both individual components and complete fuel systems, catering to virtually any programme's requirements.

A common approach involves performing fuel system testing while units are operational. This is achieved by conditioning high-pressure air, oil, or fuel to temperature extremes, all while scrupulously maintaining precise flow and pressure conditions. Powerful 400HP drives and sophisticated gearboxes are often utilised to interface directly with the main pumps of the fuel system, allowing for accurate simulation of the demands placed upon them. Advanced data acquisition and control systems are employed to simulate all phases of flight operation, including Takeoff, Cruise, Descent, and Landing. This rigorous simulation provides results under genuine conditions, enabling accurate predictions about a product’s behaviour and capabilities in the field, fostering immense confidence in the system's resilience.

Key Components of an Aircraft Fuel System and Their Testing Implications

A deep understanding of each fuel system component is crucial for effective testing. Each part plays a vital role, and its proper function is directly linked to the overall safety and efficiency of the aircraft.

Fuel Lines: The Lifelines of the System

Fuel lines are critical conduits, and their design and installation are paramount. For many four-cylinder Lycoming engine installations, 3/8-inch diameter fuel lines are standard, with larger powerplants sometimes requiring half-inch lines, especially for gravity-fed systems. Most are made of 5052-0 aluminium tubing with a 0.035-inch wall thickness, valued for its light weight, strength, and professional appearance. While it doesn't hand-bend easily, a tube bender works effectively for bends up to 180˚. Softer 3003-0 aluminium tubing is easier to bend but harder to straighten, making neat runs challenging.

Proper connections are vital. A bead should be made in the tubing with a beading tool to prevent hoses from slipping off. Aviation-specific AN fittings, which require a 37˚ flare (unlike automotive 45˚ flares), are standard. Swagelok fittings offer an alternative, providing ease of use without flares, though they are often more expensive and heavier. All aluminium fuel lines should be secured with cushioned Adel clamps to prevent chafing and vibration damage.

Protection from heat and fire is non-negotiable. Any fuel line forward of the firewall must be covered with Aeroquip Firesleeve or an equivalent. This primary protection also helps reduce the likelihood of vapor lock. Fuel-line penetrations through the firewall should always be made with robust steel bulkhead fittings. Fuel lines must be routed as far as possible from exhaust pipes and mufflers, maintaining an absolute minimum clearance of 1½ inches. Slack for engine movement is essential, and for 3/8-inch lines, the maximum recommended unsupported length is 16 inches. Flexible fuel lines, made from hoses like Aeroquip, are also common and require similar fire protection.

Before use, all fuel lines must be scrupulously cleaned out. This seemingly simple step is critical for a safe first flight, preventing debris from entering the engine. Testing ensures that the lines are correctly sized, securely installed, adequately protected, and free from obstructions or potential leak points under various pressures and temperatures.

Fuel Pumps: Ensuring Consistent Flow

The type and configuration of fuel pumps vary depending on the aircraft and engine. For high-wing, carburetted engines, a standard engine-driven fuel pump (4-6 psi) is often sufficient, sometimes even eliminated on smaller engines. However, low-wing aircraft typically require both an engine-driven pump and an auxiliary (boost) pump. If carburetted, a low-pressure auxiliary pump complements the engine-driven unit. For fuel-injected engines, pump requirements are dictated by the specific injection system, often demanding much higher pressures (e.g., 25 psi or more for Precision Airmotive systems), and thus more robust and costly pumps.

A critical consideration for auxiliary pumps is their ability to "free-flow" when shut off. Some popular pumps, like certain Facet models, are designed to allow fuel to pass through when inactive, which is essential for a backup pump should the primary fail. If a non-free-flowing pump is used as a backup, a bypass line with a check valve becomes necessary to ensure continuous fuel supply. Modern systems, like some from Andair, integrate boost pumps, fuel filters, and pressure-relief valves into simplified, weight-saving assemblies.

Testing of fuel pumps involves verifying their pressure output, flow rates, and crucial characteristics like free-flow capabilities under simulated failure conditions to ensure redundancy and reliable fuel delivery.

Fuel Injection: Precision and Performance

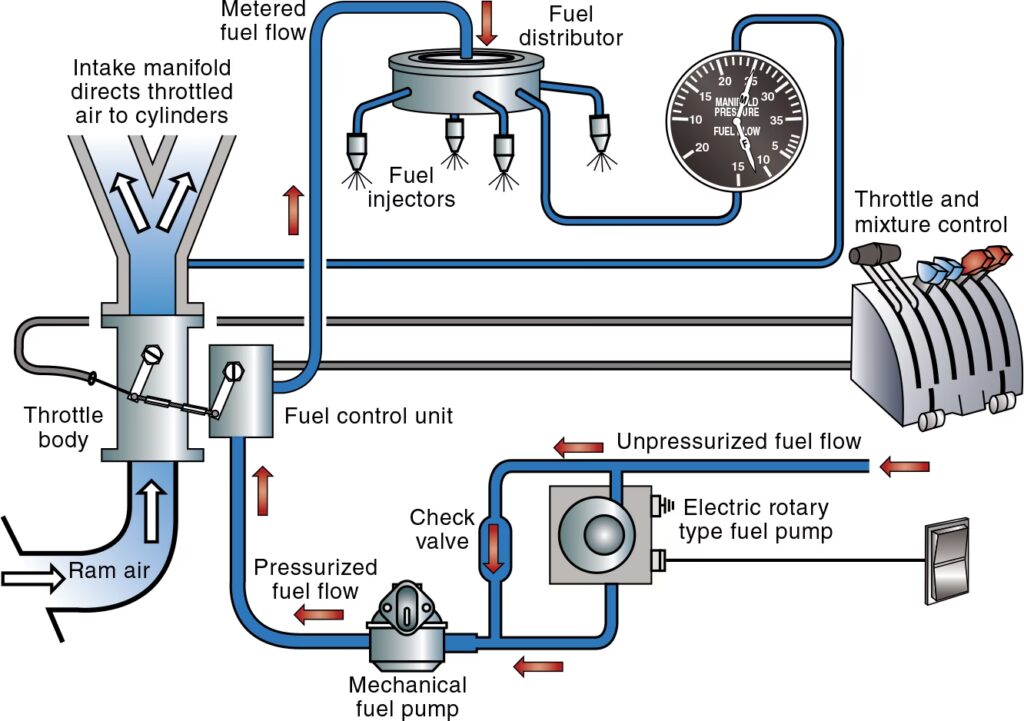

For homebuilders, three basic types of fuel injection exist: mechanical-port systems (e.g., Precision Airmotive, Airflow Performance), electronic-port fuel injection (e.g., Rotax 912 iS, Aerosance), and throttle-body systems (e.g., Rotec, Ellison). Mechanical-port systems are the most common. Fuel-injected engines require higher pressure fuel pumps and different setups than carburetted engines.

Fuel injection offers distinct advantages over carburetors: the ability to closely control fuel flow to each cylinder, leading to greater fuel efficiency. While carburetors are simple, they rely on central mixture distribution, which can result in uneven fuel distribution and varying exhaust-gas temperatures (EGTs) across cylinders, leading to wasted fuel. Fuel injection minimises this, allowing for more precise leaning and significantly better fuel economy, often saving a gallon or more per hour.

Furthermore, fuel injection is essential for aerobatic manoeuvres, particularly inverted flight, as carburetors do not function well upside down. Testing these systems focuses on verifying the precise fuel delivery, robust performance under high pressures, and consistent operation across all engine demands and attitudes.

Gascolators, Filters, and Valves: Safeguarding Fuel Purity and Control

The gascolator serves as the final fuel strainer and drain before fuel reaches the engine-driven pump. It should be mounted low on the engine side of the firewall with an easily accessible drain extending outside the fuselage for pre-flight checks. The Andair gascolator is a widely respected standard in the industry.

Many builders add an automotive-type inline fuel filter for extra security. Fuel injection systems require a special filter, usually installed with the high-pressure boost pump. It's often better to install the fuel filter inside the cabin, away from engine heat and fire risks, ensuring it's well-secured and accessible for maintenance.

The fuel system should have a single, easily accessible fuel valve for pilot control in flight. Multiple or hard-to-reach valves can lead to confusion and accidents. While a simple on/off valve is common, many prefer right/left/both/off valves for fuel balancing. Andair offers a range of valves, including those for simultaneously switching feed and return lines for fuel-injection systems.

Testing in these areas ensures effective filtration, proper drainage of contaminants, and reliable, intuitive control of fuel flow through the valve system.

Primers and Sniffle Valves: Aiding Starting and Preventing Hazards

Primers are essential for starting cold engines, especially in colder climates. Manual priming is for carburetted engines, while fuel-injection systems typically handle priming automatically. Primers can be manual (e.g., old Essex type, ACS pump) or electric. Primer nozzles are typically installed in cylinders 1, 2, and 4 on four-cylinder engines, with lines usually made of stainless steel or 1/8-inch aluminium tubing, ensuring a flexible connection to the pump.

A sniffle valve is a crucial component for fuel-injected engines with a horizontal intake system. This simple check valve, located at the bottom of the engine, allows excess fuel that might pool in the intake tract to escape safely overboard. Without it, pooled fuel can make the engine hard to start and poses a backfire ignition risk. Testing ensures these components function correctly to aid starting and prevent potential fire hazards.

FADEC: The Future of Engine Control

Full Authority Digital Engine Control (FADEC) systems promise single-lever engine control, electronically managing fuel injection, ignition, and propeller pitch in one unit. While not yet widespread for experimental aircraft, systems like those from Lycoming for their TEO-540 engine represent the cutting edge. Precision Airmotive also has systems managing fuel injection and ignition, indicating a ripe area for future development. Testing of FADEC systems involves validating the complex interplay of these integrated controls.

The Crucial Fuel-Flow Test for Experimental Aircraft

Once a fuel system is complete, a rigorous fuel-flow test is mandatory. This has long been a requirement for Experimental airplane builders (refer to AC 90-89A), and for good reason.

Preparation and Procedure

The ultimate test involves checking the flow of the actual system in the airplane itself. Begin by putting a minimal amount of fuel in the main tanks, perhaps two gallons per tank. The aircraft must then be lifted into a 15˚ nose-up position. This requires significant care and several helpers to ensure stability, often utilising an engine hoist for lift and supports under the main wheels. Once positioned, the fuel line is removed from the inlet to the carburetor or fuel-injection servo, and the amount of fuel flowing out in precisely one minute is measured.

Calculating Flow Rates

From the measured ounces per minute, a flow rate per hour can be calculated. The formula is straightforward: multiply the ounces of fuel drained in one minute by 60 to find ounces per hour, then divide by 128 to get gallons per hour (or simply multiply your ounces in one minute by 0.47).

The calculated flow rate must meet specific safety margins. It should be 1.5 times the full-power fuel flow of your engine. Engine manufacturers' literature provides the precise full-power fuel flow, but a quick estimate can be made by taking the rated horsepower and dividing it by 12 (the result being in gallons per hour, gph). For example, a 180-horsepower O-360 engine typically uses about 15 gph at maximum power. Therefore, the fuel system feeding it must deliver at least 1.5 times that, or 22.5 gph minimum. In the 1-minute test, this translates to draining at least 48 ounces of gasoline.

For high-wing aircraft with carburetors, gravity typically provides the fuel pressure or acts as a secondary source if the engine-driven pump fails. If you have a low-wing airplane or any aircraft with fuel injection, you can use a safety factor of 1.25 instead of 1.5, but crucially, you will need both a primary and a backup fuel pump to ensure consistent fuel pressure.

Testing Under Various Attitudes

The fuel-flow test must be run under specific conditions depending on the aircraft type. For high-wing aircraft, the test should be conducted with the engine off and fuel flowing freely through an inactive pump. For low-wing designs or those with fuel injection, only the auxiliary fuel pump should be used to achieve the required flow during the test. It's also vital that during actual takeoff and landing, the auxiliary fuel pump remains on to guarantee adequate fuel flow in these critical flight phases.

To ensure the aircraft will have fuel flow in all possible flight attitudes, it must be tested in the level, 15˚ nose-up, and 15˚ nose-down positions. Each configuration requires a separate measurement of both fuel flow and unusable fuel. Failing to do this can lead to surprising and dangerous discoveries, such as excessive unusable fuel in a nose-down attitude, which was a problem encountered and subsequently addressed with the original GlaStar design.

The results of these meticulous fuel-flow tests must be meticulously entered into your builder’s log. Your Designated Airworthiness Representative (DAR) will likely inquire about these results before signing off your aircraft and issuing an airworthiness certificate. Beyond regulatory compliance, this documentation provides invaluable insight into your aircraft's capabilities and limitations.

Why Comprehensive Fuel System Testing is Indispensable

The rigorous testing of aircraft fuel systems is not merely a formality; it is a fundamental pillar of aviation safety. It provides the confidence that products and processes are sound, ensuring reliability and endurance under all operational conditions. By simulating real-world scenarios, these tests allow for accurate predictions of a product's behaviour and capabilities in the field, preventing costly failures and, more importantly, saving lives. Accidents, especially during initial flights or the critical Phase I flight-test period for experimental aircraft, are often linked to fuel system issues, underscoring the vital importance of these thorough evaluations.

Comparative Overview: Carburetor vs. Fuel Injection

Frequently Asked Questions (FAQs) About Aircraft Fuel System Testing

To further clarify common queries, here are some frequently asked questions regarding aircraft fuel system testing:

Q: Why is simplicity often recommended for aircraft fuel systems?

A: Complexity and reliability seldom go hand in hand, especially in critical aircraft systems. Simple designs reduce the number of potential failure points, such as excessive fittings and bends, thereby enhancing overall system reliability and ease of maintenance.

Q: What are the critical considerations for fuel line installation?

A: Key considerations include using the correct diameter (e.g., 3/8-inch or 1/2-inch), employing aviation-specific AN fittings with a 37˚ flare, protecting lines from heat and fire with firesleeve, maintaining adequate clearance from exhaust components (minimum 1½ inches), and securing them with cushioned Adel clamps while allowing for engine movement. Lines must also be meticulously cleaned before operation.

Q: How does a fuel-flow test account for different aircraft attitudes?

A: The fuel-flow test is performed not only in a level position but also with the aircraft pitched 15˚ nose-up and 15˚ nose-down. This is crucial because fuel flow and the amount of unusable fuel can vary significantly depending on the aircraft's attitude, which could lead to fuel starvation in specific flight conditions if not properly tested and accounted for.

Q: Why is it important for an auxiliary fuel pump to "free-flow" when off?

A: If the primary engine-driven fuel pump were to fail, the auxiliary pump acts as a crucial backup. If this auxiliary pump did not allow fuel to flow freely when it is off, it would create a blockage in the fuel line, preventing fuel from reaching the engine even if the primary pump failed, leading to engine fuel starvation. A free-flowing pump ensures continuous supply.

Q: What is a sniffle valve and why is it needed for some engines?

A: A sniffle valve is a simple check valve installed on fuel-injected engines with horizontal (forward- or rear-facing) intake systems. Its purpose is to allow any excess fuel that might pool in the intake tract to escape safely overboard. Without it, pooled fuel can make the engine hard to start and, more dangerously, can ignite in the event of a backfire, posing a fire risk.

Conclusion

Installing and meticulously testing an aircraft's fuel system to reliably and safely provide fuel to the engine is arguably one of the most critical tasks undertaken during aircraft construction and maintenance. This process demands unwavering attention to detail, adherence to established protocols, and a thorough understanding of each component's role. By engaging in comprehensive testing, from simulating extreme environmental conditions to conducting precise fuel-flow tests across various aircraft attitudes, engineers and builders ensure the ultimate safety and operational integrity of the aircraft, providing peace of mind for every flight.
