Turbo Oil Feed Pipes: The Critical Link

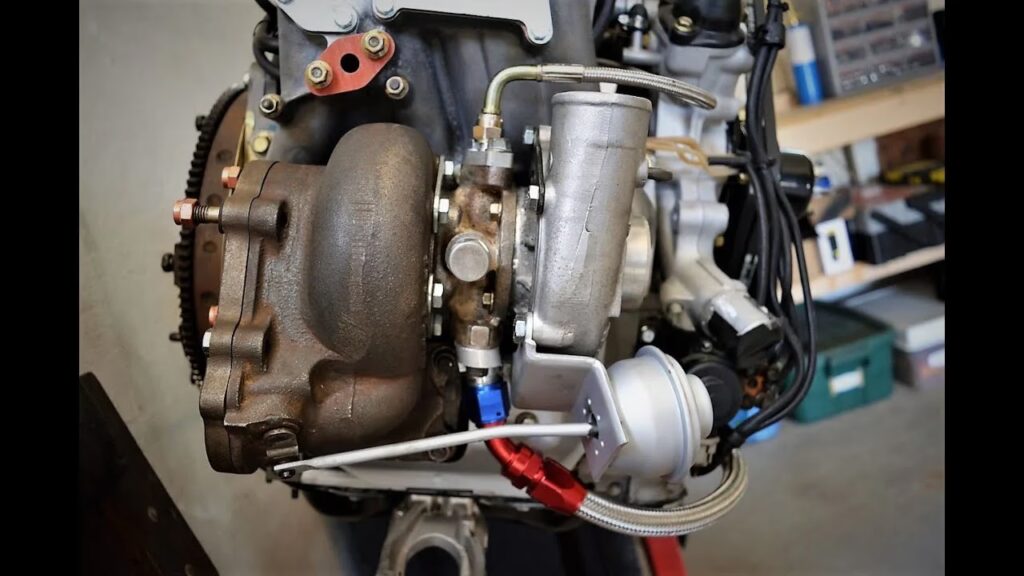

The Unsung Hero of Turbo Performance: Your Oil Feed Pipe

In the intricate world of automotive mechanics, certain components, while small and often overlooked, play an absolutely critical role in the overall health and performance of a vehicle. The turbocharger, a marvel of modern engineering that significantly boosts engine power and efficiency, is one such component. However, its impressive capabilities are entirely dependent on a consistent and clean supply of engine oil. This vital lifeline is provided by the oil feed pipe. Often taken for granted, this humble pipe is the unsung hero that ensures your turbocharger receives the lubrication and cooling it needs to operate at its peak, especially in today's high-performance, downsized engines. But what happens when this crucial link fails? This article delves into the reasons behind oil feed pipe failures, what signs to look out for, and why replacing it is an essential, and surprisingly cost-effective, part of any turbocharger service.

Understanding the Turbocharger's Demands

Modern turbochargers are engineering powerhouses, capable of spinning at astonishing speeds – often exceeding 300,000 revolutions per minute. At these speeds, the air being drawn into the engine can approach Mach 1. Simultaneously, the turbocharger can endure temperatures nearing 1,000°C. Under such extreme conditions, the demands placed on the lubricating oil are immense. Oil not only provides a microscopic film of lubrication between the turbo's rapidly moving and highly stressed parts but also plays a crucial role in dissipating the intense heat generated. A consistent flow of clean, quality oil is therefore not just beneficial; it's an absolute necessity for the turbocharger's survival. Even the smallest contaminants – dirt, soot, fuel, or water – can find their way into the oil and, subsequently, into the feed pipe. If this pipe becomes even partially blocked, the turbocharger can be starved of essential lubrication and cooling, leading to rapid wear, damage, and potentially catastrophic failure in a matter of seconds. It's often said that running a turbo without oil for just five seconds can be as damaging as running an engine without oil for five minutes, highlighting the critical importance of the oil feed pipe's integrity.

Why Do Oil Feed Pipes Fail? The Common Culprits

The very location of the oil feed pipe, nestled within the often-hostile environment of the engine bay, makes it particularly susceptible to a range of issues that can compromise its function. Understanding these failure points is key to preventative maintenance:

• Material Wear: Over time, the relentless cycle of high temperatures from the engine can degrade the materials used in the feed pipe, particularly rubber components. This breakdown weakens the pipe and can lead to future problems.
• Carbon Deposits: The extreme temperatures can cause carbonised oil to build up on the inner walls of the pipe. These deposits act like a partial blockage, restricting the flow of vital oil to the turbocharger.
• Contamination: Even minuscule particles of dirt, soot, unburnt fuel, water, or abrasive materials can enter the oil system. These contaminants can collect within the feed pipe, significantly restricting oil flow.
• Kinked Lines: Flexible oil lines are especially vulnerable during installation or maintenance. If they are twisted or bent, it can create an internal restriction, leading to increased oil pressure and potential leaks at either end of the turbocharger.
• Worn O-rings: Many feed pipes utilise O-rings to create a seal at their mounting points. Over time, these O-rings can dry out, become brittle, and lose their elasticity, resulting in oil seepage or leaks.
• Damaged Connectors: The connectors that attach the feed pipe to the turbocharger and the engine block are delicate. During removal and refitting, they can be inadvertently damaged, compromising the entire sealing system.

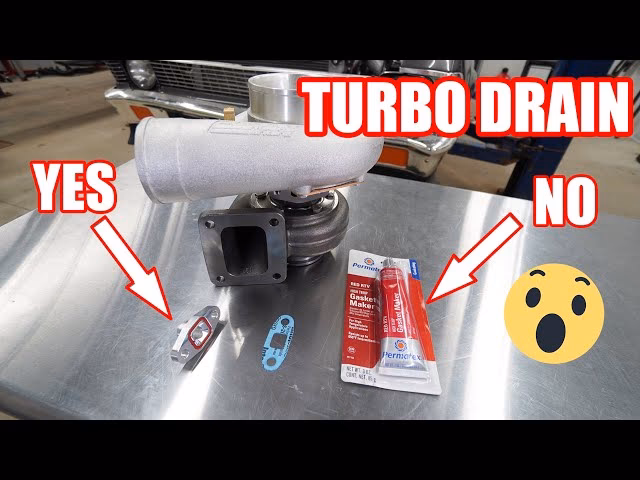

• Improper Sealant Use: While it should never be used in air or oil systems, the application of liquid sealant can have disastrous consequences. If it detaches, it can easily block oil passages, or harden and break off, entering the turbo's rotating assembly and causing severe damage.

Vehicles Prone to Oil Feed Pipe Issues

While any vehicle with a turbocharger can be susceptible, certain models are known to be more prone to oil feed pipe problems, particularly those with specific engine configurations. For instance, PSA 1.4 and 1.6L HDI engines are notorious for developing extensive carbon build-up within the oil system. In these cases, it is imperative that technicians not only replace the oil feed pipe but also thoroughly check, clean, and flush the entire oil circuit, along with replacing the engine oil and oil filter. Other applications that warrant particular attention include:

• Ford Transit / Land Rover 2.2, 2.4, 2.5 LD
• Vauxhall Astra, Meriva, Insignia, Zafira (A14 NEL/NET engines)
• Saab 9-3, 9-5 (2.0 and 2.3 Turbo engines)
• Audi A4 (1.8T engines)
• VW Passat (1.8T engines)

Spotting the Signs: What to Look Out For

Given the critical role of the oil feed pipe, regular inspection is highly recommended. Catching potential problems early can significantly minimise the risk of damage to your turbocharger and, indeed, your entire engine. Here are the key indicators of a faulty oil feed pipe:

• Cracked Rubber: This is often one of the most visible signs of a failing pipe. Prolonged exposure to engine bay heat can cause the rubber to crack. If left unaddressed, these cracks will worsen, leading to more significant issues, including oil leaks.
• Bulging Spots: Look for any areas on the hose that appear swollen or bulged. This is typically a result of excessive internal pressure and heat, indicating that the pipe material is weakening. Eventually, these bulges can tear, causing a substantial oil leak.
• Oil Leaks: The most obvious sign is the presence of oil puddles underneath your vehicle. Even small, seemingly insignificant oil leaks from the feed pipe can lead to a restricted oil supply and, consequently, premature and catastrophic failure of the turbocharger.

When Should an Oil Feed Pipe Be Replaced? The Golden Rule

If you or your mechanic identify any of the issues mentioned above – cracked rubber, bulging, or oil leaks – the oil feed pipe is almost certainly faulty and requires immediate replacement. However, the most prudent approach, and a practice strongly recommended by turbo remanufacturers like Carwood, is to always fit a new oil feed pipe whenever a turbocharger is replaced or refitted. Even a momentary restriction or leak in the oil supply can inflict severe damage on a turbocharger, potentially leading to engine damage as well. While fitting a new pipe might seem like an additional expense, it is a small price to pay compared to the significant cost of replacing a damaged turbocharger, not to mention the valuable time and potential for further engine damage saved. It’s a truly cost-effective measure that ensures the longevity and reliability of the repair.

Best Practice Installation Tips for Oil Feed Pipes

To ensure a successful turbocharger service and the optimal performance of the new oil feed pipe, adherence to proper installation procedures is paramount:

• Keep it Protected: Store the new oil feed pipe in its protective packaging until the moment of installation to prevent any accidental contamination or damage.
• Pre-lubricate: Before fitting, apply a small amount of clean engine oil to the turbocharger's oil inlet. This crucial step protects the turbo's internal components and prevents it from running dry during the initial start-up.
• Use New Fittings: Always use new copper washers and appropriate screws or bolts. Reusing old ones can compromise the seal and lead to leaks.
• Secure Properly: Utilise any provided intermediate supports or fasteners to prevent the pipe from vibrating or fatiguing. Ensure the pipe is positioned correctly, referencing the old pipe if necessary.
• Handle with Care: Never bend the oil feed pipe beyond its designed flexibility, and avoid using excessive force during installation. For pipes with O-rings in mobile connectors, such as those found on PSA 1.4 and 1.6L HDI engines, any undue force can damage the O-ring and compromise the seal.
• Correct Torque: Ensure the pipe is tightened to the manufacturer's specified torque settings at both connection points. Over-tightening can damage the fittings, while under-tightening can lead to leaks.

Frequently Asked Questions

Q1: Can I reuse my old oil feed pipe when fitting a new turbo?
While it might be tempting to save money, it is strongly advised against. The risk of the old pipe being compromised by heat, contamination, or minor damage is high, and failure can lead to rapid damage to the new turbo. It's a false economy.

Q2: How often should I inspect my oil feed pipe?
It's good practice to inspect the oil feed pipe whenever you check your engine oil or perform other routine maintenance. Look for any visible signs of damage, such as cracking, bulging, or oil leaks.

Q3: What are the consequences of a blocked oil feed pipe?
A blocked oil feed pipe starves the turbocharger of essential lubrication and cooling. This leads to rapid wear of the turbo's bearings and other internal components, resulting in reduced performance, noise, and ultimately, complete turbo failure.

Q4: Is it always necessary to replace the oil feed pipe with the turbo?
Yes, it is considered a best practice and is highly recommended by turbo specialists. The oil feed pipe is a relatively inexpensive component that plays a critical role. Replacing it with every turbo job significantly reduces the risk of premature failure of the new turbo due to oil starvation.

Q5: What is the role of the O-rings in the oil feed pipe?
The O-rings are designed to create a perfect seal between the feed pipe and the turbocharger or engine block. This prevents any oil from leaking out at the connection points and ensures that the oil is directed solely into the turbocharger.

Conclusion: A Small Part, A Big Impact

The oil feed pipe might be a small component in the grand scheme of your vehicle's engine, but its role in the health and longevity of your turbocharger is monumental. Its susceptibility to heat, contamination, and installation-related damage makes it a common point of failure. By understanding why these pipes fail, knowing what signs to look for, and adopting the best practice of replacing the oil feed pipe with every turbocharger service, you are making a crucial investment in the reliability and performance of your vehicle. It’s a simple, cost-effective step that safeguards against potentially devastating and expensive turbocharger failure, ensuring your engine continues to perform at its best.
