Gearbox Oil: Lifetime Fill or Regular Service?

There's a persistent rumour circulating in the automotive world, a whisper that gearbox oil is a 'lifetime fill' and never needs changing. This notion suggests that unless you're topping it up due to a leak, you can simply forget about it for the entire lifespan of your vehicle's gearbox. It's a tempting thought, isn't it? One less maintenance chore to worry about. But is it true? Or is it a dangerous misconception that could lead to costly repairs down the line? Let's delve into the mechanics of your gearbox and uncover the truth about its vital lubricant.

Your car's gearbox, whether manual or automatic, is a complex piece of engineering designed to transfer power efficiently from the engine to the wheels. Inside, gears mesh, bearings spin, and shafts rotate, all under immense pressure and at high speeds. Without proper lubrication, this intricate dance of metal would quickly turn into a grinding, destructive mess. That's where gearbox oil comes in. It's not just a fluid; it's a hardworking component that performs several critical functions to ensure smooth operation and longevity.

Why Gearbox Oil is Crucial for Your Vehicle

Gearbox oil (or transmission fluid) is far more than just a slippery substance. It's engineered to withstand extreme conditions and perform multiple roles:

• Lubrication: Its primary role is to reduce friction between moving parts, preventing wear and tear on gears, bearings, and synchronisers. This smooths shifts and extends the life of internal components.
• Cooling: As components move, they generate heat. Gearbox oil absorbs and dissipates this heat, preventing overheating which can degrade seals and internal parts.
• Cleaning: Over time, microscopic metal particles and other contaminants can accumulate. The oil carries these away, often depositing them in a filter or holding them in suspension, preventing them from causing damage.
• Corrosion Protection: The oil contains additives that protect internal metal surfaces from rust and corrosion, especially important in environments with varying temperatures and humidity.
• Hydraulic Medium (Automatic Transmissions): In automatic gearboxes, the fluid also acts as a hydraulic medium, transmitting power and controlling clutch engagement.

The 'Lifetime Fill' Myth: Debunked

The concept of 'lifetime fill' often comes directly from vehicle manufacturers. While it sounds appealing, it's a term that requires careful interpretation. For many manufacturers, 'lifetime' might refer to the expected lifespan of the vehicle under warranty, or a definition that doesn't account for extreme driving conditions, extended ownership, or the gradual degradation of components. In reality, no fluid truly lasts forever without some form of degradation.

Over time, gearbox oil breaks down. This degradation is accelerated by:

• Heat: High operating temperatures, especially during heavy loads, towing, or stop-and-go traffic, can cause the oil to oxidise and lose its protective properties.
• Shear: The constant shearing action between meshing gears can break down the oil's molecular structure, reducing its viscosity and protective film strength. This phenomenon, known as shear stability, is critical for maintaining the oil's designed properties over time.
• Contamination: As components wear, tiny metal particles enter the oil. Moisture can also ingress, particularly in older seals, leading to sludge formation and reduced lubrication.
• Additives Depletion: The specialised additives in the oil, such as anti-wear agents and friction modifiers, are consumed over time as they perform their functions.

When gearbox oil degrades, it loses its ability to lubricate, cool, and protect effectively. This can lead to increased friction, excessive heat, hard gear shifts, whining noises, and ultimately, premature failure of expensive gearbox components. Therefore, for optimal performance and longevity, proactive maintenance, including checking and potentially changing your gearbox oil, is highly recommended.

When to Consider Changing Your Gearbox Oil

Unlike engine oil, which has well-defined service intervals (typically every 10,000 to 20,000 miles or annually), gearbox oil change intervals can vary wildly. Some manufacturers still recommend a 'lifetime fill', while others suggest intervals ranging from 60,000 to 100,000 miles, or even as low as 30,000 miles for vehicles under severe service conditions (e.g., heavy towing, racing, extreme climates). Always consult your vehicle's owner's manual for specific recommendations.

However, even if your manual suggests a 'lifetime fill', consider these factors:

• Driving Style: Aggressive driving, frequent short trips, or heavy traffic can put more stress on the gearbox.
• Vehicle Age & Mileage: Older vehicles with higher mileage are more prone to fluid degradation.
• Towing & Heavy Loads: These activities significantly increase gearbox temperatures.
• Unusual Symptoms: Any difficulty shifting, grinding noises, or a burning smell warrants an immediate check of the gearbox oil.

For most manual gearboxes, a fluid change every 60,000 to 80,000 miles or every 5-7 years is a sensible preventative maintenance measure, especially if you plan to keep the vehicle for an extended period.

Checking and Topping Up Manual Gearbox Oil: A Practical Guide

As you've rightly pointed out, checking and topping up your manual gearbox oil is a task that can be done yourself, though it requires a bit of dexterity. Here's a guide based on your insights and general best practices:

What You'll Need:

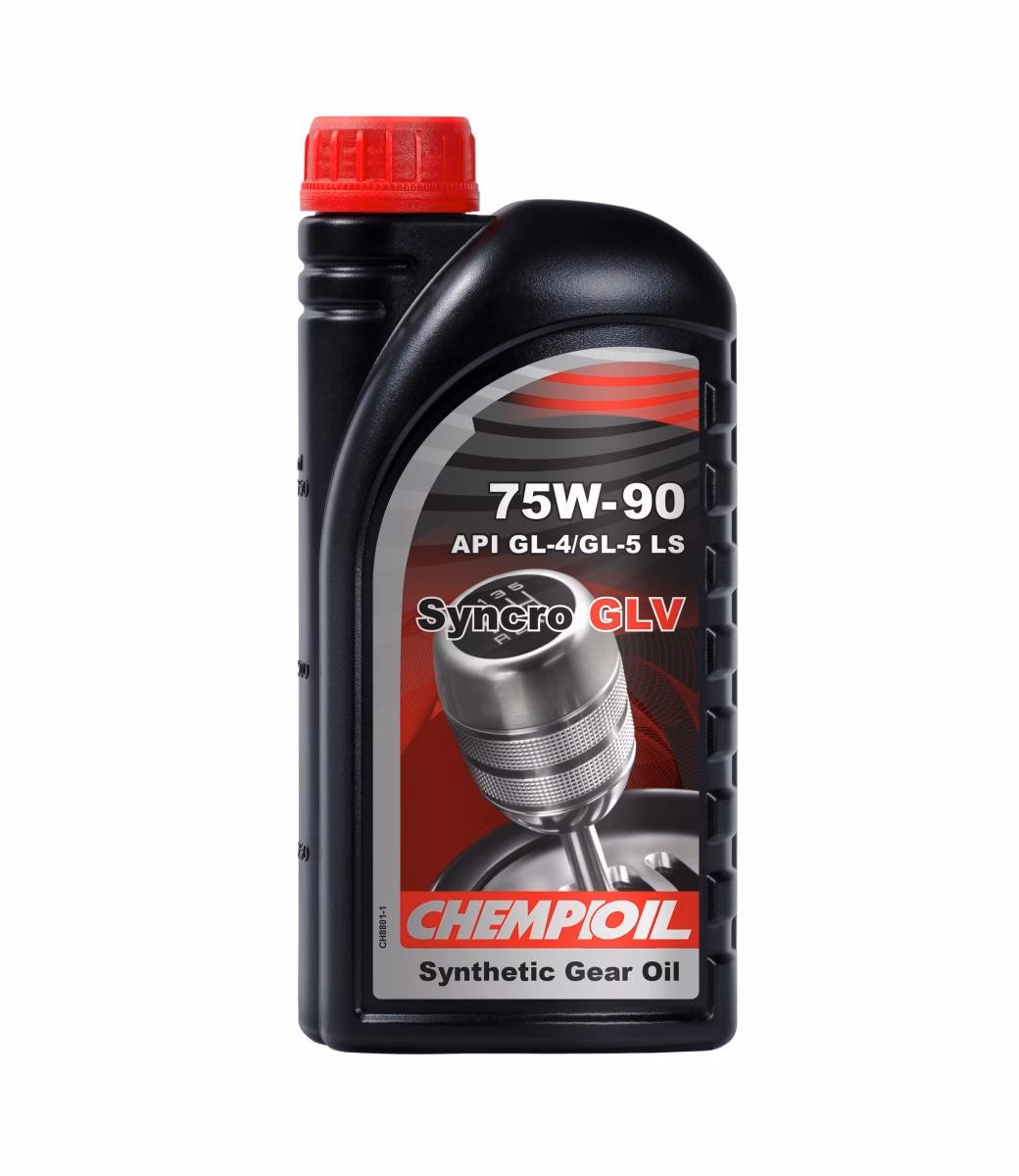

• New gearbox oil (e.g., VAG gear oil, ensuring it meets your vehicle's specific viscosity and specification requirements like GL-4 or GL-5).
• A syphon pump or fluid transfer pump (essential for awkward filling).
• Sump plug socket (you'll need to measure your drain plug to confirm the size, as it varies).
• A large drain pan.
• Gloves and safety glasses.
• Rags or shop towels.
• Torque wrench (for correct tightening of plugs).
• Jack stands and a jack (ensure vehicle is securely supported and level).
• A level surface for the vehicle.

Procedure:

1. Preparation & Safety: Park your car on a level surface. Engage the parking brake. Use a jack to lift the front of the vehicle and secure it firmly on jack stands. For this job, it's crucial the vehicle is as level as possible to get an accurate fluid level reading.
2. Access the Gearbox: You'll typically need to remove the belly pan (or undertray) first to gain full access to the gearbox. This usually involves removing several bolts or clips.
3. Locate the Filler and Drain Plugs: As you mentioned, there are two plugs to identify. The horizontal one is usually the filler plug, and the vertical one is the drain plug. In diagrams, these are often marked as 'No. 5' but their orientation is key.
4. Remove the Filler Plug FIRST: This is a crucial step! Always remove the filler plug before the drain plug. Why? Because if you drain the oil and then can't get the filler plug out (e.g., it's seized), you're stuck with an empty gearbox and a car that can't move.
5. Drain the Old Oil (Optional, for a full change): If you're doing a full oil change, place your drain pan beneath the drain plug. Carefully remove the drain plug and allow the old oil to completely drain out. This can take some time. Inspect the old oil for excessive metal shavings or a burnt smell, which can indicate internal issues.
6. Re-install the Drain Plug: Once drained, clean the drain plug and its sealing washer (replace the washer if it's a crush washer). Re-install the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten!
7. Refill the Gearbox: Using your syphon pump, begin to pump the new gearbox oil into the filler hole. For your specific gearbox, the capacity is approximately 2.3 litres according to Elsaweb.
8. Check the Level: As you fill, periodically check the level by sticking your finger into the filler hole. The correct level is typically when the oil is within 1cm of the lip of the hole, or when it just begins to trickle out. This 'trickle out' method ensures it's filled to the correct level for your gearbox's design.
9. Re-install the Filler Plug: Once the correct level is reached, clean and re-install the filler plug, tightening it to the specified torque.
10. Re-install Belly Pan & Lower Vehicle: Re-attach the belly pan. Carefully lower your vehicle off the jack stands.
11. Test Drive: Take your car for a short test drive to ensure everything feels normal and check for any leaks.

Gearbox Oil Specifications (General)

It's paramount to use the correct type of gearbox oil for your specific vehicle. Manual gearboxes often require gear oils classified by API (American Petroleum Institute) service categories such as GL-4 or GL-5, along with a specific viscosity grade (e.g., 75W-90, 80W-90). Using the wrong type can lead to poor shifting, excessive wear, or even damage to synchronisers, especially if GL-5 is used where GL-4 is specified due to different additive packages.

Always refer to your car's owner's manual or a reputable service manual for the exact oil specification and quantity required. Using 'VAG gear oil' as you mentioned is often the safest bet for Volkswagen Audi Group vehicles, as it's formulated to meet their precise requirements.

Automatic Gearbox Fluid: A Different Ball Game

While this article focuses on manual gearboxes, it's worth noting that automatic gearbox fluid (ATF) maintenance is even more critical and often more complex. ATFs are highly specialised fluids that not only lubricate but also act as a hydraulic medium for clutch engagement and torque conversion. They are exposed to even higher temperatures and stresses. Automatic transmissions often have internal filters that should be changed along with the fluid. The 'lifetime fill' myth is arguably even more prevalent and dangerous for automatics, and neglecting ATF changes can lead to very expensive transmission rebuilds or replacements. Many automatic gearbox fluid changes require specialist equipment for flushing and precise level setting.

Frequently Asked Questions About Gearbox Oil

Q: Can I mix different types of gearbox oil?

A: Absolutely not! Mixing different types or brands of gearbox oil, especially those with different specifications (e.g., GL-4 and GL-5), can lead to incompatibility issues, reduced performance, and potential damage to your gearbox. Always use the specific type and specification recommended by your vehicle manufacturer.

Q: What are the signs that my gearbox oil needs changing?

A: Common signs include difficulty shifting gears (especially when cold), grinding noises, a whining or humming sound from the gearbox, a burning smell, or visible leaks. If you notice any of these, check your fluid level and condition immediately.

Q: Is changing gearbox oil a DIY job or should I take it to a mechanic?

A: For manual gearboxes, checking and topping up is often a manageable DIY task for those with basic mechanical skills and the right tools. A full fluid change is also doable. However, if you're unsure, lack the correct tools (especially a torque wrench), or if your vehicle has a particularly complex access procedure, it's always best to consult a qualified mechanic. Automatic gearbox fluid changes are generally best left to professionals due to their complexity and specific equipment requirements.

Q: What happens if I never change my gearbox oil?

A: If you never change your gearbox oil, it will gradually degrade, losing its ability to lubricate, cool, and protect. This will lead to increased friction, excessive heat buildup, accelerated wear on internal components (gears, bearings, synchronisers), and eventually, premature gearbox failure. This can result in incredibly expensive repair or replacement costs, far outweighing the cost of regular fluid changes.

Q: How do I know if I need GL-4 or GL-5 oil?

A: Always consult your vehicle's owner's manual or a reputable service data source for the exact specification. Using GL-5 in a gearbox designed for GL-4 can be detrimental, especially to brass synchronisers, as the high level of extreme pressure additives in GL-5 can corrode them. Conversely, GL-4 might not provide sufficient protection for hypoid gears designed for GL-5.

In conclusion, the idea of 'lifetime fill' for gearbox oil is a convenient marketing term, but it doesn't align with the reality of fluid degradation and the stresses placed on your vehicle's drivetrain. Proactive maintenance, including checking and changing your gearbox oil at sensible intervals, is a small investment that can significantly extend the life of your gearbox, ensuring smooth shifts and avoiding potentially crippling repair bills. Don't fall for the myth; give your gearbox the care it deserves.
