Navigating the world of trailer axle lubrication can be a rather perplexing journey, particularly when it comes to oil bath systems. Many vehicle owners, especially those with heavier-duty trailers, find themselves grappling with the question of precisely what type of gear oil is best suited for their 9,000 lb oil bath axles. This guide aims to demystify the process, offering insights into fluid selection, potential pitfalls, and alternative solutions, drawing from real-world experiences to help you make an informed decision. We’ll delve into the specifics of oil bath systems and explore why some users have transitioned away from them.
Understanding Oil Bath Axles

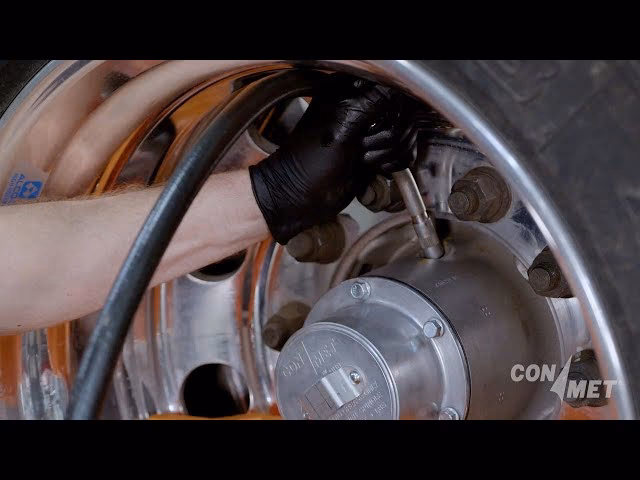

Oil bath axles, often found on heavier trailers, are designed to keep the bearings lubricated continuously by immersing them in a bath of gear oil. This system eliminates the need for regular greasing, as the oil circulates naturally. The key components involved are the axle spindle, the hub, the bearings (inner and outer), and the hub cap, which in oil bath systems, doubles as a reservoir for the lubricant. The hub seal plays a critical role in retaining the oil within the hub assembly.
What Gear Oil for a 9,000 lb Oil Bath Axle?
For a 9,000 lb oil bath axle, the general recommendation for gear oil is a synthetic 80W-90. This viscosity offers a good balance of lubrication and protection across a range of operating temperatures. Synthetic oils are often preferred due to their superior thermal stability and resistance to breakdown under heavy loads, which are common in trailer applications. However, it's crucial to consult your axle manufacturer's specific recommendations, as different brands and models may have slightly different requirements. Always check the owner's manual or the manufacturer's website for the most accurate fluid specifications.
When Oil Bath Systems Go Wrong: A Cautionary Tale
While the concept of an oil bath system seems appealing due to its low maintenance, experiences shared by trailer owners indicate that it's not without its challenges. One common issue, as highlighted by an owner who previously used synthetic 80W-90 in their 10,000 lb Alko axles, is the propensity for hub seal failures. In a two-month period, this individual experienced four failed hub seals, leading to a complete loss of lubricant and, critically, the loss of braking function. This is because when a seal fails, the oil can leak out, contaminating the brake shoes and drums, rendering them ineffective and potentially dangerous.
The ease of changing the fluid might be a draw, but the consequences of a seal failure can be severe. The loss of fluid not only compromises lubrication but also compromises the entire braking system. This experience led the user to abandon the oil bath system in favour of a high-quality grease, reporting a significant improvement in bearing temperatures – a consistent 10 degrees cooler. This suggests that for some applications, and perhaps with certain axle designs or seal types, a traditional greasing system might offer more reliability.
The Transition to Grease: A Viable Alternative?
The decision to switch from an oil bath system to a grease-based lubrication method is a significant one. The user in the provided anecdote found great success after rebuilding all their hubs with a high-quality lithium-based grease. This move resolved the persistent seal issues and resulted in cooler operating temperatures. This anecdotal evidence suggests that while oil bath systems are designed for continuous lubrication, the practicalities of maintaining the integrity of the hub seals can be a weak point.
When using grease, the process involves cleaning the bearings, hub, and spindle thoroughly, removing all traces of old grease or oil. Then, a high-quality marine-grade or heavy-duty wheel bearing grease is packed into the bearings and hub assembly. The key here is to use a grease that is formulated for high temperatures and heavy loads. The hub cap in a grease system is typically a simple cover, not a reservoir, and is designed to keep contaminants out.
Comparing Oil Bath vs. Grease Lubrication
To better understand the differences and potential advantages of each system, let's consider a comparative overview:
| Feature | Oil Bath System | Grease System |
|---|---|---|
| Lubricant Type | Gear Oil (e.g., Synthetic 80W-90) | Wheel Bearing Grease (e.g., Lithium Complex) |
| Lubrication Method | Continuous immersion and circulation | Manual application and packing |
| Maintenance Frequency | Less frequent fluid level checks, but critical seal integrity | Regular re-greasing, typically every 12,000 miles or annually |
| Seal Sensitivity | Highly susceptible to seal failure, leading to oil loss and brake contamination | Less prone to catastrophic failure from seal issues; leaks are usually more manageable |
| Operating Temperature | Can run cooler if seals are intact and oil is correct | Can run cooler with proper greasing and high-quality grease |
| Ease of Fluid Change | Requires draining and refilling, potentially messy | Requires disassembly and re-packing, can be messy but simpler to manage |
| Brake Contamination Risk | High if seals fail | Low if seals are intact; minor leaks are less likely to affect brakes significantly |
Common Pitfalls and Troubleshooting Oil Bath Axles
The primary concern with oil bath axles is the integrity of the hub seal. These seals are specifically designed to retain oil, and any damage or improper installation can lead to leaks. Factors contributing to seal failure can include:
- Age and Degradation: Rubber seals can harden and crack over time, especially when exposed to heat and constant contact with oil.
- Improper Installation: Nicks or tears during installation, or incorrect seating, can compromise the seal's effectiveness.
- Contamination: Grit or debris on the spindle or seal surface during installation can cause premature wear.
- Overfilling: While less common with oil bath systems, excessive pressure within the hub could potentially stress the seal.
- Axle Wobble or Imbalance: Severe vibration can exacerbate seal wear.
If you suspect an oil leak from your oil bath axle hub, it's imperative to address it immediately. The first step is to check the fluid level. If it's low, you’ll need to identify the cause. If a seal failure is suspected, the hub will need to be disassembled, the old seal replaced, and the bearings inspected for damage. It’s also a good opportunity to clean and re-grease the bearings if you decide to convert to a grease system.
Preparing for a Conversion: What You'll Need
If you're considering switching from an oil bath system to grease lubrication, you'll typically need the following:
- New hub seals: Ensure they are the correct size for your axle.
- High-quality wheel bearing grease: Look for a product rated for heavy-duty use and high temperatures.
- Brake cleaner: For thorough cleaning of components.
- Shop rags and gloves: For a clean and safe working environment.
- Bearing packer (optional but recommended): To ensure proper grease distribution within the bearings.
- Tools: Socket set, wrenches, seal driver, hammer, pry bar.
The process involves removing the hub cap, draining any remaining oil, removing the cotter pin and castle nut, sliding off the outer bearing and washer, then the hub itself. The old seals can then be carefully pried out, and the bearings cleaned. Once cleaned, the new grease is packed into the bearings, and the hub is reassembled. It’s a more hands-on process than simply topping up oil, but the reported reliability benefits can be substantial.
Frequently Asked Questions
Q1: Can I use regular 80W-90 gear oil in my oil bath axle?
While 80W-90 is a common viscosity, it's best to use a synthetic 80W-90 specifically designed for heavy-duty trailer axles. Always check your manufacturer's recommendation.
Q2: How often should I check the oil level in my oil bath axles?
It's recommended to check the oil level periodically, perhaps every few months or before long trips. However, the main concern is the integrity of the seal, as leaks can happen quickly.
Q3: What are the signs of a failing hub seal in an oil bath axle?
Signs include oil leaking from the hub cap, grease or oil on the brake components, and potentially a loss of braking performance. You might also notice a change in bearing noise.
Q4: Is it really worth converting from oil bath to grease?
Based on anecdotal evidence from users experiencing seal failures and brake contamination, converting to a high-quality grease system can offer greater reliability and potentially cooler bearing temperatures, though it requires more frequent manual maintenance.
Q5: What type of grease is best for trailer wheel bearings?
A high-quality, extreme pressure (EP) lithium complex grease is generally recommended for trailer wheel bearings. Marine-grade grease is also a good option as it offers excellent water resistance.
Conclusion
Choosing the right lubrication for your 9,000 lb oil bath axles involves understanding the system's design and its potential vulnerabilities. While synthetic 80W-90 gear oil is the standard recommendation for oil bath systems, the critical importance of maintaining seal integrity cannot be overstated. Failures in this area can lead to significant problems, including loss of braking power. Many users have found success and peace of mind by converting to a traditional grease lubrication system, reporting improved reliability and cooler bearing temperatures. Ultimately, the best approach depends on your comfort level with maintenance, your specific axle manufacturer's recommendations, and your priorities regarding reliability and performance.
