GranTurismo Rear Brake Pads: No EPB Woes

When it comes to servicing the rear brakes on high-performance luxury vehicles, modern mechanics are often accustomed to the intricate dance of electronic parking brake (EPB) systems. Brands like Mercedes-Benz, Audi, Porsche, and Land Rover frequently utilise sophisticated electronic mechanisms that require diagnostic tools to retract caliper pistons and prevent damage during pad replacement. However, when faced with a Maserati GranTurismo, a common and entirely valid question arises: does this Italian thoroughbred also hide an electronic parking brake system that demands special attention?

The good news, and a significant point of clarification for those performing their due diligence, is that the Maserati GranTurismo typically employs a traditional, mechanical parking brake system. This means you won't need to connect a diagnostic scanner to put the parking brake into 'service mode' or worry about damaging sensitive electronic components when compressing the caliper pistons. This distinction is crucial and simplifies the rear brake pad replacement process considerably compared to many of its contemporary luxury counterparts. Let's delve into the process, ensuring a smooth and successful service.

Understanding the GranTurismo's Parking Brake System

Unlike many modern vehicles that integrate the parking brake directly into the main caliper or use a separate electronic actuator, the Maserati GranTurismo (across most generations) typically uses a conventional drum-in-hat parking brake system. This means there are small brake shoes inside the 'hat' section of the rear brake disc, operated by a cable connected to the parking brake lever (or foot pedal, depending on the specific model year and market). When you engage the parking brake, these shoes expand against the inside of the disc's hat, holding the car stationary. The main disc brake caliper and pads are entirely separate from this system.

This design is advantageous for brake service as it means the caliper piston simply needs to be compressed manually, just like on older, simpler vehicles. There's no electronic component within the caliper itself that needs to be 'released' or reset via software. This knowledge alleviates a significant concern for mechanics used to more complex EPB systems.

Essential Tools and Safety Precautions

Before you even think about touching a spanner, ensure you have all the necessary tools and, more importantly, prioritise safety. Working on brakes requires precision and adherence to safety protocols.

Required Tools:

• Hydraulic Jack and Jack Stands (never rely solely on the jack)
• Wheel Chocks
• Torque Wrench
• Socket Set (typically 17mm, 19mm for lug nuts; various smaller sizes for caliper bolts)
• Ratchet and Extensions
• Brake Caliper Piston Compression Tool (a universal one will work fine)
• Wire Brush
• Brake Cleaner
• Anti-Seize Lubricant
• High-Temperature Brake Grease (for caliper pins)
• New Rear Brake Pads (ensure they are the correct fit for your GranTurismo model)
• New Brake Wear Sensors (highly recommended, as they are often one-time use)
• Safety Glasses and Gloves
• Container for old brake fluid (if bleeding)

Safety First:

• Always work on a level, stable surface.
• Chock the front wheels securely to prevent any movement.
• Use sturdy jack stands to support the vehicle once lifted. Never work under a car supported only by a jack.
• Wear safety glasses to protect your eyes from debris, brake dust, and fluids.
• Wear gloves to protect your hands from brake dust and chemicals.
• Avoid inhaling brake dust, which can contain harmful fibres. Use a brake cleaner to wet down dust before cleaning.
• Do not open the brake fluid reservoir cap unless you are bleeding the brakes.

Step-by-Step Rear Brake Pad Replacement

Follow these steps carefully to ensure a successful and safe rear brake pad replacement on your Maserati GranTurismo.

Step 1: Prepare the Vehicle

Begin by parking the GranTurismo on a flat, level surface. Engage the mechanical parking brake. Loosen the lug nuts on the rear wheels slightly while the car is still on the ground. This makes them easier to remove once the wheel is airborne. Place wheel chocks in front of the front wheels for added security.

Step 2: Lift and Secure the Vehicle

Using your hydraulic jack, carefully lift the rear of the vehicle. Position your jack stands under the designated jacking points (refer to your owner's manual for specific locations) and slowly lower the car onto the stands. Ensure the vehicle is stable and secure before proceeding.

Step 3: Remove the Wheel

With the car safely on jack stands, fully unscrew the lug nuts and carefully remove the rear wheel. Set it aside in a safe place.

Step 4: Inspect the Brake System

Take a moment to inspect the entire brake system. Look for any signs of fluid leaks, damaged lines, or uneven rotor wear. Check the condition of the brake wear sensor wire. If the sensor has activated, the wire will likely be severed.

Step 5: Disconnect the Brake Wear Sensor

Locate the brake wear sensor, which is usually clipped into one of the brake pads. Carefully disconnect its electrical connector. These sensors are typically designed to be replaced with the pads, as they break when worn down to trigger the warning light.

Step 6: Remove the Caliper Bolts

The GranTurismo's rear calipers are often fixed-caliper designs or floating calipers with guide pins. Identify the caliper mounting bolts. For floating calipers, these are usually two bolts that hold the caliper to the caliper bracket. For fixed calipers (like Brembo often used on GranTurismos), you'll typically remove two large bolts that secure the caliper directly to the hub carrier. You may need to use a large socket and a breaker bar. Once the bolts are loose, carefully remove them.

Step 7: Remove the Caliper

Gently slide the caliper off the brake disc. Be careful not to let the caliper hang by the brake hose, as this can damage the hose. Use a bungee cord or a piece of wire to suspend the caliper securely from the suspension component, ensuring there's no strain on the brake line.

Step 8: Remove the Old Brake Pads

With the caliper off, the old brake pads should now be easily removable from the caliper bracket or directly from the caliper itself (for fixed calipers). Note their orientation, as the new pads will need to be installed in the same way. Pay attention to any shims or anti-rattle clips.

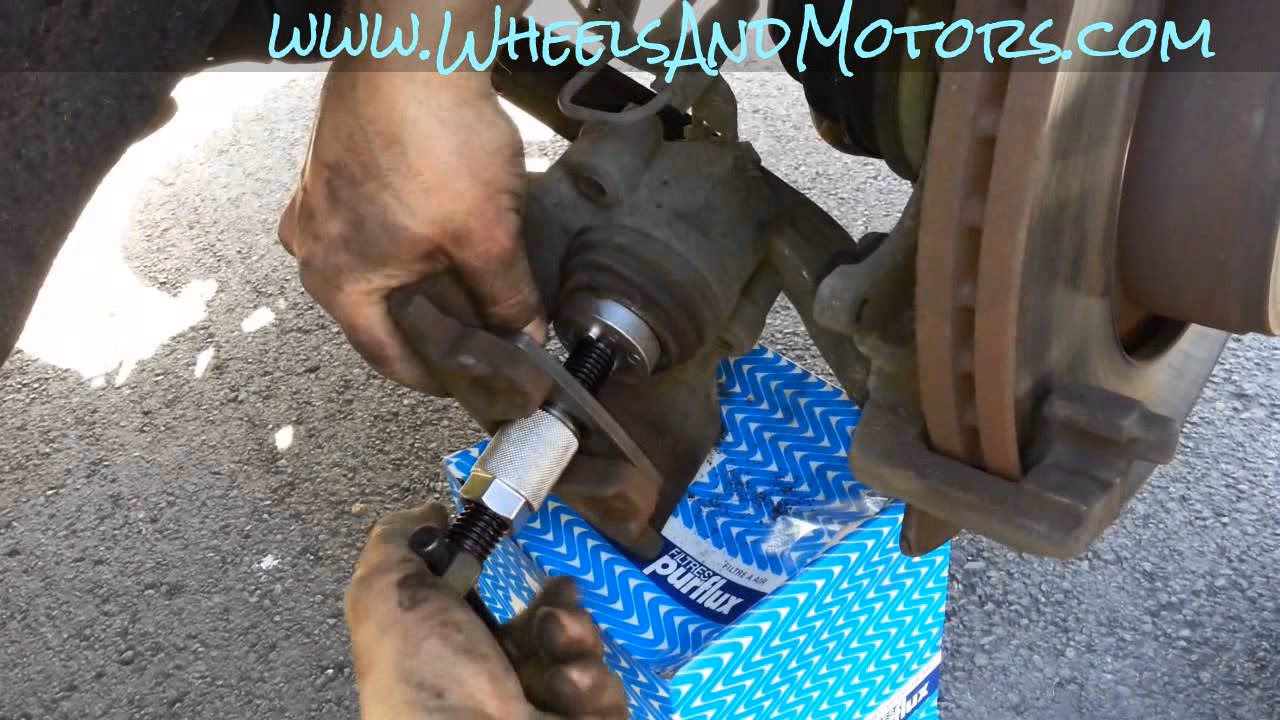

Step 9: Compress the Caliper Piston(s)

This is where the clarification about the EPB is vital. Since the GranTurismo has a mechanical parking brake, you can simply use a brake caliper piston compression tool to push the piston(s) back into the caliper bore. Slowly and steadily compress the piston(s) until they are fully retracted. Ensure the brake fluid reservoir cap is not excessively tight, but monitor the fluid level as it will rise. If it gets too high, you might need to extract a small amount of fluid.

Step 10: Clean and Lubricate

Thoroughly clean the caliper bracket (if applicable) and the caliper itself with a wire brush and brake cleaner. Remove any rust, old grease, or brake dust. Apply a thin layer of high-temperature brake grease to the caliper guide pins (if it's a floating caliper) and ensure they slide freely. Apply a small amount of anti-seize compound to the contact points where the brake pads sit in the caliper bracket, but avoid getting it on the pad friction material or rotor surface.

Step 11: Install New Brake Pads and Sensor

Insert the new brake pads into the caliper or caliper bracket, ensuring they are correctly seated and oriented. Install any shims or anti-rattle clips that came with the new pads. Connect the new brake wear sensor to its designated slot on the pad and then reconnect the electrical connector.

Step 12: Reinstall the Caliper

Carefully slide the caliper back over the new pads and rotor. Align the caliper with its mounting points and reinsert the caliper bolts. Tighten these bolts to the manufacturer's specified torque settings using your torque wrench. This is a critical step for safety.

Step 13: Reinstall the Wheel

Place the wheel back onto the hub, hand-tighten the lug nuts. Once all nuts are snug, lower the vehicle until the wheel just touches the ground, then torque the lug nuts to the manufacturer's specification in a star pattern.

Step 14: Final Checks and Bedding In

Fully lower the vehicle. Before driving, pump the brake pedal several times until it feels firm. This re-seats the caliper pistons against the new pads. Check the brake fluid reservoir level and top up if necessary. Take the car for a gentle test drive in a safe area. Perform a series of moderate stops from varying speeds (e.g., 30-0 mph, 50-10 mph) to properly bed in the new pads and rotors. Avoid harsh braking or sustained high-speed braking during this initial period.

Mechanical vs. Electronic Parking Brakes: A Quick Comparison

To further clarify the distinction, here's a brief comparison:

Frequently Asked Questions (FAQs)

Q: Do I need to bleed the brakes after replacing the pads?

A: Generally, no. If you only replace the pads and do not open the brake lines or introduce air into the system, bleeding is not necessary. However, if the fluid looks old or contaminated, or if the pedal feels spongy after the replacement, a brake fluid flush and bleed would be a good idea.

Q: How often should I replace my GranTurismo's rear brake pads?

A: The lifespan of brake pads varies greatly depending on driving style, road conditions, and pad material. On a high-performance car like the GranTurismo, rear pads might last anywhere from 15,000 to 40,000 miles. Always rely on visual inspection and the brake wear indicator warning light. If the warning light comes on, the pads need immediate attention.

Q: What are the signs that my rear brake pads need replacing?

A: Common signs include a squealing or grinding noise when braking, a dashboard warning light (due to the wear sensor), a soft or spongy brake pedal, or a noticeable decrease in braking performance. Visual inspection of the pad thickness is also key – if they are less than 3mm thick, it's time for replacement.

Q: Can I replace the brake pads without replacing the rotors?

A: While technically possible, it's highly recommended to at least have the rotors inspected and, if necessary, resurfaced or replaced when replacing pads. Uneven rotor wear or scoring can significantly reduce the effectiveness and lifespan of new pads. For a performance car like a GranTurismo, replacing rotors with pads is often the preferred professional practice to ensure optimal braking performance and longevity.

Q: What if my GranTurismo's parking brake lever feels loose after the service?

A: Since the GranTurismo uses a mechanical parking brake, it has an adjustment mechanism, usually accessible from underneath the car or near the parking brake lever itself. If the lever feels loose or doesn't hold the car securely after brake service (though pad replacement typically doesn't affect it), it might need adjustment.

By understanding the nuances of the Maserati GranTurismo's braking system, particularly its mechanical parking brake, you can approach rear brake pad replacement with confidence and precision. Always adhere to safety guidelines and use the correct tools to ensure a professional and lasting repair. Your GranTurismo deserves nothing less than meticulous care.
