R1200GS Final Drive Oil Change: The Drain Plug Revealed

When it comes to motorcycle maintenance, some tasks are straightforward, while others are shrouded in a bit of mystery or manufacturer-proclaimed 'lifetime' solutions. For many BMW R1200GS owners, the final drive oil falls squarely into the latter category. BMW’s official stance, particularly after the initial 1000km service, suggests that the final drive oil need not be changed for the entire lifetime of the bike. A bold claim, indeed, for a component that endures significant stress and houses a mere 220ml of lubricant.

However, practical experience often tells a different story. Tales of 'yukkie', metallic-laden oil emerging from final drives with significant mileage are common among the enthusiast community. With only a small volume of oil protecting crucial gears and bearings, the idea of it lasting indefinitely seems, to many, rather optimistic. This article aims to demystify the process, confirm the existence of a drain plug on your R1200GS final drive, and guide you through a DIY oil change that could significantly extend the life of your bike's driveline. If you’ve got 50,000km or more on the clock, or simply prefer proactive maintenance, then read on.

Why Bother with Final Drive Oil? The 'Lifetime' Debate

The final drive unit on your BMW R1200GS is a sophisticated piece of engineering, responsible for transmitting power from the driveshaft to the rear wheel. Inside, a set of gears operates under immense pressure and heat, especially during spirited riding or when fully loaded. Lubrication is paramount to prevent wear, reduce friction, and dissipate heat. The oil not only lubricates but also carries away microscopic metallic particles generated during normal operation.

BMW's 'lifetime fill' recommendation is often based on theoretical calculations and expected wear rates under ideal conditions. However, real-world riding involves varying temperatures, loads, and environmental factors that can degrade the oil over time. Heat cycles, moisture ingress (though the unit is sealed, condensation can occur), and the sheer mechanical action will eventually break down the oil's additives and reduce its lubricating properties. When fellow riders report seeing 'yukkie' oil, it’s a clear indication that the oil has done its job of protecting the gears, but is now saturated with wear particles and has lost its effectiveness. Changing this oil, even if it's not officially required, is a small investment in time and money that can prevent much larger, more costly repairs down the road.

Locating the Elusive Drain Plug

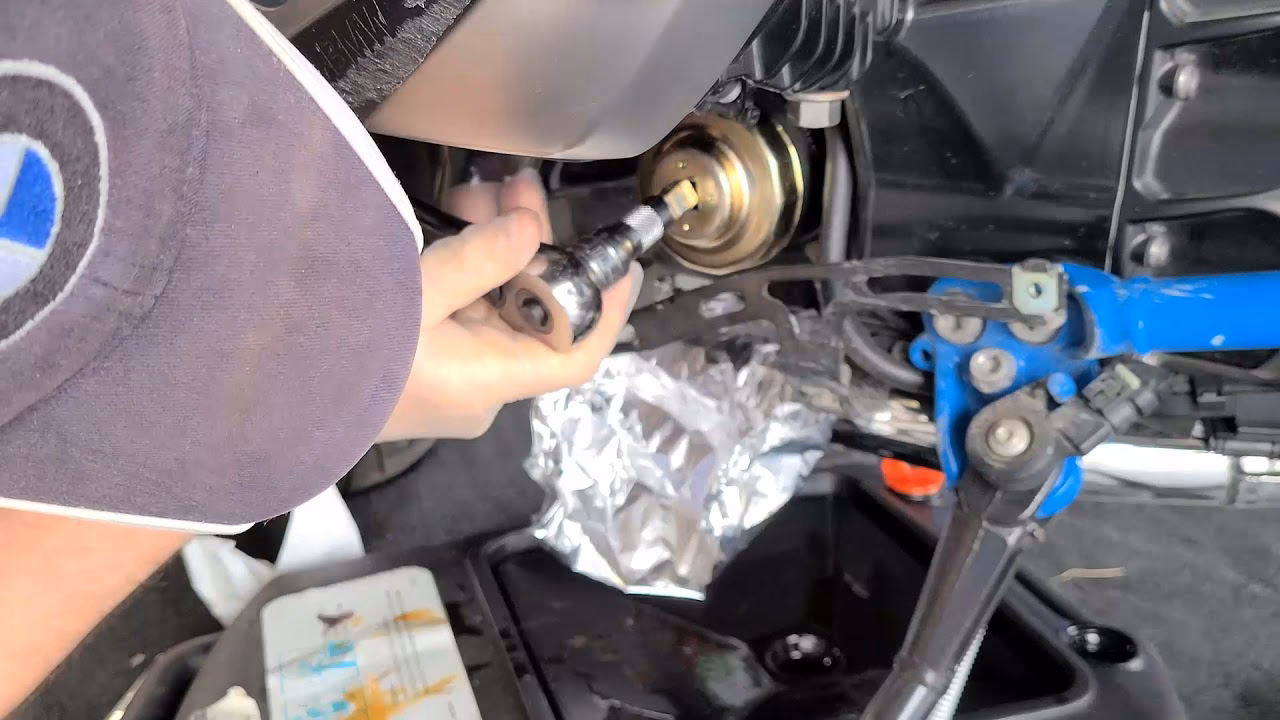

Rest assured, there is indeed a drain plug on the final drive of your BMW R1200GS. It's typically located on the underside of the final drive housing. Identifying it is usually straightforward: look for a hex-head bolt, often a T45 Torx or a standard hex bolt, positioned at the lowest point of the final drive casing. This is where the old oil will exit. The fill plug, usually a similar bolt, is located higher up on the side or top of the final drive, designed to allow the unit to be filled to the correct level without overfilling.

Before you begin, ensure your bike is securely supported, preferably on its centre stand or a paddock stand, to allow the rear wheel to be removed and for safe working underneath the final drive. Having the bike level will also aid in ensuring a complete drain and accurate refill.

Tools and Materials Required

• Torx bits (T45, T50, potentially others for various bolts)
• Hex keys/sockets (various sizes, depending on specific bolts)
• Ratchet wrench
• Torque wrench (essential for correct reassembly)
• Plastic drain pan
• Clean rags
• New final drive oil (specific grade and quantity, e.g., GL5 75W90 or 75W140, consult your owner's manual or a reputable BMW forum for exact specifications for your model year. You'll need approx. 220ml)
• Syringe or pump for refilling oil
• Copper washer for drain plug (optional, but recommended for a good seal)
• High-temperature grease (for CV splines)
• Zip ties (for managing cables)
• Rubber mallet (for stubborn exhaust components)
• Temporary rod (e.g., a long bolt or sturdy rod, for supporting the paralever joint)

Step-by-Step Guide to Changing Final Drive Oil

1. Preparation and Initial Assessment

Park your R1200GS on a firm, level surface. Engage the centre stand. It’s often helpful to warm the bike up briefly before draining the oil, as warmer oil flows more easily. Gather all your tools and materials. Place your plastic drain pan directly under the final drive unit.

2. Tackling the Aftermarket Exhaust

If you have an aftermarket exhaust, as many do, this can often be the most challenging part. The connector pipe, especially after years of heat cycles, can feel welded in place. You'll likely need to loosen clamps and gently, but firmly, persuade the exhaust out and away from the wheel. A rubber mallet can be useful here, applying gentle taps to the exhaust joint while twisting. Avoid excessive force to prevent damage to the exhaust system.

3. Wheel Removal

With the exhaust out of the way, you can now remove the rear wheel. Loosen the wheel bolts (usually five of them). Once loose, lift the wheel slightly and pull it straight back and off the final drive studs. Set it aside safely.

4. Brake Components

• Brake Hose Protector: Locate and remove the nuts holding the brake hose protector in place.
• Brake Caliper: Remove the two bolts securing the brake caliper to the final drive. Carefully lift the caliper away from the brake rotor and secure it out of the way using a zip tie or bungee cord, ensuring no strain is put on the brake hose. Do not let it hang freely.
• Rear Wheel Sensor: Locate the rear wheel speed sensor. Remove the bolt holding the sensor in place and the smaller bolt securing its wiring. Carefully pull the sensor out of its housing.

5. Paralever Bolt and Temporary Support

The paralever arm connects the swingarm to the final drive. You'll need to remove the main paralever bolt that connects the final drive to the paralever arm. Before doing so, it’s wise to have a temporary rod ready. Once the main paralever bolt is removed, immediately replace it with your temporary rod. This keeps the joints aligned and prevents the final drive from dropping completely, making reassembly easier. Do not remove the temporary rod just yet.

6. Draining the Old Oil

Now, with everything clear, you can focus on the drain plug. Place your plastic drain pan directly under the final drive. Loosen the drain plug using the appropriate Torx or hex bit. Do not remove it completely yet. Once it’s loose, ensure your drain pan is perfectly positioned. Now, fully remove the drain plug. Immediately after, remove the temporary rod you inserted into the paralever joint. This will allow the final drive to pivot downwards slightly, enabling a more complete drain of the old, potentially yukkie oil. Let it drain thoroughly for several minutes. You might gently rock the final drive or bike to encourage all the old oil to escape. Observe the oil for any metallic flakes or unusual colour, which can indicate excessive wear.

7. Cleaning and Greasing

While the oil is draining, take the opportunity to clean the rear swingarm boot. Inspect it for cracks or damage. This is also an excellent time to clean and grease the CV splines (Constant Velocity joint splines) on the driveshaft. Use a high-quality, high-temperature moly grease designed for splines. This prevents corrosion and wear between the driveshaft and the final drive input shaft.

8. Refilling with New Oil

Once the old oil has completely drained, clean the drain plug and, if using, replace the copper washer. Reinsert and tighten the drain plug to the manufacturer's specified torque (consult your service manual). Now, locate the fill plug (usually higher on the side of the final drive). Remove it. Using a syringe or a small pump, carefully inject the new final drive oil (approximately 220ml for most R1200GS models, but always verify for your specific year) until it just begins to weep out of the fill hole. Once filled, clean the fill plug, reinsert it, and tighten it to the specified torque.

9. Reassembly

Reassemble all components in the reverse order of removal. This includes:

• Reinserting the paralever bolt (remove the temporary rod first) and tightening it to spec.
• Reinstalling the rear wheel speed sensor and its wiring.
• Reattaching the brake caliper and brake hose protector, ensuring all bolts are torqued correctly.
• Mounting the rear wheel and torquing the wheel bolts to specification.
• Reattaching the exhaust system, ensuring all clamps are secure.

Double-check all bolts and connections to ensure they are properly tightened to the manufacturer's specifications. A torque wrench is invaluable here to prevent over-tightening or under-tightening, both of which can lead to issues.

Comparison: BMW Recommendation vs. Practical Advice

Common Pitfalls and Tips

• Over-tightening: Be extremely careful not to over-tighten any bolts, especially those on the final drive casing. Aluminium threads can strip easily. Always use a torque wrench.
• Wrong Oil: Ensure you use the correct grade and specification of gear oil (e.g., GL5 75W90 or 75W140) for your specific R1200GS model. Using the wrong oil can cause damage.
• Contamination: Keep everything scrupulously clean during the process. Any dirt or debris introduced into the final drive can cause premature wear.
• Air Lock: When refilling, sometimes an air lock can prevent the oil from flowing freely. Fill slowly and allow air to escape.
• Crush Washers: Always use new crush washers on the drain and fill plugs (if applicable) to ensure a leak-free seal.
• Exhaust: If your exhaust is particularly stubborn, applying penetrating oil to the joints beforehand can help.

Frequently Asked Questions

Q: How often should I change the final drive oil on my R1200GS?

A: While BMW states 'lifetime', many experienced riders recommend changing it every 20,000 to 40,000 kilometres or every 2 to 4 years, whichever comes first. This is especially true if you ride aggressively, carry heavy loads, or frequently ride in dusty or wet conditions.

Q: What type of oil should I use for the final drive?

A: Consult your owner's manual for the exact specification. Most R1200GS models require a GL5 specification gear oil, typically 75W90 or 75W140. Using synthetic oil is generally recommended for its superior performance and longevity.

Q: Is changing the final drive oil really necessary if BMW says it's a 'lifetime' fill?

A: While BMW's official stance is 'lifetime', practical experience from many riders suggests that the oil does degrade and accumulate wear particles over time. For such a critical, high-stress component with a small oil volume, proactive replacement is a wise preventative measure to extend the final drive's lifespan and avoid potentially costly repairs.

Q: What happens if I don't change the final drive oil?

A: Over time, the oil will lose its lubricating properties, leading to increased friction, heat, and wear on the gears and bearings within the final drive. This can manifest as noise, roughness, and ultimately lead to premature failure of the final drive unit.

Q: Is there a fill plug as well as a drain plug?

A: Yes, there is both a drain plug (at the bottom of the final drive for oil removal) and a fill plug (usually on the side or top, for adding new oil). Both must be removed during the oil change process.

Conclusion

Changing the final drive oil on your BMW R1200GS, despite BMW's 'lifetime' claim, is a highly recommended maintenance task. It might seem daunting at first, especially with the exhaust and brake components to navigate, but with the right tools and a methodical approach, it's a perfectly manageable DIY job. The satisfaction of knowing you've serviced a critical component, potentially preventing future issues, is immense. By taking this proactive step, you're not just changing oil; you're investing in the longevity and reliability of your beloved adventure machine, ensuring many more miles of smooth, worry-free riding.
