NV245 Transfer Case Fluid: The Definitive Guide

The New Process Gear (NPG) NV245 transfer case, a common feature in many Jeep Grand Cherokees (WK/XK models) and other Chrysler vehicles, is a robust unit. However, like any automotive component, it requires proper maintenance to ensure longevity and optimal performance. One of the most frequent questions among owners revolves around the transfer case fluid: Can it be replaced? What fluid should be used? And what happens if the wrong fluid is introduced?

This article aims to demystify the NV245 transfer case fluid, addressing common concerns and providing clear guidance based on owner experiences and technical information. We'll explore the availability of the correct fluid, discuss potential aftermarket alternatives, and touch upon the compatibility of other fluids, such as ATF+4.

Understanding the NV245 Transfer Case

The NV245 is a full-time, active-on-demand four-wheel-drive transfer case. It features a planetary gear set, a clutch pack, and an electronic control unit (ECU) that monitors wheel speed sensors and driver inputs to distribute power between the front and rear axles. This sophisticated system allows for seamless operation in various driving conditions, from dry pavement to off-road excursions. The internal workings, particularly the clutch pack, rely on a specific type of fluid to operate correctly and prevent premature wear.

The Crucial Question: Can NV245 Transfer Case Fluid Be Replaced?

Yes, the fluid in an NV245 transfer case absolutely can and should be replaced as part of regular vehicle maintenance. While some owners report that dealerships rarely service these units, and obtaining the specific Mopar fluid can be a hassle, neglecting fluid changes can lead to significant issues down the line. The recommended service interval, often around 30,000 miles, ensures that the fluid maintains its lubricating properties and that any contaminants are removed.

The Official Mopar Fluid and Availability Issues

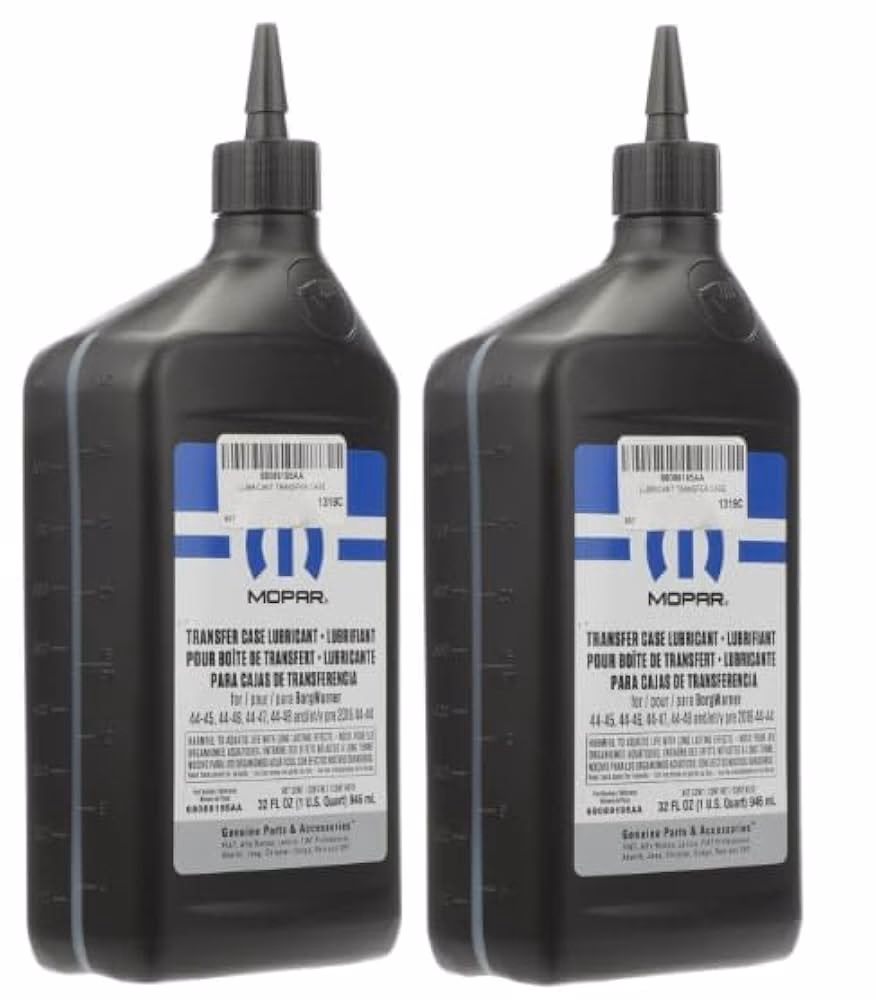

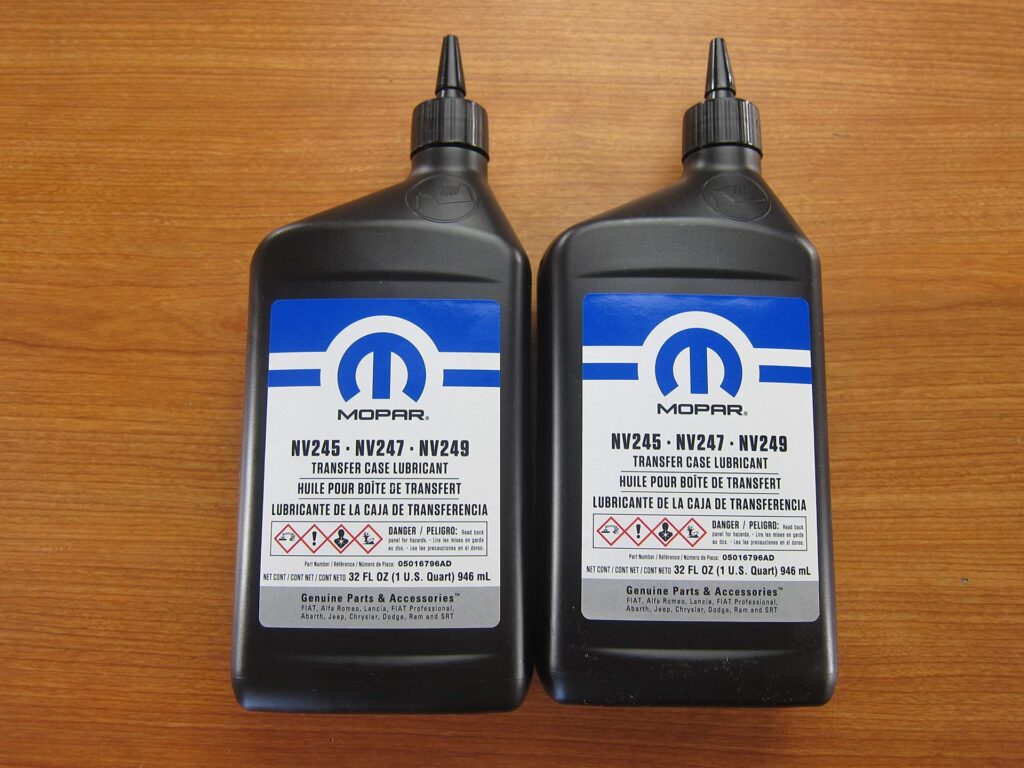

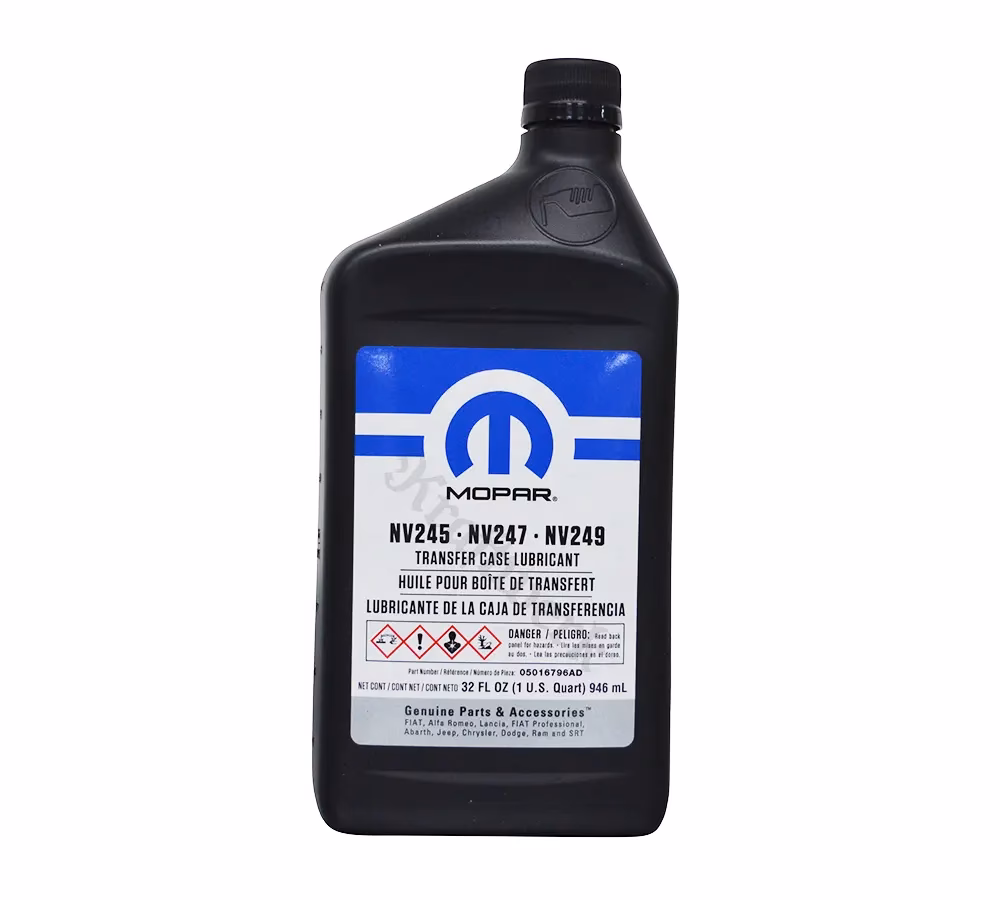

The factory-recommended fluid for the NV245 transfer case is Mopar Transfer Case Lubricant (Part Number 05010349AA). This fluid is specifically formulated to meet the demands of the NV245's internal components, including the clutch pack. However, as many owners have discovered, this fluid can be notoriously difficult to source in smaller quantities. Dealerships often do not stock it and may require purchasing in bulk cases, which is impractical for a single fluid change. This lack of availability has led many owners to seek alternatives.

Aftermarket Alternatives and Cross-Referencing

The search for an aftermarket equivalent to the Mopar NV245 fluid is a common one. Some owners have found success using fluids that share similar specifications. One frequently mentioned fluid is Mobilfluid 424, which is often cited as being equivalent or a suitable substitute. It's important to note that Mobilfluid 424 is also sometimes referred to as Mopar 247 fluid. These fluids are often described as having a viscosity similar to a 30-weight oil, which might seem unusual for a transfer case but is indeed what the NV245 requires.

Another observation is the use of Petronas Arbor fluid in European markets, which also had a 30-weight designation and appeared visually and texturally similar to the Mopar fluid. This suggests a common formulation for this type of transfer case across different regions and brands.

Key Takeaway: Always verify the specifications of any aftermarket fluid before use. Look for fluids that explicitly state compatibility with NV245 or similar transfer cases, and check for a 30-weight designation or equivalent viscosity.

The ATF+4 Debate: Is it a Suitable Substitute?

A point of contention among NV245 owners is the use of ATF+4 (Automatic Transmission Fluid +4) in the transfer case. There are conflicting reports and experiences regarding this. Some anecdotal evidence from South Africa suggests that later model 2010 Jeep 5.7 Hemi vehicles came from the factory with ATF+4 in their NV245 transfer cases, and that a trusted Chrysler workshop manager confirmed ATF+4 as a replacement for the older Mopar fluid.

However, other sources and owner experiences indicate that using ATF+4 in a transfer case designed for a specific lubricant can lead to issues. The NV245 contains a clutch pack that requires a fluid with specific frictional properties. ATF+4 is formulated for automatic transmissions and may not provide the correct friction modifiers or viscosity for the transfer case clutch, potentially leading to slipping or premature wear. Some reports suggest that ATF can cause shuddering when engaging the clutch or, in more severe cases, damage the transfer case, leading to slipping or clutch failure.

Important Consideration: While some vehicles might have been factory-filled with ATF+4, this doesn't necessarily make it the universally correct or best fluid for all NV245 applications. The original Mopar fluid or a proven equivalent is generally considered the safer bet to avoid potential long-term damage.

Why the Confusion?

The confusion often stems from the fact that the NV245 is an active transfer case that can engage and disengage the front driveshaft via a clutch pack. Unlike older, simpler transfer cases that might use standard gear oil or even ATF, the NV245's clutch system is sensitive to the fluid's properties. The initial fill might have been a specific Mopar fluid, but manufacturer recommendations can change over time, or regional variations in fluid availability might have led to the adoption of alternatives.

Common Transfer Case Issues and Fluid-Related Problems

Transfer cases, including the NV245, can experience various issues if not properly maintained. Fluid leaks, worn seals, and internal component wear are common. When it comes to fluid, the primary concerns are:

• Using the Wrong Fluid: As discussed, ATF+4 or other non-specified fluids can alter the clutch engagement characteristics, leading to shuddering, slipping, or premature wear of the clutch plates.
• Low Fluid Level: Insufficient fluid can lead to overheating and increased wear on gears and bearings.
• Contaminated Fluid: Over time, the fluid can break down and accumulate wear particles, reducing its lubricating effectiveness.

One specific issue mentioned is a slipping transfer case. While this can be caused by worn clutch packs or damaged internal components, the use of incorrect fluid (like ATF) is often suspected as a contributing factor. If the transfer case is slipping, it's crucial to determine the cause, which might involve checking the fluid type and level, as well as inspecting for mechanical damage.

Fluid Change Procedure (General Guidance)

While a detailed step-by-step guide is beyond the scope of this overview, the general procedure for changing transfer case fluid involves:

1. Locating the transfer case drain and fill plugs.
2. Draining the old fluid into a suitable container.
3. Reinstalling the drain plug and filling the transfer case with the correct type and amount of fluid until it reaches the level of the fill plug.
4. Reinstalling the fill plug.

Note: The NV245 transfer case typically requires around 1.5 to 2 quarts of fluid. Always refer to your vehicle's owner's manual or a service manual for the exact capacity and procedure.

Fluid Specifications Comparison

Here’s a simplified comparison table for commonly discussed fluids:

Frequently Asked Questions (FAQs)

Q1: How often should I change the transfer case fluid in my NV245?
Ideally, every 30,000 miles or as specified in your owner's manual. However, given the robustness of these units, some owners report successful operation with less frequent changes. It's better to err on the side of caution.

Q2: Can I use a synthetic version of the Mopar fluid?
While synthetic fluids often offer superior protection, ensure that any synthetic fluid you choose is specifically approved for the NV245 transfer case and meets the required specifications. Generic synthetic gear oils or transmission fluids are generally not recommended.

Q3: My dealership doesn't stock the fluid, what should I do?
Look for reputable aftermarket alternatives like Mobilfluid 424, or order the Mopar fluid online from a dealer that ships. Avoid using fluids that are not confirmed to be compatible.

Q4: What if my transfer case is slipping?
First, check the fluid level and condition. If the fluid is low or appears burnt, top it up or change it with the correct fluid. If the problem persists, it may indicate internal wear or damage requiring professional diagnosis.

Q5: Is it okay to mix Mopar fluid with a different brand?
It's generally not advisable to mix different types of fluids, as their additive packages can react negatively. If you need to top up, try to use the exact same fluid. If changing the fluid completely, drain as much of the old fluid as possible before refilling.

Conclusion

Maintaining your NV245 transfer case with the correct fluid is essential for its longevity. While the Mopar Transfer Case Lubricant is the OEM recommendation, understanding and verifying suitable aftermarket alternatives like Mobilfluid 424 can be a practical solution, especially given the availability challenges. Be cautious with ATF+4, as its use is debated and potentially detrimental. Regular fluid changes, even if your dealership doesn't emphasize them, will help prevent costly repairs and ensure your Jeep's four-wheel-drive system operates as intended for years to come. Always prioritize the manufacturer's specifications or well-documented, proven alternatives.
