Kymco Agility 50: Essential Scooter Servicing

Keeping your Kymco Agility 50 in top condition is crucial for both its longevity and your riding pleasure. Regular maintenance not only ensures optimal performance but also significantly reduces the risk of unexpected breakdowns, saving you time and money in the long run. While some tasks might seem daunting, many essential servicing procedures, such as changing the engine oil, checking gear oil, and inspecting spark plugs, are straightforward and can be performed at home with a few basic tools. This comprehensive guide will walk you through these vital maintenance steps, ensuring your beloved scooter remains reliable and efficient on the UK roads.

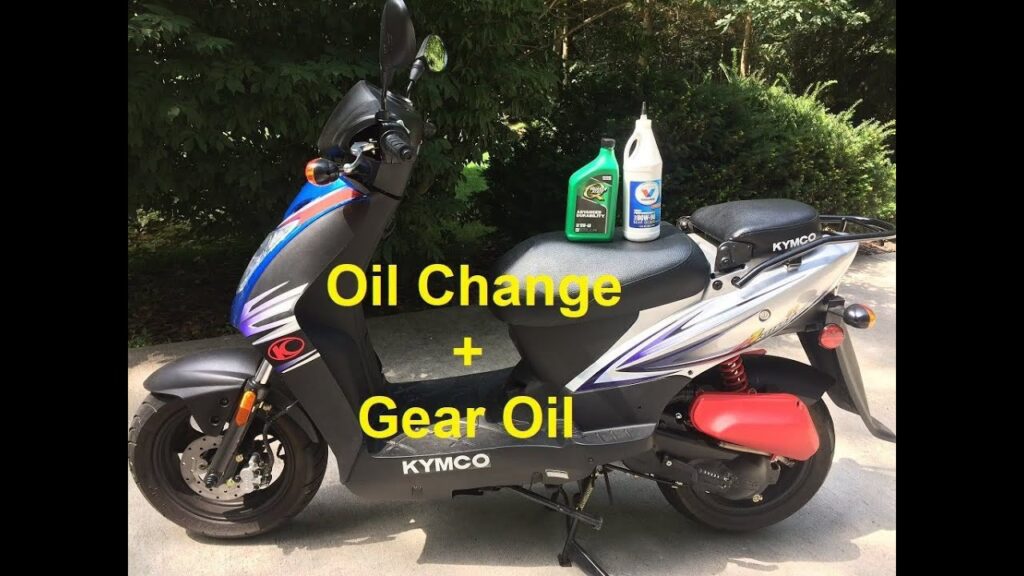

The Heart of Your Scooter: Engine Oil Change

The engine oil is the lifeblood of your Kymco Agility 50, lubricating moving parts, reducing friction, and helping to dissipate heat. Over time, engine oil degrades and accumulates contaminants, losing its effectiveness. Regular engine oil changes are paramount to protect your engine from premature wear and tear, ensuring it runs smoothly and efficiently.

What You'll Need

• New engine oil (SAE 15W-40, API SG specified)
• Drain pan or container
• Wrench for the drain bolt
• Funnel
• Rag or old cloths
• New oil strainer gasket (optional, but recommended if old one is worn)

Step-by-Step Engine Oil Change Guide

Changing your Kymco Agility 50's engine oil is a relatively simple process if you follow these steps carefully:

1. Prepare Your Scooter: Place your Kymco Agility 50 on its main stand on a level, stable ground. This ensures the scooter is upright and provides easy access to the drain bolt and dipstick.
2. Locate the Dipstick: Identify and remove the engine oil dipstick. This allows air to enter the engine, facilitating smoother and more complete oil drainage.
3. Drain the Old Oil: Position a suitable drain pan directly beneath the engine's oil drain bolt. Carefully remove the drain bolt using the appropriate wrench. Allow all the old, dark oil to drain completely into the pan. This may take several minutes.
4. Clean the Oil Strainer: While the oil is draining, pay attention to the oil strainer, which is typically located near the drain bolt. Remove it and thoroughly clean any accumulated debris or metal particles. Reinstall the clean oil strainer, ensuring it's properly seated.
5. Refill with Fresh Oil: Once all the old oil has drained, securely tighten the drain bolt. Using a funnel, carefully refill the engine with fresh, specified engine oil. The Kymco Agility 50 has an exchanging capacity of 0.7 litres. Be precise with the quantity to avoid overfilling or underfilling. The total capacity is 0.8 litres, but you'll only replace the drained amount.
6. Secure the Dipstick: Firmly tighten the oil dipstick back into its position.
7. Check the Level: Start the engine and let it run for a few minutes to warm up. This circulates the new oil throughout the engine. Then, stop the engine and wait for approximately 20-30 seconds to allow the oil to settle. Remove the dipstick, wipe it clean, reinsert it (without screwing it in), and then remove it again to check the oil level. The oil level should be between the minimum and maximum marks on the dipstick. Adjust if necessary.

Engine Oil Specifications and Intervals

Using the correct oil and adhering to the recommended change intervals are vital for your scooter's health.

• Specified Oil: SAE 15W-40, API service classification: SG. Never mix engine oil of different classes or viscosities, as this can cause severe damage to your engine.
• Capacity/Exchanging Capacity: 0.8 litres / 0.7 litres.
• Change Intervals: The first engine oil change should be performed at 300 km. Subsequently, change the engine oil every 2000 km.
• Special Conditions: If you frequently ride your Kymco Agility 50 in dusty or cold areas, or if your rides are typically short distances, the engine oil will deteriorate more quickly. In such conditions, more frequent oil changes are recommended to maintain optimal engine protection.

Maintaining Your Drive: Transmission Gear Oil

Beyond the engine, your Kymco Agility 50 also relies on gear oil within its transmission system. This oil lubricates the gears, reducing friction and ensuring smooth power delivery to the rear wheel. Regular inspection and changes of the transmission gear oil are just as important as engine oil maintenance.

Checking and Topping Up Gear Oil

Ensuring the correct level of gear oil is straightforward:

1. Check for Leaks: Before anything else, visually inspect the transmission gear oil tank and surrounding areas for any signs of leakage. Address any leaks promptly.
2. Position Your Scooter: Place the motorcycle on its main stand on level ground.
3. Allow to Settle: After the engine has been running, stop it and wait for 2-3 minutes. This allows the gear oil to settle within the transmission case for an accurate reading.
4. Remove Check Bolt: Locate and remove the gear oil check bolt. This bolt often doubles as the filler hole.
5. Check Oil Level: Observe the oil level. If the oil level is lower than the lower edge of the check bolt hole, it indicates that gear oil needs to be added.
6. Add Gear Oil: Slowly add the specified gear oil through the oil check bolt hole until the oil level reaches the lower edge of the hole.
7. Secure and Clean: After refilling, securely tighten the gear oil check bolt. Use a clean rag to wipe away any spilled oil around the area.

Gear Oil Specifications and Intervals

• Recommended Gear Oil: SAE90. Never use gear oil of a different brand or inferior quality, as this can lead to transmission breakdown and affect engine performance.
• Capacity / Exchanging Capacity: 0.11 litres / 0.10 litres.
• Change Intervals: The first gear oil change should be at 300 km. Subsequent changes are recommended every 5000 km. Always add specified gear oil whenever necessary to maintain the correct level.
• Caution: Both excess and insufficient gear oil will negatively affect your scooter's performance and can lead to damage.

Igniting Performance: Spark Plug Inspection and Maintenance

The spark plug is a small but mighty component, responsible for igniting the air-fuel mixture in your engine's combustion chamber. A fouled, worn, or incorrectly gapped spark plug can lead to poor starting, reduced performance, and increased fuel consumption. Regular inspection and maintenance are key to keeping your Kymco Agility 50 running at its best.

Inspecting Your Spark Plug

Regularly checking your spark plug can reveal a lot about your engine's health:

1. Remove the Spark Plug: Carefully remove the spark plug using a spark plug remover tool. Turn it counter-clockwise until it's loose enough to be removed by hand.
2. Inspect for Wear and Deposits: Examine the side electrodes for signs of wear. Look for fouling deposits (carbon, oil, or fuel residues) on the electrodes. A large gap between the electrodes, or heavy fouling, can result in a weak spark. Also, check for any cracks or damage to the insulator.
3. Clean the Spark Plug: If deposits are present, clean them. Ideally, use a dedicated spark plug cleaner. If one isn't available, a wire brush can be used to carefully remove deposits from the electrodes.
4. Check and Adjust Gap: The specified side electrode gap for your Kymco Agility 50 is 0.6 – 0.7mm. Use a feeler gauge to measure the gap. If it's outside this range, carefully bend the side electrode to adjust it.

Spark Plug Specifications and Intervals

• Specified Spark Plug: CHAMPION-P-RZ9HC. Using an unspecified spark plug may damage the engine.
• Cleaning Interval: Clean the spark plug every 2000 km.
• Replacement Interval: Replace the spark plug with a new one every 5000 km, or sooner if the centre electrode is burned out, or if inspection reveals significant wear or damage that cannot be corrected.
• Installation: When reinstalling, first screw in the spark plug with your fingers to ensure it's not cross-threaded. Once finger-tight, use a spark plug wrench to tighten it securely, but do not overtighten, as this can damage the cylinder head. The installation sequence is the reverse of removal.

Kymco Agility 50 Maintenance Schedule Summary

Adhering to a regular maintenance schedule is the best way to ensure your Kymco Agility 50 remains reliable and performs optimally for years to come. Here's a summary of the key intervals:

Remember that these intervals are general guidelines. If you operate your scooter under severe conditions (e.g., extremely dusty environments, very cold weather, or frequent short trips), more frequent maintenance may be necessary.

Frequently Asked Questions About Kymco Agility 50 Maintenance

Q: Can I use a different brand of engine oil if it meets the specifications?

A: While the manual specifies SAE 15W-40, API SG, it's generally best to stick to reputable brands that clearly state they meet or exceed these specifications. However, the manual specifically cautions against mixing engine oil of different classes or viscosities, which could imply sticking to the exact specified oil or a compatible one that doesn't cause issues when mixed with residual oil. For absolute certainty, using the brand recommended by Kymco or a widely recognised equivalent that strictly adheres to SAE 15W-40 and API SG is safest.

Q: What happens if I don't change the engine oil regularly?

A: Neglecting regular engine oil changes can lead to severe engine damage. The oil loses its lubricating properties, causing increased friction and heat, which can result in excessive wear on internal engine components, reduced performance, and eventually, engine seizure.

Q: Why is it important to clean the oil strainer during an oil change?

A: The oil strainer acts as a filter, catching metallic particles and debris that might be circulating in your engine oil. Cleaning it ensures proper oil flow and prevents these contaminants from recirculating and causing further damage to engine components.

Q: How do I know if my spark plug needs to be replaced?

A: Beyond the recommended 5000 km replacement interval, signs your spark plug needs replacing include difficulty starting the scooter, rough idling, misfires, reduced acceleration, or poor fuel economy. Visual inspection for a burned-out centre electrode, excessive wear on the side electrodes, or heavy, stubborn fouling deposits also indicates it's time for a replacement.

Q: Can I use car engine oil in my Kymco Agility 50?

A: No, it is strongly recommended to use oil specifically designed for motorcycles or scooters that meets the specified API SG and SAE 15W-40 ratings. Car oils may contain friction modifiers that are not suitable for scooter engines, particularly those with a wet clutch, which can lead to clutch slippage and damage. Always use oil that matches the manufacturer's specifications.

Q: What if I overfill the engine oil or gear oil?

A: Overfilling can be as detrimental as underfilling. Too much oil can create excessive pressure within the engine, leading to blown seals, oil leaks, and foaming of the oil, which reduces its lubricating properties. It can also cause increased oil consumption and a loss of power. If you overfill, it's best to drain the excess until the level is correct.

Conclusion

Performing regular maintenance on your Kymco Agility 50 is an investment in its lifespan and your riding safety. By following these detailed instructions for changing engine oil, checking and topping up transmission gear oil, and inspecting your spark plug, you're not only adhering to the manufacturer's guidelines but also gaining a deeper understanding of your scooter's mechanics. Embrace these routine tasks, and you'll enjoy countless miles of smooth, reliable, and efficient journeys on your trusty Kymco Agility 50. Happy riding!
