Car AC Receiver Drier: Your System's Silent Guardian

When the British summer finally graces us with its presence, or indeed, when you simply need to clear a misty windscreen, a functioning car air conditioning system is an absolute blessing. While many components like the compressor and condenser get the limelight, there's a small, often overlooked part that plays a truly critical role in the longevity and efficiency of your AC: the receiver drier. It's not something you 'refill' in the traditional sense, but rather a vital component that requires periodic replacement to safeguard your entire system from catastrophic failure.

What Exactly Does a Receiver Drier Do?

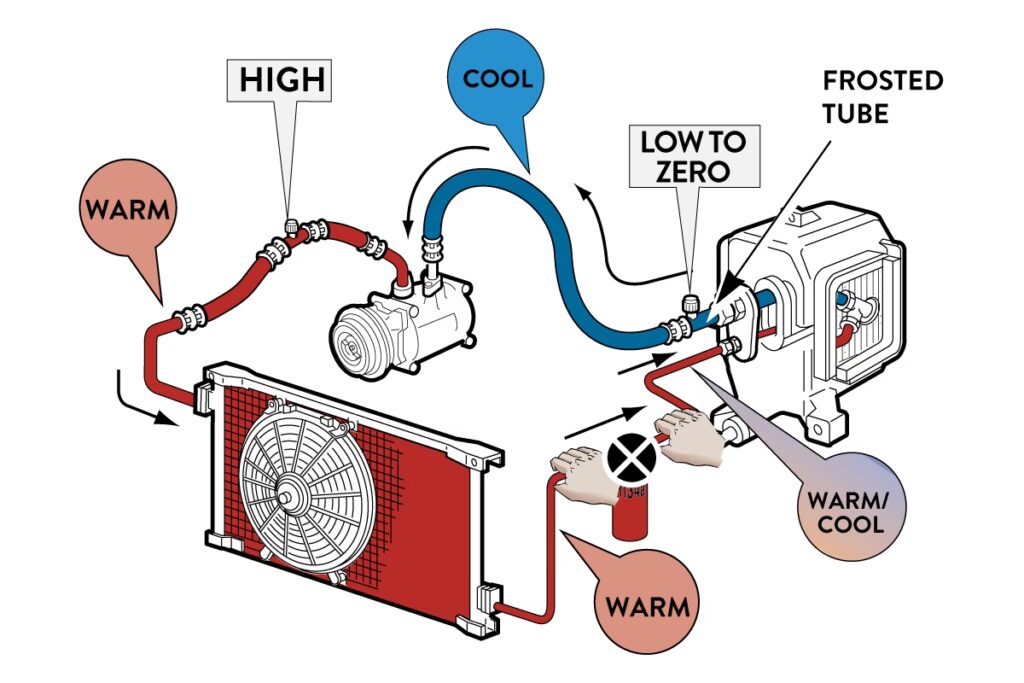

Think of the receiver drier as the unsung hero, a multi-talented component strategically placed on the high-pressure side of your car's air conditioning system, typically between the condenser and the expansion valve. Its primary functions are threefold, each crucial for the health and performance of your AC:

1. Particle Filter: As refrigerant circulates, tiny metallic particles can break off from the compressor or other components due to wear. The receiver drier acts as a filter, trapping these contaminants before they can circulate further and cause blockages or damage to delicate parts like the expansion valve.
2. Refrigerant Storage: It provides a temporary storage reservoir for excess liquid refrigerant, ensuring that a consistent supply is available to the expansion valve, which then meters the refrigerant into the evaporator. This helps maintain optimal system pressure and performance.
3. Moisture Absorber: This is arguably its most critical function. Within the drier are desiccant beads, typically silica gel (similar to those little packets found in new shoes or electronics). These beads are designed to absorb any moisture that might have inadvertently entered the AC system during manufacturing, servicing, or through tiny leaks. Even minute amounts of moisture are highly detrimental to the AC system.

It's important to note that many modern R134a filter driers do not feature a sight glass. This is a deliberate design choice because at approximately 70°C, the PAG oil (the lubricant for the compressor) can foam, creating a false impression of a low gas charge. If your drier does have a sight glass, ensure you receive a correct diagnosis when it's being viewed.

The Peril of Neglect: What Happens If the Drier Isn't Replaced?

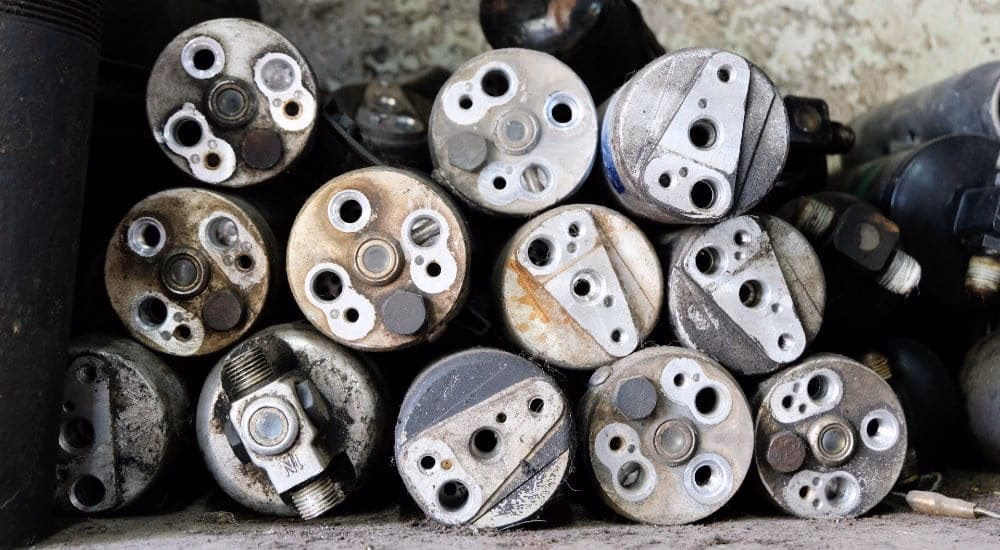

The user's question, "What happens if an air conditioner drier is not refilled?", highlights a common misconception. A receiver drier is a sealed unit, and it's not something that gets 'refilled' with desiccant. Once its desiccant is saturated with moisture, or its filter becomes clogged, the entire unit must be replaced. Failing to do so can lead to a cascade of expensive and damaging problems for your vehicle's air conditioning system.

The Silent Killer: Acid Formation

The most severe consequence of a neglected receiver drier is the formation of corrosive acids. Here's why:

• Moisture Ingress: Over time, even a perfectly sealed AC system can absorb trace amounts of moisture through hoses, O-rings, or during servicing. If the drier's desiccant is saturated, it can no longer absorb this moisture.
• Chemical Reaction: When moisture (H2O) mixes with R134a refrigerant and the PAG oil at the high temperatures and pressures found within the AC system, a chemical reaction occurs. This reaction produces highly destructive acids, primarily hydrofluoric and hydrochloric acid.
• Corrosion and Damage: These acids are incredibly corrosive. They will relentlessly attack the internal components of your AC system, dissolving metal parts, hoses, and seals from the inside out. The most vulnerable and expensive component is often the compressor, but the evaporator, condenser, and expansion valve are also at risk.

Consequences of a Failing or Saturated Drier:

Beyond acid formation, a failing receiver drier can cause a range of operational issues:

• Reduced Cooling Performance: If moisture freezes within the system, particularly at the expansion valve, it can create a blockage, severely restricting refrigerant flow and leading to poor or no cooling.
• Compressor Failure: This is the most common and expensive outcome. Acidic refrigerant and oil will degrade the compressor's internal components, leading to premature wear, seizing, and complete failure. This can also happen if the filter function of the drier fails, allowing debris to enter the compressor.
• System Blockages: A clogged filter in the drier can restrict refrigerant flow, leading to inefficient operation and potentially stressing the compressor. Furthermore, if internal components are corroding, the resulting debris can cause blockages elsewhere.
• Leaks: Acidic corrosion can weaken hoses and seals, leading to refrigerant leaks, which then require costly repairs and re-gassing.
• Contamination: If the desiccant breaks down or is saturated, it can release particles into the system, further exacerbating blockages and wear.

When Should You Replace Your Receiver Drier?

Unlike some other car parts, a receiver drier doesn't typically give obvious warning signs of failure until it's too late and significant damage has already occurred. Therefore, replacement is primarily a preventative maintenance measure.

The general recommendations for replacing a receiver drier are:

1. Every Time the AC System is Opened: This is a non-negotiable rule. Any time the AC system is exposed to the atmosphere (e.g., for a compressor replacement, condenser repair, or leak fix), moisture immediately enters. The existing drier will absorb this moisture, but its capacity is limited. A new drier is essential to ensure all new moisture is absorbed and to filter any debris generated during the repair.
2. Every 2-3 Years as Preventative Maintenance: Even if your system hasn't been opened, the desiccant in the drier has a finite lifespan and moisture absorption capacity. Over time, it will become saturated. Replacing it proactively helps to prevent the insidious build-up of moisture and the associated acid formation.

Receiver Drier vs. Accumulator: A Quick Distinction

It's worth briefly clarifying that while the receiver drier is found in systems with a thermal expansion valve (TXV), some AC systems utilise an orifice tube. These systems employ a component called an accumulator instead of a receiver drier. While both serve to absorb moisture and filter contaminants, their placement and some secondary functions differ. For the purposes of this article, we are focusing on the more common receiver drier found in TXV systems.

The Cost of Prevention vs. Repair

Consider the following comparison:

As you can see, the cost of replacing a receiver drier is a tiny fraction of what it costs to replace a damaged compressor or, worse, an entire AC system contaminated by acid. It's a classic example of how a small, inexpensive preventative measure can save you a significant amount of money and hassle down the line.

Frequently Asked Questions About Receiver Driers

Q: Can I skip replacing the receiver drier when I get other AC work done?

A: Absolutely not. This is a false economy and one of the biggest mistakes people make. If your AC system is opened for any reason (e.g., replacing a leaky hose, condenser, or compressor), the system is exposed to atmospheric moisture. The old drier will already have absorbed some moisture over time, and its capacity is limited. Installing a new drier is crucial to absorb any new moisture and to ensure the system is clean and healthy. Failing to do so significantly increases the risk of premature failure of the new components you just installed, especially the expensive compressor.

Q: How often should a receiver drier be replaced if the system hasn't been opened?

A: Even in a sealed system, the desiccant has a finite life. Most manufacturers and AC specialists recommend replacing the receiver drier every 2 to 3 years as a preventative measure. This proactive approach helps ensure the desiccant remains effective at moisture absorption, preventing the build-up of harmful acids and extending the life of your entire AC system.

Q: Are there any symptoms of a bad receiver drier?

A: Unfortunately, not usually until significant damage has occurred. A receiver drier is a 'silent killer' in that it fails internally without obvious external signs. By the time you notice reduced cooling, strange noises, or leaks, the damage to other components (like your compressor) might already be extensive due to acid corrosion or blockages. This is why preventative replacement is so vital.

Q: Is it a DIY job to replace a receiver drier?

A: While the physical act of unbolting and bolting on a new drier might seem straightforward, AC system work is not a typical DIY job. It requires specialised equipment, including a refrigerant recovery machine (to safely remove old refrigerant), a vacuum pump (to evacuate the system of air and moisture), and manifold gauges (to monitor pressures). Refrigerants are also potent greenhouse gases, and their release into the atmosphere is illegal and harmful. Always use a certified professional for AC work to ensure it's done correctly and environmentally responsibly.

Q: Can a bad receiver drier cause a refrigerant leak?

A: Indirectly, yes. If the receiver drier fails to absorb moisture, it leads to the formation of corrosive acids within the system. These acids will slowly eat away at the rubber hoses, O-rings, and metal components, eventually creating weak points where refrigerant can leak out. So, while the drier itself doesn't typically leak, its failure can be the root cause of subsequent leaks throughout the system.

Conclusion

The receiver drier may be a small, unassuming component, but its role in your car's air conditioning system is monumental. It acts as a vigilant guardian, filtering contaminants and, most crucially, absorbing moisture to prevent the formation of highly destructive acids. Neglecting this vital part by failing to replace it periodically, especially whenever the AC system is opened, is a gamble that almost always results in far more expensive repairs down the line, particularly the dreaded compressor failure. Prioritise this small preventative measure, and you'll ensure your car's AC system remains efficient, reliable, and keeps you cool and comfortable for years to come.
