ECU Programming: A Comprehensive Guide

Replacing your vehicle's Engine Control Unit (ECU) can be a daunting task, especially when it comes to the crucial step of programming the new unit. Whether your original ECU has succumbed to damage, a flood, or simply reached the end of its operational life, a replacement is often necessary. However, simply swapping out the old ECU for a new or used one isn't enough. Without proper programming, your vehicle's immobiliser system, and indeed many other vital functions, will not work correctly, potentially leaving you stranded. This guide will delve into the intricacies of ECU programming, offering you a clear understanding of the process and the various methods available.

Why is ECU Programming Essential?

Think of the ECU as the brain of your vehicle. It meticulously manages an array of critical functions, from engine performance and fuel injection to emissions control and even the security systems. The Vehicle Identification Number (VIN) is intrinsically linked to these functions. When you replace an ECU, you're essentially installing a new brain, and this new brain needs to be told who it is and what vehicle it belongs to. Programming the VIN into the new ECU is paramount for ensuring that all the other modules within your car – the immobiliser, the dashboard, the key fobs, and more – can communicate effectively and recognise the new ECU as a legitimate part of the vehicle. Failure to do so can lead to a cascade of problems, including the vehicle refusing to start, persistent check engine lights, and erroneous communication errors between various systems.

Methods for ECU Programming After Replacement

There are several established methods to tackle ECU programming. The best approach for you will depend on your available tools, technical expertise, and the specific requirements of your vehicle's make and model.

Method 1: Using a Specialised Diagnostic Device

This is often considered the most direct and reliable method, particularly for newer vehicles. Manufacturers utilise specific diagnostic tools to communicate with and program ECUs. These tools are designed to interact with the vehicle's complex electronic architecture.

• Manufacturer-Specific Tools: For brands like Volkswagen, you might need a VCDS (VAG-COM Diagnostic System) or a 5054A. BMW vehicles often require an ICOM interface, while Land Rover uses JLR SDD, and Toyota has its TIS Techstream. These are the 'gold standard' for performing these tasks on their respective brands, offering the highest level of compatibility and stability.
• Aftermarket Diagnostic Tools: Several reputable aftermarket diagnostic tools, such as those from Autel (e.g., MaxiSys MS908, MaxiCOM MK808BT) or XTOOL (e.g., X300 DP Plus), also offer ECU programming and adaptation functions for a wide range of vehicles. While these can be more versatile, professional-grade original factory tools generally provide superior stability and a more comprehensive feature set for specific programming tasks.

When using a diagnostic device, the process typically involves connecting the tool to your car's OBD-II port, navigating through the software menus to the ECU programming section, and following on-screen prompts to input the necessary data, including the VIN.

Method 2: ECU Cloning (Data Transfer)

ECU cloning, or data transfer, is an excellent option if your original ECU is still functional enough to communicate with a programmer, even if it's damaged or needs replacement. This method involves reading the complete data from the original ECU and writing that exact data onto the new or used replacement ECU.

• Process: You'll need an ECU programmer that specifically supports cloning functions. The original ECU is connected to the programmer, and its internal data (including immobiliser data, VIN, and calibration files) is read. This data is then transferred and written onto the new ECU.
• Advantages: This method ensures that all the original configurations and settings are perfectly replicated, often eliminating the need for extensive re-adaptation or VIN programming afterwards. It's particularly useful if the original ECU is physically damaged but the internal memory chip is still readable.
• Considerations: The key requirement here is that the original ECU must be accessible and readable by the ECU programmer. If the original ECU is completely dead or unreadable, this method won't be feasible.

Method 3: Using a Used ECU (VIN Change and IMMO Disable)

This method is a viable alternative, especially when you don't have access to manufacturer-specific diagnostic tools, and your original ECU is beyond repair or data retrieval. It involves sourcing a used ECU of the exact same model and then modifying it to suit your vehicle.

• Immobiliser (IMMO) Disablement: Modern vehicles have sophisticated immobiliser systems that prevent the engine from starting without the correct key. When installing a used ECU from another vehicle, the immobiliser system will prevent your car from running. Therefore, the immobiliser function within the used ECU needs to be 'disabled' or 'virginised'. This is often done using specialised software or hardware tools that can bypass or reset the immobiliser parameters.
• VIN Programming: Once the immobiliser is handled, you must program your vehicle's unique VIN into the used ECU. This ensures compatibility with other vehicle modules and prevents communication errors.
• Examples: For instance, changing the VIN for a Volkswagen Audi BOSCH MED17 ECU on a workbench, or disabling the immobiliser for a Bosch MED9.1 ECU used in Audi, Touareg, and Golf 6 models, are common procedures that fall under this category. These operations typically require bench programming equipment rather than just an OBD-II scanner.

Step-by-Step Guide: Programming the VIN Using an OBD2 Scanner

While some ECU programming tasks require advanced tools, programming the VIN after an ECU swap is often achievable with a capable OBD2 scanner. Here's a general procedure:

1. Vehicle and Scanner Preparation

• Ensure your vehicle is parked on a level surface in a safe location.
• Turn off the ignition and remove the key from the ignition switch.
• Locate your vehicle's OBD-II port, typically found under the dashboard on the driver's side.
• Connect your OBD2 scanner to the OBD-II port.
• Turn the ignition to the 'ON' position (without starting the engine). This powers the scanner and establishes a connection with the vehicle's internal network.

2. Accessing ECU Programming Mode

• On your OBD2 scanner's interface, navigate to the section related to ECU programming, module programming, or coding. The exact menu names can vary between scanner brands.

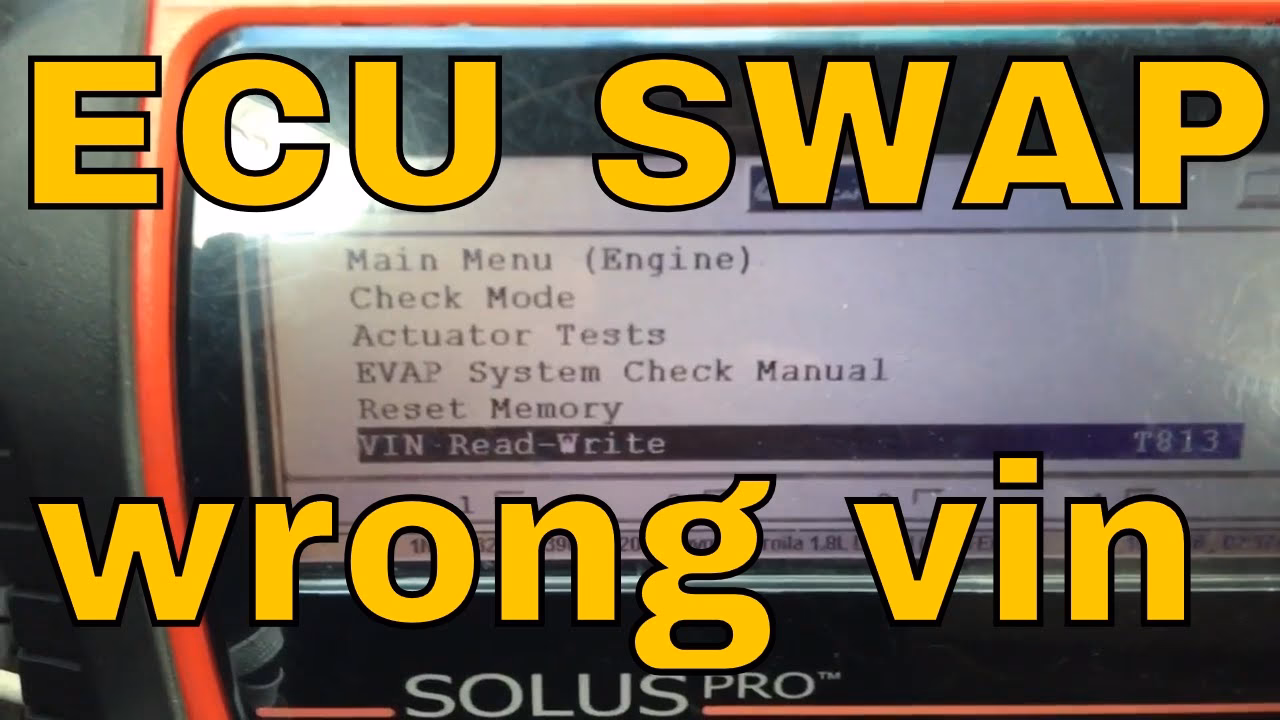

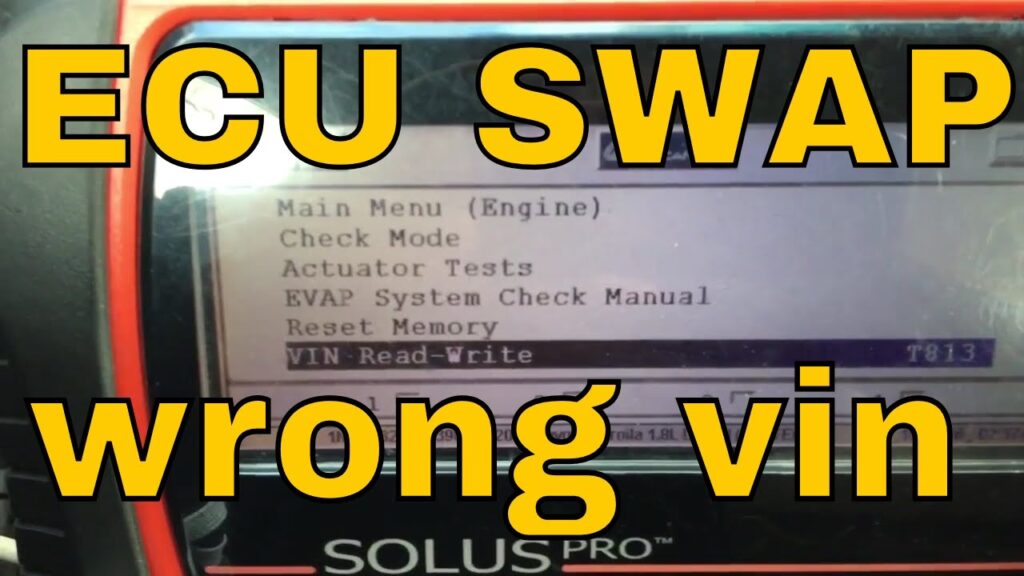

• Look for options such as 'VIN Programming,' 'ECU Reprogramming,' 'Module Adaptation,' or 'ECU Reset.' Select the option that allows you to input or modify the VIN.

3. Inputting the VIN

• You will be prompted to enter the VIN. Carefully input your vehicle's correct VIN using the scanner's keypad or interface. Ensure that every digit and letter is accurate, as even a single mistake can lead to programming failure or communication issues. Some advanced scanners may allow you to upload the VIN from a saved file or database.

4. Executing the VIN Programming

• Once the VIN is entered correctly, initiate the programming process. Your scanner will communicate with the ECU and write the VIN into its memory.
• Crucially, do not interrupt this process. Do not turn off the ignition, disconnect the scanner, or attempt to start the engine while the programming is in progress. Interruptions can corrupt the ECU or fail to write the VIN correctly, potentially requiring further intervention. This process can take several minutes.

5. Verifying VIN Programming

• Upon successful completion, the scanner will usually display a confirmation message.
• It's good practice to verify the VIN within the scanner's vehicle information display. Also, check your dashboard for any warning lights that may have illuminated. If the programming was successful, warning lights related to VIN mismatch or communication should be absent.

6. Testing the Vehicle

• With the programming confirmed, start the engine.
• Test all relevant systems, including the engine's performance, dashboard indicators, immobiliser system (e.g., check if the key is recognised), and any other modules that rely on ECU communication. If everything operates as expected, the ECU swap and programming have been successful.

Troubleshooting Common Issues

Even with careful execution, you might encounter hurdles during ECU programming. Here are some common problems and how to address them:

• ECU Compatibility: Always double-check that the replacement ECU is precisely compatible with your vehicle's make, model, year, and engine variant. An incompatible ECU will likely fail to program or function correctly.
• Scanner Errors: If your OBD2 scanner displays an error message, try disconnecting and reconnecting the scanner, or perform a soft reset of the scanner itself. Ensure the OBD-II port connection is secure and free from damage.
• VIN Mismatch/Typos: This is a frequent culprit. Carefully re-enter the VIN, verifying each character against your vehicle's documentation. Even a single incorrect digit will cause the programming to fail.
• Security System Lockout: Some vehicles have advanced security protocols that might prevent VIN programming if the security system hasn't been properly disarmed or reset after the ECU swap. This might require a specific procedure or a more advanced tool.
• Incorrect VIN Format: Ensure the VIN you are entering adheres to the specific format required by the vehicle's system. Some systems are very particular about leading zeros or specific character placements.
• ECU Communication Errors: If the scanner cannot establish communication with the ECU, check the wiring harness connecting the ECU to ensure it's securely plugged in and undamaged. Also, confirm that the scanner itself is capable of accessing the programming mode of that specific ECU type.

Conclusion

Replacing and programming an ECU is a critical procedure that demands precision and the right tools. Whether you opt for manufacturer-specific diagnostic tools, ECU cloning, or the modification of a used ECU, understanding the underlying principles, especially the importance of VIN programming and immobiliser integration, is key. By following the outlined methods and troubleshooting tips, you can successfully integrate a new ECU into your vehicle, restoring its functionality and ensuring all its electronic systems communicate harmoniously. Always prioritise using compatible parts and reliable tools to achieve the best results.

Frequently Asked Questions

How can I tell if my ECU swap was successful?

After programming the VIN and carrying out any other necessary steps, check for any warning lights on the dashboard. If the vehicle starts and runs smoothly, and all systems (like the immobiliser, dashboard lights, and check engine light) are functioning normally without error codes, the swap was likely successful.

Can I use a used ECU for my vehicle without programming the VIN?

No, you generally cannot use a used ECU without programming the VIN. The VIN is a unique identifier that links the ECU to your specific vehicle. Without the correct VIN programmed, the vehicle's security system and other modules will not recognise the ECU, leading to immobilisation or communication errors.

How long does it take to program the VIN after an ECU swap?

The VIN programming process itself typically takes only a few minutes, depending on the specific OBD2 scanner, the vehicle's system, and the speed of data transfer. However, it's vital not to interrupt the process once it has started. The entire ECU replacement and programming procedure, including preparation and verification, can take significantly longer.
