Mastering Diesel Engine Bleeding: Your UK Workshop Guide

A diesel engine, renowned for its efficiency and robust power, relies on a meticulously calibrated fuel system to deliver optimal performance. However, a common adversary to this intricate system is the presence of air. Whether introduced through routine maintenance, a leak, or simply by running the fuel tank dry, air in the diesel fuel lines can wreak havoc, leading to anything from minor performance hiccups to complete engine failure. Understanding how to effectively bleed air from your diesel fuel system isn't just a useful skill; it's a crucial aspect of diesel engine maintenance that ensures longevity and reliability. This comprehensive guide will walk you through the proper steps, essential tools, and critical considerations to keep your diesel engine running smoothly.

Understanding Air in Your Diesel Fuel System

The diesel fuel system is a complex network of components meticulously designed to ensure the smooth and efficient operation of your engine. When air infiltrates this system, it disrupts the continuous flow of fuel, creating a lean mixture that can severely compromise engine performance and overall functionality. It’s imperative to grasp both the origins and repercussions of air in the diesel fuel system to address the issue effectively.

Causes of Air Ingress

Several factors can lead to air finding its way into your diesel fuel system. One of the most prevalent causes is a leak within the fuel line itself, or in the fuel filter housing. Over time, seals and connections can degrade, creating tiny pathways for air to enter. Another frequent culprit is improper fuel filter installation. If the filter isn't seated correctly, or if the O-ring is damaged during replacement, air can easily be drawn into the system. Additionally, allowing your fuel tank to run critically low or completely empty is a common way to introduce air, as the fuel pump may begin to draw in air instead of fuel.

It's also worth noting that air can be inadvertently introduced during routine maintenance. For instance, when replacing the fuel filter, the housing must be opened, which naturally exposes the system to air. Similarly, if fuel lines are disconnected for any reason, or if the fuel system isn't properly bled following any form of maintenance, air bubbles can find their way into the delicate fuel network.

Consequences of Air in the System

The ramifications of air within the diesel fuel system are multifaceted and can be quite detrimental. Primarily, air disrupts the precise combustion process within the engine cylinders. This can manifest as reduced power output, a noticeable decrease in fuel efficiency, and an increase in harmful emissions. You might also hear a distinct knocking or pinging sound, indicating inefficient fuel burning.

Beyond performance issues, air in the fuel system can inflict damage on various components. Air bubbles can create excessive pressure fluctuations within the fuel lines, potentially leading to leaks or even bursts, which not only pose a safety hazard but also result in fuel wastage. Furthermore, air bubbles can cause cavitation in the fuel pump. This phenomenon, where rapid pressure changes create tiny vapour cavities that then collapse, can severely damage the pump’s internal components and drastically reduce its operational lifespan. Indirectly, an engine running rough due to air can lead to excessive vibrations, contributing to premature wear and tear on other vehicle parts. The combined effects of reduced power and decreased fuel efficiency inevitably lead to higher operating costs for the vehicle owner.

To prevent these costly and frustrating issues, regular inspection and maintenance of the fuel system are paramount. This includes vigilantly checking for leaks, ensuring fuel filters are installed correctly, and always bleeding the system thoroughly after any maintenance. Proactive measures are key to ensuring your diesel engine performs optimally and reliably.

Essential Tools for the Job

To successfully bleed air from your diesel fuel system, having the right tools is paramount. These specific items will not only simplify the process but also ensure that trapped air is removed effectively and safely. Here’s a breakdown of the indispensable tools you'll need:

• Fuel Line Spanner: An essential tool for working on diesel fuel systems, this specially designed spanner allows you to loosen and tighten fuel line fittings without causing damage. Its unique shape provides excellent leverage and prevents slippage, making the task of accessing bleed points much easier.
• Bleeder Screw Key: A small but mighty tool, the bleeder screw key is specifically designed to fit the bleeder screws found on the fuel filter housing or injection pump. Its precise fit allows you to easily open and close the screw to release trapped air, a task that would be incredibly difficult without it.
• Clear Hose: This transparent tube is crucial for visually monitoring the fuel flow during the bleeding process. By attaching a clear hose to the bleeder screw, you can observe fuel as it exits, clearly seeing any air bubbles. This visual feedback is invaluable for confirming that all air has been expelled from the system.
• Basic Hand Tools: In addition to the specialised tools, a standard set of hand tools such as screwdrivers, pliers, and a rag or container for catching spilled fuel will also be necessary for accessing components and managing any fuel spillage.

Preparation is Key

Before you even pick up a spanner, proper preparation is vital for a smooth and safe bleeding process. Taking these preliminary steps will set you up for success and prevent unnecessary complications.

Park the Vehicle on a Level Surface

Always begin by parking your vehicle on a flat, level surface. This ensures maximum stability and safety while you work, preventing any accidental movement. A level surface also helps ensure accurate fuel readings and prevents fuel from sloshing around unnecessarily within the system during the bleeding process.

Locate the Fuel Filter Housing and Bleed Points

Before you start, familiarise yourself with the layout of your diesel fuel system. Identify the fuel filter housing, which typically contains the fuel filter and often has one or more bleeder screws. The exact location can vary significantly between vehicle makes and models, but it's usually near the engine. You'll also need to locate any other bleed points, such as those on the fuel injection pump or even on the individual fuel injectors, depending on your engine's design. Consulting your vehicle's owner’s manual is highly recommended for precise locations.

Gather All Necessary Tools and Safety Gear

Once you've located the components, ensure you have all the tools listed above readily accessible. Having everything to hand will save you time and frustration. Additionally, always wear appropriate personal protective equipment, including safety glasses and gloves, to protect yourself from fuel splashes and mechanical hazards. Have a suitable container ready to catch any diesel fuel that will be expelled during the bleeding process.

Step-by-Step Guide to Bleeding Air from Your Diesel Fuel System

Bleeding air from a diesel fuel system follows a general principle: you typically work from the lowest point in the system upwards, allowing gravity and pump pressure to push air out. However, the exact procedure can vary based on your engine's specific design, particularly concerning the type of fuel pump it employs. Always refer to your vehicle’s service manual for the most accurate and detailed instructions.

1. Bleeding the Fuel Filter Housing

This is often the first point where air accumulates and needs to be expelled.

• Locate the Bleeder Screw: Find the bleeder screw, usually situated on top or the side of the fuel filter housing. It might look like a small bolt or a plastic screw.
• Attach Clear Hose: If possible, attach one end of your clear hose to the bleeder screw's nipple and place the other end into your waste fuel container. This allows you to visually monitor for air bubbles.
• Loosen the Bleeder Screw: Using your bleeder screw key or an appropriately sized spanner, carefully loosen the bleeder screw a turn or two counter-clockwise. You might hear a hiss as trapped air begins to escape.
• Prime the Fuel Pump: This is where fuel is manually or electrically pushed through the system to expel air.
  • For Manual Priming Pumps: Many older diesel engines and some modern ones feature a manual priming pump (often a plunger or lever) on or near the fuel filter housing. Repeatedly depress or pump this lever until you feel resistance and observe a steady, air-free stream of fuel flowing out of the clear hose into your container.
  • For Electric Fuel Pumps: Newer vehicles often rely on an electric fuel pump. You might need to turn the ignition key to the 'on' position (without starting the engine) for a few seconds, or cycle it on and off multiple times. Some systems may require you to crank the engine briefly (without allowing it to start, if possible, e.g., by disconnecting the engine stop solenoid) to activate the pump. Consult your manual for the exact procedure to activate your electric pump for priming.
• Tighten the Bleeder Screw: Once you see a continuous flow of fuel without any air bubbles, carefully tighten the bleeder screw. Do not overtighten, as this can damage the screw or housing.

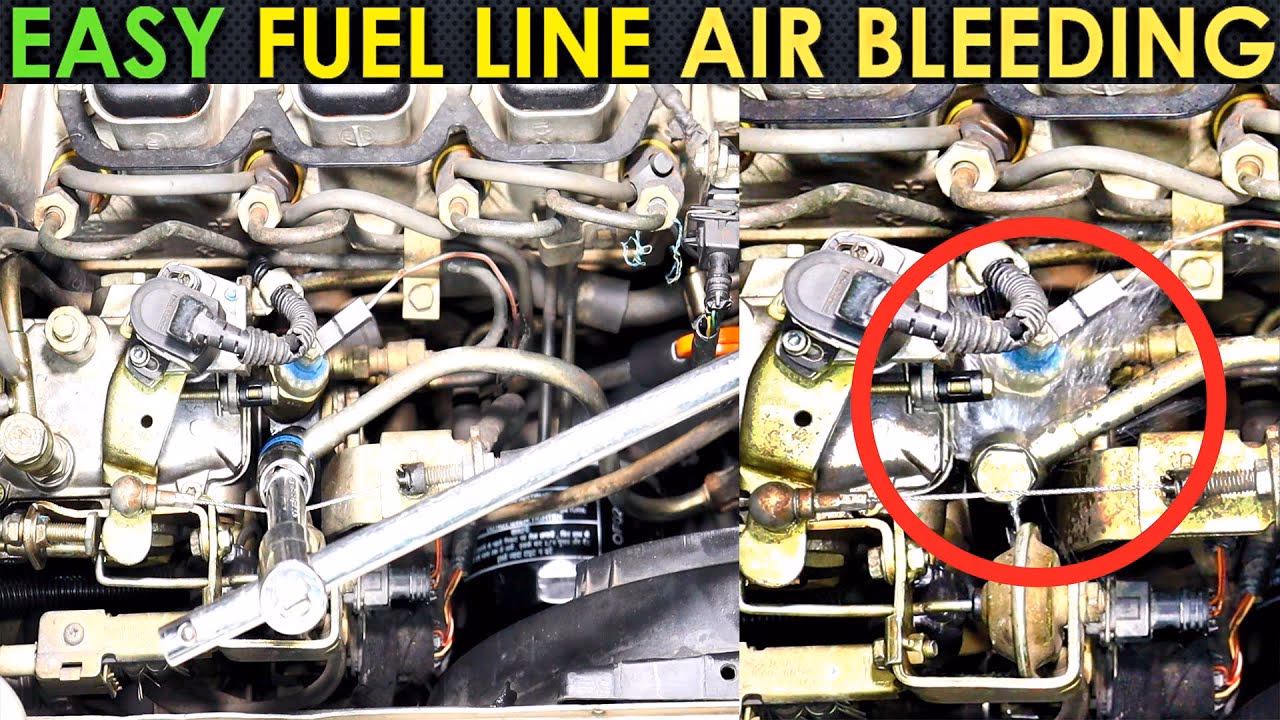

2. Bleeding the Fuel Injection Pump

After the fuel filter, air may still be trapped in the high-pressure fuel injection pump.

• Locate Bleeder Screws: The injection pump typically has one or more bleeder screws. Their location varies, so refer to your manual.
• Repeat Priming Process: Attach your clear hose and container. Loosen the bleeder screw(s) on the injection pump one at a time, and repeat the fuel pump priming process (manual or electric) until a steady, bubble-free stream of fuel emerges.
• Tighten Screws: Once air-free, tighten the bleeder screw(s) securely.

3. Bleeding the High-Pressure Fuel Lines and Injectors (Crucial for a Start)

This is often the final and most critical step, especially if the engine refuses to start.

• Loosen Injector Union Nuts: On each fuel injector, you'll see a high-pressure fuel line connected by a union nut. Using your fuel line spanner, carefully loosen one or two of these union nuts (starting with the one closest to the injection pump) by just a turn or two. You don't need to completely remove them; just enough for fuel to dribble out.
• Crank the Engine: With the union nuts slightly loose, crank the engine using the starter for short bursts (e.g., 5-10 seconds at a time). As you crank, observe the loosened connections. Fuel, hopefully without air bubbles, should begin to dribble out.
• Crucial Warning: Close the Cooling Water Seacock! If your engine has a raw water cooling system, and you anticipate cranking the engine for more than about 20-30 seconds total (accumulated time over several bursts), it is absolutely critical to close the cooling water seacock. Each time the engine is cranked, it pumps water into the exhaust system. If the engine doesn't start, this water accumulates and can eventually backflow into the exhaust manifold, exhaust valves, and ultimately the cylinders, causing catastrophic damage (hydro-lock). Remember to reopen the seacock immediately once the engine starts and runs smoothly!
• Tighten Union Nuts: Once you see a consistent dribble of fuel (no air bubbles) from the loosened union nut, tighten it securely. Repeat this process for any other loosened injector nuts.
• Attempt to Start the Engine: Once all connections are tightened, try starting the engine. It may run rough at first, or take a few attempts to fully clear any remaining air. If it starts, allow it to idle for a few minutes to stabilise. If it doesn't start, re-check connections and consider repeating the bleeding process from the fuel filter housing upwards.

Verifying Proper Fuel Flow and System Integrity

After completing the bleeding process, it's essential to verify that the fuel system is operating correctly and free from issues. This step ensures optimal performance and identifies any lingering problems.

Inspecting the Fuel Filter Housing

Begin by visually inspecting the fuel filter housing. Look for any signs of cracks, leaks, or damage. Ensure that the housing is securely attached and that any O-rings or seals are properly seated and not compromised. Check for any visible debris or sediment around the housing, which could indicate a need for filter replacement or a larger fuel system issue.

Observing the Fuel Lines

Carefully examine all accessible fuel lines running from the tank to the engine. Look for any signs of wear, chafing, cracks, or bulges, which could indicate potential future leaks. Check for any visible blockages or kinks that might impede fuel flow. Ensure all connections are tight and secure, as loose fittings are a common source of air ingress.

Testing Fuel Pressure (If Applicable)

For a more thorough check, especially if persistent issues remain, you might consider testing the fuel pressure. This typically requires a specific fuel pressure gauge connected to a test port on the fuel system (refer to your vehicle's manual for location and procedure). Compare the pressure readings to the manufacturer's specifications. Abnormally low pressure could indicate a faulty fuel pump or a significant blockage, while excessively high pressure could point to a restricted return line. This step might be best left to a professional if you're not comfortable with it.

Crucial Final Steps and Responsible Disposal

You're almost there! Once the engine is running smoothly, a few final steps are necessary to ensure everything is secure and to handle any waste responsibly.

Tightening All Connections

Double-check every bleeder screw, fuel line union nut, and any other fitting you loosened during the bleeding process. Ensure they are all tightened securely, but be careful not to overtighten, as this can strip threads or damage components. A good rule of thumb is snug plus a quarter turn, but always defer to torque specifications in your manual if available.

Thoroughly Checking for Leaks

With the engine running, carefully inspect all fuel system components for any signs of leakage. Look for wet spots, drips, or a strong smell of diesel fuel. Pay close attention to the areas around the fuel filter housing, injection pump, and injector connections. You can also run a clean, dry cloth along the lines and connections to check for moisture. Any signs of a leak must be addressed immediately to prevent fuel loss, potential fire hazards, and further air ingress.

Properly Disposing of Fuel Waste

Working with diesel fuel means you'll have collected some waste. It is absolutely critical to dispose of this fuel responsibly. Never pour it down drains, onto the ground, or into general waste bins. Diesel fuel is a hazardous substance and can severely contaminate soil and water sources. Collect all waste fuel in a clearly labelled, sealed container. Contact your local council or a reputable waste management facility to inquire about their guidelines for hazardous waste disposal. They will provide instructions on where and how to safely dispose of the fuel, ensuring environmental protection.

Frequently Asked Questions (FAQs) About Diesel Engine Bleeding

Can a diesel engine be bled of air?

Yes, absolutely. Bleeding air from the fuel system is a standard and often necessary maintenance procedure for diesel engines, particularly after running out of fuel, replacing fuel filters, or performing other fuel system maintenance.

Why is bleeding air important in a diesel engine?

Air in the diesel fuel system disrupts the continuous flow of fuel to the engine. This leads to inefficient combustion, reduced power, rough idling, misfires, and can even prevent the engine from starting. Bleeding ensures a steady, air-free fuel supply for optimal engine performance and longevity.

What are the consequences of air in the diesel fuel system?

The presence of air can lead to a range of issues including engine misfires, a significant loss of power, increased fuel consumption, and rough running. Prolonged exposure to air bubbles can also cause damage to delicate components like fuel injectors and the fuel pump (due to cavitation), and can even lead to fuel contamination and corrosion within the system.

What methods can be used to remove air from a diesel fuel system?

Common methods include manual bleeding (using a hand priming pump), using an electric fuel pump (by cycling the ignition), loosening high-pressure injector lines, and in some cases, using a vacuum pump. The specific method often depends on the vehicle's make and model, so consulting the owner's manual is always advised.

Do different diesel fuel systems require different bleeding methods?

While the core principle of expelling air remains the same, the exact bleed points, the type of fuel pump (manual or electric), and the procedure for priming can vary significantly between different diesel engine designs. Always follow the specific instructions provided in your vehicle's service manual or consult a qualified mechanic.

Conclusion

Bleeding air from your diesel fuel system is an indispensable aspect of vehicle maintenance that can significantly impact your engine's performance, efficiency, and lifespan. By understanding the causes and consequences of air ingress, equipping yourself with the right tools, and meticulously following the step-by-step bleeding process, you can confidently address this common issue. Remember to prioritise safety, consult your vehicle’s specific manual, and always ensure proper disposal of fuel waste. A well-maintained, air-free fuel system is the cornerstone of a reliable and powerful diesel engine, ensuring you enjoy many miles of trouble-free driving on the UK roads.
