Fuel Injection: MPI vs. Direct Injection

Understanding the nuances of modern automotive engine technology can often feel like deciphering a complex code. At the heart of every internal combustion engine lies the critical task of delivering fuel and air in precise quantities to achieve efficient combustion. Two prominent systems that have revolutionised this process are Multi-Point Fuel Injection (MPI) and Direct Fuel Injection (DI). While both aim to optimise fuel delivery, they achieve this through distinct mechanisms, each with its own set of advantages. Furthermore, the automotive industry has witnessed the emergence of systems that cleverly combine the strengths of both, offering an even more refined approach to engine performance and economy. This article will delve into the workings of MPI and DI, highlight their benefits, and explore the compelling advantages of their combined application.

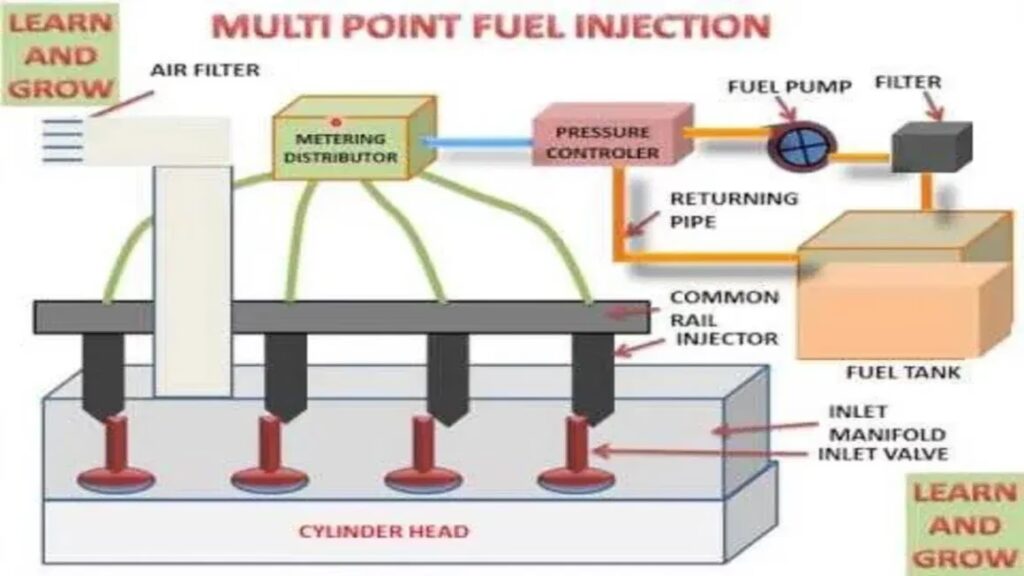

The Mechanics of Multi-Point Fuel Injection (MPI)

In a Multi-Point Fuel Injection system, the fuel-air mixture is not formed directly within the combustion chamber itself. Instead, the process begins outside, typically in the intake manifold. Each cylinder is equipped with its own injector, strategically positioned upstream of the inlet valve. The injector's role is to spray a fine mist of fuel into the incoming air stream. As the inlet valve opens during the suction stroke, this pre-formed fuel-air mixture is drawn into the combustion chamber.

The selection of appropriate injection valves is paramount to ensuring that the engine's fuel requirements are met across its entire operating spectrum. This means that whether the engine is operating under a light load or pushing its limits at high revolutions per minute (RPM), the MPI system must be capable of delivering the correct fuel quantity. Even during idling, when fuel demands are at their lowest, the system's precision allows for the accurate metering and injection of minimal fuel amounts. This meticulous control contributes significantly to smoother idling and improved fuel economy during low-demand scenarios.

Advantages of MPI

• Smoother Idling: The pre-formation of the fuel-air mixture in the intake manifold can lead to more consistent combustion at low engine speeds.
• Reduced Intake Manifold Deposits: The fuel being injected onto the intake valves can help to keep them cleaner, reducing the build-up of carbon deposits over time.
• Good Atomisation: The injectors are designed to atomise fuel effectively, promoting better mixing with air before it enters the cylinder.
• Cost-Effective: Historically, MPI systems have been less complex and therefore more affordable to manufacture than early direct injection systems.

The Precision of Direct Fuel Injection (DI)

Direct Fuel Injection (DI), also known as Gasoline Direct Injection (GDI) or Common Rail Diesel Injection (CRDI) in diesel engines, operates on a fundamentally different principle. As the name suggests, fuel is injected directly into the combustion chamber, rather than into the intake manifold. This high-pressure injection occurs very close to the point of ignition, often during the compression stroke.

The key benefit of injecting fuel directly into the cylinder is the enhanced control over the combustion process. By timing the injection precisely, engineers can influence factors such as mixture formation, cylinder temperature, and even the creation of a stratified charge (where a richer fuel-air mixture is near the spark plug and a leaner mixture elsewhere). This precise control allows for more efficient combustion, particularly under demanding conditions.

Advantages of Direct Injection (DI)

• Improved Fuel Efficiency: The direct injection of fuel allows for more precise metering and better control over the combustion process, leading to significant fuel savings.
• Increased Power Output: By cooling the combustion chamber through fuel evaporation, DI systems can allow for higher compression ratios and increased boost pressures, resulting in more power.
• Reduced Emissions: More precise fuel delivery and combustion control can lead to lower emissions of certain pollutants.
• Higher Knock Limit: The cooling effect of fuel evaporation within the cylinder raises the engine's resistance to knocking (detonation), allowing for more aggressive ignition timing and further performance gains.

The Best of Both Worlds: Combined Multi-Point and Direct Injection

Recognising the distinct strengths of both MPI and DI, automotive manufacturers have developed sophisticated systems that integrate both technologies. This 'combined' or 'dual' injection approach aims to leverage the advantages of each system to achieve optimal performance and efficiency across a wider range of operating conditions.

The fundamental principle behind combined injection is to utilise the most appropriate injection strategy for the given driving scenario. For instance, under partial load conditions, where engine friction losses can be a significant factor in fuel consumption, the system might favour the MPI approach. Injecting fuel into the intake manifold can reduce pumping losses and contribute to smoother operation. Conversely, when the engine is operating close to full load or requires maximum power, the system can switch to or supplement with direct injection. The increased knocking limit afforded by direct injection allows the engine to be tuned for more aggressive ignition timing and higher boost pressures, thereby maximising power output.

How Combined Injection Works

In a combined system, there are typically two sets of injectors per cylinder: one in the intake manifold (MPI) and one directly in the combustion chamber (DI). The engine control unit (ECU) intelligently decides which injector(s) to use, or how to utilise both, based on a multitude of sensor inputs, including engine speed, load, throttle position, and temperature.

• Partial Load: During cruising or light acceleration, the MPI injectors may be used to provide a stable and efficient fuel-air mixture. The fuel sprayed onto the intake valves can also help keep them clean.
• High Load/Full Throttle: Under heavy acceleration or when demanding maximum power, both MPI and DI injectors can operate. The DI injectors provide the precise fuel delivery needed for high performance, while the MPI injectors can contribute to charge cooling and further enhance the mixture.
• Cold Starts: The system can be programmed to utilise specific injection strategies during cold starts to ensure smooth running and reduce emissions.

Benefits of Combined Injection

• Enhanced Fuel Efficiency: By optimising fuel delivery for both partial and full load conditions, combined injection systems offer superior fuel economy compared to systems relying on a single injection method. This is a significant advantage for everyday driving.
• Improved Performance: The ability to utilise the higher knocking limit of direct injection allows for more aggressive engine tuning, leading to increased power and torque.
• Reduced Emissions: The precise control over fuel delivery and combustion, coupled with the ability to fine-tune injection strategies for different conditions, can lead to a reduction in harmful exhaust emissions.
• Better Response: The intelligent management of fuel delivery can also contribute to a more responsive engine, with quicker throttle reactions.

Comparison Table: MPI vs. DI vs. Combined Injection

Frequently Asked Questions (FAQs)

Is direct injection always better than multi-point injection?

Not necessarily. While direct injection generally offers better fuel efficiency and higher performance potential, MPI systems can be more cost-effective and may have fewer issues with intake valve deposits. The 'better' system often depends on the specific application and tuning. Combined injection systems, however, aim to provide the best of both worlds.

Why does direct injection have a higher knocking limit?

The fuel injected directly into the hot combustion chamber evaporates. This process absorbs heat, effectively cooling the charge within the cylinder. A cooler charge is less prone to premature ignition (knocking), allowing the engine to run with more advanced ignition timing and/or higher compression ratios, which boosts power and efficiency.

Can direct injection cause carbon build-up on intake valves?

Yes, this is a known potential issue with DI systems. Unlike MPI systems where fuel is sprayed onto the back of the intake valves, in DI, fuel bypasses the valves. Without the cleaning effect of fuel, carbon deposits can accumulate on the intake valves, potentially affecting airflow and performance over time. This is one of the reasons why combined injection systems are beneficial, as the MPI injectors can still provide a cleaning action.

Are combined injection systems more reliable?

Combined injection systems are more complex due to having two sets of injectors per cylinder. While modern systems are generally reliable, the increased complexity does mean there are more potential points of failure. However, the sophisticated control strategies employed often compensate for this, leading to a more robust overall performance envelope.

Conclusion

The evolution of fuel injection technology, from the established Multi-Point Fuel Injection to the precise Direct Fuel Injection, has been driven by the relentless pursuit of improved fuel economy and performance. The advent of combined injection systems represents a significant leap forward, offering a sophisticated solution that harmonises the benefits of both approaches. By intelligently managing fuel delivery across the entire operating range, these systems ensure that drivers experience both excellent fuel efficiency and exhilarating performance, making them a cornerstone of modern automotive engineering.
