Fuel Injection Intake Manifolds Explained

In the intricate world of automotive engineering, where every component plays a vital role in an engine's symphony of power, the fuel injection intake manifold stands out as a true maestro. Far from being a mere pipe, this critical component is the lynchpin of a modern fuel delivery system, meticulously orchestrating the distribution of air and fuel to each of your engine's cylinders. Understanding its function and importance is key to unlocking your vehicle's true performance potential and ensuring efficient operation.

For any vehicle equipped with an Electronic Fuel Injection (EFI) system, the intake manifold is specifically designed to work in harmony with the injectors, optimising both airflow and fuel atomisation. This precise control over the air-fuel mixture translates directly into improved throttle response, greater horsepower, and, ultimately, a more exhilarating driving experience. Whether you're a seasoned mechanic or simply keen to understand what makes your engine tick, delving into the nuances of fuel injection intake manifolds is an essential journey.

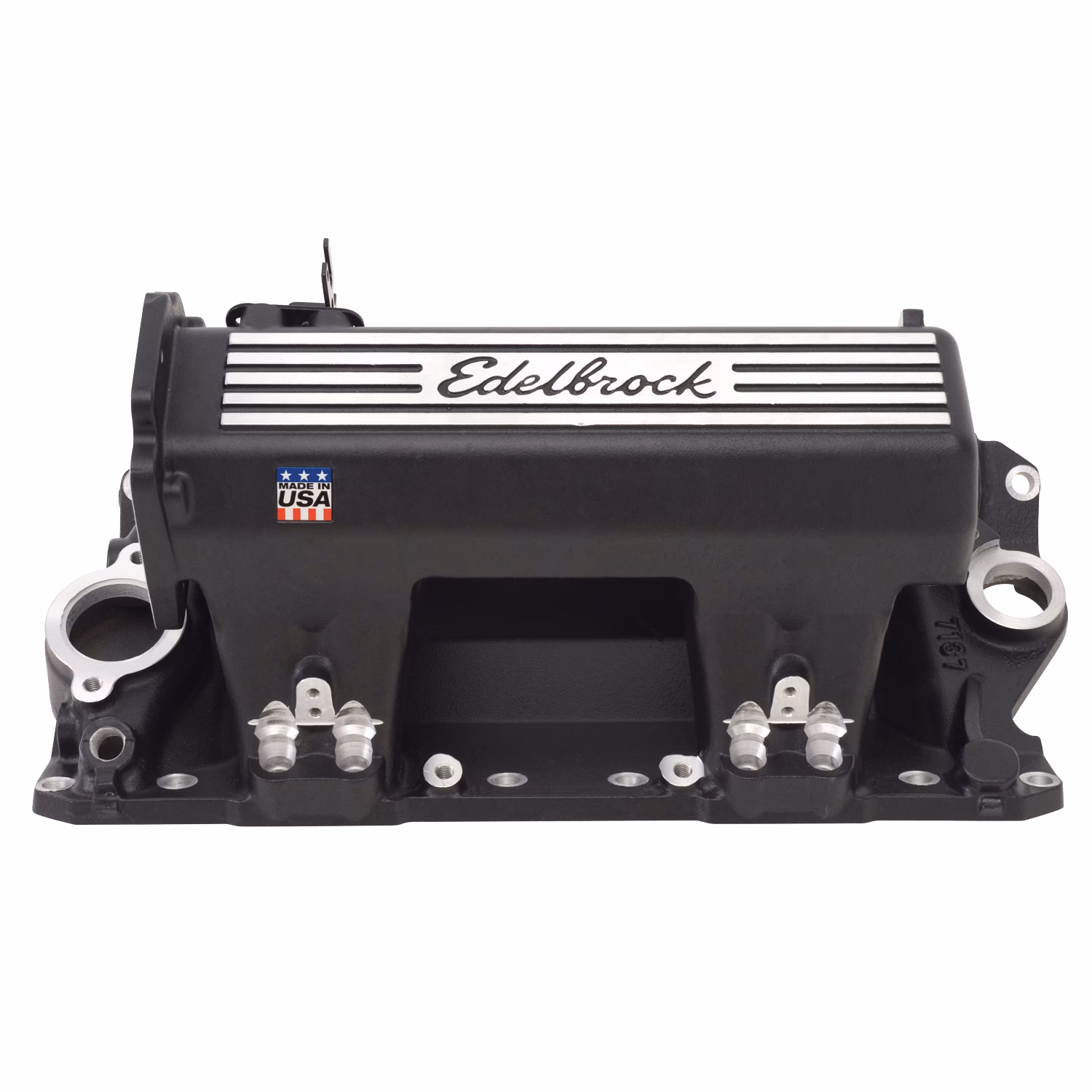

The Heart of Airflow: What Exactly is a Fuel Injection Intake Manifold?

At its core, a fuel injection intake manifold is a sophisticated casting or fabrication that sits atop the engine, acting as the primary conduit for air entering the combustion chambers. Unlike older carburettor setups, which mixed fuel and air before entering the manifold, EFI systems introduce fuel directly into the intake runners or cylinder ports via electronic injectors. The manifold's primary role is to ensure an even, consistent supply of air to each cylinder, crucial for balanced engine operation and peak performance.

The design of the manifold is paramount. It features individual runners, or passages, that direct air from a central plenum – a larger chamber that acts as an air reservoir – to each cylinder's intake port. For EFI systems, these manifolds often incorporate bosses or provisions for mounting the fuel injectors, placing them strategically to maximise fuel atomisation and mixing with the incoming air. This precise delivery ensures that each cylinder receives an optimal air-fuel ratio, leading to more efficient combustion, reduced emissions, and greater power output.

The efficiency of the manifold directly impacts the engine's 'breathing' capability. A well-designed manifold minimises turbulence, promotes smooth airflow, and can even exploit pressure waves within the runners to 'ram' more air into the cylinders at specific RPMs, a phenomenon known as volumetric efficiency. This intricate dance of air and fuel is what allows modern engines to achieve impressive power figures while maintaining respectable fuel economy.

Unlocking Performance: The Benefits of an Optimised Manifold

Upgrading or optimising your fuel injection intake manifold can yield a multitude of benefits, transforming your vehicle's performance characteristics:

• Enhanced Throttle Response: A manifold designed for optimal airflow reduces restrictions, allowing the engine to react more quickly to throttle inputs. This means less lag and a more immediate surge of power when you put your foot down.
• Increased Horsepower and Torque: By improving volumetric efficiency – the engine's ability to fill its cylinders with air – a performance manifold can significantly boost both peak horsepower and torque across the RPM range. More air means more fuel can be efficiently combusted, leading to more power.
• Improved Fuel Atomisation and Distribution: Precision-engineered runners and injector placement ensure that fuel is finely atomised and evenly distributed to all cylinders. This leads to more complete combustion, potentially improving fuel efficiency and reducing harmful emissions.
• Broader Power Band: Some performance manifolds are tuned to shift the engine's power band, either by extending high-RPM power or by bolstering mid-range torque, depending on the design and intended application.
• Reduced Heat Soak: The material and design of a manifold can influence how much heat it absorbs from the engine. Less heat soak means cooler, denser air enters the engine, which is crucial for making power.

The cumulative effect of these improvements is a more responsive, powerful, and often more efficient engine. It's a key upgrade for anyone looking to seriously boost their vehicle's capabilities.

Choosing Wisely: Key Considerations for Your Vehicle

Selecting the correct fuel injection intake manifold is not a 'one-size-fits-all' endeavour. Several critical factors must be carefully considered to ensure proper fitment, optimal functionality, and the achievement of your desired performance goals.

Compatibility is Paramount

Firstly, and perhaps most importantly, is compatibility. You must select an intake manifold specifically designed for your engine's make, model, and year. Furthermore, it must be compatible with your existing electronic fuel injection (EFI) system. This includes matching bolt patterns, sensor locations, and the type of throttle body flange (e.g., 4150, 4500). An incorrect fit will lead to installation headaches, leaks, and potentially severe engine damage. Always verify part numbers and consult manufacturer specifications or a reputable specialist.

Material Matters: Aluminium vs. Composite

Intake manifolds are typically constructed from cast aluminium or, increasingly, from composite (plastic) materials. Each has distinct advantages and disadvantages:

For performance applications, aluminium is often preferred due to its strength and ability to be cast into complex, high-flow designs. However, composite manifolds excel at reducing heat soak, ensuring the air entering the engine remains cooler and denser, which is beneficial for power.

Performance Goals: Stock Replacement vs. Performance-Oriented

Your ultimate performance objectives will dictate the type of manifold you need:

• Stock Replacement: If your goal is simply to replace a damaged OEM manifold or maintain factory performance, a direct-fit stock replacement is ideal. These are designed for broad driveability and emissions compliance.
• Performance-Oriented: For those seeking significant power gains, aftermarket performance manifolds are the way to go. These often feature larger runners, increased plenum volume, and optimised runner lengths to enhance airflow and volumetric efficiency. They can be categorised further into street performance (offering a good balance of low-end torque and top-end power) and race performance (designed for maximum high-RPM horsepower, potentially sacrificing some low-end torque).

Design Considerations: Runner Length and Plenum Volume

The internal design of the manifold profoundly impacts its performance characteristics:

• Runner Length: Longer runners generally promote better low to mid-range torque by tuning the air pulses to 'pack' more air into the cylinders at lower RPMs. Shorter runners, conversely, are typically designed for high-RPM horsepower, allowing air to travel more quickly to the cylinders.
• Plenum Volume: A larger plenum acts as a more substantial air reservoir, which can be beneficial for high-RPM power by ensuring a consistent supply of air to all cylinders, especially under heavy throttle. However, an excessively large plenum can lead to slower throttle response.

Understanding these elements helps you match the manifold to your engine's typical operating range and your driving style.

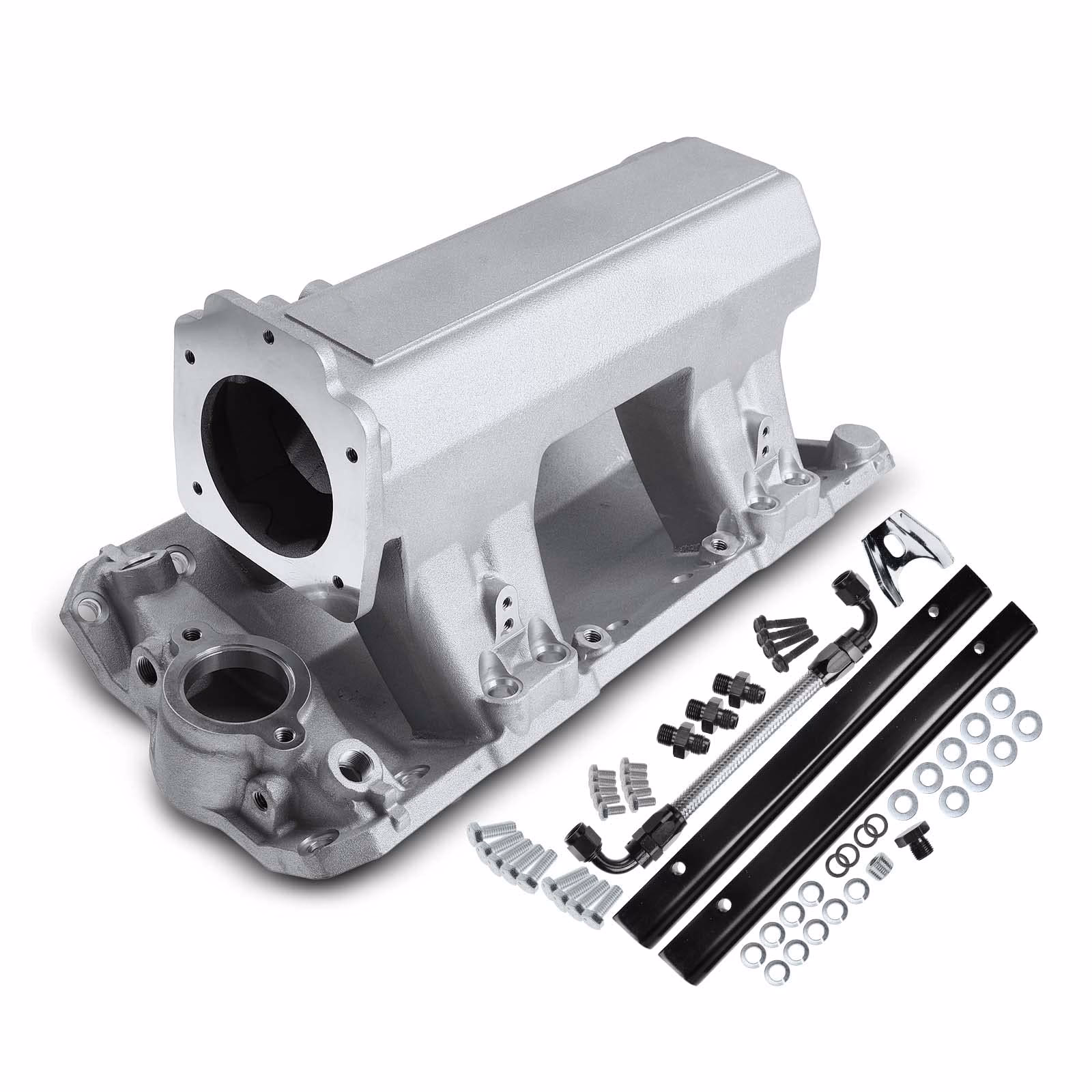

A Closer Look: Specific Intake Manifold Designs

Beyond the general categories, specific design philosophies cater to different engine characteristics and performance needs. Some manifolds are designed as direct OEM replacements, focusing on reliability and ease of installation without significant performance changes. Others are aftermarket performance units, engineered from the ground up to maximise airflow and power.

For instance, some performance manifolds adopt a 'single plane' design, where all runners lead from a common, large plenum, often favouring high-RPM power. 'Dual plane' designs, more common on older V8s or some street performance manifolds, separate the plenum into two halves, often with different runner lengths, to enhance low-end torque and improve fuel distribution across a broader RPM range. While EFI manifolds don't strictly adhere to carburettor-era single/dual plane distinctions, the principles of runner length and plenum volume remain crucial for tuning the power band.

Specialised designs exist for forced induction (turbocharged or supercharged) applications, built to withstand higher boost pressures and often featuring larger plenums and reinforced construction. Similarly, some modern engines utilise variable intake manifold designs, which can alter runner length or plenum volume on the fly using internal flaps or valves, optimising airflow across the entire RPM range for both efficiency and power.

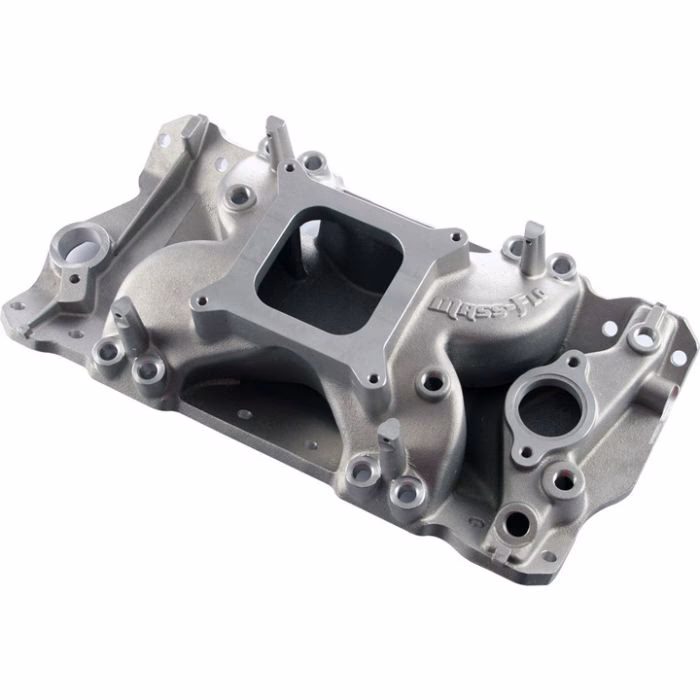

Case Study: The Pro-Filer / Wilson SBC 23° Intake Manifold

A prime example of a high-performance fuel injection intake manifold is the collaboration between Wilson Manifolds – renowned leaders in induction design – and Pro-Filer Performance, resulting in their SBC 23° Intake Manifold. This particular design highlights how specialised engineering can yield significant performance gains.

This Pro-Filer / Wilson intake manifold has demonstrated its prowess through independent dyno testing, showing a remarkable 25 horsepower gain over competing designs. Such a substantial increase underscores the impact of superior manifold design on engine output. Key features of this manifold include:

• 4150 Carb Flange: While designed for EFI, the inclusion of a 4150 carb flange means it can accommodate throttle bodies that utilise this common carburettor bolt pattern, offering versatility for various EFI throttle body setups.
• Fuel Injection Bosses: Crucially, it comes with cast-in fuel injection bosses, providing precise and secure mounting points for the fuel injectors, ensuring optimal spray patterns and fuel atomisation.
• Manifold Height: With a height of 6-1/8 inches, its dimensions are carefully considered to fit within engine bays while optimising runner length for specific performance characteristics.
• RPM Range: Tuned for an RPM range of 3,500 to 8,000 RPM, this manifold is clearly geared towards performance applications where significant power is required at higher engine speeds, making it ideal for street machines or race cars aiming for top-end power.

The success of the Pro-Filer / Wilson manifold lies in its meticulous design, which optimises airflow dynamics and runner tuning to exploit the engine's potential for high-RPM power. It's a testament to how dedicated research and development in intake manifold technology can directly translate into tangible performance benefits.

Installation and Ongoing Care

Installing a fuel injection intake manifold, especially a performance-oriented one, is a task that often requires a good level of mechanical aptitude and specialised tools. It involves disconnecting fuel lines, electrical connectors, vacuum hoses, and potentially coolant passages. Proper sealing with new gaskets is absolutely crucial to prevent vacuum leaks, which can severely impact engine performance and fuel economy. For optimal results and to avoid costly mistakes, professional installation by a qualified mechanic is highly recommended, particularly for complex setups or performance upgrades that may require ECU retuning.

Once installed, fuel injection intake manifolds are generally low-maintenance components. However, it's wise to periodically inspect for any signs of vacuum leaks (e.g., hissing sounds, rough idle), which can indicate a failing gasket or a crack in the manifold itself. Keeping the engine bay clean can also help in early detection of any issues. Unlike carburettor manifolds, EFI manifolds do not typically require internal cleaning as they only flow air, though throttle body cleaning might be part of routine maintenance.

Frequently Asked Questions (FAQs)

Can I install a fuel injection intake manifold myself?

While it's possible for experienced DIY mechanics, installing a fuel injection intake manifold can be complex. It involves disconnecting various engine components, ensuring proper sealing, and often requires specific torque settings for bolts. For performance manifolds, an ECU retune might be necessary afterwards. If you're unsure, professional installation is always recommended to avoid costly errors and ensure optimal performance.

What's the difference between a carburettor manifold and an EFI manifold?

The primary difference lies in how fuel is introduced. Carburettor manifolds mix fuel and air in the carburettor before the mixture enters the manifold. EFI manifolds, on the other hand, primarily flow air, with fuel introduced directly into the runners or ports by electronic injectors mounted on the manifold or cylinder head. EFI manifolds are designed to optimise airflow and provide mounting points for injectors and various sensors.

Do I need an ECU retune after upgrading my intake manifold?

For most performance intake manifold upgrades, an ECU (Engine Control Unit) retune is highly recommended, if not essential. A new manifold changes the airflow characteristics of the engine, which can alter the air-fuel ratio. An ECU retune ensures the engine's computer compensates for these changes, optimising fuel delivery and ignition timing to maximise power gains and maintain engine reliability. Without a tune, your engine might not achieve its full potential or could even run poorly.

How does manifold material affect performance?

The material (e.g., aluminium vs. composite) affects heat transfer, weight, and durability. Aluminium conducts heat well, which can lead to 'heat soak' (where the manifold gets hot and heats the incoming air, making it less dense and reducing power). Composite materials are excellent insulators, reducing heat soak and allowing denser, cooler air to enter the engine for more power. Composite manifolds are also lighter, which contributes to overall vehicle weight reduction.

What does 'plenum volume' mean, and why is it important?

The plenum is the large central chamber of the intake manifold where air collects before being distributed to the individual runners. Plenum volume refers to the size of this chamber. A larger plenum volume can act as a more stable air reservoir, which is beneficial for maintaining consistent airflow to all cylinders, especially at high RPMs and wide-open throttle, contributing to peak horsepower. However, an excessively large plenum can sometimes lead to a slight delay in throttle response due due to the increased volume of air that needs to be filled.

Ultimately, the fuel injection intake manifold is far more than just a piece of metal or composite. It's a precisely engineered component that acts as the lungs of your engine, directly influencing its breathing, performance, and efficiency. Choosing the right one, whether for a stock replacement or a significant performance upgrade, is a decision that can profoundly impact your driving experience. By understanding its critical role and considering the various factors involved, you can make an informed choice that truly unlocks your vehicle's potential.
