Cummins Injector Systems: A Deep Dive

The question of what type of injector a Cummins engine uses is multifaceted, as Cummins has employed a variety of fuel injection systems throughout its history, catering to different performance needs and emissions standards. While the query specifically mentions the Stanadyne DS4 and GM PCM, this particular combination is more commonly associated with certain General Motors diesel engines, such as the 6.5L Duramax, rather than traditional Cummins powerplants. However, the underlying principles of diesel fuel injection and the associated electronic controls are broadly applicable and worth exploring. This article will delve into the complexities of diesel injection, touching upon the Stanadyne DS4 system and then broadening the scope to other prevalent Cummins injection technologies.

Understanding the Stanadyne DS4 and its Context

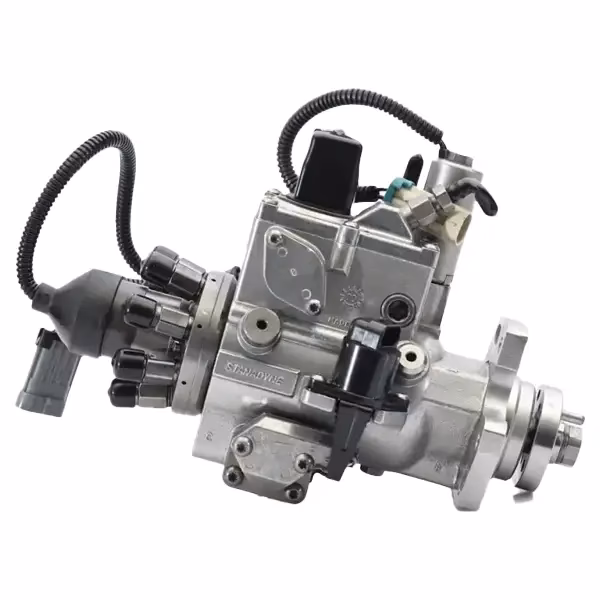

The Stanadyne DS4 injection pump, often paired with a General Motors Powertrain Control Module (PCM), is a electronically controlled rotary distributor injection pump. It features a solenoid-controlled spill port for timing and fuel metering. The system relies on an optical sensor to determine the precise position of the pump's internal camshaft, crucial for accurate injection timing.

However, the DS4 has garnered a reputation for certain issues. The provided text highlights several potential software bugs within the Engine Control Module (ECM) that could lead to operational problems. These range from a non-functional software filter for sensor noise to potential fuel dropouts due to incorrect flag fetching. Furthermore, the interrupt handling for serial communication (SCI) was noted as a potential bottleneck when diagnostic tools are connected. The pump driver module itself has also been cited as a point of failure, possibly due to its design employing bipolar transistors in a high-side switch configuration, which might be less robust than modern MOSFET-based solutions.

The optical sensor, bathed in diesel fuel, is susceptible to contaminants like air bubbles, which can affect its accuracy. While Bosch's VP44 pump also uses an optical encoder without the same level of notoriety, the DS4's implementation appears to be a significant factor in its perceived unreliability.

A Spectrum of Diesel Injection Systems

The world of diesel fuel injection is diverse. Here's a look at some of the prominent methods, including those utilized by Cummins:

Cummins' Injection Technologies

Cummins has been at the forefront of diesel technology, utilising advanced injection systems to meet evolving performance and emissions standards.

Common Rail (CR) Systems

Modern Cummins engines, such as the ISC and those in the ISB, ISL, and ISX families, predominantly use common rail injection systems. This technology involves a high-pressure fuel rail that stores fuel at a consistent, elevated pressure. Injectors are electronically controlled solenoids that precisely meter and time fuel delivery into the combustion chamber. The benefits of common rail include:

• Improved Fuel Economy: Precise control over injection allows for optimal combustion.
• Reduced Emissions: Multiple injection events per cycle can minimise soot and NOx formation.
• Quieter Operation: Pilot injections can smooth out combustion, reducing noise.
• Increased Power and Torque: Higher injection pressures and better control enable more efficient power delivery.

Electronic Unit Injectors (EUI)

Older Cummins engines, and some variants of certain series, might utilise Electronic Unit Injectors (EUI). In this system, each cylinder has its own unit injector, which combines the fuel pump and injector into a single unit. The ECM controls the opening and closing of a solenoid valve on each injector to regulate fuel delivery. While robust, EUI systems generally operate at lower pressures than common rail systems.

Cummins ISX Injection System

The Cummins ISX engine, a powerful heavy-duty engine, employs a sophisticated injection system that can include features like diesel timed injectors. These systems are designed for high-volume fuel delivery and precise timing control, often incorporating advanced electronic management to optimise performance and emissions under demanding operating conditions.

ECM Hardware and Software Considerations

The Engine Control Module (ECM) is the brain of the fuel injection system. The provided text details the components of ECMs for the 1994-1995 (OBD-I) and 1996+ (OBD-II) 6.5L GM diesel, which featured a Motorola 68HC11F1 microcontroller. It's worth noting that while this specific hardware is from a GM application, the principles of ECM design and software calibration are universal in electronic diesel control.

Key ECM Components (Illustrative Example - 6.5L GM)

A typical ECM, as seen in the 6.5L example, includes:

• Microcontroller: The central processing unit (e.g., 68HC11F1) that executes the control software.
• Memory: ROM for program code, RAM for temporary data storage, and EEPROM/Flash for calibration data.
• Input/Output (I/O) Modules: To interface with sensors (e.g., Crankshaft Position - CKP, Camshaft Position - CMP, Engine Coolant Temperature - ECTS, Boost Pressure) and actuators (e.g., injection pump solenoids, EGR valves).
• Analog-to-Digital Converters (ADCs): To convert analogue sensor signals into digital values for the microcontroller.
• Timer Modules: For precise timing of injection events and other engine functions.
• Driver Modules: To provide the necessary power and current to control solenoids and other actuators.

Software Calibration and Tuning

The performance and efficiency of any diesel engine are heavily influenced by the ECM's software calibration. This calibration consists of numerous lookup tables and algorithms that dictate:

• Injection Timing: When fuel is injected relative to piston position.
• Injection Quantity: How much fuel is injected.
• EGR Control: Management of the Exhaust Gas Recirculation system.
• Boost Pressure Control: Regulation of turbocharger boost levels.
• Idle Speed Control: Maintaining stable engine speed at idle.

As noted in the 6.5L example, even minor programming errors, such as a missing '#' symbol in the source code, can lead to significant operational issues, highlighting the importance of meticulous software development and testing.

Common Issues and Troubleshooting

While specific issues are tied to particular systems, some common themes emerge in diesel injection system diagnostics:

Pump Failures

Mechanical wear, contamination in the fuel, and electrical failures within the pump itself (e.g., solenoid failure, internal leaks) are common causes of poor performance or complete failure. The pump driver module in the DS4 is a known weak point.

Sensor Malfunctions

Faulty sensors (CKP, CMP, MAP, ECTS, IATS) can provide incorrect data to the ECM, leading to incorrect fueling, timing, or other control strategy deviations. The optical sensor in the DS4 is particularly susceptible to contamination.

ECM Issues

While generally reliable, ECMs can fail due to voltage spikes, internal component failure, or software corruption. The detailed component lists for the 6.5L ECMs illustrate the complexity involved, where any single component failure can impact the entire system.

Fuel Quality and Contamination

Perhaps the most prevalent issue across all diesel systems is the impact of fuel quality. Water, dirt, and other contaminants can rapidly degrade precision components like injectors and injection pumps. Maintaining clean fuel filters and using quality fuel is paramount for the longevity of any diesel injection system, especially high-pressure common rail setups.

FAQs

Q1: Does Cummins exclusively use Stanadyne DS4 pumps?
No, Cummins has used a variety of injection systems. The Stanadyne DS4 is more commonly associated with GM diesel engines. Cummins engines have primarily utilised systems like Bosch rotary pumps, Denso units, and their own proprietary designs, most notably common rail and EUI systems.

Q2: What are the advantages of Common Rail over older systems?
Common rail systems offer significantly higher injection pressures, allowing for better atomisation of fuel, more precise control over injection timing and quantity (including multiple injections per cycle), leading to improved power, fuel efficiency, and reduced emissions.

Q3: How important is fuel filtration for diesel injection systems?
Extremely important. Diesel fuel systems, especially modern high-pressure common rail systems, have very tight tolerances. Contaminants in the fuel can quickly cause wear or damage to injectors and pumps, leading to costly repairs.

Q4: What causes an injection pump to fail?
Common causes include fuel contamination (water, dirt), wear and tear over time, electrical failures within the pump's control solenoids or modules, and improper installation or maintenance.

Q5: Can I upgrade my older Cummins injection system to a common rail system?
While technically possible, it is a complex and expensive conversion that typically involves replacing the injection pump, injectors, ECM, wiring harness, and potentially other engine components. It's usually more practical to maintain or repair the existing system or consider an engine swap if a significant upgrade is desired.

In conclusion, while the Stanadyne DS4 pump and its associated control module present specific challenges, understanding the broader landscape of diesel fuel injection, including the advanced technologies employed by Cummins, provides valuable insight into the engineering and maintenance of these powerful engines. The emphasis on electronic control, precision, and fuel quality remains a constant across the evolution of diesel injection technology.
