Choosing the Right Wheel Alignment

Understanding Four-Wheel Alignment: A Comprehensive Guide

Ensuring your vehicle's wheels are correctly aligned is fundamental to its overall performance, safety, and longevity. Misaligned wheels can lead to a host of problems, from uneven tyre wear and poor fuel economy to compromised handling and an uncomfortable driving experience. While many drivers are familiar with the concept of wheel alignment, the intricacies of the various systems used to achieve it can be a source of confusion. This article aims to demystify the world of four-wheel alignment, exploring the different technologies available and helping you understand what constitutes the "best" system, acknowledging that often, the most effective approach is the one that precisely addresses your vehicle's specific requirements.

Why is Wheel Alignment So Important?

Before diving into the systems, it's crucial to grasp why this service is so vital. Properly aligned wheels ensure that your tyres are in contact with the road at the correct angle. This has several significant benefits:

• Tyre Longevity: When wheels are misaligned, tyres can wear unevenly and prematurely. This can manifest as feathering, cupping, or rapid wear on the edges or shoulders of the tyre. Correct alignment ensures that the tyre rolls smoothly, maximising its lifespan.
• Fuel Efficiency: Misaligned wheels create additional friction and drag as the vehicle moves. This forces the engine to work harder, leading to increased fuel consumption.
• Improved Handling: Correct alignment contributes to a vehicle that tracks straight and true. It reduces the tendency for the car to pull to one side, making steering more precise and responsive.
• Driving Comfort: A car with proper alignment will feel more stable and predictable on the road, leading to a more comfortable and less fatiguing driving experience.
• Safety: Ultimately, well-aligned wheels contribute to a safer vehicle. Improved handling and stability can be critical in emergency manoeuvres.

The Fundamentals: What is Four-Wheel Alignment?

Four-wheel alignment, also known as thrust-angle alignment, is a process that adjusts the angles of your vehicle's wheels so they are set parallel to each other and perpendicular to the ground. This is particularly important for vehicles with independent rear suspension, where the rear wheels can also be misaligned. The key angles adjusted during a four-wheel alignment are:

• Camber: This is the inward or outward tilt of the top of the tyre when viewed from the front of the vehicle. A negative camber means the top of the tyre tilts inward, while a positive camber means it tilts outward.
• Caster: This is the angle of the steering axis when viewed from the side of the vehicle. It affects steering stability and how the steering wheel returns to centre after a turn.
• Toe: This refers to the inward or outward angle of the tyres when viewed from above. "Toe-in" means the front of the tyres point slightly inward, while "toe-out" means they point slightly outward.
• Thrust Angle: This is the angle of the rear axle relative to the vehicle's centreline. If the thrust angle is incorrect, the vehicle will tend to crab, meaning it will try to move sideways even when steering straight.

The Evolution of Alignment Systems: From String to Lasers

The methods and technology used to perform wheel alignments have evolved significantly over the years. Each advancement has aimed to improve accuracy, efficiency, and the ability to measure more complex suspension geometries.

1. String Alignment (The Traditional Method)

This was one of the earliest methods used. It involved using strings stretched tautly from the front to the rear of the vehicle to establish a reference line. Measurement tools were then used to determine the angles of the wheels relative to these strings and the vehicle's centreline. While rudimentary, it provided a basic understanding of toe and camber.

• Pros: Simple, low-cost equipment.
• Cons: Highly dependent on skill and experience, prone to inaccuracies, difficult to measure caster and thrust angle precisely, not suitable for modern complex suspensions.

2. Mechanical Alignment Gauges

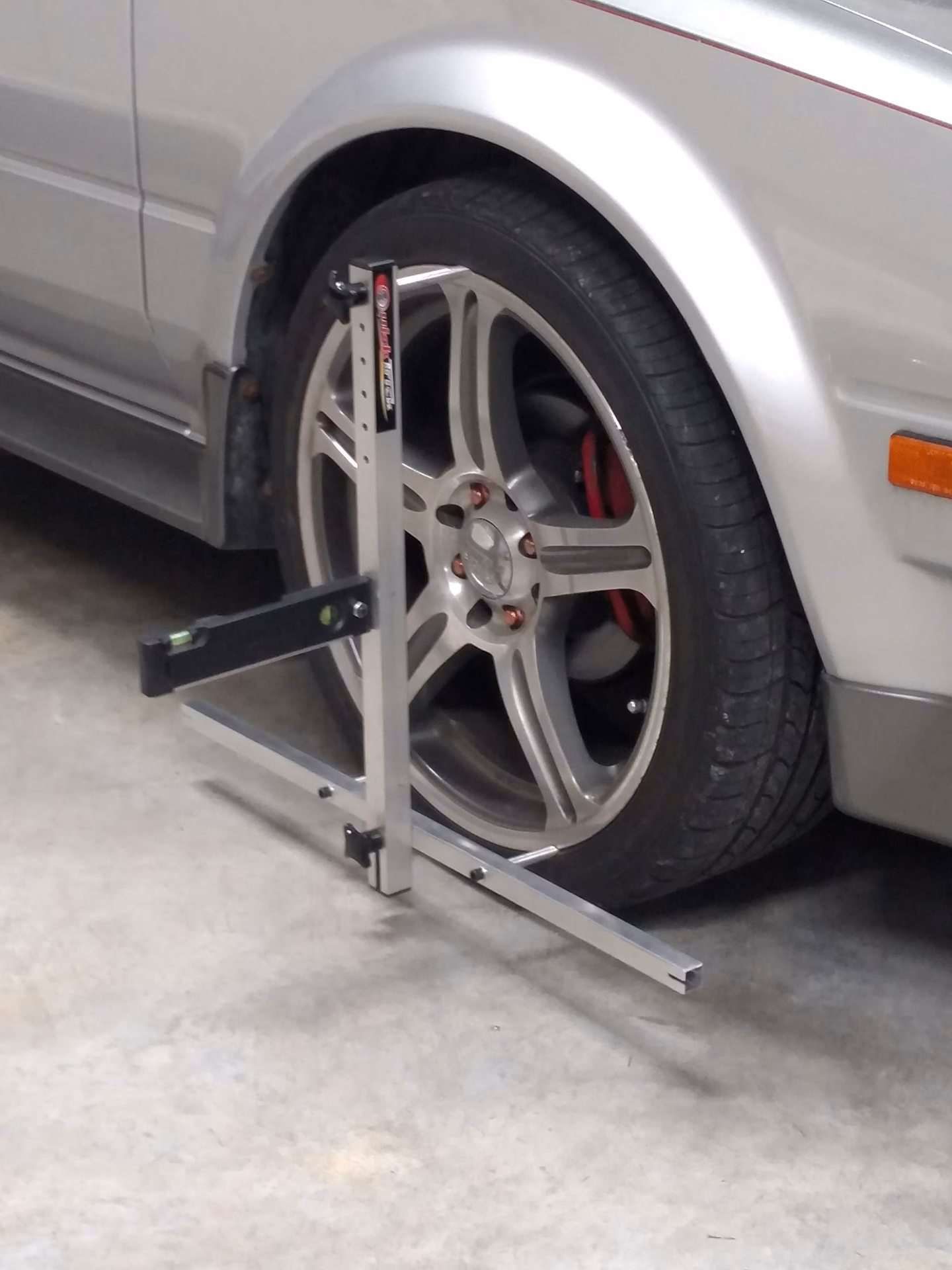

These systems employed more sophisticated mechanical devices that clamped onto the wheels. They used spirit levels and rotating discs to measure camber and caster. Toe was often measured using a toe bar that spanned between the tyres.

• Pros: More accurate than string alignment, could measure camber and caster with reasonable precision.
• Cons: Still required a skilled technician, could be time-consuming, less precise for complex adjustments, limited ability to measure thrust angle accurately.

3. Electronic Alignment Systems (The Modern Standard)

These systems represent a significant leap forward in alignment technology. They typically consist of:

• Wheel Clamps: These attach securely to each wheel.
• Electronic Sensors (Heads): Mounted on the wheel clamps, these heads contain accelerometers and gyroscopes to measure angles in three dimensions (3D).
• Targets: Reflective or coded targets are attached to the sensors.
• Computer System: A computer with a database of manufacturer specifications and sophisticated software processes the data from the sensors.

The process usually involves placing the vehicle on a level lift, attaching the wheel clamps and sensors, and then the computer system guides the technician through the necessary adjustments. The sensors communicate wirelessly or via cables to the computer, providing real-time readings of all alignment angles, including camber, caster, toe, and thrust angle. Some advanced systems can even measure "setback" (the difference in position of the front wheels relative to the rear wheels).

There are two main types of electronic alignment systems:

a) CCD (Charge-Coupled Device) Alignment

This older electronic technology uses infrared light beams transmitted between sensors mounted on opposing wheels. One sensor acts as a transmitter, and the other as a receiver. The receiver measures the interruption of the light beam to calculate angles.

• Pros: More accurate than mechanical systems, relatively robust.
• Cons: Less accurate than 3D systems, requires sensors to be precisely aligned with each other, can be affected by ambient light.

b) 3D/Imaging Alignment

This is the most advanced and widely adopted system. It uses cameras and sophisticated imaging software. Targets (often with unique patterns) are mounted on the wheels. Cameras mounted on the lift arms capture images of these targets. By analysing the position and distortion of the patterns on the targets, the system can precisely calculate the position and angle of each wheel in space. This allows for highly accurate measurement of all alignment parameters, including complex multi-link suspensions and the thrust angle.

Which System is "Best"?

When the question arises, "Which four-wheel alignment system is best?", the most accurate answer is that the best system is the one that most accurately measures and adjusts your vehicle's specific alignment parameters according to the manufacturer's specifications.

For modern vehicles, especially those with advanced suspension systems, complex steering geometries, or electronic power steering, 3D/Imaging alignment systems are unequivocally the most capable and accurate. Their ability to precisely measure all angles, including the thrust angle and any body-related alignment issues (like setback), makes them essential for ensuring correct alignment on contemporary cars.

While older systems might suffice for very basic vehicles or quick checks, they often lack the precision required for today's automotive engineering. A workshop equipped with a state-of-the-art 3D alignment system, operated by a trained technician, will provide the most reliable and effective alignment service.

When Should You Get a Four-Wheel Alignment?

It's not just about when your car feels "off." Regular checks and proactive alignments are beneficial. Consider getting an alignment if:

• You've had new tyres fitted.
• You've had suspension or steering components replaced (e.g., ball joints, tie rods, shock absorbers).
• You hit a significant pothole or curb.
• You notice uneven tyre wear.
• The vehicle pulls to one side.
• The steering wheel is off-centre when driving straight.
• It's recommended in your vehicle's service schedule (typically every 10,000-20,000 miles or annually).

Common Alignment Issues and Their Solutions

Understanding the problems can help you identify the need for an alignment:

• Uneven Tyre Wear: Usually a sign of incorrect camber, toe, or both.
• Vehicle Pulling to One Side: Could be due to incorrect caster or toe on one side, or a difference in tyre pressures. A misaligned steering system or suspension component can also cause this.
• Vibrations or Shaking: While often associated with wheel balancing, severe alignment issues can sometimes contribute to vibrations, particularly at higher speeds.
• Steering Wheel Off-Centre: A direct indicator that your toe settings are incorrect or that the steering wheel needs to be recentred after an alignment or other steering work.

What to Expect During an Alignment Service

A professional four-wheel alignment service should include:

1. Pre-Alignment Inspection: The technician will check for worn or damaged suspension and steering components, as well as ensure tyre pressures are correct. Adjustments cannot be made if components are faulty.
2. Wheel Mounting: Modern alignment machines require the vehicle to be driven onto wheel alignment ramps or a lift. Wheel clamps are then fitted to each wheel.
3. Data Input: The vehicle's make, model, and year are entered into the computer system to retrieve the manufacturer's specific alignment angles.
4. Measurement: The alignment system measures the current angles of all four wheels.
5. Adjustment: The technician adjusts the various components (e.g., tie rods for toe, camber bolts/cams for camber) to bring the wheels within the manufacturer's specified tolerances. This is often a time-consuming process, especially on vehicles with adjustable suspension components.
6. Post-Alignment Check: The system re-measures the angles to confirm that all adjustments have been made correctly.
7. Test Drive: A brief test drive may be performed to ensure the vehicle tracks straight and the steering wheel is centred.

Frequently Asked Questions

Q1: Is a four-wheel alignment necessary if I only have front-wheel drive?
Yes. Even on front-wheel-drive vehicles, the rear wheels can become misaligned due to road impacts or wear. This misalignment can affect the direction of the front wheels (thrust angle) and lead to tyre wear and handling issues. A four-wheel alignment checks and adjusts all four wheels.

Q2: How long does a four-wheel alignment take?
Typically, a professional four-wheel alignment can take anywhere from 45 minutes to 1.5 hours, depending on the complexity of the vehicle's suspension and how many adjustments are needed. The pre-alignment inspection is also a crucial part of the process.

Q3: Can I do a wheel alignment myself?
While basic toe adjustments might be attempted by experienced DIYers with the right tools and knowledge, a full four-wheel alignment, especially on modern vehicles, requires specialized equipment and a precise understanding of suspension geometry. It is generally best left to qualified professionals.

Q4: My car feels fine, why do I need an alignment?
Subtle misalignments can occur over time without being immediately noticeable to the driver. These small deviations can still lead to premature tyre wear and reduced fuel efficiency. Regular checks are a proactive measure to maintain your vehicle's optimal condition.

Conclusion

The question of the "best" four-wheel alignment system isn't about a single brand or type, but rather about the system's ability to accurately measure and allow for adjustments to your specific vehicle's requirements. For modern automotive needs, 3D/Imaging alignment technology stands out as the most advanced and precise, ensuring that every parameter is addressed correctly. Investing in a professional alignment service, performed with the right equipment and expertise, is a crucial step in maintaining your vehicle's safety, performance, and the longevity of its tyres.
