Mastering Valve Cleaning Post-Lapping

The process of lapping engine valves is a critical step in ensuring a proper seal between the valve and its seat. This meticulous task, often performed to address minor wear or pitting, aims to create a perfect mating surface. However, the job isn't truly finished once the lapping compound has done its work. In fact, a crucial, and often underestimated, stage follows: the cleaning of the valves and surrounding components. Failure to thoroughly remove every trace of valve grinding compound can lead to accelerated wear and potentially catastrophic engine damage. This article will guide you through the essential steps for cleaning valves after lapping, explaining why it's so important and the best practices to adopt.

Why is Thorough Cleaning So Important?

Valve grinding compound, while effective at reconditioning valve seats, is incredibly abrasive. It's not designed to remain in an engine's combustion chamber or oiling system. Even the smallest residual particles can cause significant damage. Unlike oil or coolant, which are designed to flow through the engine and are often filtered or drained, valve grinding compound particles can embed themselves into delicate engine components. Once embedded, they act like tiny sandpaper, continuously abrading surfaces such as cylinder walls, piston rings, camshaft lobes, and crankshaft bearings. This embedment leads to premature wear, reduced performance, and ultimately, a shortened engine lifespan. Therefore, being 'totally anal/compulsive about cleaning', as one experienced mechanic put it, is not an exaggeration; it's a necessity.

Understanding Valve Seat Reconditioning

Before we dive into the cleaning process, it's helpful to understand the context of valve lapping and seat reconditioning. While this guide focuses on cleaning, the underlying goal is to achieve a perfect seal. The provided information outlines a typical valve seat reconditioning process using specific cutters:

• A 15° valve seat cutter to ensure the bottom of the seat is concentric.
• A 75° valve seat cutter to make the top of the seat concentric.
• A 45° valve seat cutter to create a seat width of 1.0-1.2 mm (0.039-0.047 in.).

This multi-angle approach, common in modern engines, promotes better gas flow and a more durable seal. Older engines, and some specific motorcycle designs, might have different specifications, and some materials like Stellite (a hard, wear-resistant alloy often used as a coating) are difficult to machine and are typically ground rather than cut. Modern materials have significantly improved durability, often negating the need for older methods or materials. Some machinists even consider lapping a 'half-baked solution' when new seats and valves are installed, as these should ideally provide a perfect seal without intervention.

The Crucial Cleaning Procedure: Step-by-Step

The key to effective cleaning after lapping lies in understanding the nature of valve grinding compound. Most compounds are water-borne, meaning water is the most effective solvent for removing them.

1. Initial Rinse with Hot Water and Detergent:

Start by thoroughly rinsing the valves, cylinder head (if still disassembled), and any other affected components with hot water. Adding a strong detergent, similar to what you might use for washing dishes, is highly recommended. The hot water helps to loosen any residue, and the detergent emulsifies the grease and oil that might also be present, aiding in the removal of the grinding compound. Use brushes, even soapy ones, to agitate and scrub the surfaces. Pay close attention to all nooks and crannies where the compound might have settled.

2. Multiple Rinses and Inspection:

Don't stop at one rinse. Continue rinsing with hot, soapy water until you are absolutely certain all visible traces of the grinding compound are gone. It's a good idea to have a clean rag or paper towel and wipe down the surfaces. If you see any grey or gritty residue on the rag, you know there's still compound present, and you need to repeat the washing and rinsing process. Inspect the valve faces, seats, and surrounding areas meticulously.

3. Avoid Ineffective Cleaning Agents:

Resist the temptation to use solvents like carburetor cleaner or brake cleaner for the primary removal of valve grinding compound. While these are excellent for degreasing and cleaning other engine parts, they are generally not effective at dissolving or flushing out water-borne lapping compounds. Using them might give a false sense of cleanliness, leaving abrasive particles behind to wreak havoc.

4. Drying the Components:

Once you are confident that the components are clean, ensure they are thoroughly dried. You can use clean compressed air or clean, lint-free cloths. Any residual moisture can lead to flash rust on exposed iron or steel surfaces, especially in a workshop environment. If the components are to be stored before reassembly, a light coating of clean engine oil can help protect them from corrosion.

5. Cleaning the Combustion Chamber and Ports:

Remember that lapping compound can easily spread. The combustion chamber, intake and exhaust ports, and even the valve guides can become contaminated. It’s essential to clean these areas just as meticulously as the valves and seats themselves. Use appropriate brushes and cleaning solutions, followed by thorough rinsing and drying.

What if Pitting Was Present?

The initial text mentions surface pitting on a valve face, which is described as 'pretty normal' and may not have prevented proper seating. However, it also explains that a wide contact area between the valve and seat can cause this pitting. The exhaust valve, in particular, runs very hot. When the contact patch is too large, heat transfer from the valve to the seat can be excessive, leading to micro-welds and the characteristic pitting. This highlights why achieving the correct seat width and concentricity during reconditioning is vital. If the pitting was significant, simply lapping might not be a permanent solution, and machining new seats might be necessary for a long-lasting seal. Modern engines with hardened seats and three-angle valve jobs are designed to mitigate these issues.

Table: Cleaning Methods Comparison

Reassembly and Final Checks

Once everything is meticulously cleaned and dried, you can proceed with reassembling the cylinder head. Before installing the valves, a quick check can be done by lightly oiling the valve stems and guides. When installing the cylinder head back onto the engine block, ensure all mating surfaces are clean and free of debris. After the engine has been reassembled and is ready for its first start, listen for any unusual noises and monitor its performance. A proper valve job and meticulous cleaning should result in a smooth-running engine with a good seal.

Frequently Asked Questions

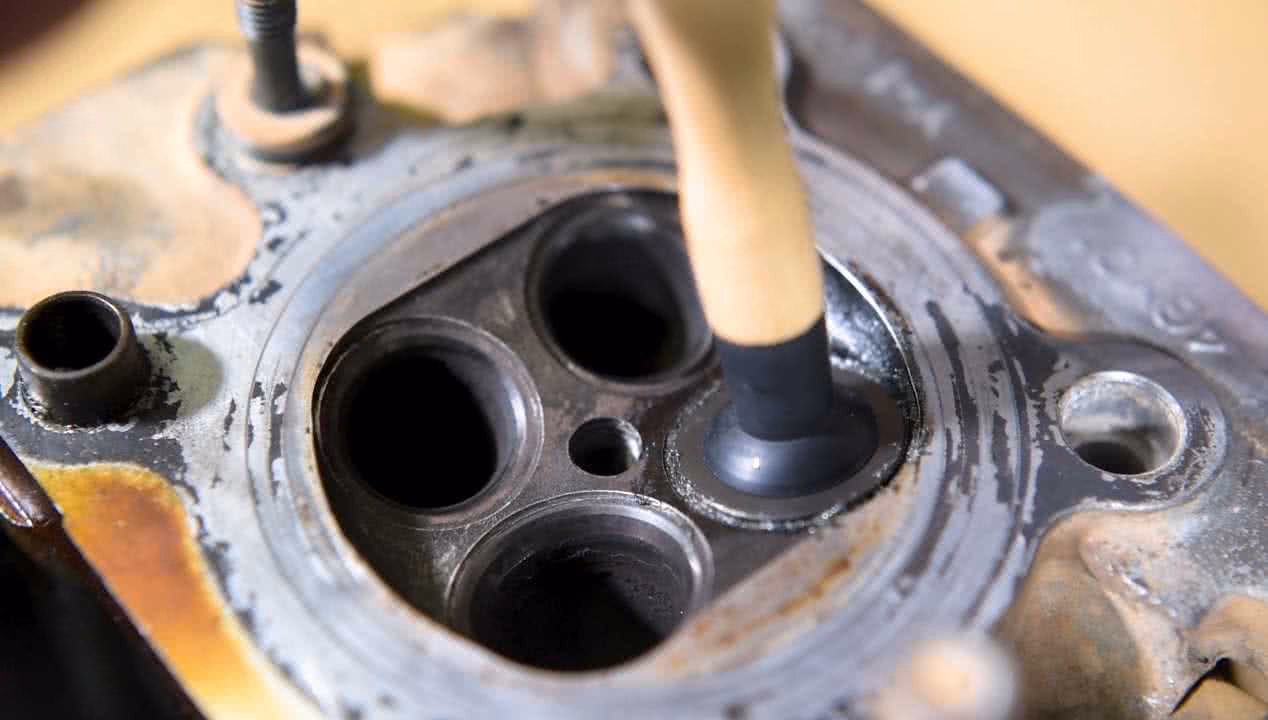

Q1: Do Honda valves need lapping?

A1: Whether specific Honda valves need lapping depends on their condition and the engine's service history. Generally, modern engines with good quality valves and seats may not require lapping if they are in good condition. However, if there's evidence of leakage or minor imperfections, lapping can be performed as part of a valve seat reconditioning process. Always refer to the specific service manual for your Honda model for precise recommendations.

Q2: Can I use a wire brush to clean valves after lapping?

A2: A soft-bristled brush, especially a soapy one, is generally acceptable and recommended for agitating cleaning solutions. However, avoid using stiff wire brushes, particularly on the valve faces or seats, as they could potentially cause new damage or introduce abrasive foreign material if not perfectly clean themselves.

Q3: How long does it take for valve grinding compound to cause damage?

A3: Damage from residual valve grinding compound can begin almost immediately upon engine startup. The abrasive particles start their destructive work as soon as metal surfaces move against each other. The severity and speed of damage depend on the amount of compound left, the type of materials involved, and the operating conditions of the engine. This underscores the absolute necessity of thorough cleaning immediately after the lapping process.

Q4: Is it better to have a valve seat ground or lapped?

A4: For most common repairs and minor imperfections, lapping can achieve a sufficient seal. However, for significant wear, damage, or when aiming for optimal performance and longevity, having the valve seat professionally ground (often with a multi-angle grind) is generally considered superior. Grinding ensures precise angles and a consistent width, which lapping alone might not achieve, especially if the seat is significantly out of tolerance. As mentioned, some professionals consider lapping a temporary fix compared to a proper grind.

In conclusion, the process of cleaning engine valves after lapping is not merely a suggestion; it is an imperative step in safeguarding your engine's health. By diligently following the recommended procedures, using the right cleaning agents, and being exceptionally thorough, you can prevent the devastating effects of residual abrasive compound and ensure your engine performs optimally for years to come.
