TDI Clutch Replacement: Essential Checks

When undertaking the task of replacing the clutch on a Land Rover 200tdi or 300tdi engine, whether found in a Discovery 1, Defender 90/110/130, or Range Rover Classic, it's crucial to consider more than just the clutch itself. These robust engines, along with the 2.5NA, 2.5TD, and 2.5 Petrol variants, all utilise the same 9.5″ diameter clutch. While fitting a new clutch is a significant maintenance step, several other components are worth inspecting and potentially replacing at the same time to ensure a lasting and reliable repair. Ignoring these can lead to premature failure of the new clutch or other associated problems.

Choosing the Right Clutch Kit

Before diving into the replacement process, selecting the correct clutch kit for your specific needs is paramount. The choice depends heavily on how you use your vehicle:

• For demanding off-road use, heavy towing, or competition: If your Land Rover is subjected to rigorous off-road abuse, regularly hauls heavy loads, features a VNT/hybrid turbo, or participates in events like winch challenges, safaris, or trialing, the 2.8TGV POWERspec kit is the recommended choice. This heavy-duty option is designed to withstand significantly higher stresses.
• For general use and occasional heavy loads: If your vehicle serves as a daily driver, a workhorse for everyday tasks, or a weekend adventure toy, you have two excellent options: the ROADspec TDI kits or the POWERspec TDI kits. The ROADspec is tailored for a smoother, more comfortable driving experience, while the POWERspec offers a bit more torque capacity for those who occasionally push their vehicle's limits.

Essential Components to Consider Replacing

While the new clutch kit is the primary focus, several other parts are highly susceptible to wear and tear and are best replaced concurrently. This proactive approach can save you considerable time and expense down the line.

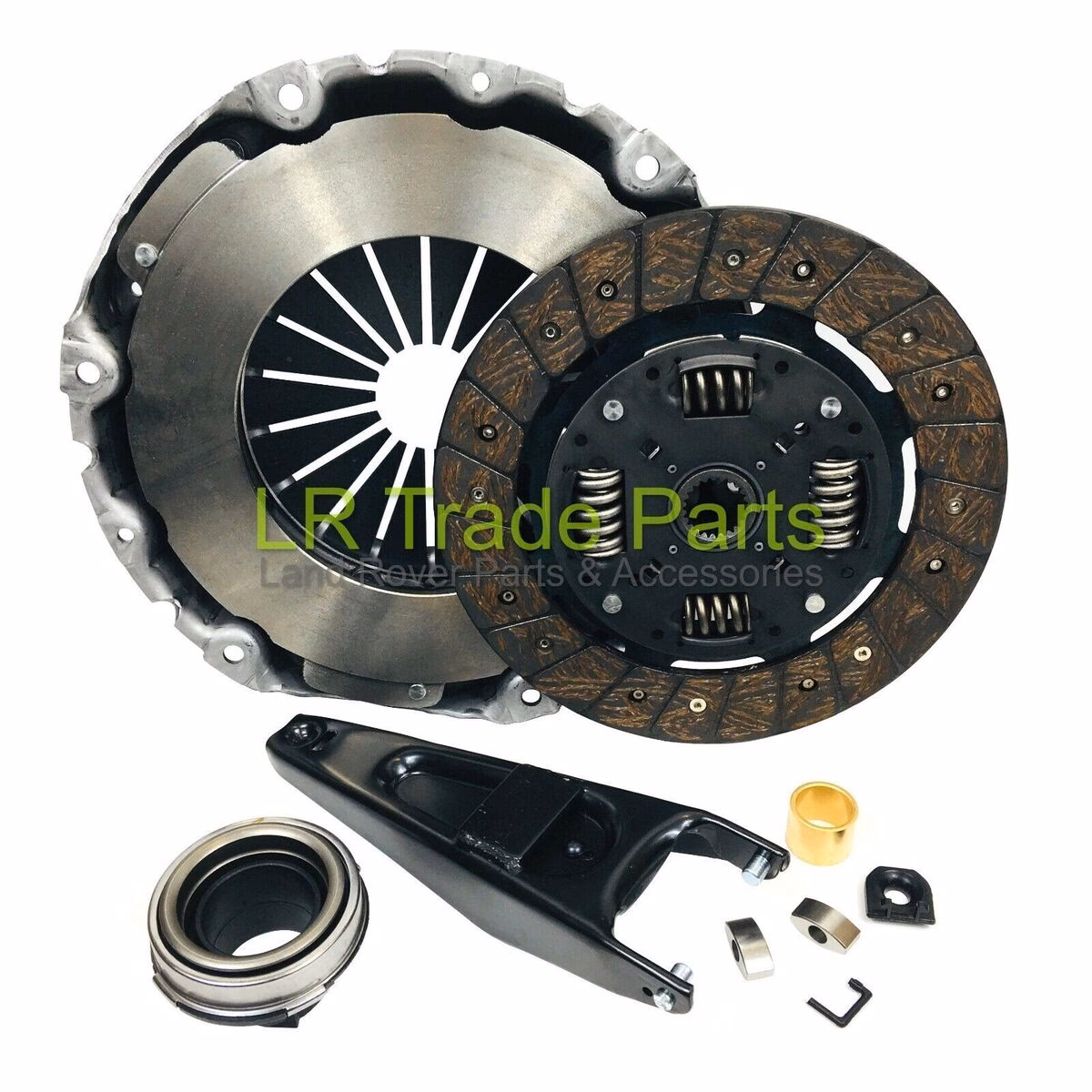

1. The Clutch Fork (Part Number FTC2957 / FTC2957HD)

The clutch fork on the 4-cylinder Land Rover engines is notoriously prone to wear. It's constructed from relatively thin (around 2mm) pressed steel and pivots on a steel central pivot. Over time, this design leads to wear on the fork itself, and in severe cases, the pivot can actually punch through the fork.

Symptoms of a worn clutch fork often include:

• A very stiff or rock-hard clutch pedal.
• The clutch slave cylinder extending to its maximum travel.
• An over-extended slave cylinder that may leak hydraulic fluid into the bell housing, which can then escape through the breather hole onto the ground.

To combat this issue, it's highly advisable to upgrade to a more robust clutch fork. The standard part number is FTC2957. A common and effective upgrade is the FTC2957HD, which features a steel 'strap' or plate welded onto the front face of the fork. This reinforcement provides additional material, significantly increasing its resistance to wear and preventing the pivot from punching through. For even greater durability, consider the Xcess 4x4 Fork, which is constructed from domex steel welded over the entire front face. Regardless of the specific upgrade chosen, replacing the fork is a worthwhile investment.

When fitting the new fork, remember to use the grease provided in your clutch kit to lubricate the pivot ball, slipper pads, and the pushrod seat/land. Proper lubrication is key to smooth clutch operation and longevity.

2. Rear Main Oil Seal / Crank Seal

The crankshaft rear main oil seal is another critical component that should be inspected and, in most cases, replaced during a clutch job. Accessing this seal requires significant disassembly, making it an ideal time to renew it.

• 200tdi: This engine uses a circular seal with the part number ERR2532. Genuine OEM seals, often identifiable by their green colour, are recommended. Fitting this seal can be challenging, and it's essential to follow the workshop manual meticulously. If possible, use the original Land Rover workshop tool designed to correctly drift the new seal into place. Improper installation can lead to leaks.
• 300tdi: The 300tdi employs a different crank seal, part number LUF100430. This seal is also worth changing. Similar to the 200tdi seal, it can be tricky to install correctly. It is held in place by a series of small M5/M6 bolts and a gasket. Again, adherence to the workshop manual is crucial. After fitting, it's good practice to use a torch to carefully inspect the edge of the seal to ensure it hasn't been inverted, snagged, or damaged during installation.

A leaking rear main oil seal can contaminate the new clutch friction material, leading to premature clutch slip and failure. Replacing it now prevents future oil leaks and potential damage.

3. Flywheel Inspection

The question of whether to replace the flywheel on 200tdi and 300tdi models is a common one. In most cases, the answer is no, you will not necessarily need to change it.

These engines are fitted with solid flywheels as standard, which are generally quite resistant to warping. However, it is imperative to inspect the flywheel's condition before refitting:

• Flatness: Use a straight edge or a steel rule across the flywheel face to ensure it is perfectly flat. Any noticeable warping can cause clutch judder and inefficient operation.
• Dowels: Check the flywheel dowels for any damage. These dowels locate the flywheel accurately onto the crankshaft. Damaged dowels can lead to incorrect alignment and potential stress on the crankshaft.
• Surface Condition: Inspect the flywheel surface for excessive scoring, glazing, or uneven wear. Heavy scoring or unevenness can prevent the new clutch from bedding in properly and may lead to premature wear.

If the flywheel is found to be slightly warped or has minor surface imperfections, and you have the necessary facilities, it can often be machined to restore a flat, smooth surface. If you machine the flywheel, it is also recommended to replace the dowels with new ones.

Important Considerations During Installation

Beyond the specific parts mentioned, several general points require careful attention during the clutch fitting process:

Flywheel Resurfacing/Replacement

As discussed, while not always necessary, the flywheel's condition is critical. If you opt for resurfacing, ensure it's done to the correct specifications. If the flywheel is significantly damaged, cracked, or worn beyond machining limits, replacement is the only safe option. Always use a new flywheel if the old one is compromised.

Pilot Bearing/Bushing

The pilot bearing or bushing, located in the end of the crankshaft, supports the input shaft of the gearbox. This small but vital component can wear over time, causing input shaft bearing noise or difficulty engaging gears. It's easily accessible when the flywheel is removed and should be replaced as a matter of course. Ensure the new bearing is correctly seated.

Spigot Bush (Alternative Term for Pilot Bearing)

Often referred to as a spigot bush, this part is crucial for the smooth operation of the gearbox input shaft. Its wear can manifest as a grinding noise when the clutch pedal is depressed or when shifting gears. Replacement is a simple, low-cost preventative measure.

Release Bearing (Throw-out Bearing)

The release bearing, also known as the throw-out bearing, is supplied as part of the clutch kit. This bearing slides along the gearbox input shaft sleeve and is activated by the clutch fork to disengage the clutch. It is designed to be replaced with every clutch job. Ensure it is correctly installed on the clutch fork and that the fork pivots freely on its locating pins.

Clutch Alignment Tool

A clutch alignment tool is essential for ensuring the clutch disc is perfectly centred before the gearbox is mated to the engine. This tool, usually included in a good quality clutch kit, guides the clutch disc onto the pilot bearing, allowing the gearbox input shaft to slide in smoothly. Without it, aligning the gearbox can be extremely difficult, potentially leading to damage to the clutch disc splines or the gearbox input shaft.

Bell Housing Cleaning and Inspection

With the gearbox removed, the bell housing offers an excellent opportunity for thorough cleaning. Remove any accumulated dirt, old grease, and clutch dust. Inspect the bell housing for cracks or damage. Also, check the slave cylinder pushrod for wear or damage, and ensure the slave cylinder itself is functioning correctly and not leaking.

Slave Cylinder

While not always included in a standard clutch kit, the clutch slave cylinder is a hydraulic component that can fail. Symptoms of a failing slave cylinder include a spongy pedal, difficulty disengaging the clutch, or hydraulic fluid leaks. If there is any doubt about its condition, or if it shows signs of leakage, it is highly recommended to replace it at the same time as the clutch. This is especially true if the old clutch fork was found to be severely worn, as this can put extra strain on the slave cylinder.

Hydraulic Fluid

When refilling the clutch hydraulic system after replacing the slave cylinder or bleeding the system, always use the correct type of hydraulic fluid as specified in the vehicle's manual (typically DOT 3 or DOT 4 brake fluid). Ensure the system is properly bled to remove any air, which is crucial for proper clutch operation.

Torque Settings

Adhere strictly to the manufacturer's specified torque settings for all fasteners, including the flywheel bolts, clutch pressure plate bolts, and pressure plate cover bolts. Overtightening or undertightening can lead to component failure or improper clutch operation.

Summary Table: Key Replacement Items

Frequently Asked Questions

Q1: Do I absolutely have to change the clutch fork?

A1: While not strictly mandatory if your existing fork shows no signs of wear, it is highly recommended. The standard forks are known to fail over time, and the cost of replacing it during a clutch job is minimal compared to the labour involved in dropping the gearbox again if it fails later.

Q2: Can I resurface my existing flywheel?

A2: Yes, in many cases, the solid flywheel can be successfully resurfaced if it's only slightly warped or has minor wear. However, it must be checked for flatness and significant damage. If it's cracked or excessively worn, replacement is necessary.

Q3: What kind of grease should I use on the clutch fork pivot?

A3: Use a high-quality, high-temperature grease. The grease supplied with a reputable clutch kit is usually suitable. Avoid using excessive amounts, as this can attract dirt and debris.

Q4: Is it difficult to replace the rear main oil seal?

A4: Yes, replacing the rear main oil seal is considered a moderately difficult task. It requires precise alignment and careful installation to prevent leaks. Using the correct tools and following the workshop manual are essential.

Q5: Do I need to bleed the clutch system after replacing the slave cylinder?

A5: Absolutely. Any time the hydraulic system is opened, or components are replaced, it must be bled thoroughly to remove all air. Failure to do so will result in a spongy pedal and improper clutch operation.

By taking a comprehensive approach and considering these additional components during your TDI clutch replacement, you can ensure a robust, reliable, and long-lasting repair for your Land Rover.
