Understanding Engine Bank 1

Encountering an engine code that mentions 'Bank 1' can be a source of confusion for many vehicle owners. This designation is intrinsically linked to the engine's cylinder arrangement and the critical function of its exhaust system components, most notably the oxygen sensors. Understanding what 'Bank 1' signifies is the first step in diagnosing and rectifying potential issues that could affect your car's performance, fuel economy, and emissions. This article aims to demystify the concept of engine banks and oxygen sensors, providing a comprehensive guide to their function, common problems, and essential maintenance.

What Exactly is Engine Bank 1?

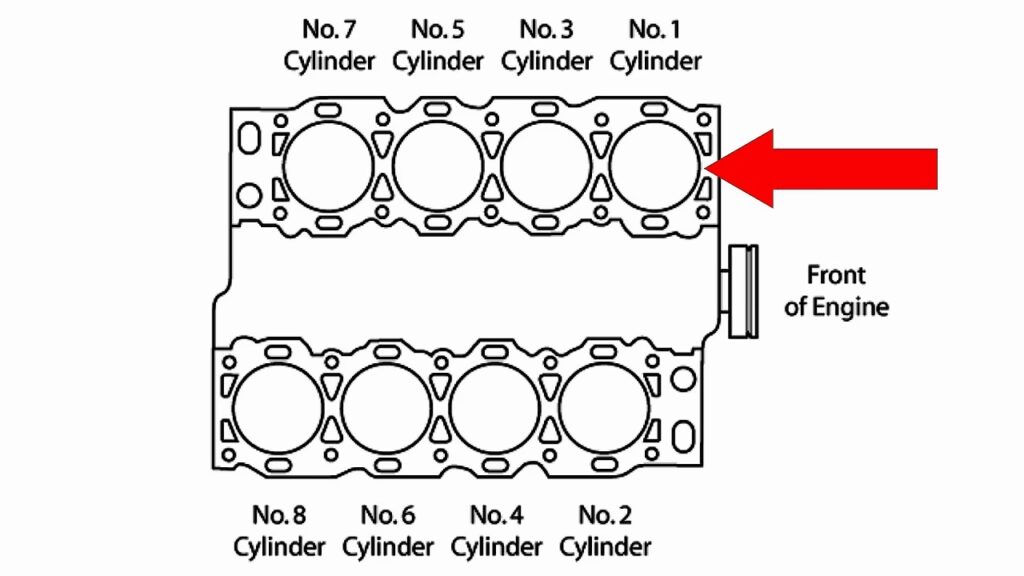

In the context of internal combustion engines, particularly those with a V-configuration (like V6 or V8 engines) or boxer engines, the cylinders are divided into two distinct groups or 'banks'. The term 'Bank 1' refers to the side of the engine that houses cylinder number one. Conversely, 'Bank 2' refers to the opposite side of the engine.

The location of cylinder number one is determined by the engine's design and manufacturer. It's crucial to consult your vehicle's owner's manual or a reputable repair guide to definitively identify which side of your engine constitutes Bank 1. It's a common misconception that Bank 1 is always on the driver's side or passenger's side; this can vary significantly between different vehicle makes and models, and even within different engine configurations from the same manufacturer. Therefore, relying on assumptions can lead to incorrect diagnoses and unnecessary part replacements.

The Role of Oxygen Sensors

Oxygen sensors, often referred to as O2 sensors, are vital components of your vehicle's emission control system. Their primary function is to measure the amount of unburnt oxygen present in the exhaust gases. This information is then relayed to the Engine Control Unit (ECU), the car's onboard computer.

The ECU uses the data from the oxygen sensors to precisely regulate the air-fuel mixture being injected into the engine's cylinders. An optimal air-fuel ratio is essential for efficient combustion, maximising power output, minimising fuel consumption, and crucially, reducing harmful emissions.

Understanding Sensor Positions: Upstream vs. Downstream

Within each engine bank, there are typically at least two oxygen sensors: an upstream sensor and a downstream sensor. The designation of 'Sensor 1' and 'Sensor 2' in diagnostic trouble codes (DTCs) refers to their position along the exhaust system, not necessarily their order of importance.

• Sensor 1 (Upstream): This sensor is located before the catalytic converter in the exhaust stream. Its primary role is to provide real-time data to the ECU for adjusting the air-fuel mixture. It's highly sensitive to changes in the exhaust gas composition.
• Sensor 2 (Downstream): This sensor is situated after the catalytic converter. Its main purpose is to monitor the efficiency of the catalytic converter itself. It measures the oxygen content before and after the converter to ensure the converter is functioning correctly and effectively reducing pollutants.

Therefore, a code referencing 'Bank 1 Sensor 1' indicates an issue with the upstream oxygen sensor on the side of the engine containing cylinder number one. Similarly, 'Bank 1 Sensor 2' points to a problem with the downstream sensor on the same bank.

Common Problems with Oxygen Sensors on Bank 1

Oxygen sensors are exposed to extreme temperatures and harsh exhaust gases, making them susceptible to wear and failure over time. Some common issues include:

1. Slow Response Time

As an oxygen sensor ages, its ability to quickly detect changes in oxygen levels can degrade. A sluggish sensor provides delayed information to the ECU, leading to inefficient air-fuel mixture adjustments. This can result in:

• Decreased fuel economy
• Increased exhaust emissions
• Hesitation or stumbling during acceleration

2. Inaccurate Readings

Contamination from oil, coolant, or excessive fuel can foul the sensor's ceramic element, leading to inaccurate readings. This can cause the ECU to incorrectly adjust the air-fuel ratio, resulting in either a fuel-rich (too much fuel) or fuel-lean (too little fuel) mixture. The consequences include:

• Poor engine performance
• Rough idling
• Misfires
• Potential damage to the catalytic converter due to overheating (from a rich mixture) or unburnt fuel entering it (from a lean mixture).

3. Heater Circuit Failure

Most modern oxygen sensors incorporate an internal heating element. This heater rapidly brings the sensor up to its optimal operating temperature, allowing it to provide accurate readings much sooner after a cold start. If the heater fails, the sensor will rely solely on exhaust gas heat, significantly increasing its response time, especially during initial warm-up. This can lead to:

• Increased emissions during cold starts
• Poor fuel economy until the engine fully warms up
• Potential DTCs related to heater circuit malfunction

4. Physical Damage

While less common, physical damage to the sensor or its wiring, often caused by road debris, improper installation, or corrosion, can also lead to malfunction.

Diagnosing Bank 1 Oxygen Sensor Issues

Several symptoms can indicate a problem with your Bank 1 oxygen sensor:

• Check Engine Light (CEL): This is the most common indicator. Diagnostic trouble codes (DTCs) such as P0130-P0167 often relate to oxygen sensor performance or circuit issues. Using an OBD-II scanner is essential for retrieving these specific codes.
• Poor Fuel Economy: A noticeable drop in your vehicle's miles per gallon (MPG) is a strong indicator of an inefficient air-fuel mixture, often caused by a faulty oxygen sensor.
• Rough Idle or Misfires: When the ECU struggles to maintain the correct air-fuel ratio, the engine's combustion process can become unstable, leading to a rough idle, shaking, or even engine misfires.
• Failed Emissions Test: A malfunctioning oxygen sensor can cause your vehicle to produce higher levels of pollutants, leading to a failed emissions inspection.
• Smell of Fuel: A fuel-rich condition, often caused by a faulty upstream O2 sensor, can sometimes result in the smell of unburnt fuel from the exhaust.

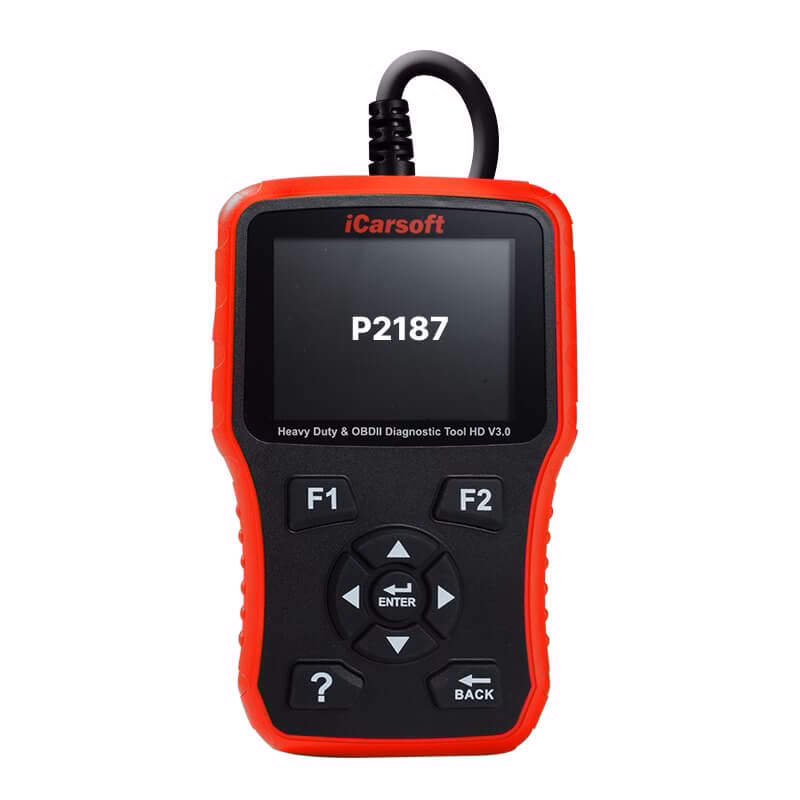

OBD-II Scanner Readings:

An OBD-II scanner can provide valuable live data from the oxygen sensors. For a healthy upstream sensor, you should observe fluctuating voltage readings (typically between 0.1V and 0.9V) as the ECU adjusts the fuel mixture. A lazy or faulty sensor might show consistently high or low voltage, or a very slow response to changes.

Replacing a Bank 1 Oxygen Sensor

Replacing an oxygen sensor is a task that many DIY enthusiasts can undertake, though it requires some basic tools and mechanical knowledge. Always refer to your vehicle's specific repair manual for detailed instructions.

Tools You'll Likely Need:

• Oxygen Sensor Socket (a specialised socket with a slot for the wiring)
• Ratchet and Extension
• Penetrating Oil (like WD-40)
• Torque Wrench (recommended for proper installation)
• Safety Glasses and Gloves
• OBD-II Scanner

Step-by-Step Guide:

1. Safety First: Ensure the engine is cool. Safely raise and support the vehicle using jack stands if necessary.
2. Locate the Sensor: Identify the Bank 1 Sensor 1 (upstream) or Bank 1 Sensor 2 (downstream) on your exhaust system. Your repair manual will be invaluable here.
3. Disconnect the Wiring: Carefully unplug the electrical connector from the old oxygen sensor. Be gentle to avoid damaging the wiring harness.
4. Apply Penetrating Oil: Spray a penetrating oil onto the threads of the old sensor and allow it to soak for a few minutes to ease removal.
5. Remove the Old Sensor: Use the oxygen sensor socket and a ratchet to loosen and unscrew the old sensor. It might require some force if it's seized.
6. Prepare the New Sensor: Clean the mounting threads on the exhaust pipe. Some new sensors come with anti-seize compound pre-applied to the threads; if not, apply a small amount of high-temperature anti-seize compound to the threads of the new sensor, ensuring none gets on the sensor element itself.
7. Install the New Sensor: Carefully thread the new sensor into the exhaust pipe by hand to avoid cross-threading. Once snug, use the socket and torque wrench to tighten it to the manufacturer's specified torque.
8. Reconnect the Wiring: Plug the electrical connector of the new sensor firmly into the vehicle's wiring harness.
9. Clear Codes: Use your OBD-II scanner to clear any stored trouble codes.
10. Test Drive: Start the engine and listen for any unusual noises. Take the vehicle for a test drive and monitor for any recurring symptoms. Check again with the OBD-II scanner to ensure the codes remain cleared and observe live data from the new sensor.

When Should You Replace Your Bank 1 Oxygen Sensor?

Oxygen sensors have a finite lifespan. While they can last anywhere from 60,000 to 90,000 miles, this can be significantly reduced by driving habits, fuel quality, and other engine issues. It's advisable to replace them proactively as part of routine maintenance, especially if you notice any of the symptoms mentioned earlier or when performing other exhaust-related repairs.

Importance of Maintaining Bank 1 Oxygen Sensors

A properly functioning Bank 1 oxygen sensor is not just about passing emissions tests; it's fundamental to your vehicle's overall health:

• Optimised Fuel Efficiency: Ensures the engine receives the correct amount of fuel for the amount of air, preventing wastage and saving you money at the pump.
• Enhanced Engine Performance: Contributes to smooth operation, good power delivery, and a responsive driving experience.
• Reduced Emissions: Plays a critical role in minimising the release of harmful pollutants like carbon monoxide (CO), hydrocarbons (HC), and nitrogen oxides (NOx) into the atmosphere.
• Catalytic Converter Protection: By maintaining the correct air-fuel ratio, it prevents unburnt fuel from reaching and damaging the expensive catalytic converter.

As John Davis, ASE Certified Master Technician, aptly puts it, "Regularly checking and replacing your oxygen sensors can save you money on fuel and prevent costly repairs down the road." Similarly, Automotive Engineer Sarah Miller highlights, "Oxygen sensors are essential for reducing harmful emissions and protecting the environment." Ignoring a failing oxygen sensor is a false economy that can lead to more significant and expensive problems.

Comparative Table: Oxygen Sensor Types

Frequently Asked Questions (FAQ)

What does oxygen sensor bank 1 mean?

It refers to the oxygen sensor located on the side of the engine that contains cylinder number one.

How much does it cost to replace an oxygen sensor bank 1?

The cost can vary significantly based on the vehicle's make, model, and the specific sensor. Parts typically range from £30 to £100, with labour costs adding to the total if done by a professional mechanic. DIY replacement can save on labour costs.

Can I drive with a bad oxygen sensor bank 1?

While your vehicle may still run, it is not recommended. Driving with a faulty oxygen sensor can lead to significantly reduced fuel efficiency, increased emissions, and potential damage to your catalytic converter, which is a much more expensive component to replace.

What are the symptoms of a bad oxygen sensor bank 1?

Common symptoms include the illumination of the Check Engine Light, a noticeable decrease in fuel economy, rough idling, hesitation during acceleration, and potentially failing an emissions test.

How often should I replace my oxygen sensor bank 1?

Oxygen sensors are typically recommended for replacement every 60,000 to 90,000 miles as a preventative measure, or sooner if symptoms of failure appear.

How do I know which oxygen sensor is bank 1?

You need to consult your vehicle's repair manual or a reliable online resource specific to your car's make and model. Generally, on V-type engines, Bank 1 is the side containing cylinder #1. On inline engines, there is only one bank.

What is the difference between upstream and downstream oxygen sensors?

The upstream sensor (Sensor 1) is located before the catalytic converter and is crucial for regulating the air-fuel mixture. The downstream sensor (Sensor 2) is located after the catalytic converter and primarily monitors the converter's effectiveness.

Where is Bank 1 Sensor 2 located?

Bank 1 Sensor 2 is the downstream oxygen sensor on the side of the engine that contains cylinder number one. It is typically found after the catalytic converter in the exhaust system.

Conclusion

The 'Bank 1' designation might sound technical, but understanding its meaning in relation to your engine's oxygen sensors is key to maintaining your vehicle's performance and longevity. By recognising the signs of a failing sensor and undertaking timely maintenance or replacement, you can ensure your car runs smoothly, efficiently, and with minimal environmental impact. Don't underestimate the importance of these small but vital components; they are fundamental to modern engine management and emission control.
