Embarking on an engine disassembly is a significant undertaking for any motorcycle enthusiast, and the Honda XR650L, a beloved thumper known for its rugged reliability, is no exception. Whether you're planning a full rebuild, diagnosing a mysterious knock, or simply replacing worn components, understanding the methodical process of stripping down this robust single-cylinder engine is crucial. This guide aims to demystify the process, offering a detailed walkthrough for the home mechanic in the UK, emphasising the necessary preparation, tools, and the sequential steps involved in taking an XR650L engine apart.

Before you even consider touching a spanner, it’s imperative to approach this task with patience and meticulous attention to detail. An engine is a complex assembly of precision-engineered components, and any oversight during disassembly or reassembly can lead to costly damage or, worse, a catastrophic failure. This isn't a job to be rushed; rather, it’s a project that demands a methodical approach and a clear understanding of each step.
Why Disassemble Your XR650L Engine?
There are several compelling reasons why an XR650L owner might decide to delve into the heart of their motorcycle's engine:
- Performance Rebuild: After many thousands of miles, components naturally wear. A rebuild can restore lost power, improve efficiency, and extend the engine's lifespan.
- Component Replacement: Issues like a worn camshaft, damaged valves, a tired piston, or a faulty crankshaft bearing necessitate a strip-down.
- Diagnosis and Repair: Unexplained noises, oil consumption, or a lack of compression often point to internal engine problems that can only be identified through a thorough inspection of the internal components.
- Customisation: Some enthusiasts disassemble their engines for porting work, high-compression piston installation, or other performance modifications.
Regardless of your motivation, the process requires a systematic approach and an understanding of the engine's internal workings.
Essential Preparation Before You Begin
Proper preparation is half the battle when it comes to engine work. Skimping on this stage can lead to frustration, damage, and unnecessary expenditure.
The Indispensable Service Manual
Firstly, and perhaps most importantly, you absolutely must acquire a service manual specific to your XR650L model year. This is not an optional extra; it's your bible for torque specifications, bolt patterns, inspection limits, special tool requirements, and detailed exploded diagrams. Attempting an engine strip-down without one is akin to navigating a maze blindfolded. A good manual will provide the precise information needed for every step, including critical measurements for wear limits, ensuring you know what to look for and when a part needs replacing.
Tools of the Trade
While many standard workshop tools will be used, there are some specialised items that will make the job significantly easier and prevent damage. Here's a comparative look at general versus specialised tools:
| General Hand Tools | Specialised Tools (Recommended) |
|---|---|
| Metric Spanner Set | Flywheel Puller |
| Socket Set (Metric, various drives) | Clutch Holding Tool |
| Torque Wrench (essential!) | Valve Spring Compressor |
| Screwdrivers (Phillips & Flat) | Case Splitter Tool |
| Pliers (various types) | Bearing Pullers/Installers |
| Rubber Mallet | Piston Ring Compressor |
| Wire Brushes | Feeler Gauges |
| Gasket Scrapers | Micrometres/Calipers |
| Oil Drain Pan | Impact Driver (for stubborn screws) |
A good quality torque wrench is non-negotiable for reassembly. Overtightening can strip threads or warp components, whilst undertightening can lead to leaks or parts coming loose. Invest in a reliable one that covers the range of torque values specified in your service manual.
Setting Up Your Workspace
Cleanliness is paramount. Designate a clean, well-lit area in your garage or workshop where you can comfortably work. Lay down clean tarpaulins or cardboard to protect your floor. Crucially, have a system for organising bolts, nuts, and small components. Labelled plastic bags, compartmentalised storage trays, or even a piece of cardboard with holes poked through to correspond to bolt locations can save hours of frustration during reassembly. Take plenty of photos or even videos as you disassemble; these visual aids can be invaluable when putting everything back together.
Before you begin, thoroughly clean the exterior of the engine and the surrounding frame. Dirt and grime are your worst enemies during an engine strip-down, as they can easily contaminate internal components, leading to premature wear or even catastrophic failure upon reassembly.
Top-End Disassembly: The Cylinder Head and Barrel
The top end of the engine (cylinder head, valves, camshaft, piston) is typically the first section to be disassembled, as it's more accessible and often where common issues like worn valves or piston rings reside.
Draining Fluids and Initial Strip-Down
Start by draining the engine oil and, if applicable, the coolant. Remove the fuel tank, seat, and any shrouds that obstruct access to the engine. Disconnect the exhaust system, carburettor, and all electrical connections that run to the engine (e.g., CDI, stator, neutral switch). Remove the spark plug.

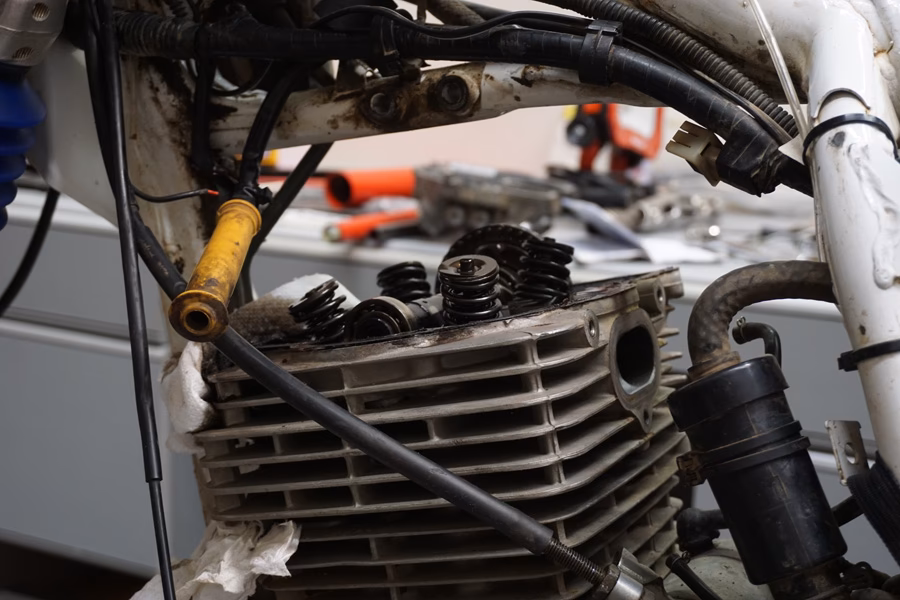

Removing the Rocker Cover and Camshaft
With the engine external components cleared, locate and remove the rocker cover. This will expose the rocker arms and the camshaft. Before removing the camshaft, you'll need to release the cam chain tensioner. Follow your service manual's instructions for this, as improper release can damage the tensioner or cam chain. Once the tension is off, remove the camshaft retainer plate and carefully slide the camshaft out. Note the orientation of the camshaft and its bearings.
Cylinder Head Removal
Next, remove the rocker arm shafts and rocker arms. Pay close attention to any shims or washers and their placement. Then, systematically loosen the cylinder head bolts in the reverse order of the tightening sequence specified in your service manual. These bolts are often torqued quite high, so a good quality socket and breaker bar are recommended. Once all bolts are removed, gently lift the cylinder head off the cylinder barrel. It may require a gentle tap with a rubber mallet if it's stuck by the gasket. Be careful not to damage the head gasket surface.
Cylinder Barrel Removal
With the cylinder head off, the cylinder barrel (or cylinder liner) is exposed. If the piston is at Top Dead Centre (TDC), gently push it down slightly to relieve any pressure. Carefully slide the cylinder barrel upwards off the piston. As you do this, ensure the cam chain doesn't fall into the crankcases; use a piece of wire or string to hold it up. Once the barrel is removed, you'll see the piston connected to the connecting rod. Before removing the piston, place clean rags around the connecting rod to prevent the wrist pin clips (circlips) from falling into the crankcases. Carefully remove the wrist pin circlips, then push the wrist pin out, freeing the piston from the connecting rod. Inspect the piston, rings, and cylinder bore for wear or damage.
Bottom-End Disassembly: Splitting the Cases
Splitting the crankcases is a more involved process, requiring careful attention to detail and, ideally, specialised tools. This step allows access to the crankshaft, connecting rod, transmission gears, and shift drum.
Removing External Components from the Crankcases
With the top end removed, you'll need to remove all remaining external components attached to the crankcases. This typically includes:
- Stator Cover and Stator: Remove the left-hand crankcase cover, then carefully unbolt and remove the stator assembly.
- Flywheel: The flywheel is usually held on by a large nut and requires a specific flywheel puller to remove it without damage.
- Clutch Cover and Clutch Assembly: Remove the right-hand crankcase cover. Then, using a clutch holding tool, remove the clutch basket nut and disassemble the clutch plates, pressure plate, and clutch basket.
- Oil Pump: Remove the oil pump and its associated gears.
- Starter Motor and Gear Train: Disconnect and remove the starter motor and any associated gears that may be attached to the crankcase halves.
- Shift Lever and Shift Shaft: Remove the external shift lever and gently slide the shift shaft out.
Ensure all electrical connectors, hoses, and mounts are detached from the engine before proceeding.
Splitting the Crankcases
Once all external components are removed, the engine should be relatively bare, save for the crankcase halves, crankshaft, and transmission. Before unbolting the cases, double-check that no hidden bolts or dowel pins remain. Refer to your service manual for the exact bolt pattern and sequence for loosening the crankcase bolts. They are usually tightened in a specific pattern to ensure even pressure.
Once all bolts are removed, the crankcases need to be separated. This is where a case splitter tool becomes invaluable. This tool applies even pressure to separate the cases without prying or hammering, which can easily damage the delicate gasket surfaces or bend the crankshaft. If you don't have a case splitter, you might carefully use a rubber mallet and apply gentle, even taps around the case halves, but always be wary of damaging mating surfaces or internal components. Some mechanics gently heat the crankcase around the bearings to aid in separation, as the aluminium will expand more than the steel bearings, easing their release.
As the cases begin to separate, be prepared for internal components to become loose. The crankshaft, connecting rod, transmission gears, and shift drum will remain in one half (usually the left, but consult your manual). As the cases fully separate, carefully lift the top half off. Note the location of all dowel pins, shims, and bearings. Some bearings may remain in one case half, others in the other. Take care not to drop or mix them up.
Inspecting Internal Components
With the cases split, you now have full access to the engine's core components for thorough inspection.
Crankshaft and Connecting Rod
Carefully lift the crankshaft assembly out of its bearing saddles. Inspect the crankshaft journals for scoring, discolouration, or pitting. Check the connecting rod for any signs of bending, cracks, or excessive play in the big end or small end bearings. Hold the connecting rod firmly and try to move it sideways on the crankpin; a small amount of side-to-side play is normal, but any up-and-down play indicates a worn big end bearing, necessitating a crankshaft rebuild or replacement.
Transmission and Shift Mechanism
The transmission consists of several shafts (main shaft and countershaft) with various gears. Carefully lift the transmission shafts out as an assembly, keeping all gears, washers, and circlips in their correct order and orientation. This is where your organisation system will truly shine. Inspect all gear teeth for chipping, pitting, or excessive wear. Check the shift forks for bending or wear, and the shift drum for any grooves or damage that could impede smooth shifting. Ensure all bearings within the cases are smooth and free from play. If any feel rough or gritty when spun by hand, they require replacement.
Reassembly: A Brief Note
While this guide focuses on disassembly, it's crucial to understand that reassembly is essentially the reverse process, but with even greater emphasis on cleanliness, torque specifications, and the use of new gaskets and seals. Every bolt, every component, and every bearing must be meticulously cleaned and installed correctly. Lubricate all moving parts with fresh engine oil during assembly. The service manual will provide the precise tightening sequences and torque values for every fastener, which are absolutely critical for engine longevity and performance. Do not skip this step or guess; incorrect torque can lead to component failure or seizing.
Frequently Asked Questions (FAQs)
Q: Is taking an XR650L engine apart a DIY job for an amateur?
A: It can be, but it requires mechanical aptitude, the correct tools, and, most importantly, a dedicated service manual. If you're new to engine work, consider starting with smaller projects or seeking guidance from an experienced mechanic. It's a challenging but rewarding endeavour.
Q: How long does it typically take to disassemble an XR650L engine?
A: For a first-timer, expect it to take several full days, possibly a week, if you're being meticulous and taking your time. An experienced mechanic might do it in a day. Rushing will only lead to mistakes.
Q: What are the most common parts that need replacing during a strip-down?
A: Gaskets, oil seals, piston rings, and often the piston itself. Bearings (crankshaft, transmission) and cam chain are also common wear items. Valves and valve guides might need attention depending on mileage and maintenance history.
Q: What should I do if I get stuck or can't remove a part?
A: Refer to your service manual first. If that doesn't help, consult online forums or seek advice from experienced mechanics. Never force a part; there's usually a specific technique or tool required.
Q: Do I need special tools for every step?
A: While many steps can be done with general hand tools, certain tasks (like removing the flywheel or splitting the cases) are significantly easier and safer with specialised tools. Investing in these can prevent damage and save money in the long run.
Conclusion
Disassembling your Honda XR650L engine is a complex yet achievable task for the dedicated home mechanic. It demands organisation, patience, and a deep respect for the precision engineering involved. By following a methodical approach, utilising the indispensable service manual, and acquiring the necessary tools, you can successfully strip down your engine, diagnose issues, and prepare it for a rebuild or component replacement. Remember, every bolt has a place, and every component plays a vital role. Take your time, document your steps, and enjoy the satisfaction of truly understanding the heart of your XR650L.
