For owners of classic Morgans, particularly those from 1996 onwards equipped with BTR axles, understanding the correct maintenance schedule for the differential fluid is crucial. The BTR axle, a noticeably bulkier unit than its Salisbury predecessor, features two distinct plugs: one at the rear and a drain plug at the bottom. Unlike older Salisbury axles, BTR units have specific fluid requirements to ensure longevity and optimal performance. This guide aims to demystify the process, detailing fluid changes, the importance of friction modifiers, and other vital care aspects for your Morgan.

Understanding Your Morgan's Axle Type

It is paramount to correctly identify your Morgan's axle, as Salisbury and BTR axles are vastly different and require distinct maintenance approaches. Salisbury axles, used until 1995, typically have three square plugs (14mm) on Plus 8 models (top, bottom, and rear), while 4/4s and Plus 4s have two plugs. BTR axles, introduced from 1996, are generally bulkier and feature two plugs: a drain at the bottom and a filler/level plug offset to the right on the rear cover. If you are uncertain about your axle type, consulting your vehicle's documentation or a specialist is advisable.

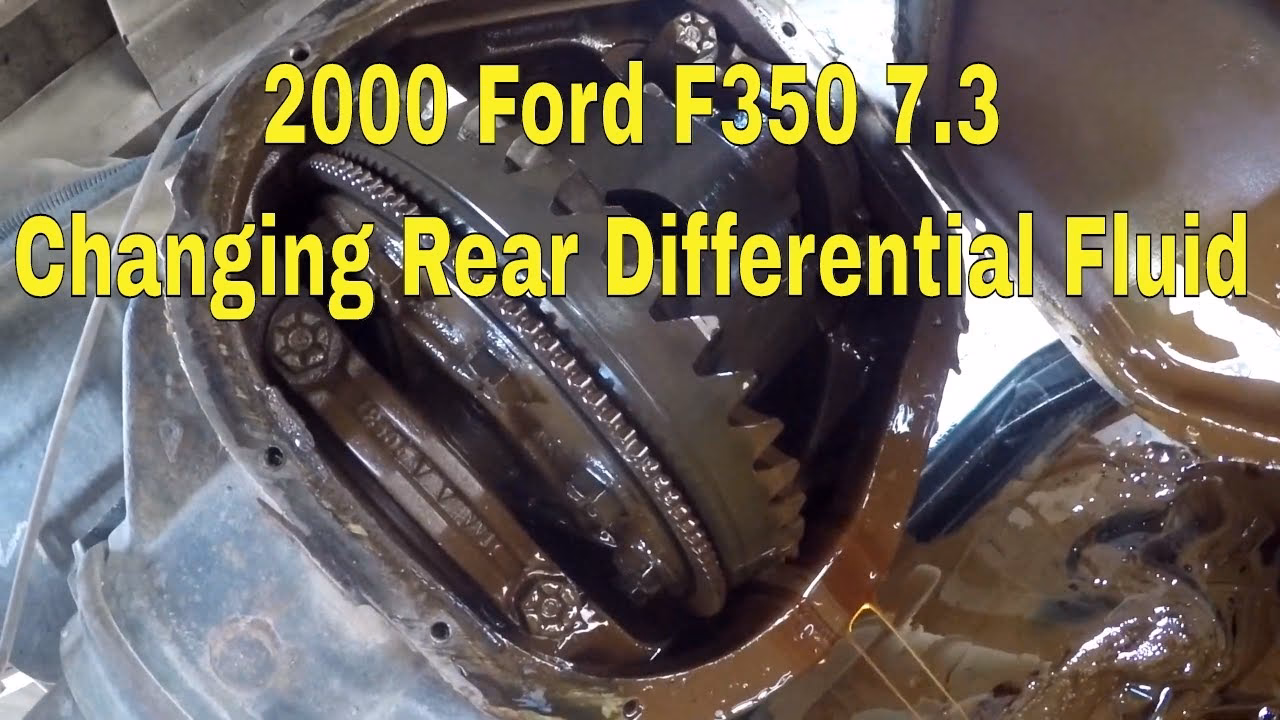

BTR Axle Fluid Change Frequency

The recommended fluid change interval for later BTR axles, according to technical specifications, can range from 40,000 to 80,000 miles. However, many Morgan owners, including experienced enthusiasts, prefer a more conservative approach. It is common practice to change the fluid every 25,000 miles to ensure the differential operates under optimal conditions. Regardless of the change interval, it is essential to check the fluid level at every service, which typically occurs every 3,000 to 5,000 miles. A key indicator that your fluid may need attention, or that the friction modifier needs refreshing, is the occurrence of 'chattering' noises, particularly during changes in attitude.

Fluids for Limited Slip Differential (LSD) BTRs

For BTR differentials equipped with a Limited Slip Differential (LSD), the original recommended lubricant was Castrol SAF-XJ. While this fluid is readily available in the UK and Europe, its accessibility can be limited in North America and other regions. A viable alternative for those in North America is to source the equivalent lubricant from BMW, bearing their part number 83 22 2 282 583. This product, often found under the Castrol Syntrax Limited Slip 75w-140 designation (formerly SAF-XJ 75w-140), is a fully synthetic SAE 75W-140 hypoid gear oil specifically formulated for LSD applications and contains the necessary friction modifier. The Morgan Motor Company itself recommends this lubricant over those from their usual supplier, Morris, due to concerns about dated specifications and proprietary fluid formulations.

Alternatives for North American Owners:

• Royal Purple Max-Gear 85W-140: This option comes with the friction modifier pre-mixed.
• Red Line 80W140 GL-5 Gear Oil with Redline Limited Slip Friction Modifier: Specifically for US owners.
• Mobil 1 Synthetic Gear Lube 75W-140: Requires the addition of a Limited Slip Friction Modifier, available from Ford.

The Crucial Role of Friction Modifiers

Friction modifiers, also known as "FM" or "Sturaco" (an Italian-made product available under various names), are essential additives for LSDs. They alter the interaction between the clutch plates within the differential, preventing the 'chattering' often experienced during slow-speed cornering. While many modern synthetic gear oils for LSDs come with pre-mixed friction modifiers, it's vital to ensure compatibility. If your chosen fluid does not contain an FM, you will need to add it separately. The typical addition is 2% to 5% of the total fluid volume.

Common Friction Modifier Part Numbers:

• GM Part No. 1052358
• Ford Part No. F3TZ-19B546-MA
• Chrysler Part No. 4318060
• Isuzu Part No. 8-01052-358-0
• Redline Limited Slip Friction Modifier (for US owners)

Important Watchpoint 1: Always adhere to the recommended lubricant specifications. Using incorrect fluids in BTR axles has been the sole cause of reported failures. The initial signs of using the wrong lubricant can manifest as clicks or light clunks during attitude changes, with damage escalating as the incorrect fluid continues to be used.

Fluids for Non-LSD BTRs

For BTR axles that are not equipped with an LSD, the recommended lubricant is Castrol SAF-XO. However, this fluid can also be difficult to source. In its absence, Castrol SAF-XJ or Redline 75-140 differential oil are suitable replacements. It is important to note that non-LSD differentials do not require a friction modifier.

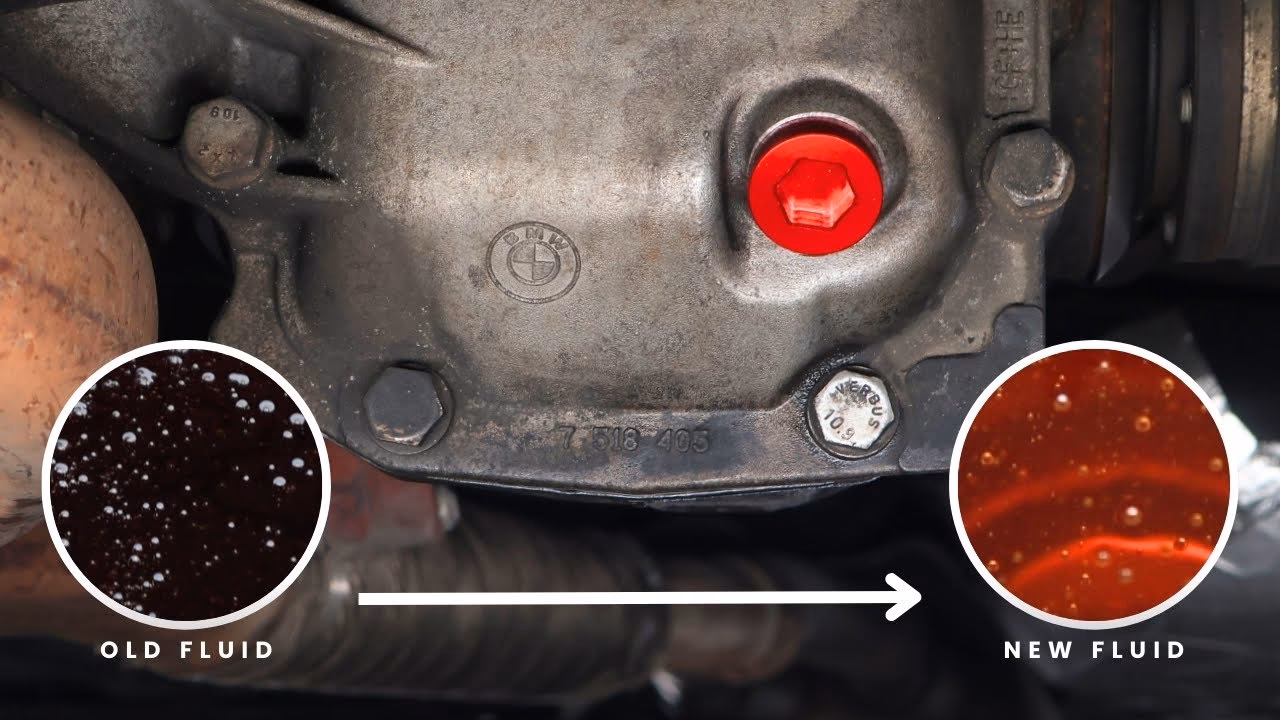

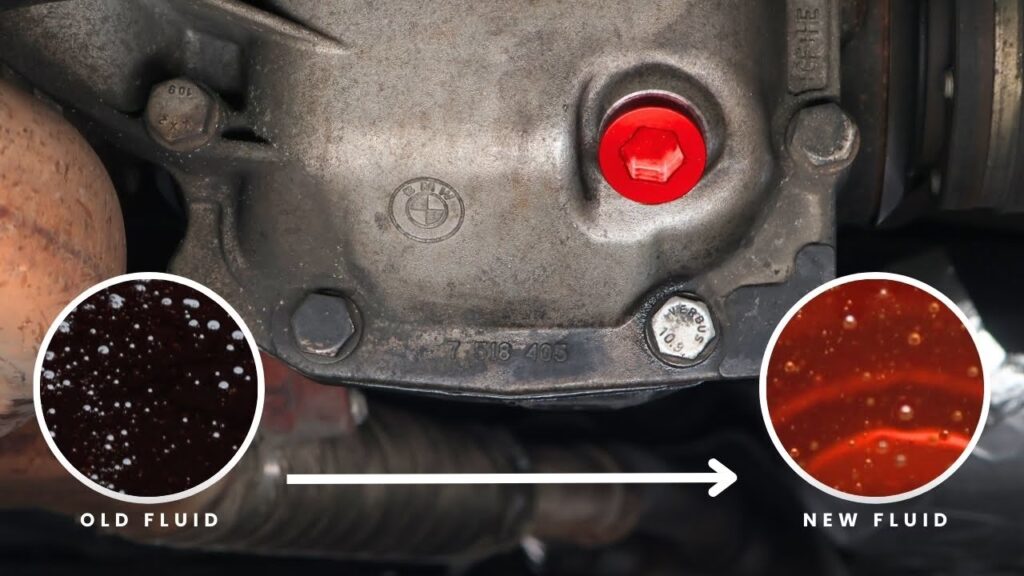

How to Fill a BTR Axle

The process of filling a BTR axle requires careful attention to detail:

1. Warm the Fluid: If possible, take the car for a short drive to slightly warm the existing lubricant.
2. Level Surface: Ensure the car is parked on a level surface.
3. Access Plugs: Jack up the rear of the car. Locate and remove the level plug, which is typically found mid-way up the rear cover, slightly offset to the right.
4. Drain Old Fluid: Remove the drain plug located at the bottom of the differential. As a precaution, you can strain the drained fluid to check for any metallic debris, which could indicate internal wear.
5. Replace Drain Plug: Once the old fluid has drained, securely replace the drain plug.
6. Add Friction Modifier (if applicable): If your LSD BTR requires a friction modifier and it's not pre-mixed in your chosen fluid, add the specified amount to the differential first.
7. Fill with New Fluid: Using a suitable container, funnel, or tube, fill the differential through the level plug hole. Continue filling until the new lubricant just begins to run out of the level plug hole.
8. Replace Level Plug: Once the correct level is reached, replace the level plug.
9. Final Checks: After your first drive, clean the differential casing and check both the drain and level plugs for any signs of leakage.

Greasing a BTR Axle

Unlike Salisbury axles, BTR axles are closed-end systems and do not require greasing as part of their routine maintenance.

A Note on Salisbury Axles (for context)

While this guide focuses on BTR axles, it's worth briefly mentioning Salisbury axles for clarity. These are unique to Morgans and have no relation to later BTR units. Recommended fluids for LSD Salisbury axles include 80/90 Hypoy oil. Modern substitutes like Castrol Syntrax 75W-90 are easier to find. For non-LSD Salisbury axles, Castrol 75/90 or its equivalent is recommended, with fluid changes ideally occurring at 3,000-mile intervals due to the relative fragility of these older units and the scarcity of parts.

Greasing Salisbury Axles:

Salisbury axles have grease nipples located near the hubs at both ends. These require regular greasing. It's crucial to locate and clear the excess grease escape hole, often blocked by paint or dirt, to ensure proper lubrication and prevent seal damage. Pump grease until a thin "worm" of grease emerges from the escape hole, indicating sufficient lubrication.

Propshaft Maintenance

The Morgan propshaft, a component that has seen little change over decades, requires regular greasing. It features three grease points: one in the rear U-joint attached to the axle, one on the propshaft body at the front, and a third on the front U-joint connected to the gearbox output shaft. Neglecting these points can lead to premature wear. Accessing these points may require raising the car and rotating the wheels or removing access panels.

Propshaft to Differential Flange Torque:

Morgan does not always provide specific torque settings for the propshaft flange bolts. However, industry standards suggest approximately 35 ftlbs (47 nm) for Salisbury and 37 ftlbs (50 nm) for BTR axles. It is advisable to use high-grade bolts (Grade 8 or better) and consider stover nuts over nylocs for a more secure fastening.

Summary of Fluid Recommendations

By adhering to these guidelines, you can ensure the smooth and reliable operation of your Morgan's drivetrain for years to come. Regular checks and timely fluid changes are the cornerstones of preserving these classic vehicles.
