Is SWEPCO 201 the Right Choice for Your Porsche 911?

One of the most rewarding and straightforward maintenance tasks you can undertake on your Porsche 911 is changing the transmission oil. While it might seem daunting to some, this seemingly simple procedure holds the key to the longevity and smooth operation of your beloved sports car's gearbox. Far from being a mere lubricant, the transmission fluid in a 911 plays a multifaceted role, safeguarding intricate components and ensuring that crisp, precise shifting feel that is synonymous with the marque. By understanding its importance and choosing the right fluid, such as the highly regarded SWEPCO 201, you can significantly enhance your driving experience and protect a vital part of your vehicle.

Understanding Your Porsche 911 Transaxle

The Porsche 911, with its distinctive rear-engine layout, employs a unique component known as a transaxle. Unlike most front-engine, rear-wheel-drive cars that have a separate transmission and differential, the 911 ingeniously integrates both into a single, compact unit. This design offers several advantages, including a more compact footprint and theoretically lighter weight, as it eliminates the need for a dedicated, separate differential housing. However, this integration means that both the transmission gears and the differential components share the exact same lubricating fluid. This shared fluid system underscores the critical importance of selecting the correct oil and maintaining it meticulously, as it must simultaneously cope with the varied demands of both the gear-shifting mechanism and the power distribution of the differential.

The Critical Role of Transmission Fluid

The fluid within your Porsche 911 transaxle is far more than just a lubricant; it's a vital, multi-functional component essential for performance, longevity, and driver enjoyment. Its primary roles are lubrication, cooling, and cleanliness, each contributing significantly to the health of your gearbox.

Lubrication: Protecting Intricate Components

At the heart of the transmission's operation are countless moving parts: gears meshing under immense pressure, bearings supporting rotating shafts, and crucially, the synchro rings and sliders. These synchro rings are engineered to match the speeds of gears before engagement, allowing for smooth, grind-free shifts. For them to perform their delicate ballet of speed matching, they rely entirely on a slick, consistent film of oil. If the transmission fluid level is low, or if the fluid has degraded, this vital lubrication is compromised. The result is accelerated wear on these precision components, leading to difficult, notchy, or even grinding shifts. Over time, this wear can necessitate costly repairs or a full transmission rebuild. Ensuring the fluid is at the proper level and of high quality directly translates to a smoother, more enjoyable shifting experience and significantly extends the life of your gearbox.

Cooling: Managing Internal Temperatures

While often overlooked, the transmission fluid also plays a crucial role in managing heat. The engine is a significant source of heat, which conducts and radiates through the mounting points where the engine and transaxle connect. Furthermore, the constant friction of gears turning, bearings spinning, and synchros engaging within the transaxle itself generates considerable internal heat. Without adequate cooling, these temperatures can soar, leading to fluid breakdown and component damage. A sufficient volume of high-quality transmission oil acts as a heat sink, absorbing and dissipating heat throughout the transaxle case. This large reservoir of oil helps to spread the heat, preventing localised hot spots and maintaining stable operating temperatures. On some higher-performance Porsche transmissions, sophisticated external coolers are even employed, operating much like the engine's cooling system, to further manage thermal loads and ensure optimal performance under extreme conditions.

Cleanliness: Battling Wear Particles

Even in a perfectly functioning transmission, microscopic metal particles are inevitably shed as components wear over time. The synchro rings, in particular, are designed to wear down slowly with each shift. These tiny metallic fragments, along with other contaminants, can circulate within the fluid. High-quality transmission oil is formulated to suspend these particles, preventing them from settling and causing abrasive wear on bearings and other critical surfaces. The magnetic drain plug, which we'll discuss later, plays a vital role in trapping a significant portion of these metallic contaminants. However, without regular fluid changes, the oil's ability to suspend these particles diminishes, and the sheer volume of debris can become detrimental, accelerating wear throughout the system. A clean, fresh fluid ensures that these harmful particles are removed from circulation, protecting the intricate internal workings of your transaxle.

When to Change Your Transmission Fluid

While the Porsche owner's manual typically recommends a transmission fluid change every 30,000 miles, it's crucial to understand that this is a general guideline. The manual itself wisely states that the actual interval depends significantly on the amount of driving and, perhaps more importantly, on your specific driving habits. For instance, a 911 primarily used for spirited track days, consistent high-speed driving, or frequent stop-and-go city traffic will subject its transmission fluid to far greater stress and higher temperatures than one used for leisurely weekend cruises. In such demanding conditions, a more frequent fluid change schedule is not just recommended but essential for preventing premature wear.

Many experienced Porsche owners, myself included, advocate for a philosophy of 'over-maintaining' – especially when it comes to vital fluids. Regularly checking and changing your transmission fluid, perhaps every 15,000 to 20,000 miles or every few years even with low mileage, can be an inexpensive insurance policy against potentially very costly repairs down the line. The rationale is simple: every time you shift, tiny microscopic metal particles are generated as the synchro rings and gears do their work. While modern transmission bearings are robust, these particles, if allowed to accumulate in degraded oil, can contribute to abrasive wear, shortening the lifespan of crucial internal components. Frequent fluid changes ensure these harmful particles are removed from the system, and that the fluid's protective properties remain at their peak, thereby significantly prolonging the life of your transmission.

Tools and Essential Parts for the Job

Before you begin, gather the necessary tools and parts to ensure a smooth and efficient fluid change. This preparation will save you time and frustration during the process:

• Transmission Fluid: Approximately 4.5-5 litres, depending on your specific 911 model. Ensure you have enough.
• Drain Pan: Capable of holding at least 5 litres of fluid. A wide, shallow pan is ideal for catching all the draining oil.
• Hand-Operated Oil Pump: Essential for cleanly refilling the transmission fluid, as access can be tight. These attach directly to the top of standard fluid bottles.
• 17mm Hex Key: Required for the M25x1.5 drain and filler plugs on 901 (1965-1971) and 915 (1972-1986) transmissions.
• 19mm Socket: Needed for the drain and filler plugs on G50 (1987 onwards) transmissions.
• Torque Wrench: To correctly tighten the drain and filler plugs (24 Nm or 17.6 ft-lbs maximum).
• Cotton Swabs or Paper Towels: For cleaning the drain plug magnet.
• Plenty of Rags/Paper Towels: For inevitable drips and spills.
• Safety Glasses and Gloves: Always protect your eyes and hands.

Hot Tip: Always have a large drip pan and an abundance of paper towels or old rags at the ready. Transmission fluid changes can be messy, and preparedness will make clean-up much easier.

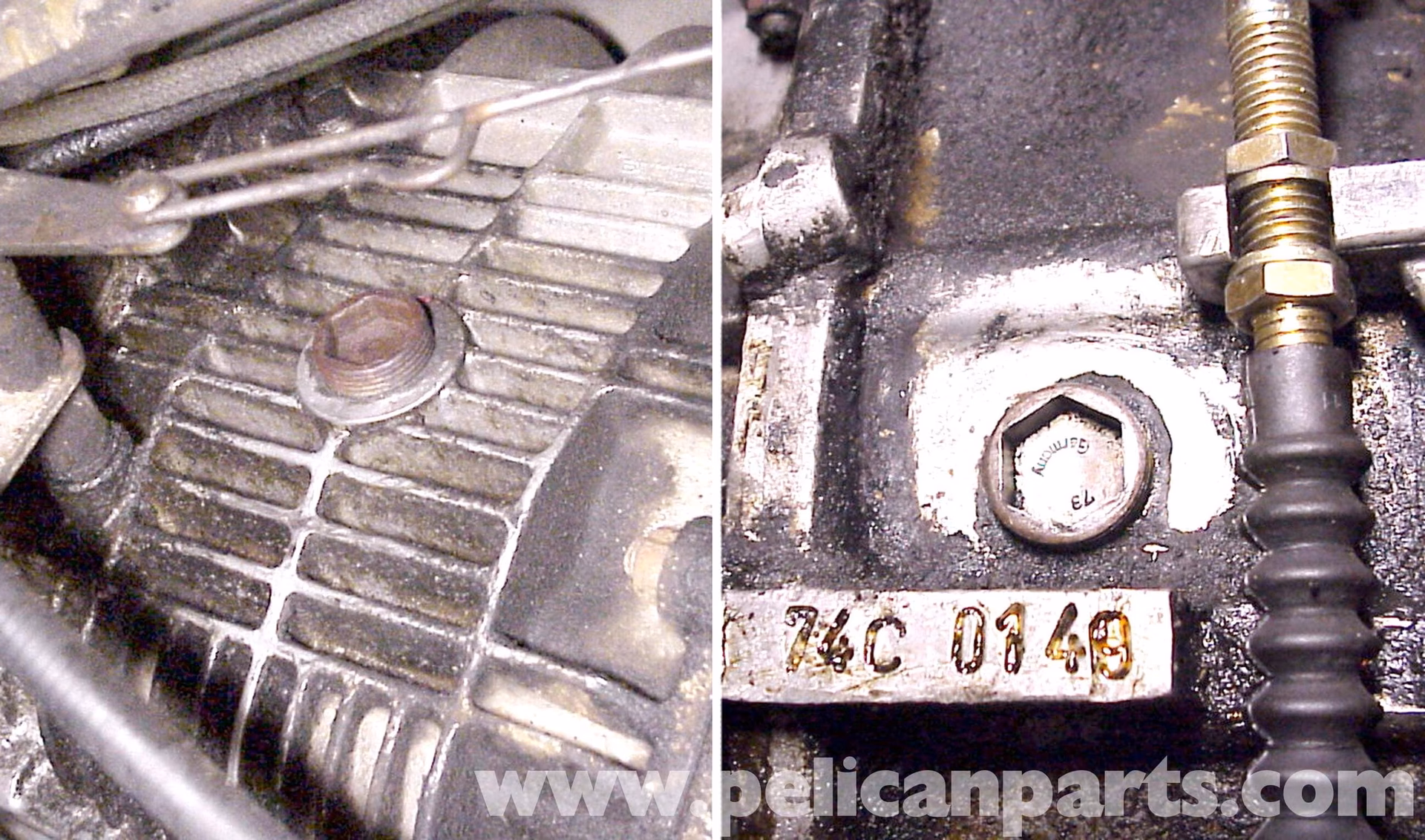

Identifying Your 911 Transmission Plugs

The location and type of transmission plugs vary depending on the specific generation of your Porsche 911, so it's vital to know which transmission your car is equipped with to select the correct tools and approach. Knowing your transmission type (901, 915, or G50) is the first step.

• 901 Transmission (1965-1971 911s): This early transmission features two distinct plugs located on the side of the case. Both are M25x1.5 plugs and require a 17mm hex key for removal. The upper plug serves as the filler and level check point, while the lower plug is for draining the fluid.
• 915 Transmission (1972-1986 911s): With the introduction of the 915, the plug design remained an M25x1.5 requiring a 17mm hex key. However, their locations changed slightly. The drain plug is now located on the bottom of the transmission case, while the filler/level plug remains on the side, typically higher up.
• G50 Transmission (1987 onwards 911s): The G50 transmission, a significant upgrade from the 915, also saw a change in plug type. While the locations of the drain (bottom) and filler (side) plugs are similar to the 915, they no longer require a large hex key. Instead, these plugs are designed to be removed with a standard 19mm socket, making them somewhat easier to manage for the DIY enthusiast.

Always double-check your owner's manual or a reputable workshop manual for the exact plug locations and types specific to your 911's model year, just to be absolutely certain.

Checking Your Transmission Fluid Level

Before embarking on a full fluid change, or if you're simply troubleshooting shifting issues, checking the fluid level is a quick and essential diagnostic step. Ensure your car is parked on a perfectly level surface and that the transmission is cold – this provides the most accurate reading.

Begin by locating and carefully removing the top filler plug on the side of the transmission case. This is the plug through which you would add fluid. Once removed, carefully insert your finger into the hole, pointing it downwards towards the ground. The goal is to feel for the fluid level. If you can feel the fluid with your finger, it generally indicates that the level is adequate, or perhaps only a small top-up might be needed. If you cannot feel any fluid, the level is significantly low, and you will need to add transmission oil to the case immediately. Running a transmission with insufficient fluid will rapidly accelerate wear and tear, leading to premature failure.

Performing a Full Transmission Fluid Change

Changing your Porsche 911's transmission fluid is a straightforward process that yields significant benefits. Follow these steps carefully:

Preparation and Draining

1. Warm Up the Fluid: While you can change the fluid when cold, it's a wise idea to take your 911 for a short drive (10-15 minutes) beforehand. This warms up the transmission fluid, making it less viscous and allowing it to drain more completely and efficiently. Be careful, as the fluid will be hot.

2. Position the Drain Pan: Place your drain pan directly underneath the transmission's drain plug. Ensure it's large enough to comfortably hold at least 5 litres of fluid, anticipating some potential spillage.

3. Remove the Drain Plug: Using the appropriate tool (17mm hex key for 901/915, 19mm socket for G50), carefully loosen and remove the small drain plug located on the bottom of the transmission case (or on the side for 901 transmissions). Be prepared for the fluid to flow out quickly once the plug is removed. Allow ample time for all the old fluid to drain out completely. This may take 15-20 minutes.

4. Inspect the Drained Fluid: While the fluid is emptying, take a moment to inspect it. Look for any unusual metal pieces, large chunks, or excessive grit in the oil. A small amount of very fine metallic paste on the drain plug magnet is normal, but larger shavings or a milky appearance could indicate more serious internal wear or contamination, warranting further investigation.

Cleaning and Plug Replacement

5. Clean the Drain Plugs: The bottom drain plug should have an integrated magnet designed to trap metallic debris. Using a cotton swab or a clean paper towel, carefully wipe away all the black debris and microscopic metal particles that have accumulated on the magnet. This is a good indicator of internal wear, and a clean magnet ensures it can continue to do its job effectively.

6. Magnetic Plug Upgrade: An excellent, simple upgrade is to consider installing a second magnetic drain plug in the top filler plug location. While the original factory top plug wasn't magnetic, adding a second magnet can't hurt and may help to remove additional wear particles from the circulating fluid, providing an extra layer of protection for your valuable transaxle.

7. Replace the Drain Plug: Once the fluid has completely drained and the plug is clean, re-install the bottom drain plug. It's crucial not to overtighten this plug. A torque wrench is highly recommended for this step. The maximum torque specification is typically 24 Nm (or 17.6 ft-lbs). These plugs are designed not to leak easily, as transmission oil is generally thicker than engine oil. If you notice any weeping later, you can always tighten it a little more, but start with the recommended torque to avoid stripping the threads.

Refilling the Transmission

8. Add New Fluid: Now, using your hand-operated oil pump, begin to pump the fresh transmission oil into the filler hole on the side of the case. This pump makes the job significantly easier, especially given the tight access to the filler hole. Continue pumping fluid into the case until it just begins to trickle or run out of the filler hole. This indicates the transmission is full to the correct level.

9. Replace the Filler Plug: Once the fluid level is correct, replace the filler plug. Tighten it down in a similar manner to the drain plug, adhering to the 24 Nm (17.6 ft-lbs) torque specification. Clean up any drips that may have run out of the hole, ensuring the area is tidy and free of oil residue.

The SWEPCO 201 Difference: Is It Worth It?

While generic transmission gear oil will often suffice for basic lubrication, for the discerning Porsche 911 owner who demands the very best for their cherished vehicle, SWEPCO 201 Multi-Purpose Gear Lube frequently emerges as the top choice. This particular gear oil has garnered an almost legendary status within the Porsche community, with countless owners swearing by its performance and protective qualities.

The consensus among many Porsche enthusiasts is that using SWEPCO 201 creates a discernible difference in shifting feel. Drivers often report smoother, more precise gear changes, particularly in older 901 and 915 transmissions where synchro wear can be a concern. There's a persistent rumour that adding SWEPCO 201 will significantly prolong the life of many transmissions and can even postpone a costly rebuild. While such claims are difficult to definitively prove with scientific data, the sheer volume of anecdotal evidence from satisfied owners lends considerable weight to its reputation.

It's believed that SWEPCO 201's unique formulation offers superior film strength and thermal stability, providing enhanced protection under demanding conditions and reducing friction more effectively than standard oils. This improved lubrication can translate directly into less wear on critical components like the synchro rings and bearings, thereby extending the overall lifespan of the transaxle.

However, it's important to note a specific consideration for later G50 transmissions (1987 onwards). The G50 utilises a different Borg-Warner synchro design, which some experts and owners believe is better suited to a synthetic blend gear oil. While SWEPCO 201 remains an excellent product, for G50 owners seeking optimal performance, investigating high-quality synthetic blends specifically formulated for Borg-Warner synchros might be a more appropriate choice. Always consult with a Porsche specialist or trusted enthusiast forums if you are unsure about the best fluid for your specific G50 application.

Comparative Analysis: Generic Gear Oil vs. SWEPCO 201

To help you make an informed decision, here's a comparison between a typical generic gear oil and the highly acclaimed SWEPCO 201:

td>

Frequently Asked Questions (FAQs)

How often should I change my Porsche 911 transmission fluid?

While Porsche's manual suggests every 30,000 miles, this is a guideline. For optimal longevity and performance, especially with spirited driving, track use, or in hot climates, it's advisable to consider more frequent changes, perhaps every 15,000 to 20,000 miles or every 2-3 years, even if mileage is low. Regular checks of the fluid level and condition are always recommended.

What are the signs that my transmission fluid needs changing or topping up?

Common signs include difficulty shifting gears, a 'notchy' or 'grinding' feel when shifting, increased transmission noise (whining or clunking), or a noticeable decrease in fuel economy. If you experience any of these, checking your fluid level and condition should be your first step.

Can I use any standard gear oil in my Porsche 911?

While generic transmission gear oil might 'suffice' for basic operation, many Porsche owners find that premium, purpose-designed fluids like SWEPCO 201 offer significant improvements in shifting feel and provide enhanced protection. Always ensure the oil meets the correct viscosity and specifications for your particular 911 model.

Is SWEPCO 201 suitable for all Porsche 911 models?

SWEPCO 201 is highly recommended and widely used for 901 (1965-1971) and 915 (1972-1986) transmissions, where it's known to dramatically improve shifting and extend life. For the later G50 transmission (1987 onwards), which features a Borg-Warner synchro design, some experts suggest a specific synthetic blend might be more ideally suited, though SWEPCO 201 is not explicitly 'unsuitable' for the G50.

What's the typical time and cost involved in a DIY transmission fluid change?

For a competent DIY mechanic, changing the transmission fluid on a Porsche 911 typically takes about half an hour. The cost for the fluid itself can range from approximately £15 to £50, depending on the brand and type of fluid you choose. Considering the relatively low cost and minimal time investment, it’s a highly beneficial maintenance task.

What's the benefit of a magnetic drain plug?

A magnetic drain plug is designed to attract and hold onto microscopic metallic wear particles that are naturally generated within the transmission as gears and synchros operate. By trapping these particles, it prevents them from circulating throughout the fluid and causing abrasive wear to other critical components, thereby helping to prolong the life of your gearbox.

Conclusion

Maintaining the transmission fluid in your Porsche 911 is not just a chore; it's a vital investment in the longevity and driving pleasure of your vehicle. The unique transaxle design of the 911 demands diligent care and the right lubricant to protect its intricate components, manage heat, and ensure that characteristic smooth shifting feel. While the task itself is relatively simple and cost-effective for the home mechanic, the choice of fluid can make a profound difference.

For many Porsche enthusiasts, SWEPCO 201 Multi-Purpose Gear Lube stands out as a superior choice, renowned for its ability to enhance shifting smoothness and potentially extend the life of your gearbox, particularly in 901 and 915 models. By understanding the importance of correct fluid levels, adhering to sensible change intervals, and choosing a high-quality product like SWEPCO 201, you're not just performing maintenance – you're safeguarding the very essence of your Porsche 911's performance for years of exhilarating driving ahead.
