Keeping Your Kawasaki ZX-10R Gen 4 in Peak Condition: The Essential Guide
The Kawasaki Ninja ZX-10R, a true icon in the superbike realm, has consistently pushed the boundaries of performance since its inception. Successor to the well-regarded ZX-9R, the ZX-10R has seen numerous updates and refinements, with the Gen 4 model, produced between 2011 and 2015, standing out as a significant leap forward. This generation, often referred to as the "Kawasaki ZX10R," features a potent liquid-cooled, 998 cc inline four-cylinder engine, delivering an impressive 140-150 kW (188-200 hp) at 12500 rpm, especially when utilising ram air. Understanding its specific maintenance needs, particularly regarding engine oil, is crucial for preserving its exhilarating performance and longevity.
Understanding the Kawasaki ZX-10R Generations
Before delving into the specifics of the Gen 4, it's helpful to appreciate the lineage of this formidable machine:
| Generation | Years | Dry Weight | Power (approx.) | Key Features |
|---|---|---|---|---|
| Gen 1 | 2004-2005 | 170kg | 130 kW (175 hp) @ 11,700 rpm | 300mm dual radial discs |
| Gen 2 | 2006-2007 | 174 kg | 130 kW (175 hp) @ 11,700 rpm | Smoother styling, under-seat exhaust |
| Gen 3 | 2008-2010 | 179 kg | 140-150 kW (188-200 hp) @ 12,500 rpm | Longer wheelbase, 310mm petal discs |
| Gen 4 | 2011-2015 | 187 kg | 150 kW (200 hp) @ 13,000 rpm | Big Piston Forks, KTRC traction control, Power Modes, optional ABS |
| Gen 5 | 2016-2020 | N/A | 148 kW (197 hp) @ 13,000 rpm | IMU for lean-sensitive electronics, quickshifter |
| Gen 6 | 2021+ | N/A | 150 kW / 204 hp (214 hp with ram air) @ 14,000 rpm | High-speed valvetrain, TFT display, winglets |
The Heart of the Beast: Engine Oil for Your ZX-10R Gen 4

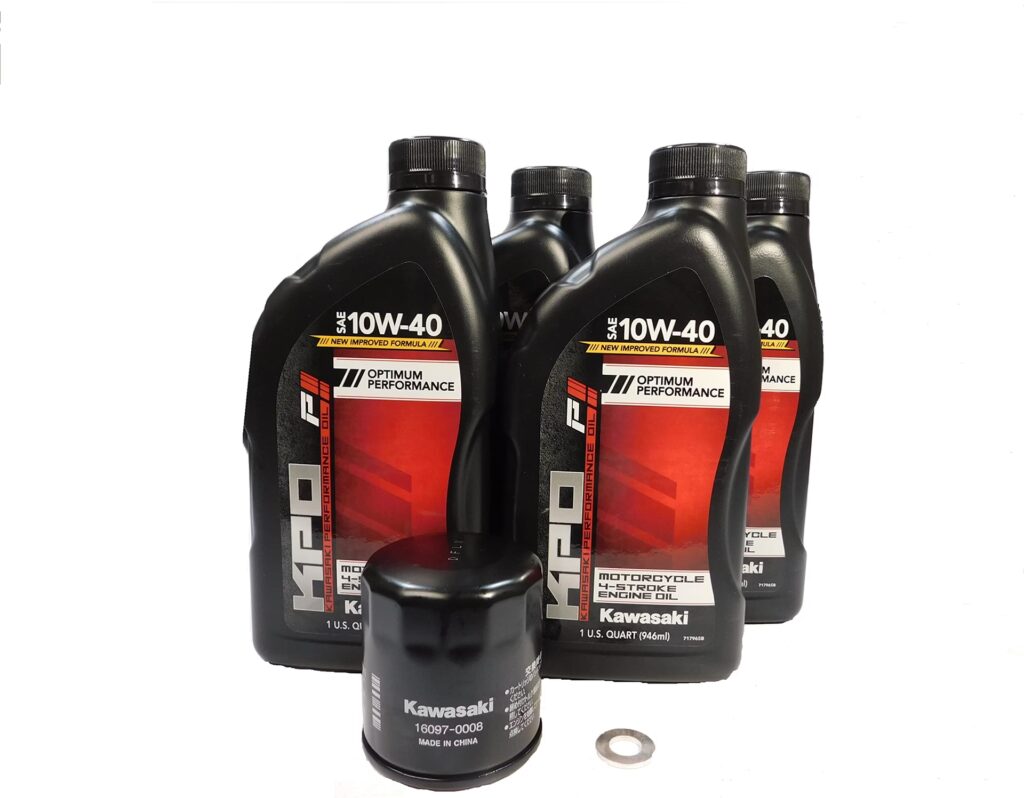

For the 2011-2015 Kawasaki Ninja ZX-10R (Gen 4), selecting the correct engine oil is paramount. Kawasaki specifies an SAE 10W-40 oil. Crucially, this oil must meet either the API SG or higher classification, and the JASO MA or higher rating. This ensures the oil provides the necessary lubrication, protection, and clutch compatibility for the high-performance demands of the ZX-10R's engine. Kawasaki's own "Kawasaki Performance engine oil" is a suitable choice, as are other reputable brands that meet these stringent specifications. For example, Motul 7100 10W-40 is frequently recommended by owners for its quality and adherence to these standards.
Essential Fluids and Consumables
Beyond engine oil, several other fluids and components are vital for maintaining your Gen 4 ZX-10R:
| Item | Specification/Recommendation |
|---|---|
| Engine Oil | SAE 10W-40, API SG+ / JASO MA+ |
| Oil Filter | Hiflofiltro HF303RC (for 2006 onwards) |
| Spark Plug | NGK CR9EIA-9 (Gap: 0.8-0.9mm, Torque: 13 Nm / 9 ft-lb) |
| Air Filter | K&N KA-1011 (for 2011-2015 models) |
| Coolant | Ethylene glycol-based antifreeze (50%), with rust inhibitors for aluminium engines. Pro Honda Coolant is a good option. |
| Brake Fluid | High-quality synthetic DOT 4 (e.g., Castrol DOT 4) |
| Brake Pads | Front: FA379HH (x2 sets), Rear: FA192HH |
| External Lubricant | Valvoline Liquid Moly Fortified Grease |
| Chain Lubricant | Motul chain paste |
| Battery | YTZ10S |
Kawasaki ZX-10R Gen 4: The Maintenance Schedule
Adhering to a regular maintenance schedule is key to ensuring your ZX-10R Gen 4 performs reliably and safely. Kawasaki recommends service intervals of 7,500 miles (12,000 km) or annually, whichever comes first. It's important to note that these intervals should be more frequent if you ride in harsh conditions such as dust, rain, or mud, or if you engage in aggressive riding styles.
Service Intervals Summary:
- Every 7,500 miles / 12,000 km or Annually: Change engine oil and oil filter, replace spark plugs.
- Every 15,000 miles / 24,000 km: Inspect valve clearances. This is a critical check, especially on the first occurrence.
- Regularly: Change brake fluid and engine coolant.
- As Needed: Check and adjust drive chain wear and slack.
Detailed Service Schedule (Gen 4):
The following schedule outlines key maintenance tasks. Remember to follow the earlier of the time-based or distance-based intervals.
| Service Item | Interval (km) | Interval (miles) | Notes |
|---|---|---|---|
| Annual Inspection | 12,000 | 7,500 | Inspect all items |
| Engine Oil - Change | 12,000 | 7,500 | Use recommended oil |
| Oil Filter - Replace | 12,000 | 7,500 | Use HF303RC or equivalent |
| Spark Plug - Replace | 12,000 | 7,500 | Use NGK CR9EIA-9 |
| Valve Clearance - Inspect | 24,000 | 15,000 | Crucial check |
| Air Cleaner Element - Replace | 18,000 | 11,250 | Use K&N KA-1011 or similar |
| Engine Vacuum Synchronization - Inspect | 24,000 | 15,000 | Check for smooth running |
| Idle Speed - Inspect | 12,000 | 7,500 | Ensure smooth idle |
| Fuel Hoses - Replace | 60,000 (5 years) | 37,500 (5 years) | Check for degradation |
| Coolant - Change | 36,000 (3 years) | 22,500 (3 years) | Use recommended coolant |
| Radiator Hoses and O-rings - Replace | 36,000 (3 years) | 22,500 (3 years) | Inspect for leaks/damage |
| Brake Hoses - Replace | 48,000 (4 years) | 30,000 (4 years) | Check for wear and tear |
| Brake Fluid - Change (Front & Rear) | 24,000 (2 years) | 15,000 (2 years) | Use DOT 4 |
| Steering Stem Bearings - Lubricate | 24,000 (2 years) | 15,000 (2 years) | Ensure smooth steering |
| Rubber Parts of Master Cylinder & Calipers - Replace | 48,000 (4 years) | 30,000 (4 years) | Essential for brake system integrity |
Annual Inspection Checklist: Keeping an Eye on Everything
A thorough annual inspection is vital. Here are the key areas to check:
- Clutch operation (play, engagement, disengagement)
- Drive chain wear and guide wear
- Tyre pressure and condition (tread wear, damage)
- Wheels and wheel bearings
- Brake fluid level, leaks, and hose condition
- Brake pad wear and overall brake operation
- Front forks and rear shock absorber operation (damping, oil leaks)
- Steering play and steering damper condition
- Lights, switches, and horn operation
- Headlight aim
- Side stand and engine stop switch operation
- Chassis parts lubrication
- Tightness of all bolts and nuts
- Evaporative emission control system function (if fitted)
Chain Maintenance: Keeping the Power Flowing
Proper chain maintenance is critical for the smooth transfer of power and the longevity of your drivetrain. Kawasaki recommends the following:
- Every 400 miles / 600 km: Check drive chain lubrication and lubricate if necessary using a quality chain paste like Motul chain paste.
- Every 600 miles / 1,000 km: Check drive chain slack and adjust if necessary.
Important Notes:
- Increase the frequency of these checks and lubrication if riding in dusty, wet, or adverse conditions.
- Always lubricate your chain after washing the motorcycle.
Checking and Adjusting Chain Slack:
To check the slack, place the motorcycle in neutral on a level surface with its kickstand down. Measure the vertical movement of the chain midway between the sprockets. The target slack for the ZX-10R is 25-35mm (1.0-1.4 inches). Ensure you check in multiple places as chains can wear unevenly.
To adjust, loosen the rear axle nut and the adjuster lock nuts on both sides. Use the adjuster nuts to achieve the correct slack, ensuring the alignment marks on both sides are even. Once adjusted, tighten the rear axle to 127 Nm (94 lb-ft) and re-check the chain slack.
Tyre Specifications for the Gen 4 ZX-10R
The Gen 4 Kawasaki Ninja ZX-10R typically came equipped with Bridgestone Battlax BT016 tyres, but other sport or sport-touring tyres can be fitted. The standard tyre sizes and recommended pressures are:
| Tyre Position | Size | Recommended Pressure |
|---|---|---|
| Front | 120/70 ZR17 M/C (58W) | 250 kPa / 36 psi |
| Rear | 190/55 ZR17 M/C (75W) | 290 kPa / 42 psi |
A Word on the Gen 4 ZX-10R's Engineering
The 2011 model year marked a significant overhaul for the ZX-10R. Kawasaki engineers revised the engine with higher-lift cams, revised porting, and lighter pistons, increasing the compression ratio and redline. This resulted in a power output of around 147 kW (200 hp). Electronically, the Gen 4 introduced KTRC traction control and optional K-IBS ABS, which were quite advanced for their time. The suspension also saw an upgrade with 43mm Big Piston Forks and a horizontally mounted, fully adjustable rear shock. All these advancements contributed to a remarkable power-to-weight ratio, making the Gen 4 a truly competitive superbike.
Frequently Asked Questions
Q1: What is the correct engine oil for a 2013 Kawasaki ZX-10R?
Kawasaki recommends an SAE 10W-40 oil that meets API SG or higher and JASO MA or higher specifications.
Q2: How often should I change the oil and filter on my ZX-10R Gen 4?
It's recommended to change the engine oil and filter every 7,500 miles (12,000 km) or annually, whichever comes first.
Q3: What spark plug does the Kawasaki ZX-10R Gen 4 use?
The recommended spark plug is the NGK CR9EIA-9, with a gap of 0.8-0.9mm.
Q4: How do I check the chain slack on my ZX-10R?
With the bike in neutral on a level surface, check the vertical movement of the chain midway between the sprockets. The target slack is 25-35mm (1.0-1.4 inches).
Q5: When should I inspect the valve clearances on my Kawasaki ZX-10R Gen 4?
Valve clearances should be inspected every 15,000 miles (24,000 km).
By adhering to these guidelines, you can ensure your Kawasaki ZX-10R Gen 4 continues to deliver exhilarating performance and reliable service for many miles to come. Regular maintenance is not just about preventing breakdowns; it's about maximising the enjoyment and capability of this exceptional machine.
