Continental Z134 Engine Rebuild Guide

The Continental Z134 engine is a robust and reliable power unit that has been the heart of many classic agricultural machines. If you're the proud owner of a tractor equipped with this engine, you'll eventually face the need for maintenance or a full overhaul. Understanding the components of a Z134 engine kit is crucial for a successful rebuild. This guide will delve into the specifics of Continental Z134 engine kits, what to expect, and why choosing the right parts is paramount for the longevity of your machinery.

Understanding the Continental Z134 Engine

The Z134, manufactured by Continental Motors, is a four-cylinder, gasoline-powered engine. It found its way into a variety of popular tractors, most notably the Ferguson TO35, F40, and various Massey Ferguson models such as the MF 35, MF 50, and MF 135. Its popularity stems from its durability and relatively straightforward design, making it a favourite for restoration projects and ongoing farm work.

When an engine of this age requires attention, a comprehensive overhaul kit is often the most efficient and cost-effective solution. These kits are designed to provide the essential components needed to bring the engine back to optimal working condition, replacing wear items and ensuring proper sealing and performance.

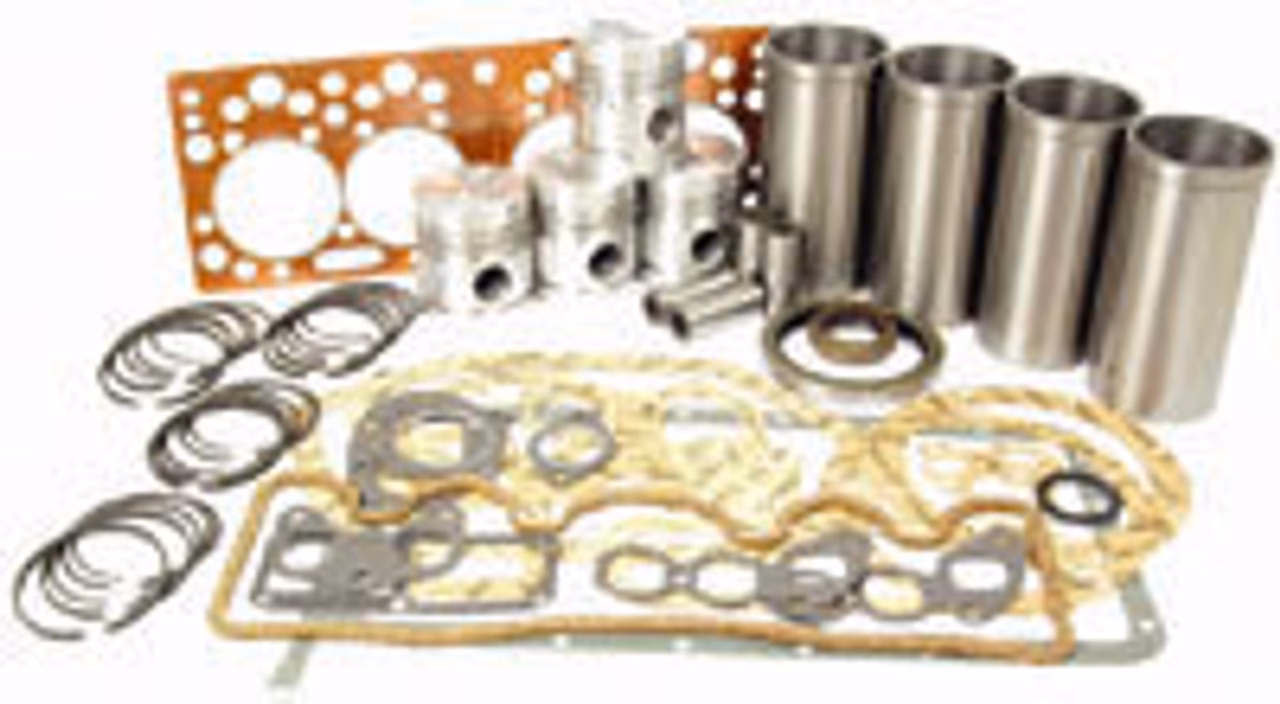

What's Typically Included in a Z134 Engine Overhaul Kit?

A basic engine overhaul kit, often referred to as an 'in-frame' kit, will usually contain the core components necessary for a significant portion of the engine's internal refurbishment. While specific contents can vary slightly between manufacturers and suppliers, you can generally expect the following:

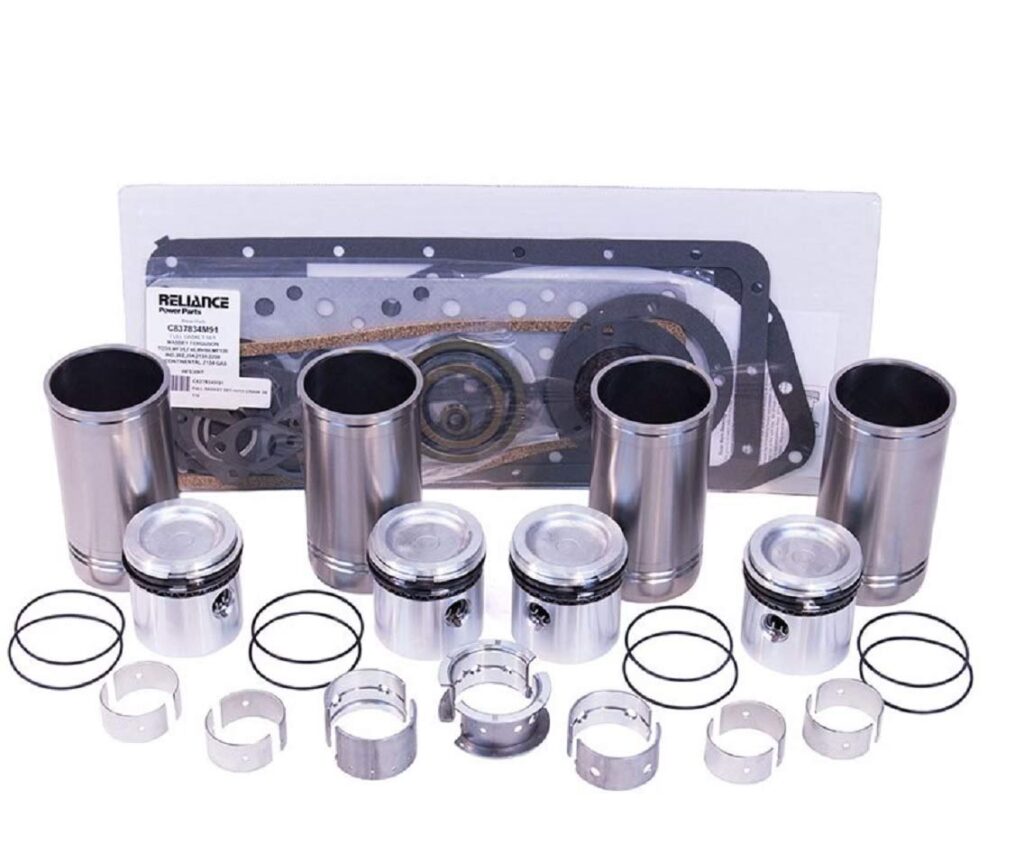

Key Components of an In-Frame Overhaul Kit:

• Pistons and Piston Rings: These are vital for compression and sealing within the cylinders. Over time, pistons can wear, and rings lose their tension, leading to reduced power and oil consumption. Kits often include pistons sized for standard bore or common overbores (like 3-3/8" overbore mentioned in some listings).
• Cylinder Sleeves: Sleeves are liners inserted into the engine block to provide a fresh bore surface for the pistons. If the original cylinder walls are damaged or excessively worn, sleeves are used to restore them to the correct diameter.
• Main Bearings: These support the crankshaft within the engine block. Wear on main bearings can cause knocking noises and crankshaft damage.
• Connecting Rod Bearings (Con-rod Bearings): These sit between the crankshaft journals and the connecting rods. Similar to main bearings, wear here is critical and requires replacement.
• Gaskets and Seals: A comprehensive set of gaskets is essential for proper sealing between engine components. This typically includes head gaskets, manifold gaskets, oil pan gaskets, timing cover gaskets, and various seals (like crankshaft seals).

It's important to note that the term 'in-frame' implies that the crankshaft and connecting rods themselves do not need to be removed from the engine block for the overhaul. However, a more comprehensive 'out-of-frame' overhaul would include components for the crankshaft, camshaft, and potentially other external parts.

Beyond the Basic Kit: What Else Might You Need?

While an in-frame overhaul kit covers the essentials, a complete engine rebuild might necessitate additional parts. Depending on the condition of your Z134 engine, you might also need to consider:

• Cylinder Head Gasket Set: While often included in a full gasket set, sometimes a dedicated head gasket is a standalone purchase. This is a critical component for sealing the combustion chamber.
• Oil Pump: The oil pump is the lifeblood of the engine, circulating lubrication. If it's showing signs of wear, it's wise to replace it during an overhaul.
• Water Pump: Crucial for engine cooling, a worn water pump can lead to overheating.
• Timing Gears/Chain: These ensure the camshaft and crankshaft are synchronised. Wear can affect engine timing and performance.
• Valves, Valve Springs, and Guides: If the cylinder head is being rebuilt, these components will likely need attention or replacement.
• Oil Filter: Always replace the oil filter with fresh oil during an overhaul.

Applications of the Continental Z134 Engine

As mentioned, the Z134 engine is synonymous with a few key tractor models. Knowing your tractor's model is the first step in sourcing the correct rebuild kit.

It's always advisable to verify the engine model in your specific tractor, as variations can occur, especially in older machinery.

Choosing a Quality Rebuild Kit: What to Look For

When purchasing a Continental Z134 engine kit, quality is paramount. You want parts that will last and perform reliably. Here are some factors to consider:

• Manufacturer Reputation: Look for kits from reputable aftermarket parts suppliers. Companies specialising in tractor parts often have a good understanding of the specific needs of these engines.
• Material Quality: The quality of the cast iron for pistons and sleeves, and the bearing materials, directly impacts engine life.
• Warranty: A full manufacturers warranty, as mentioned for some kits, provides peace of mind and assurance of product quality.
• Brand Names: While you might see kits labelled with original manufacturer names for descriptive purposes (e.g., Massey Ferguson, Continental), the parts themselves are often aftermarket. Companies like 'Canadian Tractor Parts Direct' pride themselves on supplying superior quality aftermarket parts.
• Complete Sets: Ensure the kit contains all the necessary components for your intended level of rebuild. Sometimes, you can buy a 'base engine kit' and add other specific components as needed.

Common Issues Addressed by a Rebuild Kit

Over time, the Continental Z134 engine can develop several common issues that a rebuild kit will help rectify:

• Excessive Oil Consumption: Worn piston rings and cylinder walls allow oil to enter the combustion chamber.
• Loss of Power: Poor compression due to worn rings, valves, or head gasket issues leads to a noticeable drop in engine power.
• Blue Smoke from Exhaust: This is a tell-tale sign of oil burning, usually caused by worn piston rings or valve stem seals.
• Knocking or Tapping Noises: Worn main or rod bearings can produce distinct metallic noises, especially under load.
• Overheating: While not always directly solved by an in-frame kit, a new head gasket and ensuring proper sealing can help prevent combustion gases from entering the cooling system, which can cause overheating.

Frequently Asked Questions (FAQs)

Q1: What is the difference between an in-frame and an out-of-frame overhaul kit for a Z134 engine?
An in-frame kit is designed for rebuilding the engine while the crankshaft remains in the block. It typically includes pistons, rings, sleeves, and rod/main bearings. An out-of-frame overhaul is more comprehensive, involving the removal of the engine from the tractor, and may include parts for the crankshaft, camshaft, and other external components.

Q2: Can I use a kit from a different tractor model?
It's highly recommended to use a kit specifically designed for the Continental Z134 engine and your tractor model. While some parts might be interchangeable across different Continental engines, using the wrong components can lead to improper fit, poor performance, or even catastrophic engine failure.

Q3: Where can I find a Continental Z134 engine kit?
These kits are available from various specialist tractor parts suppliers, both online and in physical stores. Searching for 'Continental Z134 engine kit', 'Massey Ferguson 35 engine overhaul kit', or 'Ferguson TO35 rebuild kit' will yield results from companies like Canadian Tractor Parts Direct and other aftermarket suppliers.

Q4: What does a "3-3/8" Overbore" mean for piston kits?
This refers to a kit with pistons that are larger than the standard size. If the original cylinders in your engine block have been worn beyond the ability to be honed or bored to the next standard size, they can be bored out further to accommodate these over-size pistons. A "3-3/8" Overbore" likely means the pistons are designed for a cylinder bore of 3 and 3/8 inches.

Q5: Do I need special tools to install these parts?
Yes, rebuilding an engine requires a range of specialised tools, including torque wrenches, ring compressors, piston ring groove cleaners, bearing installation tools, and potentially a valve spring compressor if working on the cylinder head. It's also crucial to have a clean workspace and follow proper engine rebuilding procedures.

Conclusion

The Continental Z134 engine is a workhorse that deserves quality care. Investing in a comprehensive and high-quality engine overhaul kit is a significant step towards restoring its performance and ensuring its continued reliability. By understanding the components included, the applications, and what to look for in a reputable supplier, you can confidently undertake the task of rebuilding your Z134 engine and keep your classic tractor running for years to come. Always remember to consult your tractor's service manual for specific procedures and torque specifications.
