Fixing Your Yamaha G2 Golf Cart Clutch

A well-functioning clutch is the heart of a smooth and efficient ride in your Yamaha golf cart. Whether you're navigating the golf course or using it for utility, a faulty clutch can turn a pleasant journey into a frustrating ordeal. This comprehensive guide will walk you through understanding your Yamaha G2 (and similar G-series models) clutch, diagnosing common issues, and providing step-by-step solutions to get you back on track. We’ll delve into everything from basic maintenance to more complex repairs, ensuring your golf cart performs as it should.

Understanding Your Yamaha Golf Cart's Clutch System

Yamaha golf carts, particularly models like the G2 through G22 series, rely on a sophisticated power transmission system known as the Continuous Variable Technology (CVT) slip drive clutch. This ingenious system is designed to provide a seamless, gear-free driving experience, eliminating the need for constant manual gear changes – a true convenience for any golf enthusiast.

At its core, your Yamaha golf cart is powered by an efficient 4-stroke, gasoline, OHV single-cylinder engine, typically producing around 8.5kw (11.4 hp) and revving up to 3500rpm. However, engines operate most efficiently within a limited RPM range, making direct coupling to the drive wheels impractical. This is where the CVT clutch steps in.

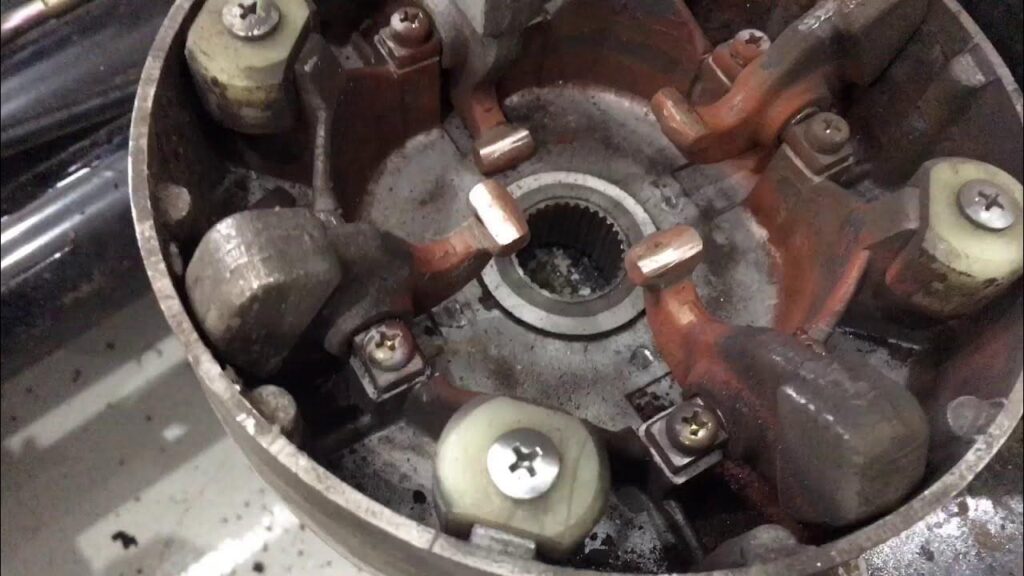

The CVT system comprises two main components: the primary clutch (driver) and the secondary clutch (driven). These clutches work in tandem with a V-belt. As the engine RPM changes, the CVT system automatically adjusts the effective diameter of the V-belt between the primary and secondary shafts. This allows for a continuous variation in gear ratio, providing high torque for smooth acceleration from a standstill and then seamlessly shifting to higher speed settings as the cart gains momentum. This automatic centrifugal engagement ensures optimal power delivery to the drive wheels without any jerky transitions, making your ride incredibly smooth.

Step-by-Step Guide to Replacing Your Yamaha G2-G22 Drive Clutch

If your Yamaha golf cart's drive clutch is beyond repair, or if you're simply performing preventative maintenance, replacing it can significantly improve your cart's performance. This process is applicable to Yamaha G2 through G22 series carts. Always ensure you have the right tools and follow safety precautions, such as disconnecting the battery, before you begin.

Tools You'll Need:

• 10-mm Spanner or Socket Wrench
• Air Wrench (Impact Wrench)
• Clutch Puller (potentially, if the old clutch is stuck)
• New Drive Clutch
• Replacement Drive Belt (optional, but recommended if worn)

The Replacement Process:

1. Access the Clutch Area: Begin by locating the air cleaner assembly. You'll need to remove the two 10-mm bolts that secure it. Once these bolts are out, carefully disconnect the hose from the carburettor. This will give you better access to the clutch system.
2. Remove the Drive Belt: Before you attempt to remove the primary clutch cap or the clutch itself, it is crucial to take off the drive belt. This will relieve tension and allow for easier removal of the clutch.
3. Detach the Primary Clutch Cap: With the belt off, you can now remove any covers or caps that enclose the primary clutch.
4. Loosen the Main Clutch Bolt: The main bolt securing the primary clutch to the crankshaft is typically very tight. An air wrench (impact wrench) is essential for this step as it provides the necessary torque to loosen it. Be careful to ensure the wrench is set to loosen the bolt and not tighten it.
5. Remove the Old Clutch: Once the main bolt is removed, the old clutch should slide off the crankshaft. If it's stubborn or stuck due to corrosion, you might need a specialised clutch puller tool to safely extract it without damaging the crankshaft or other components.
6. Install the New Clutch: Carefully slide the new primary drive clutch onto the crankshaft. Ensure it seats properly and aligns with the keyway on the shaft.
7. Secure the New Clutch: Use your air wrench to tighten down the main bolt that secures the new clutch to the crankshaft. Ensure it's torqued to the manufacturer's specifications to prevent it from coming loose during operation.
8. Realign and Tighten Belts: With the new clutch firmly in place, re-route and realign the drive belt. Ensure it has the correct tension as per your Yamaha golf cart's service manual. A properly tensioned belt is vital for optimal clutch performance.
9. Reassemble Air Cleaner: Finally, secure the air-cleaner hose back to the carburettor and fasten the air cleaner assembly with the two 10-mm bolts you removed earlier.

After completing these steps, test your golf cart in a safe, open area to ensure the new clutch is engaging smoothly and the cart is performing as expected. Listen for any unusual noises and check for smooth acceleration.

Common Yamaha Golf Cart Clutch Problems & Solutions

Even with regular maintenance, clutch issues can arise. Identifying the symptoms early can save you from more extensive repairs down the line. Here are some common problems and their effective solutions:

1. Clutch Failing to Engage

This is a frustrating issue, often noticeable when trying to start or when driving up hills. You might release the brake, but the cart just won't move, or it moves with a jerky start.

• Battery Issues: Surprisingly, a weak battery can sometimes manifest as clutch engagement problems, particularly on inclines. If your battery is old or not holding a charge, try replacing it.
• Throttle Cable Problems: If the cart refuses to throttle up when you press the pedal (especially if the rear end is jacked up), the throttle cable might be the culprit. Inspect it for kinks, fraying, or improper adjustment. Replacing or adjusting the cable can often resolve this.
• Loose Drive Belt: The drive belt needs proper tension to function correctly. If it's too loose, the clutch won't engage efficiently. Check the belt for proper tension and inspect it for any fraying, cracks, or excessive wear.
• Worn Out Parts or Dirt Buildup: Internal components of the clutch can wear down over time, or dirt and debris can accumulate, preventing proper engagement. A thorough cleaning and lubrication can often restore function.

2. Clutch Slipping

A slipping clutch means the power isn't being efficiently transferred from the engine to the wheels. Symptoms include squeaking noises, especially when shifting from neutral or carrying a heavy load, and a general lack of power or erratic speed.

• Loose or Worn Drive Belt: A belt that's too loose, or one that has worn thin, will slip rather than grip the clutch sheaves properly. Inspect your belt for wear and measure its width.

• Dirt Build-up: Accumulation of dirt, dust, or even rust inside the clutch can cause components to stick or prevent proper engagement, leading to slipping. Cleaning the clutch thoroughly is often a simple yet effective solution.
• Lack of Lubrication: While some parts of the clutch should remain dry, others benefit from specific lubrication. Refer to your manual for proper lubrication points. Using a good quality lubricant where appropriate can free up sticking parts.

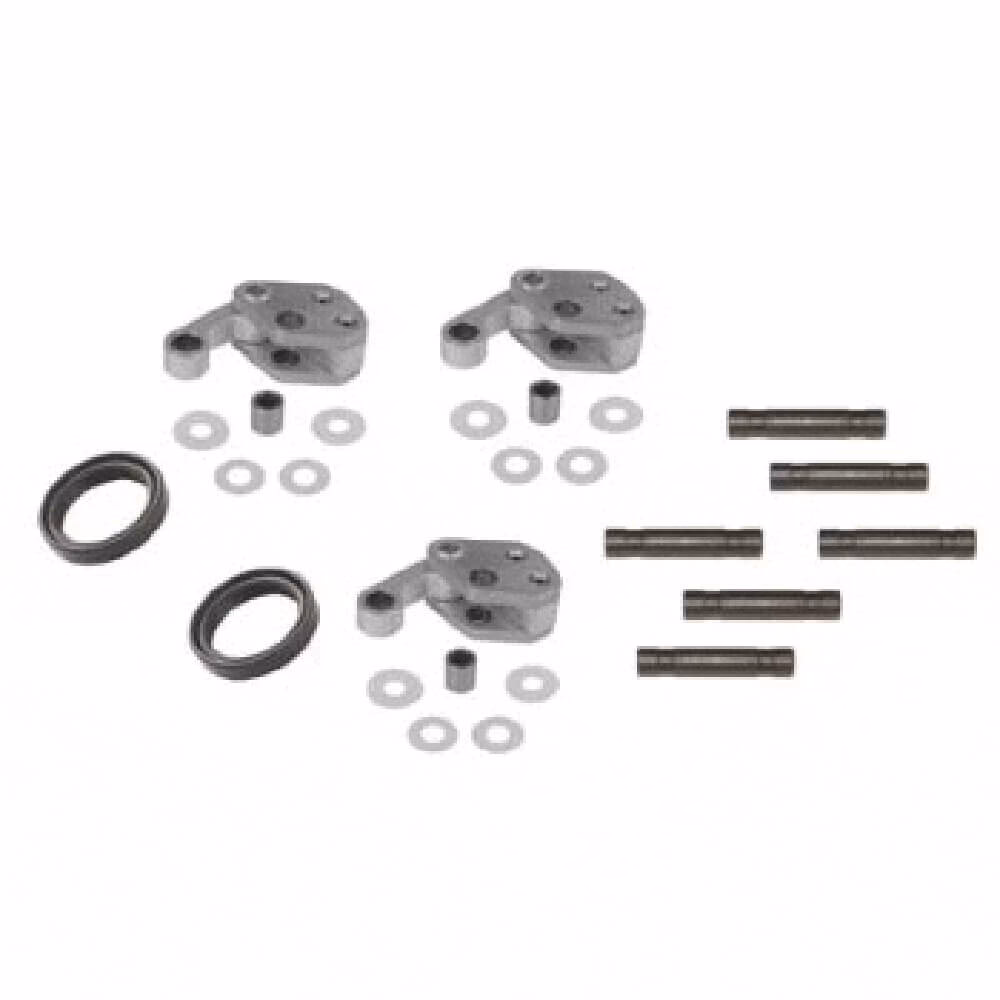

• Wrongly Positioned Weights: The weights within the clutch system are crucial for its operation. If they are hanging up or incorrectly positioned, the clutch may not engage or disengage smoothly, leading to slipping and jerky rides. Inspect and reposition them as needed.

3. Stuck Clutch

A clutch can become stuck, making it difficult to remove for replacement or maintenance, or preventing its internal components from moving freely, leading to a cart that won't move or is always engaged.

• Rust and Corrosion: Over time, especially in humid environments, rust can seize the clutch onto the crankshaft.
• Chemical Solutions: For a stuck clutch that won't come off the shaft, generously apply a penetrating oil like PBBlaster or WD40. Allow it to soak for a significant period, even a couple of days, before attempting removal again.
• Mechanical Leverage: If chemicals don't work, you can try gently leveraging the clutch off with a crowbar, applying even pressure around the back of the clutch. Be cautious not to damage the crankshaft or other components.
• Cutting Relief: As a last resort, if the clutch is truly seized and you're replacing it anyway, a small relief cut with a chisel (never a pickle fork, which can cause internal damage) might help loosen it.
• Clutch Puller: A specific clutch puller tool is designed to safely extract a stuck clutch. This is often the safest and most effective method.
• Internal Sticking: If the clutch is stuck internally (i.e., not engaging/disengaging), it could be due to dirt, lack of lubrication, or a broken internal spring. Dismantle, clean, lubricate, and inspect internal components. Replace any damaged springs.

4. Clutch Coming Off The Shaft (Common for G29, but applicable)

While often reported for the G29 model, a loose or falling-off driven clutch can happen on other models if not properly secured.

• Insufficient Bolt Torque: The bolt holding the clutch to the shaft needs to be torqued to a specific, high level. If it's not tight enough, the clutch can vibrate loose. Re-torque the bolt to the manufacturer's specifications.
• Applying Loctite: For added security, apply a thread-locking compound like Loctite to the bolt's threads before tightening. This adhesive helps prevent the bolt from loosening due to vibrations.
• Damaged Washer: There's often a washer beneath the clutch that helps secure it and protect the shaft. If this washer is damaged, worn, or missing, the clutch can come loose. Inspect it regularly; some reports indicate these washers can fail within a few months. Replace it if there's any sign of wear or damage.
• Bent Bolts or Damaged Parts: Always check for any bent bolts or other damaged parts within the clutch assembly or on the shaft itself that could be contributing to the clutch coming loose.

Preventative Maintenance Tips

Regular inspection and maintenance are key to extending the life of your Yamaha golf cart's clutch and preventing costly repairs. Here are some habits to adopt:

• Regular Cleaning: Periodically remove the clutch cover and clean out any accumulated dirt, dust, and debris. Use compressed air and a clean cloth.
• Inspect the Drive Belt: Regularly check your drive belt for signs of wear, cracks, fraying, or glazing. Ensure it has the correct tension. Replace it if it shows any signs of damage or falls below the recommended width.
• Check for Looseness: Periodically inspect all bolts and fasteners related to the clutch and drive system. Tighten any that appear loose.
• Lubrication (Where Applicable): Follow your service manual's guidelines for lubricating specific clutch components. Avoid over-lubricating or applying lubricant to areas that should remain dry, such as the belt contact surfaces.
• Listen for Unusual Noises: Pay attention to any squeaks, rattles, or grinding sounds during operation. These can be early indicators of a developing clutch problem.

Frequently Asked Questions (FAQs)

Does a golf cart have a clutch?

Yes, all golf carts, including Yamaha models, have a clutch system. They typically utilise a Continuous Variable Technology (CVT) clutch, which consists of two main parts: the primary clutch (driver) and the secondary clutch (driven). This system allows for smooth, automatic gear changes without the need for a traditional manual gearbox, providing a seamless driving experience.

How do I know if my golf cart clutch is bad?

Common symptoms of a bad clutch include:

• Jerky or erratic starts: The cart might lurch or hesitate when you press the accelerator.
• Lack of power or poor acceleration: The cart feels sluggish, especially on inclines, or struggles to reach its top speed.
• Slipping: You might hear the engine revving but the cart isn't gaining speed proportionally, or you notice a squealing sound.
• Unusual noises: Squeaking, grinding, or rattling sounds coming from the clutch area.
• Difficulty engaging or disengaging: The clutch might not engage when you release the brake, or it stays engaged when it shouldn't.

Can I fix a golf cart clutch myself?

Many common golf cart clutch issues, such as cleaning, lubricating, replacing the drive belt, or re-torquing bolts, can be addressed by a DIY enthusiast with basic mechanical knowledge and tools. However, more complex problems, or if you're uncomfortable with the repair, may require professional assistance from a qualified service centre.

How long do golf cart clutches last?

The lifespan of a golf cart clutch varies widely depending on usage, maintenance, and operating conditions. With proper care, a clutch can last for many years. However, heavy use, frequent towing, or neglecting maintenance can significantly shorten its lifespan.

By understanding your Yamaha golf cart's clutch system and performing regular maintenance, you can ensure a smooth, reliable, and enjoyable ride for years to come. Don't let a faulty clutch ruin your day on the course; tackle these issues head-on with confidence!
