Car Body Panel Thickness Explained

Car body panels are the visible exterior shell of your vehicle, shaping its aesthetics and providing fundamental protection. More than just a pretty face, these metal sheets are integral to a car's safety, performance, and overall structural integrity. Understanding how thick these panels are, and why they vary, offers a fascinating glimpse into automotive engineering. The thickness of a car body panel isn't a random decision; it's a carefully calculated engineering choice influenced by a confluence of factors, from the materials used to stringent safety regulations.

Factors Influencing Panel Thickness

Several key elements dictate the precise gauge of metal employed in different parts of a car's body. Each plays a vital role in ensuring the vehicle performs as intended, remains safe, and meets all legal requirements.

Material Type

The very substance from which a panel is made is a primary determinant of its required thickness. Different materials possess inherent strengths and weaknesses, necessitating varying gauges to achieve comparable levels of protection and rigidity.

Steel

Traditionally the backbone of automotive manufacturing, steel is favoured for its robust strength, durability, and cost-effectiveness. However, its significant weight can adversely affect fuel efficiency. The automotive industry utilises various grades of steel, with advanced high-strength steels (HSS) allowing for thinner panels to provide the same, or even greater, protection compared to standard mild steel. This innovation is crucial for weight reduction without compromising safety.

Aluminum

A lighter alternative to steel, aluminium offers distinct advantages in fuel economy and corrosion resistance. Nevertheless, aluminium is inherently less strong than steel, meaning that to achieve equivalent structural integrity, panels made from aluminium often need to be thicker. The development of sophisticated aluminium alloys aims to bolster its strength properties, making it a viable and increasingly popular choice for modern vehicles, particularly in premium and performance segments.

Composites

Materials such as carbon fibre and fibreglass represent the cutting edge in automotive panel construction. These composites boast exceptional strength-to-weight ratios, enabling manufacturers to create panels that are not only significantly lighter but also often stronger than their steel or aluminium counterparts. This allows for remarkably thin yet incredibly robust panels, frequently employed in high-performance cars where weight savings directly translate to enhanced agility and speed.

The selection of material is intrinsically linked to the vehicle's design philosophy. A budget-conscious model might rely heavily on steel for its affordability, while a luxury saloon or a sports car could incorporate aluminium or composites to meet specific performance benchmarks and weight targets.

Location on the Vehicle

Where a panel is situated on the car profoundly impacts its necessary thickness. Areas that are more susceptible to impact or that form critical structural components require greater material density for safety and resilience.

Doors and Fenders

These exterior panels are the first line of defence against minor impacts, whether from errant shopping trolleys, car doors opening in car parks, or low-speed collisions. Consequently, doors and fenders are typically manufactured from thicker metal, often ranging from 0.8 mm to 1.2 mm (0.031 to 0.047 inches) for steel. This thickness is engineered to absorb impact energy effectively, safeguarding the vehicle's occupants.

Roof and Hood

The roof panel is paramount for passenger safety, particularly in the event of a rollover. It must possess substantial structural integrity to prevent collapse. Therefore, roof panels are often made from robust steel or aluminium, generally between 0.8 mm and 1.2 mm (0.031 to 0.047 inches) thick. The bonnet (hood) protects the engine compartment and may feature varying thicknesses or reinforcements to manage impact forces in frontal collisions. Hoods might range from 0.7 mm to 1.0 mm (0.028 to 0.039 inches), with specific areas potentially reinforced.

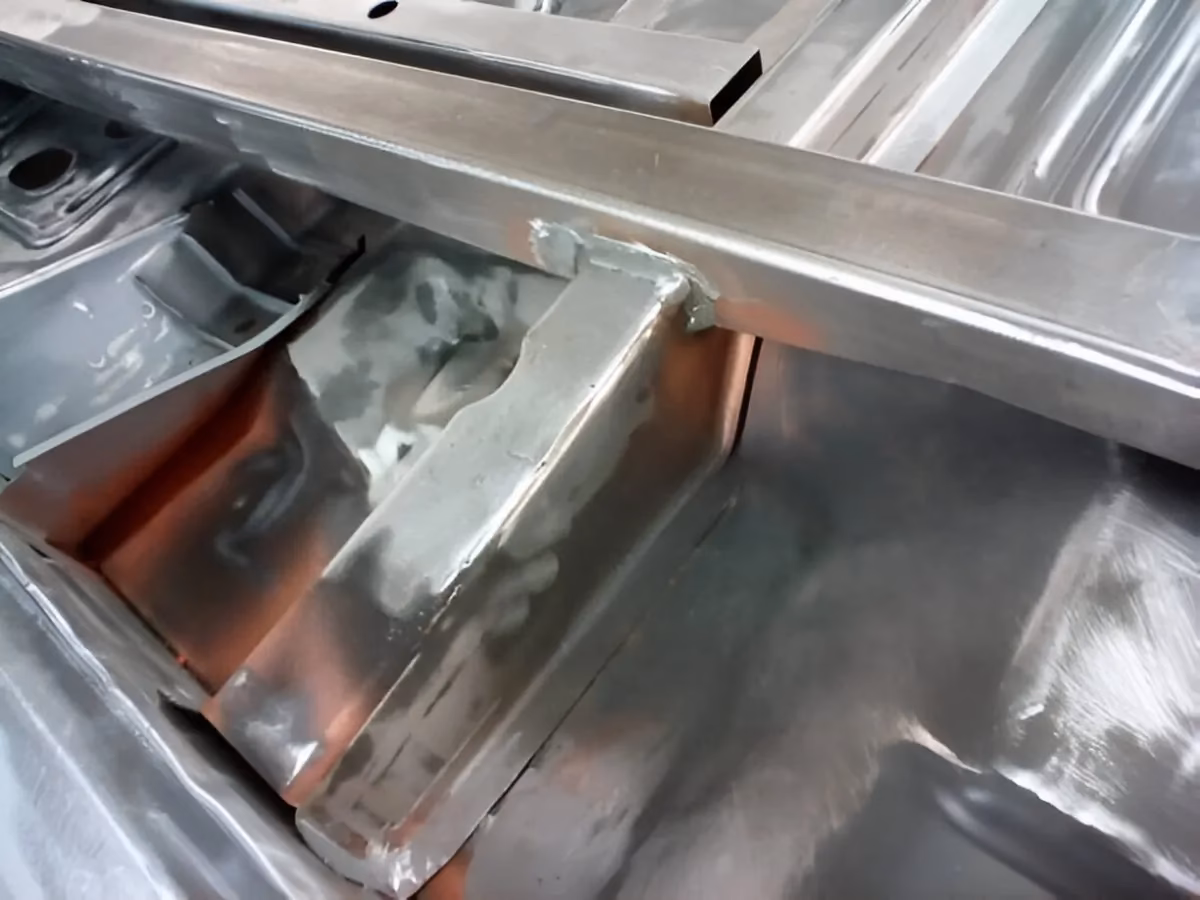

Floor and Chassis

Forming the very skeleton of the vehicle, the floor and chassis panels bear the immense weight of the engine, drivetrain, occupants, and cargo. They are also critical in absorbing and distributing energy during a crash. As such, these structural elements are typically made from the thickest and strongest materials, often steel or high-strength steel alloys. Floor panels might be between 1.0 mm and 1.5 mm (0.039 to 0.059 inches) thick, while chassis components can extend to 1.5 mm to 2.0 mm (0.059 to 0.079 inches) or more. These robust panels are vital for maintaining the vehicle's rigidity and ensuring occupant protection.

Safety Regulations

The thickness of car body panels is not left entirely to the discretion of manufacturers. Government bodies and international safety organisations mandate minimum standards to ensure vehicles offer adequate protection.

Crash Tests

Agencies such as the National Highway Traffic Safety Administration (NHTSA) in the United States and Euro NCAP in Europe conduct rigorous crash tests. These tests simulate real-world accident scenarios and evaluate how well a vehicle protects its occupants. The results directly inform safety regulations, influencing the minimum material thicknesses required for various vehicle components to achieve acceptable safety ratings.

Occupant Protection

Specific regulations dictate the minimum thickness for panels that directly contribute to occupant safety. This includes doors, pillars, roof rails, and floor structures. The aim is to ensure these areas can withstand impact forces, prevent intrusion into the passenger cabin, and effectively manage energy dissipation during a collision.

Pedestrian Safety

Modern automotive safety extends beyond occupants to include vulnerable road users. Regulations increasingly consider pedestrian safety, influencing the design and materials used in areas like the bonnet and front bumper structures. These components are engineered with specific thicknesses and energy-absorbing characteristics to minimise injury to pedestrians in the unfortunate event of a collision.

Adherence to these safety standards is non-negotiable for car manufacturers. It ensures that vehicles are not only functional but also built to the highest safety benchmarks, protecting all parties involved in a potential accident.

Common Panel Thickness Ranges

While the exact figures can vary significantly between manufacturers and models, general ranges for common body panels can be established. These figures represent typical steel gauges used in mass-produced vehicles.

It's important to remember that these are general figures. Manufacturers may utilise higher-strength steels or aluminium alloys, which can allow for thinner gauges while maintaining or exceeding the strength of thicker, conventional materials. Advanced manufacturing techniques like hydroforming can also create complex shapes with varying thicknesses within a single panel to optimise strength and minimise weight.

Impact of Thickness on Vehicle Performance

The chosen thickness of body panels has far-reaching consequences for a vehicle's overall performance characteristics.

Weight and Fuel Efficiency

A direct correlation exists between panel thickness and vehicle weight. Thicker panels naturally add more mass. This increased weight requires the engine to exert more effort to accelerate and maintain speed, directly impacting fuel efficiency. Manufacturers constantly strive to reduce vehicle weight to improve MPG (Miles Per Gallon) and lower emissions. This is why there's a significant trend towards using lighter materials like aluminium and advanced high-strength steels, often allowing for thinner panels without compromising safety. For example, switching to an aluminium bonnet can save several kilograms, contributing to a more economical vehicle.

Strength and Durability

Panel thickness is a key contributor to a vehicle's resilience against damage. Thicker panels offer greater resistance to minor impacts, such as those from hail, road debris, or parking lot mishaps, reducing the likelihood of dents and scratches. This is particularly important for panels like fenders and doors. However, there's a point where excessive thickness can make a panel more brittle. Modern automotive design relies on a sophisticated interplay of material science and structural engineering. Techniques such as using high-strength steel alloys, strategically incorporating reinforcing structures (like internal door beams), and employing advanced welding methods help to maximise strength and durability while managing weight effectively.

Noise and Vibration Reduction (NVH)

The thickness and material of body panels play a crucial role in cabin comfort by influencing noise and vibration levels. Thicker panels generally provide better sound insulation, acting as a more effective barrier against external noises from the engine, wind, and road surface. This leads to a quieter and more refined driving experience. Furthermore, thicker panels contribute to a stiffer overall body structure, which helps to minimise vibrations and the annoying rattles that can plague less robustly built cars. To further enhance this, manufacturers often integrate sound-deadening materials, such as specialized foams and bitumen mats, into the panel construction, creating a more serene and comfortable interior environment, reducing driver fatigue on longer journeys.

Conclusion

The thickness of car body panels is a fundamental aspect of automotive design, representing a complex balancing act between safety, performance, cost, and regulatory compliance. While thicker panels generally enhance structural strength, durability, and noise insulation, they also add weight, potentially impacting fuel economy. Conversely, thinner panels can reduce weight and manufacturing costs but may require careful engineering to meet safety and rigidity requirements. The ongoing advancements in materials science and manufacturing processes allow engineers to optimise panel thickness, pushing the boundaries of what's possible in vehicle design. Ultimately, the specific thickness of each panel is a deliberate engineering decision tailored to its function and location on the vehicle, contributing significantly to the overall character and capabilities of the car you drive.

Frequently Asked Questions (FAQs)

Q1: Can I replace a thin body panel with a thicker one for better protection?

While theoretically possible, it's generally not advisable for standard repairs. Vehicle chassis and suspension are designed to work with specific weight distributions. Adding significantly thicker panels could alter handling, affect fuel economy, and potentially even compromise safety systems that rely on precise weight sensing. Always use parts specified for your vehicle's make and model.

Q2: Does panel thickness affect a car's resale value?

Directly, no. However, the quality of the original materials and construction, which are influenced by panel thickness and material choices, can contribute to a car's overall durability and condition, which in turn impacts resale value. A car that has held up well against wear and tear, partly due to robust panel construction, will likely command a better price.

Q3: Are modern cars made with thinner metal than older cars?

Yes, often. Advances in high-strength steel alloys and the increased use of aluminium and composites allow manufacturers to use thinner gauges of material while achieving equivalent or superior strength and safety compared to the thicker, milder steels used in many older vehicles. This contributes to lighter, more fuel-efficient cars.

Q4: How do I know the thickness of my car's body panels?

This information is typically not readily available to the average consumer and is part of the manufacturer's detailed engineering specifications. For repair purposes, mechanics rely on original equipment manufacturer (OEM) specifications or high-quality aftermarket parts designed to match the original dimensions and materials.

Q5: Does panel thickness affect aerodynamics?

While the primary function of panel thickness is structural and for impact resistance, the overall smoothness and form of the panel are more critical for aerodynamics. However, very thick or poorly integrated panels could theoretically create minor aerodynamic disturbances, but this is rarely a primary consideration in determining panel thickness.
