Injection Bolts & VAG Injector Brackets: A Guide

In the intricate world of automotive engineering, every component, no matter how small, plays a vital role in the overall performance and reliability of a vehicle. Fasteners, often overlooked, are foundational to holding these complex systems together. While standard bolts serve countless purposes, certain applications demand a level of precision and security that goes beyond conventional fastening methods. This is where specialised solutions like injection bolts come into play, offering enhanced stability and slip resistance in critical areas. Furthermore, understanding the specifics of particular components, such as the WHT004923B injector bracket bolt, is essential for anyone maintaining or repairing modern engines, especially within the sophisticated VAG (Volkswagen Audi Group) family.

This comprehensive guide will delve into the mechanics and applications of injection bolts, illuminating their unique design and the benefits they offer. We will then focus specifically on the WHT004923B injector bracket bolt, a crucial component in many 3.0 TDI V6 VAG engines, exploring its specifications, the critical importance of correct installation, and why understanding these details is paramount for the longevity and efficiency of your vehicle.

What Exactly Are Injection Bolts?

Injection bolts represent a sophisticated advancement in fastening technology, designed to create an exceptionally secure and slip-resistant connection. Unlike traditional bolts that rely solely on the friction generated by their pre-tensioning or the mechanical fit of their threads, injection bolts incorporate an ingenious method to eliminate any clearance between the bolt and the wall of the hole it occupies. This innovation is particularly valuable in applications where even the slightest movement or play could lead to component wear, fatigue, or failure.

At the core of an injection bolt's design is a small, strategically placed hole typically located in the head of the bolt. Once the bolt is inserted into its intended hole, a two-component resin is injected through this small aperture. This resin then completely fills the minute cavity, or 'clearance', that exists between the bolt's shank and the inner wall of the drilled hole. This process is meticulous, ensuring that the void is entirely eradicated. The two-component nature of the resin means it undergoes a chemical reaction once mixed, leading to a rapid and complete curing process.

Upon full curing, the resin hardens, creating an incredibly rigid and precise fit. This solidifies the connection, effectively bonding the bolt to the surrounding material and eliminating any potential for relative movement. The result is a connection that is not only robust but also exceptionally slip-resistant. This enhanced stability is crucial in environments subjected to high dynamic loads, vibrations, or significant shear forces, where maintaining precise alignment and preventing micro-movements is paramount. This technology ensures that the fastened components remain in their exact intended position, reducing stress concentrations and prolonging the lifespan of both the fastener and the assembly it secures.

The Critical Role of the WHT004923B Injector Bracket Bolt

Moving from the general concept of injection bolts to a specific, highly critical application, we turn our attention to the WHT004923B injector bracket bolt. This particular fastener is a genuine VAG (Volkswagen Audi Group) part, highlighting its specific design and quality for use within their sophisticated engine architectures. It is exclusively designed for later model 3.0 TDI V6 VAG engines, serving a singular yet incredibly important purpose: holding down the bracket that secures the fuel injectors.

Fuel injectors are precision components that deliver atomised fuel directly into the engine's combustion chambers. Their accurate positioning and secure seating are absolutely vital for optimal engine performance, fuel efficiency, and emissions control. Any movement or incorrect seating can lead to fuel leaks, poor spray patterns, reduced power, increased emissions, and potentially costly engine damage. The WHT004923B bolt, therefore, plays a direct role in maintaining the integrity of the fuel delivery system.

Specifications and Compatibility

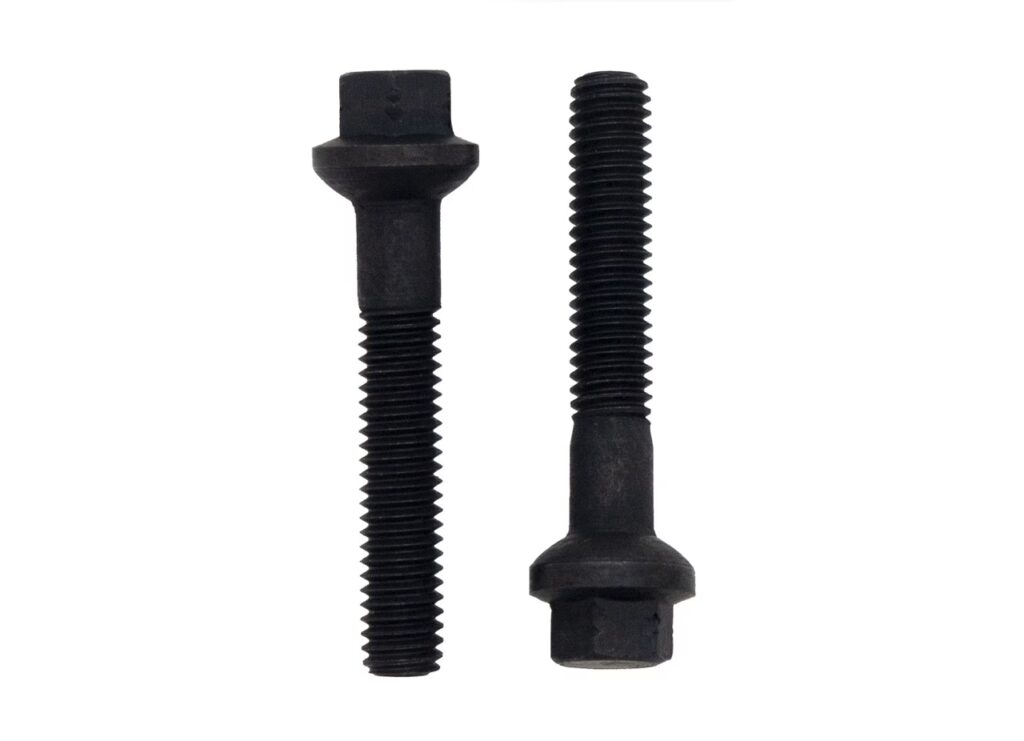

The WHT004923B bolt comes with precise specifications:

• Size: M6 - 93mm x 18mm. This indicates it is an M6 thread (6mm nominal diameter), with a total length of 93mm and a head diameter of 18mm. These dimensions are crucial for ensuring it fits correctly within the engine's design.
• Quantity Required: For a 3.0 TDI V6 engine, you will require six of these bolts, one for each injector. They are typically priced individually.
• Part Number: WHT004923B. This unique identifier ensures you are sourcing the correct, genuine part.
• Diagram Reference: Often referred to as item number 48 on official VAG engine diagrams, aiding in correct identification during assembly or repair.

Regarding compatibility, it's important to note that while these bolts are generally suitable for most VAG 3.0 TDI engines from 2010 onwards, they will not fit all variations. VAG engines undergo continuous revisions, and seemingly minor differences can necessitate specific components. Therefore, if you are at all unsure about suitability for your particular vehicle, it is always strongly advised to contact your supplier or a VAG specialist with your vehicle's registration or VIN (Vehicle Identification Number) before ordering. This proactive step can prevent ordering incorrect parts and avoid potential delays or damage.

The Science of Torque: Why It Matters So Much

Perhaps the most critical aspect of installing the WHT004923B injector bracket bolt – and indeed many other crucial engine fasteners – lies in adhering strictly to the manufacturer's specified torque settings. For this particular bolt, the instructions are given in two stages, indicative of a torque-to-yield (TTY) or stretch bolt design, common in critical engine applications:

1. Stage 1: 6 Nm (Newton-metres) - This initial stage involves tightening the bolt to a precise torque value. A torque wrench is indispensable here to ensure this exact force is applied. This stage typically brings the components into initial contact and removes any slack.
2. Stage 2: 90 Degrees - Following the initial torque, the bolt must then be rotated an additional 90 degrees (a quarter turn). This is an angular tightening method, which stretches the bolt beyond its elastic limit into its plastic deformation range. This permanent stretch creates a consistent and high clamping force, which is maintained throughout the bolt's lifespan, making the connection exceptionally secure and resistant to loosening from vibration or thermal cycles.

The consequences of incorrect torque application are severe. Under-tightening can lead to the injector bracket becoming loose, causing fuel leaks, misfires, or even allowing the injector to dislodge, resulting in catastrophic engine damage. Over-tightening, on the other hand, can strip the threads in the cylinder head, stretch or break the bolt itself, or deform the injector or its housing, leading to costly repairs. This two-stage, torque-to-yield method is employed precisely because it provides a highly accurate and consistent clamping load that cannot be achieved with traditional torque-only specifications.

Maintenance and Replacement Best Practices

Given their critical role and the use of the torque-to-yield method, injector bracket bolts like the WHT004923B are typically considered single-use items. Once stretched beyond their elastic limit during the initial installation, they are designed to deform permanently to achieve their specified clamping force. Reusing such a bolt means it has already been stretched and will not provide the same consistent and reliable clamping force when re-tightened. This significantly increases the risk of component failure, leaks, or damage.

Therefore, whenever an injector is removed or its bracket loosened for any reason (e.g., for servicing, replacing seals, or diagnosing issues), the WHT004923B bolts must be replaced with new, genuine parts. This ensures that the clamping force is correct and the injector remains securely seated throughout the engine's operation. Always use a calibrated torque wrench and an angle gauge to ensure the precise application of both torque stages.

Comparative Insight: Fastening Methodologies

To further illustrate the unique advantages of injection bolts and the precision required for components like the WHT004923B, let's compare different fastening approaches:

Frequently Asked Questions (FAQs)

Q: Can I reuse the WHT004923B injector bracket bolts?

A: Absolutely not. These bolts are designed as torque-to-yield (TTY) or stretch bolts. They are stretched beyond their elastic limit during installation to achieve a precise and consistent clamping force. Reusing them means they have already been permanently deformed and will not provide the necessary clamping load, risking critical engine damage and fuel leaks. Always replace them with new, genuine parts.

Q: What happens if I don't torque these bolts correctly?

A: Incorrect torque can lead to severe issues. Under-tightening can cause the injector bracket to loosen, leading to fuel leaks, misfires, poor engine performance, and potential damage if the injector becomes dislodged. Over-tightening can strip the threads in the cylinder head, break the bolt, or deform the injector, resulting in costly repairs and further engine problems.

Q: How can I confirm if my VAG 3.0 TDI engine uses the WHT004923B bolts?

A: The most reliable way is to contact your parts supplier or a VAG dealership with your vehicle's full registration number or VIN (Vehicle Identification Number). They can access official parts catalogues specific to your vehicle's exact build and confirm compatibility.

Q: What tools are required to install these bolts correctly?

A: You will need a calibrated torque wrench capable of measuring 6 Nm and, crucially, an angle gauge (or an angle-measuring torque wrench) to accurately perform the 90-degree final tightening stage. Always ensure your tools are in good working order and correctly calibrated.

Q: Are there aftermarket alternatives for the WHT004923B bolt?

A: While aftermarket parts exist for many components, for critical engine fasteners like injector bracket bolts, it is highly recommended to use genuine VAG parts. Genuine parts are manufactured to precise specifications, ensuring correct fitment, material quality, and the ability to achieve the specified clamping load, which is vital for engine integrity and safety. Using non-genuine parts can compromise reliability and may void warranties.

Conclusion

The world of automotive maintenance is increasingly complex, with modern engines relying on highly specialised components and precise installation methods. Injection bolts, with their unique resin-filled clearance design, offer unparalleled slip resistance and stability in demanding applications. Similarly, the WHT004923B injector bracket bolt, a critical fastener in VAG 3.0 TDI V6 engines, exemplifies the importance of specific part design, genuine components, and meticulous installation. Understanding the two-stage torque process and the non-reusable nature of these torque-to-yield bolts is not just good practice – it is absolutely essential for the safe, reliable, and efficient operation of your vehicle. Always prioritise genuine parts and adhere strictly to manufacturer specifications to ensure the longevity and performance of your engine.
