Fuel Pump Phasing: Quieting Diesel Gear Noise

The distinctive rumble of a heavy-duty diesel engine is often accompanied by a less desirable characteristic: gear impact noise. This metallic clatter can be irritating for drivers and passengers alike, and for those involved in the maintenance and operation of these powerful machines, understanding its causes and solutions is paramount. Fortunately, a sophisticated technique known as fuel injection pump phasing has emerged as one of the most effective methods for mitigating this pervasive issue. This article delves into the mechanics behind this process, explaining how adjusting the timing of fuel delivery can lead to a dramatically quieter and smoother-running engine.

Understanding Gear Impact Noise in Diesel Engines

Before we explore the solution, it's crucial to understand the problem. Gear impact noise in diesel engines primarily stems from the meshing of gears within the timing system and the fuel injection pump drive. These gears, responsible for synchronising the engine's various components, experience rapid changes in load and speed. When the teeth of meshing gears engage and disengage, particularly under high torque conditions, they can 'impact' each other, producing a distinct metallic sound. This noise is often exacerbated by factors such as:

• Wear and Tear: As gears age, their teeth can wear down, leading to increased backlash (the gap between meshing teeth) and thus more pronounced impact.
• Manufacturing Tolerances: Even with precise manufacturing, slight variations in gear tooth profiles can contribute to noise.
• Engine Load and Speed: The noise is typically more audible during acceleration or at specific engine speeds where resonance amplifies the impact sounds.
• Lubrication: Inadequate or degraded lubrication can increase friction and wear, worsening the noise.

What is Fuel Injection Pump Phasing?

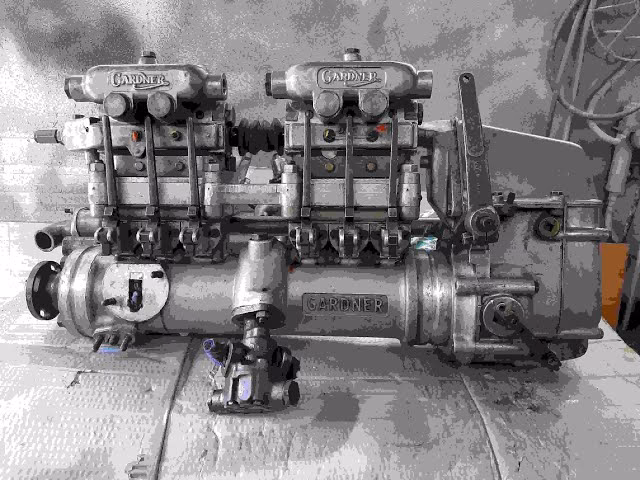

Fuel injection pump phasing, in essence, refers to the precise adjustment of the timing of the fuel injection pump relative to the engine's crankshaft. The fuel injection pump is a critical component that delivers pressurised fuel to the injectors, which then atomise and spray it into the combustion chambers. The timing of this injection event significantly influences the combustion process, engine performance, and, importantly, the forces exerted on the drivetrain, including the gears.

By carefully altering the phase angle of the fuel injection pump, mechanics can influence the point in the engine cycle at which combustion begins. This seemingly small adjustment can have a profound impact on the torque fluctuations experienced by the engine's internal components, including the gears responsible for driving the injection pump itself. The goal is to smooth out these torque pulses, reducing the sharp impacts that generate noise.

How Phasing Reduces Gear Impact Noise

The connection between fuel injection timing and gear noise might not be immediately obvious, but it's rooted in the fundamental principles of internal combustion engine operation. Diesel combustion is a rapid, high-pressure event. The timing of the fuel injection dictates when this powerful event occurs within the cylinder relative to the piston's position.

When the fuel is injected and ignites, it creates a sudden pressure wave that pushes the piston down. This force is transmitted through the crankshaft and various gears. If the injection event is timed such that it occurs when the gears are already under significant load or transitioning between tooth engagements, the resulting torque spike can be more intense, leading to greater impact forces and audible noise.

By advancing or retarding the fuel injection pump phase, the combustion event can be shifted. The key to reducing gear impact noise lies in timing the combustion process so that the peak cylinder pressures occur when the gears are in a more stable position, or when the load on the gear teeth is distributed more favourably. This effectively 'cushions' the mechanical impacts, transforming sharp, jarring forces into smoother, more progressive ones.

The Role of Torque Fluctuations

Consider the gears in the timing train. They are constantly being driven by the crankshaft and, in turn, driving other components like the camshaft and the fuel injection pump. The forces acting on these gears are not constant; they fluctuate with the engine's combustion cycle. These fluctuations, or torque pulses, are a natural part of engine operation. However, poorly timed combustion can amplify these pulses, leading to significant stress and noise at the point of gear meshing.

Phasing the fuel injection pump allows for a degree of control over these torque fluctuations. By optimising the timing, engineers can aim to minimise the peak torque that occurs during critical gear engagement phases. This is particularly effective in reducing the 'clatter' associated with the engagement of the fuel injection pump's own drive gears, which are often directly driven by the timing gear train.

Optimising Combustion Events

The process involves finding the 'sweet spot' in the injection timing that not only maintains efficient combustion and power output but also minimises the transmission of sharp forces to the gears. This often involves a delicate balance, as changes to injection timing can affect:

• Engine Power and Torque: Too much retardation can reduce power.
• Fuel Economy: Optimal timing is crucial for efficiency.
• Exhaust Emissions: Timing affects the combustion temperature and duration, influencing pollutant formation.
• Engine Noise (Combustion Noise): While reducing gear noise, changes in timing can alter the characteristic diesel 'knock'.

Therefore, fuel injection pump phasing is not merely about reducing gear noise; it's about achieving an overall improvement in engine operation. This sophisticated tuning requires expertise and specialised equipment.

Methods of Fuel Injection Pump Phasing

The specific method for phasing a fuel injection pump can vary depending on the engine design and the type of injection system used. However, the general principle involves adjusting the rotational position of the pump's drive mechanism relative to the engine's crankshaft.

In many heavy-duty diesel engines, the fuel injection pump is driven by a timing gear or a timing chain connected to the crankshaft. The adjustment is typically made by altering the mounting of the pump or by using an adjustable sprocket or pulley on the pump's drive shaft. This might involve:

• Loosening mounting bolts: Allowing the pump to be rotated slightly.
• Using shims: To achieve precise angular adjustments.
• Adjustable timing gears/sprockets: These are specifically designed to allow for fine-tuning of the timing.

Modern engines with electronically controlled injection systems often have the ability to adjust injection timing electronically, offering even finer control and the possibility of dynamic timing adjustments based on operating conditions. However, for mechanical systems, physical adjustment is usually required.

Benefits of Effective Phasing

The primary benefit of successful fuel injection pump phasing is a significant reduction in gear impact noise, leading to a more pleasant and refined driving experience. Beyond this, there are several other advantages:

• Improved Driver Comfort: A quieter cabin is more conducive to long journeys and reduces driver fatigue.
• Reduced Mechanical Stress: By smoothing out torque fluctuations, phasing can reduce stress on gear teeth, potentially extending their lifespan.
• Enhanced Powertrain Refinement: The overall feel of the engine can become smoother and more responsive.
• Potential for Performance Optimisation: While the primary goal is noise reduction, the process can sometimes uncover opportunities to optimise other engine parameters.

Challenges and Considerations

While highly effective, fuel injection pump phasing is not without its challenges:

• Precision Required: Even small misalignments can lead to incorrect timing, affecting performance and potentially causing damage.
• Diagnostic Complexity: Identifying the precise cause of gear noise and determining the optimal phasing requires significant expertise.
• Engine Specifics: The optimal phasing strategy can vary greatly between different engine models and manufacturers.
• Access: Accessing and adjusting the fuel injection pump can be difficult in some engine configurations, requiring extensive disassembly.

When to Consider Fuel Injection Pump Phasing

If your heavy-duty diesel vehicle is exhibiting noticeable gear impact noise, especially during acceleration or at specific engine speeds, fuel injection pump phasing is a diagnostic avenue worth exploring. It is particularly relevant in scenarios where:

• The noise is a new development or has worsened over time.
• Other potential causes of noise (e.g., worn bearings, damaged gears) have been ruled out.
• You are seeking to improve the overall refinement and comfort of the vehicle.

Frequently Asked Questions

Q1: Is fuel injection pump phasing a DIY job?

Generally, no. Fuel injection pump phasing requires a deep understanding of diesel engine mechanics, precise timing tools, and often specific knowledge of the engine manufacturer's procedures. Incorrect phasing can lead to poor performance, increased fuel consumption, or even engine damage. It is best left to qualified diesel technicians.

Q2: Can phasing affect engine power?

Yes, it can. The primary objective of phasing for noise reduction is to find a timing that minimises gear impact while maintaining acceptable engine performance. Overly aggressive phasing for noise reduction might slightly reduce peak power, but a skilled technician will aim for an optimal compromise.

Q3: How often should fuel injection pump phasing be checked?

There isn't a fixed schedule for checking fuel injection pump phasing. It is typically addressed when gear impact noise becomes a noticeable issue or as part of a comprehensive engine tune-up if the technician suspects timing is contributing to other drivability problems.

Q4: Does this apply to all diesel engines?

While the principle of timing influencing mechanical forces applies broadly, fuel injection pump phasing as a specific noise reduction technique is most relevant and effective in older mechanical diesel injection systems and certain heavy-duty applications where gear noise is a significant concern. Modern common rail systems often have more sophisticated electronic controls for timing that inherently manage these forces better, though some mechanical adjustments might still be relevant in specific contexts.

Conclusion

Fuel injection pump phasing stands as a testament to the intricate engineering that goes into heavy-duty diesel engines. By subtly manipulating the timing of fuel delivery, a significant reduction in intrusive gear impact noise can be achieved. This sophisticated technique not only enhances driver comfort but also plays a role in the longevity of vital engine components. For owners and operators of heavy-duty diesel vehicles experiencing this particular type of noise, consulting with a specialist diesel mechanic to explore the possibility of fuel injection pump phasing is a worthwhile endeavour, promising a quieter, smoother, and more refined driving experience.
