Precise Wheel Alignment: Adjusting for Optimal Performance

Ensuring your vehicle's wheels are correctly aligned is far more critical than many drivers realise. It's not just about keeping your steering wheel straight; proper wheel alignment is fundamental to your car's handling, overall safety, the longevity of your tyres, and even your fuel efficiency. When wheels are out of specification, it can lead to premature and uneven tyre wear, a vehicle that pulls to one side, a crooked steering wheel, and a general feeling of instability on the road. This guide will delve into the intricacies of wheel alignment, explaining the key measurements and how adjustments are precisely made to restore your vehicle to its optimal operating condition.

Understanding Wheel Alignment Fundamentals

Wheel alignment refers to the angles of your vehicle's wheels in relation to each other and the road. These angles are meticulously set by the manufacturer to provide the best balance of handling, ride comfort, and tyre life. There are three primary angles that technicians measure and adjust:

Camber

Camber is the inward or outward tilt of the wheel when viewed from the front of the vehicle. If the top of the wheel tilts outwards, it's called positive camber. If it tilts inwards, it's negative camber. Both extremes can cause issues. Correct camber ensures the tyre makes full contact with the road, distributing weight evenly across the tread. Incorrect camber can lead to uneven tyre wear (either on the inner or outer edge) and can affect steering stability and cornering grip.

Caster

Caster is the angle of the steering axis when viewed from the side of the vehicle. It's similar to the angle of a bicycle's front fork. Positive caster means the top of the steering axis is tilted towards the rear of the car, while negative caster means it's tilted towards the front. Caster plays a crucial role in steering stability, especially at higher speeds, and helps the wheels return to a straight-ahead position after turning. It also influences steering effort. Incorrect caster can cause the vehicle to wander, feel unstable, or pull to one side.

Toe

Toe is the most critical and most frequently adjusted alignment angle. It refers to how much the front of the tyres are turned inward or outward relative to each other when viewed from above. If the fronts of the wheels are closer together than the rears, it's toe-in. If they are further apart, it's toe-out. Correct toe ensures the wheels roll parallel to each other on the road, minimising tyre scrub and maximising tyre life. Incorrect toe can cause rapid and severe feathering or sawtooth wear on tyres, a loose or twitchy steering feel, and reduced straight-line stability.

Thrust Angle

While not an adjustable angle in itself, the thrust angle is an important measurement derived from the rear wheel alignment. It indicates whether the rear axle is parallel to the front axle and perpendicular to the vehicle's centerline. If the thrust angle is off, it means the rear wheels are not tracking straight behind the front wheels, which can cause the vehicle to 'crab' down the road, leading to a crooked steering wheel even when driving straight, and accelerated tyre wear on all four wheels.

The Measurement Process: Initial Assessment

Before any adjustments can be made, a technician must accurately measure the current alignment angles. This process begins with a thorough pre-alignment inspection:

• Tyre Pressure: All tyres must be inflated to the manufacturer's recommended pressures. Incorrect pressure can skew readings.
• Suspension Component Wear: Worn ball joints, tie rod ends, control arm bushings, or wheel bearings can lead to inaccurate readings and make proper alignment impossible. These components must be in good condition.
• Ride Height: The vehicle must be at its normal ride height. Any heavy loads or significant changes in suspension (e.g., lowered or lifted kits) can affect alignment.

Once these checks are complete, the vehicle is typically driven onto a specialised alignment rack. Modern alignment machines use sophisticated laser or camera-based systems. Sensors or targets are attached to each wheel, which communicate with a computer. The computer then precisely measures the current camber, caster, and toe angles for each wheel, comparing them against the vehicle manufacturer's specifications. This initial reading is crucial as it identifies exactly which angles are out of specification and by how much.

The Art of Adjustment: Bringing Measurements into Spec

Adjusting wheel alignment is a precise process that requires specialist tools and expertise. It's not a simple 'turn a bolt' job; it often involves an iterative approach of adjusting, re-measuring, and fine-tuning. The goal is to bring all angles within the manufacturer's specified range, often to the midpoint of the allowable tolerance for optimal performance.

Adjusting Toe

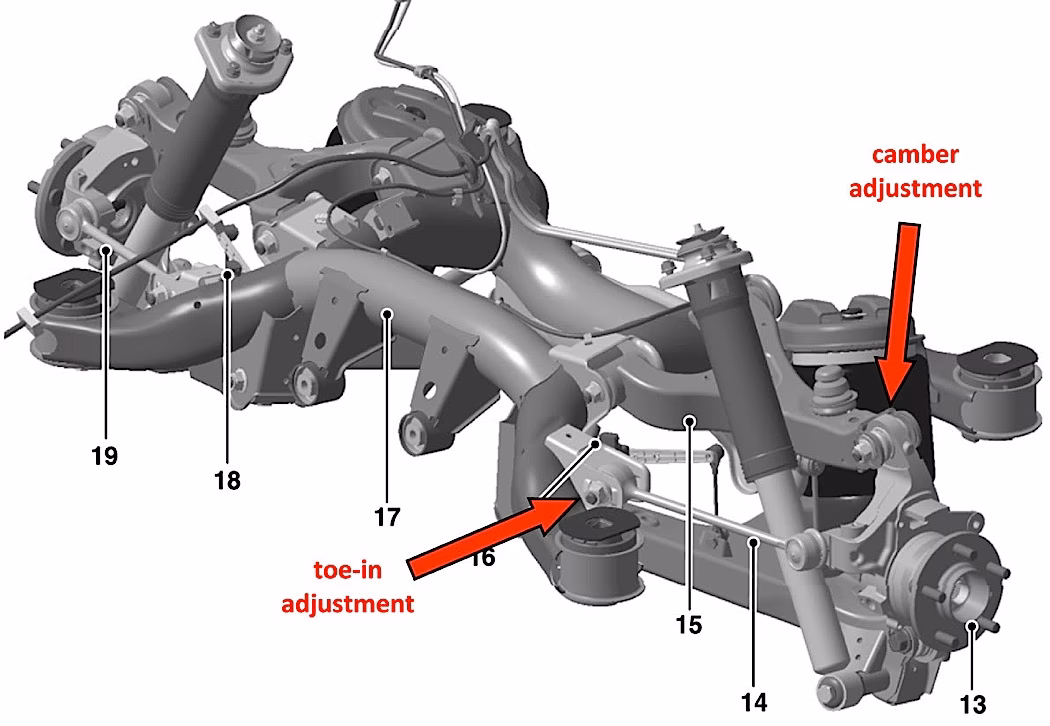

Toe is generally the easiest and most common angle to adjust. On most vehicles, toe is adjusted by lengthening or shortening the tie rods that connect the steering rack to the steering knuckle. Each front wheel has a tie rod, and by rotating the tie rod ends (which are threaded), the technician can push the front of the wheel in or pull it out, thereby adjusting the toe angle. For rear wheels, toe adjustment mechanisms vary but often involve eccentric bolts or shims on the control arms.

Adjusting Camber

Camber adjustments are more varied depending on the vehicle's suspension design. Common methods include:

• Eccentric Bolts: Some vehicles have eccentric bolts on the control arms or strut mounts that, when rotated, shift the position of the wheel relative to the suspension, altering the camber.
• Slotted Holes: Certain designs allow for the loosening of bolts in slotted holes, enabling the component to be moved slightly to change camber.
• Shims: On some older vehicles or those with solid axles, thin shims might be added or removed behind suspension components to alter the camber.
• Aftermarket Camber Kits: For vehicles without factory camber adjustment, aftermarket kits (e.g., adjustable control arms or camber bolts) can be installed.

It's important to note that on many modern vehicles, particularly those with MacPherson strut suspensions, front camber may not be directly adjustable from the factory. In such cases, if camber is out of specification, it often indicates bent suspension components from an impact, which would need replacement.

Adjusting Caster

Caster is often the least adjustable angle on many passenger vehicles, especially on the front. Where it is adjustable, methods can include:

• Shims: Similar to camber, shims can be used on certain control arm mounts.
• Eccentric Bushings: Some control arm bushings or mounts may feature an eccentric design that allows for minor caster adjustments when rotated.
• Adjustable Control Arms: As with camber, aftermarket adjustable control arms can provide caster adjustment where none existed.

Often, caster is indirectly affected by camber adjustments or is set by the fixed geometry of the suspension. Significant caster issues typically point to damaged suspension components.

After each adjustment, the technician re-measures the angles to ensure they are within specification. This iterative process continues until all angles are correctly set. For four-wheel alignment, both front and rear axles are adjusted, often starting with the rear thrust angle and then moving to the front.

Signs Your Vehicle Needs Alignment Adjustments

Being aware of the symptoms of misaligned wheels can save you money and keep you safe. Look out for:

• Uneven Tyre Wear: This is perhaps the most common indicator. If the inner or outer edges of your tyres are wearing much faster than the rest of the tread, or if you notice feathering (a sawtooth pattern across the tread), it's a strong sign of misalignment.
• Vehicle Pulling or Drifting: If your car consistently pulls to one side when you're driving on a straight, level road, your alignment is likely off.
• Crooked Steering Wheel: If your steering wheel isn't straight when you're driving in a straight line, but the car itself is going straight, your alignment is out.
• Loose or Sloppy Steering: If the steering feels vague or you have to constantly make small corrections to keep the car going straight, misalignment could be a cause.
• Squealing Tyres: Tyres that squeal during turns, even at low speeds, can indicate excessive toe.

When to Seek Professional Alignment

It's advisable to have your wheel alignment checked regularly, even if you don't notice any obvious symptoms. As a general guideline, consider an alignment check:

• Every 12,000 to 15,000 miles or annually.
• After installing new tyres.
• After replacing any steering or suspension components (e.g., tie rods, ball joints, control arms, struts/shocks).
• After hitting a significant pothole, kerb, or being involved in a minor collision.
• If you notice any of the symptoms mentioned above.

Why Professional Precision is Key

While the concept of wheel alignment might seem straightforward, the actual process of precise measurement and adjustment is highly complex and requires specialised, expensive equipment that homeowners simply don't possess. Attempting a DIY alignment without the proper tools and knowledge can lead to further issues, accelerate tyre wear, compromise safety, and ultimately cost you more in the long run. Professional technicians have access to calibrated alignment machines, up-to-date manufacturer specifications, and the experience to correctly diagnose and rectify even subtle alignment issues. Investing in a professional alignment ensures your vehicle performs as intended, extends the life of your tyres, and provides a safer, more enjoyable driving experience.
