Brake Caliper Guide Pins: The Unsung Heroes

When it comes to the complex system that brings your vehicle to a halt, countless components work in harmony. While the brake pads, rotors, and master cylinder often steal the limelight, there are smaller, yet equally crucial, parts that ensure everything functions as it should. Among these unsung heroes are the brake caliper guide pins, also known as slide pins. These unassuming metal rods are pivotal to the proper operation of your braking system, and understanding their function, common issues, and maintenance can save you from costly repairs and potentially dangerous situations.

What Exactly Are Brake Caliper Guide Pins?

In essence, brake caliper guide pins are the silent facilitators of your vehicle's braking action, particularly in floating caliper systems, which are the most common type found on modern cars. These pins allow the brake caliper, the part that houses the brake pads and pistons, to slide freely back and forth. Think of them as the rails upon which the caliper glides. When you press the brake pedal, hydraulic pressure forces a piston within the caliper to push the inner brake pad against the rotor. For the braking system to be effective, the caliper must then slide along the guide pins, drawing the outer brake pad into contact with the other side of the rotor. This action creates the necessary clamping force to slow or stop the vehicle.

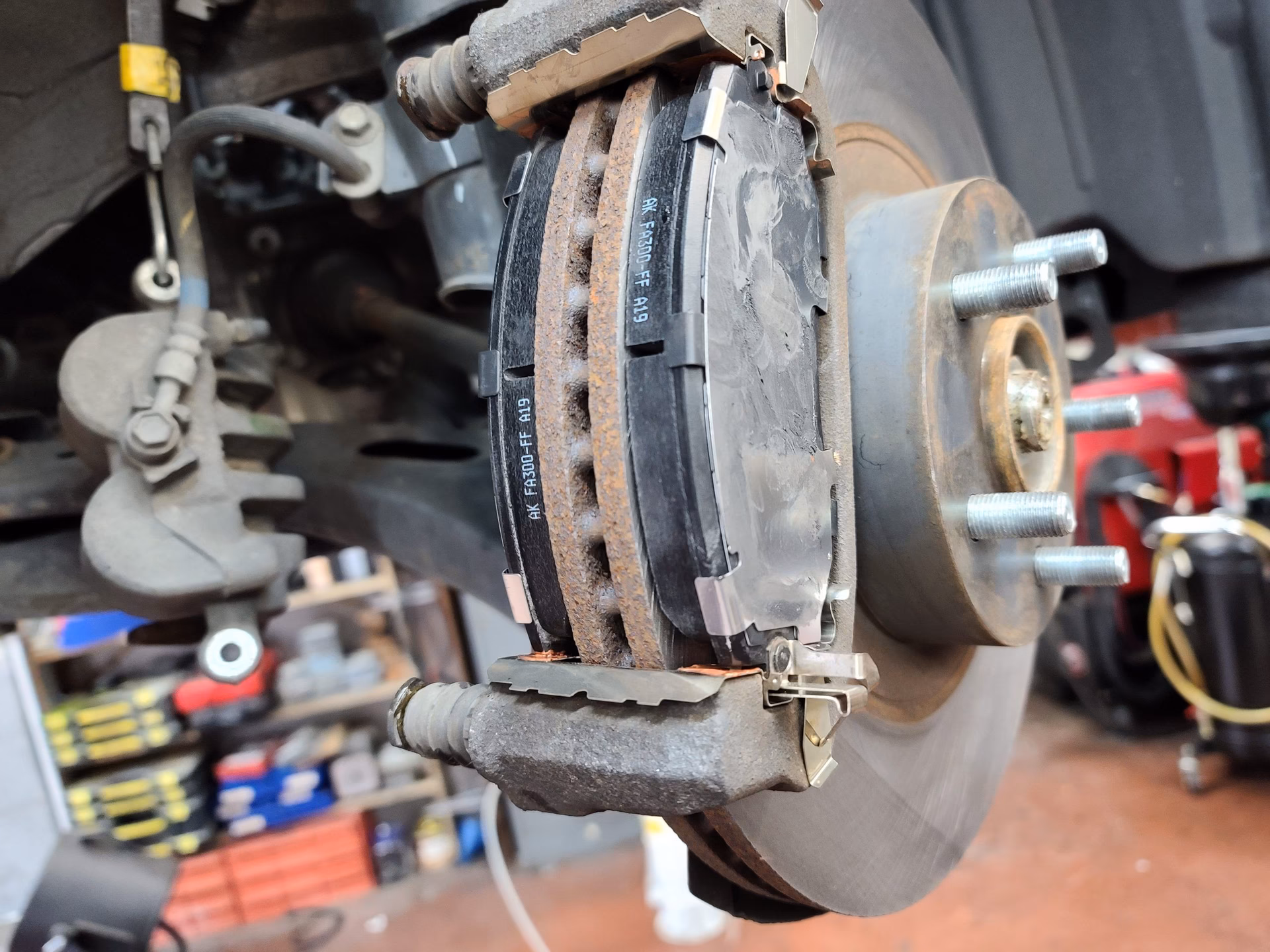

The guide pins are typically housed within a caliper bracket, which is a more substantial, non-moving part of the braking assembly bolted to the steering knuckle. Each end of the caliper typically has at least one guide pin, often secured within a rubber bushing or sleeve that helps to keep the pin snug and aligned within its bore. This precise alignment is critical; without it, the caliper wouldn't be able to move smoothly, leading to a cascade of braking problems.

The Mechanics of a Floating Caliper

To fully appreciate the role of guide pins, it's helpful to understand the mechanics of a floating caliper. Unlike fixed caliper systems, which have pistons on both sides of the rotor, a floating caliper has a piston on only one side. When the brake pedal is depressed, this single piston pushes the inboard brake pad against the rotor. The caliper itself is not rigidly attached to the steering knuckle. Instead, it is designed to 'float' on the guide pins. These pins are secured to the caliper bracket, which is bolted to the steering knuckle. As the piston pushes the inboard pad, the caliper, via the guide pins, slides towards the rotor, pulling the outboard pad into contact with the opposite side. This simultaneous clamping action is what generates the friction needed to stop the vehicle.

The Critical Importance of Free Movement

The ability of the caliper to slide freely over these guide pins is paramount to effective and balanced braking. When the guide pins are clean, properly lubricated, and free from corrosion or damage, the caliper can move as intended, ensuring that both the inner and outer brake pads make even contact with the rotor. This even contact is essential for:

• Optimal Stopping Power: Both pads contribute equally to slowing the vehicle.
• Even Brake Pad Wear: Both pads wear down at a similar rate, prolonging their lifespan.
• Preventing Rotor Damage: Uneven pressure can lead to rotor warping and premature wear.
• Avoiding Pulling While Braking: A properly functioning caliper ensures the vehicle tracks straight.

Common Problems: Sticking and Seized Guide Pins

Unfortunately, these vital components are susceptible to wear and tear, particularly due to their exposure to the elements. The most common issue faced with brake caliper guide pins is them becoming stiff, sticking, or completely seizing within their bores. This problem typically arises from a few key factors:

• Damaged Protective Boots: The rubber boots that encase the guide pins are designed to protect them from dirt, water, and road salt. If these boots tear or become brittle, contaminants can enter the bore, leading to corrosion and seizing.
• Environmental Contamination: Even with intact boots, over time, dirt, grit, and moisture can ingress into the bore, mixing with the lubricant and forming an abrasive paste.
• Corrosion: Road salt and moisture are major culprits in causing the metal pins to corrode, making them difficult to move within the bore.

When guide pins seize, the caliper can no longer slide freely. This has a detrimental effect on braking performance, leading to a range of symptoms:

Symptoms of Sticking Caliper Guide Pins:

• Pulling to One Side While Braking: If one caliper can't slide properly, the braking force is uneven, causing the vehicle to veer.
• Brake Drag: A stuck caliper may not release fully, causing the brake to remain partially applied even when you're not pressing the pedal. This results in a loss of power, increased fuel consumption, and excessive heat.
• Uneven Brake Pad Wear: This is a hallmark sign. As mentioned, in a floating caliper, the inner pad normally wears slightly more than the outer pad (typically around 2mm difference). However, if a guide pin seizes, the outer pad may barely contact the rotor, or not contact it at all. This leads to the inner pad doing all the work, wearing down much faster and often developing a tapered wear pattern.
• Overheated and Warped Rotors: Continuous, uneven pressure from a sticking caliper generates excessive heat, which can warp the brake rotors, leading to vibrations and a pulsating brake pedal.
• Squealing or Grinding Noises: While pad material is the usual cause, a caliper that isn't releasing properly can also cause abnormal noises.

The Importance of Lubrication

Proper lubrication is key to ensuring the longevity and smooth operation of caliper guide pins. They are typically lubricated with a high-temperature, synthetic brake grease. This specialized lubricant is designed to withstand the extreme temperatures generated during braking and is compatible with the rubber components (boots and bushings) found on many guide pins.

Crucially, always use the correct lubricant. Petroleum-based lubricants should be strictly avoided, as they can degrade and swell the rubber boots and seals, leading to their failure and subsequent contamination of the guide pin. Manufacturers generally recommend synthetic lubricants formulated specifically for brake systems, such as silicone-based or PAG (polyalkylene glycol) lubricants. High-temperature graphite or synthetic greases are also effective in reducing friction between the metal surfaces of the pin and the caliper bore.

Some guide pins feature a special finish, such as gold or chrome plating, which aids in their smooth movement and corrosion resistance. It is important not to damage this finish when cleaning or lubricating the pins. Grinding or aggressively cleaning the finish can expose the underlying metal, making the pin more susceptible to rust and premature wear.

Addressing Uneven Brake Pad Wear

Uneven brake pad wear is a significant indicator of issues with the caliper's ability to move freely. As explained, the design of a floating caliper relies on the caliper sliding to engage both pads. When one or both guide pins are seized or sticking, this crucial sliding action is compromised. The inboard pad, being directly pushed by the piston, makes contact. However, the caliper cannot adequately pull the outboard pad into position. Consequently, the inboard pad bears the brunt of the braking force, leading to accelerated wear. A particularly telling sign is when one guide pin is seized, and the other is functioning correctly. In this scenario, the inboard pad will not only wear faster but will also develop a distinct tapered wear pattern, angled across its surface.

A simple visual inspection can often reveal this issue. When you have your wheels off for any reason, check the thickness of your brake pads. If the inner pad is noticeably thinner than the outer pad (beyond the normal 2mm difference), or if the wear is uneven across the face of either pad, it's a strong indication that your guide pins may be sticking.

Maintenance and Replacement

Regular maintenance is the best defence against caliper guide pin problems. When replacing brake pads, it's good practice to:

• Inspect the Guide Pins: Remove the caliper, slide the pins out, and check them for signs of corrosion, damage, or stiffness.
• Clean and Lubricate: Clean the pins thoroughly with brake cleaner and apply a fresh coat of appropriate brake lubricant. Inspect the rubber boots for any tears or damage.
• Replace Damaged Components: If the pins are corroded, bent, or if the boots are damaged, it's best to replace them.

You can often purchase caliper repair kits that include new guide pins, sleeves, and boots. In more severe cases, where the caliper bore itself may be damaged or excessively corroded, you might need to replace the entire brake caliper. Ignoring sticking guide pins can lead to premature wear of brake pads and rotors, reduced braking efficiency, and potentially a more significant safety hazard.

Frequently Asked Questions

Q1: How often should I check my brake caliper guide pins?
It's advisable to inspect them whenever you have your brake pads replaced or at least once a year as part of your regular vehicle maintenance.

Q2: Can I just clean and lubricate sticking guide pins, or do I need to replace them?
If the pins are only slightly stiff and show minimal corrosion, cleaning and proper lubrication might suffice. However, if they are heavily corroded, bent, or if the protective boots are damaged, replacement is highly recommended for long-term reliability.

Q3: What happens if I ignore sticking caliper guide pins?
Ignoring this issue can lead to uneven brake pad wear, premature rotor wear and warping, reduced braking performance, increased fuel consumption due to brake drag, and potential steering pull during braking.

Q4: What is the difference between guide pins and caliper bolts?
Guide pins (or slide pins) are designed to allow the caliper to slide. Caliper bolts (or mounting bolts) are typically used to attach the caliper bracket to the steering knuckle, or in some fixed caliper designs, to hold the caliper halves together. They do not facilitate the sliding motion.

Q5: Is it normal for the inner brake pad to wear faster than the outer?
In a floating caliper system, it is normal for the inner brake pad to wear slightly faster than the outer pad, typically by about 2mm. However, any significant difference beyond this indicates a problem with the caliper's ability to slide freely, usually due to sticking guide pins.

Conclusion

Brake caliper guide pins may be small, but their role in ensuring safe and effective braking is immense. By understanding their function, recognizing the signs of sticking or seizing, and performing regular maintenance, you can help ensure your vehicle's braking system operates at its best, providing the stopping power you need when you need it most.
