Navigating Brake Warning Lights & Lipped Discs

That dreaded brake warning light illuminating on your dashboard can send a chill down any driver's spine. Often, the immediate thought is a simple case of worn brake pads, easily remedied. However, what if the visible outer pads still look healthy, and you're left scratching your head, wondering how to diagnose an issue when the 'wear indicator' isn't obvious? This perplexing situation is more common than you might think, particularly when dealing with the often-overlooked condition of your brake discs, especially their inner surfaces.

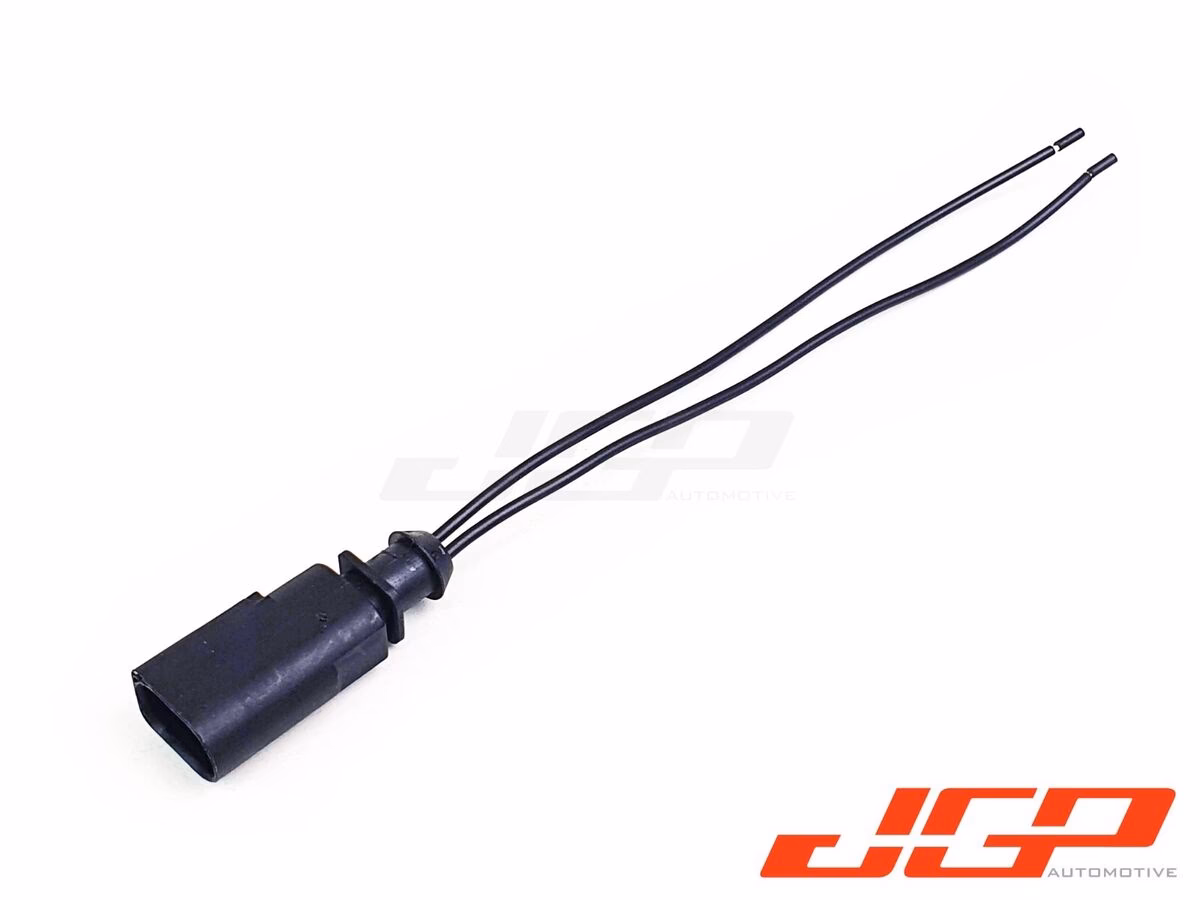

Many modern vehicles employ an electrical brake wear sensor, sometimes referred to as a 'brake loom', which is designed to trigger a warning light when your brake pads reach a critical minimum thickness. The crucial detail often missed is that these sensors are typically located on the inner brake pad, the one you can't easily see without removing the wheel. This design choice is practical for packaging, but it means you can't just glance through your wheel spokes to confirm pad wear. Furthermore, a common issue that prematurely triggers these sensors, even when the pads aren't fully exhausted, is the presence of 'lipping' on your brake discs.

Understanding Brake Wear Sensors and Their Quirks

Brake wear sensors are ingenious devices designed to prevent dangerous situations arising from excessively worn brake pads. There are generally two types: audible and electrical. Audible sensors are simple metal tabs that squeal when they contact the spinning disc, while electrical sensors work by completing or breaking an electrical circuit when the pad material wears down enough for the sensor's tip to touch the disc. Once triggered, the circuit change illuminates the warning light on your dash.

The key takeaway here is their placement. Manufacturers often place the sensor on the inner brake pad because this pad can sometimes wear faster than the outer one due to caliper design and the way braking forces are applied. If you're relying solely on a visual inspection of the outer pad, you could be missing significant wear on the inner pad, or, as we'll explore, an issue with the disc itself.

The Lipped Disc Phenomenon: A Hidden Trigger

Brake discs, over time and use, develop a slight ridge or 'lip' on their outer and sometimes inner edges. This occurs because the brake pads don't sweep the entire surface of the disc; a small margin is left unworn. While a minor lip is normal, excessive lipping, particularly on the inner edge where the wear sensor is located, can become a significant problem. When this inner lip becomes pronounced, it can make contact with the wear sensor on the inner pad prematurely, even if the pad itself still has a reasonable amount of friction material left.

Imagine your brake pad wearing down. Normally, the sensor would only touch the disc when the pad is genuinely thin. However, if there's a significant lip on the disc, the sensor can 'catch' on this raised edge and get triggered, or even physically damaged and broken, long before the pad is truly worn out. This is why your warning light might come on unexpectedly, leaving you puzzled when a quick visual check of the outer pad suggests everything is fine. This scenario highlights why a thorough inspection, involving wheel removal, is absolutely essential.

Diagnosis: Getting to the Root of the Problem

When the brake warning light illuminates and you suspect a lipped disc or an unseen inner pad issue, a systematic approach is necessary. You won't be able to fix anything effectively until you've properly diagnosed the problem.

1. Wheel Removal: This is non-negotiable. Safely jack up your vehicle and remove the wheels. This is the only way to get a clear view of both the inner and outer brake pads and the entire disc surface.
2. Inner Pad Inspection: Once the wheel is off, carefully inspect the inner brake pad. Compare its thickness to the outer pad. Is it significantly thinner? Look for any signs of the wear sensor making contact with the disc, or if the sensor itself looks damaged or broken.
3. Disc Inspection: Feel the surface of the brake disc, paying close attention to both the inner and outer edges. Run your finger from the centre outwards. Can you feel a pronounced ridge or 'lip'? Check for scoring, grooves, or discolouration on the disc surface. While you're at it, measure the disc thickness with a micrometer if you have one, and compare it to the manufacturer's minimum thickness specification (often stamped on the disc hub or found in your vehicle's service manual).

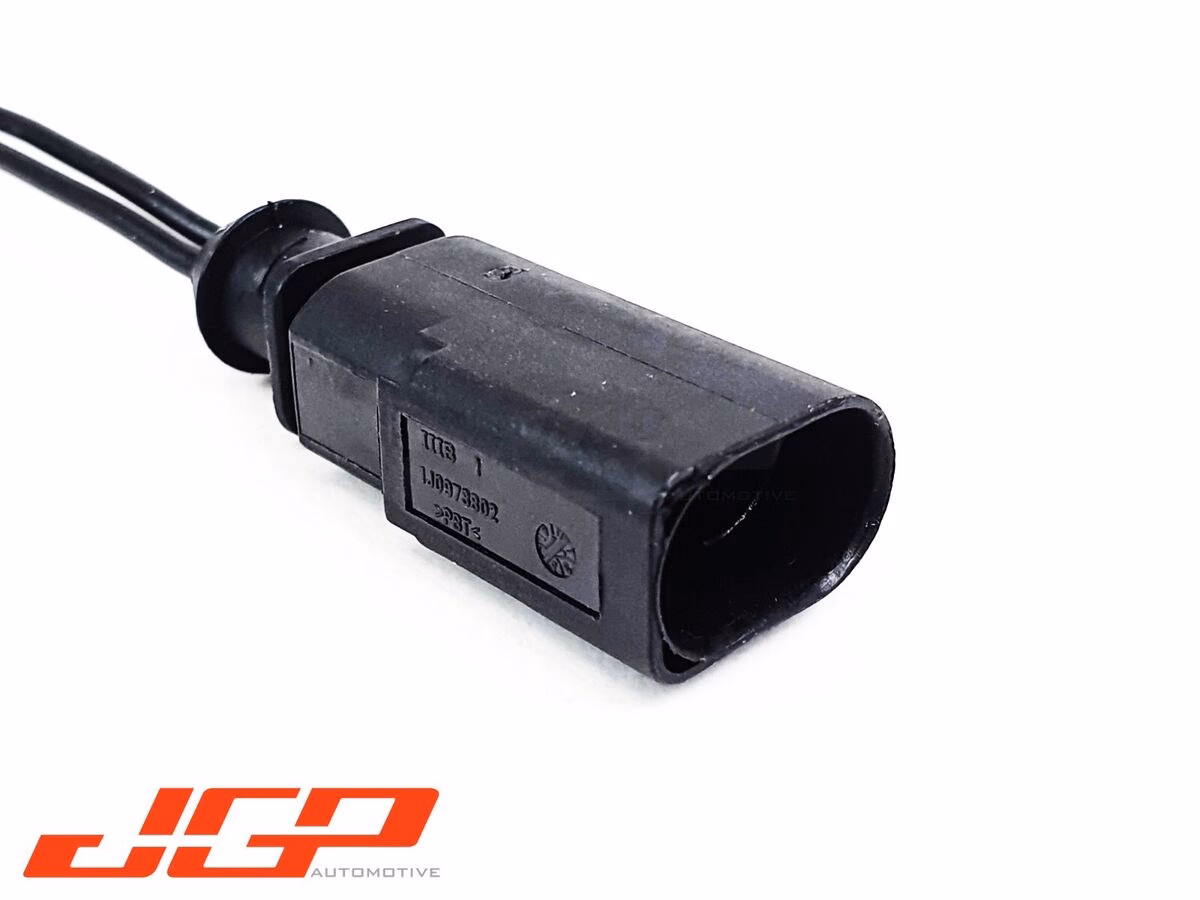

4. Sensor Cable Check: Follow the brake wear sensor cable from the pad back to its connector. Look for any signs of fraying, cuts, or damage to the insulation. Sometimes, a damaged cable can cause an intermittent warning light.

The 'Two Sets of Pads Per Disc' Rule and When to Replace

A widely accepted rule of thumb in the automotive world is that brake discs will typically last for two sets of brake pads. This isn't a hard and fast rule, as driving style, vehicle weight, and the quality of materials all play a part, but it's a good guideline. If you replaced your brake pads last time but left the original discs on, and you're now experiencing a brake warning light, it's highly probable that your discs are due for replacement, especially if you've identified significant lipping or have confirmed they're approaching or below their minimum thickness.

Why Replace Discs with Pads?

Replacing discs along with pads, especially when the discs are worn, offers several benefits:

• Optimal Braking Performance: New, flat discs provide a perfect mating surface for new pads, ensuring maximum friction and even braking.
• Longevity: New discs won't prematurely wear your new pads or trigger early warning lights due to lipping.
• Reduced Noise: Worn or lipped discs can contribute to brake noise.
• Safety: Worn discs can warp, crack, or overheat, compromising braking efficiency and safety.

The Fix: Replacing Pads, Discs, and Sensors

Given the scenario of an early warning light likely triggered by lipped discs and an inner pad sensor, the most comprehensive and recommended fix involves replacing both the brake pads and the brake discs on the affected axle (usually both front or both rear). It's crucial to replace components in pairs across an axle to maintain balanced braking. You should also replace the brake wear sensor if it has been triggered or damaged.

Tools and Materials You'll Need:

• New brake pads (for the specific axle)
• New brake discs (for the specific axle)
• New brake wear sensor(s) (if applicable)
• Socket set and wrench (for lug nuts, caliper bolts)
• Torque wrench (essential for correct bolt tension)
• Caliper wind-back tool (for rear electronic parking brake calipers) or C-clamp (for front calipers)
• Wire brush and brake cleaner
• Brake grease (copper grease or dedicated brake caliper grease)
• Jack and axle stands (for safety)
• Wheel chocks

General Steps for Replacement (Always consult your vehicle's specific service manual):

1. Safety First: Park on a flat, level surface, engage the parking brake, and chock the wheels. Loosen lug nuts, then jack up the vehicle and secure it on axle stands. Remove the wheel.
2. Remove Caliper: Disconnect the brake wear sensor (if present). Unbolt the caliper guide pins/bolts. Carefully remove the caliper and suspend it using a bungee cord or wire to avoid straining the brake hose. Do not let it hang by the hose.
3. Remove Pads: Slide out the old brake pads. Note the orientation of any shims or clips.
4. Remove Disc: Remove any retaining screws or bolts holding the disc to the hub. The disc may be stuck; a few taps with a rubber mallet can help free it.
5. Clean Hub: Thoroughly clean the hub mounting surface with a wire brush and brake cleaner to ensure the new disc sits perfectly flat.
6. Install New Disc: Place the new disc onto the hub, ensuring it seats flush. Secure it with any retaining screws.
7. Prepare Caliper & Pads: Use a caliper wind-back tool or C-clamp to carefully push the caliper piston back into its bore. Be gentle and ensure the brake fluid reservoir doesn't overflow. Apply a thin layer of brake grease to the caliper slides and the points where the pads make contact with the caliper bracket.
8. Install New Pads & Sensor: Insert the new brake pads, ensuring the correct orientation. Install the new brake wear sensor if applicable, routing its cable correctly.
9. Reinstall Caliper: Reattach the caliper to the caliper bracket, tightening the guide pins/bolts to the manufacturer's specified torque. Reconnect the brake wear sensor.
10. Repeat & Test: Repeat the process for the other side of the axle. Once both sides are done, reinstall the wheels, lowering the vehicle. Before driving, pump the brake pedal several times until it feels firm. This reseats the caliper pistons against the new pads. Take a slow, careful test drive, bedding in the new brakes as per the manufacturer's instructions (usually gentle braking for the first 100-200 miles).

Comparative Brake Wear Scenarios

Frequently Asked Questions (FAQs)

Q: Can I just replace the brake wear sensor if the light is on?

A: While technically possible, it's highly inadvisable. The sensor is a warning device. If it's triggered, it means there's an underlying issue – either the pads are genuinely worn, or there's a problem like lipped discs. Replacing only the sensor without addressing the root cause is dangerous and defeats the purpose of the warning system. Always investigate why the sensor triggered.

Q: How long do brake pads and discs typically last?

A: This varies wildly based on driving style, vehicle type, and environment. Generally, front pads might last 20,000-40,000 miles, while rear pads can last longer (30,000-60,000 miles). Discs often last for two sets of pads, meaning 40,000-80,000 miles for front discs, and potentially longer for rear discs. Aggressive driving, heavy traffic, and towing will significantly reduce these figures.

Q: Why do inner brake pads sometimes wear faster than outer pads?

A: This can happen due to several factors. The design of the brake caliper (e.g., floating caliper designs), issues with the caliper sliding pins causing it to bind, or even the way brake force is distributed can lead to uneven wear. It's why inspecting both inner and outer pads is so important.

Q: Is it safe to drive with the brake warning light on?

A: No, it is generally not safe to continue driving with the brake warning light illuminated. This light indicates that your braking system has a critical issue that needs immediate attention. While it might only be a sensor, it could also signify severely worn pads, low brake fluid, or another dangerous fault. Ignoring it puts your safety and the safety of others at significant risk. Get it checked by a qualified mechanic or diagnose it yourself as soon as possible.

Q: What are the other common signs of worn brakes?

A: Beyond the warning light, look out for a squealing or grinding noise when braking, a vibration or pulsation felt through the brake pedal or steering wheel, a spongy or soft brake pedal, or your vehicle pulling to one side when braking. Reduced braking efficiency or increased stopping distances are also critical indicators.

Addressing brake system issues promptly is paramount for your safety and the longevity of your vehicle. While a brake warning light can be confusing, especially when there's no obvious wear, understanding the role of inner pad sensors and the impact of lipped discs is key to a correct diagnosis and effective repair. Don't delay, as proper braking is non-negotiable for safe driving.
