VW9050T1 Kit: Unveiling Cylinders & Engine Kits

For enthusiasts of classic Volkswagen air-cooled engines, the quest for enhanced performance often leads to exploring various upgrade kits. Among these, the VW9050T1 kit frequently comes up in conversation, particularly regarding its core components. To answer the most pressing question directly: the VW9050T1 kit, specifically the VW 90.5 x 69mm 1776cc Piston & Cylinder Kit, includes four cylinders. This is a crucial detail for anyone planning an engine build or upgrade, as it confirms the kit is designed for a standard four-cylinder engine configuration, ready to breathe new life into your beloved classic.

Beyond simply stating the cylinder count, understanding what this kit entails, and how it compares to broader concepts like a 'Builder's Choice' engine kit, is essential for any aspiring or experienced mechanic. These kits represent different approaches to engine modification, each with its own advantages and considerations, particularly for the discerning UK car builder.

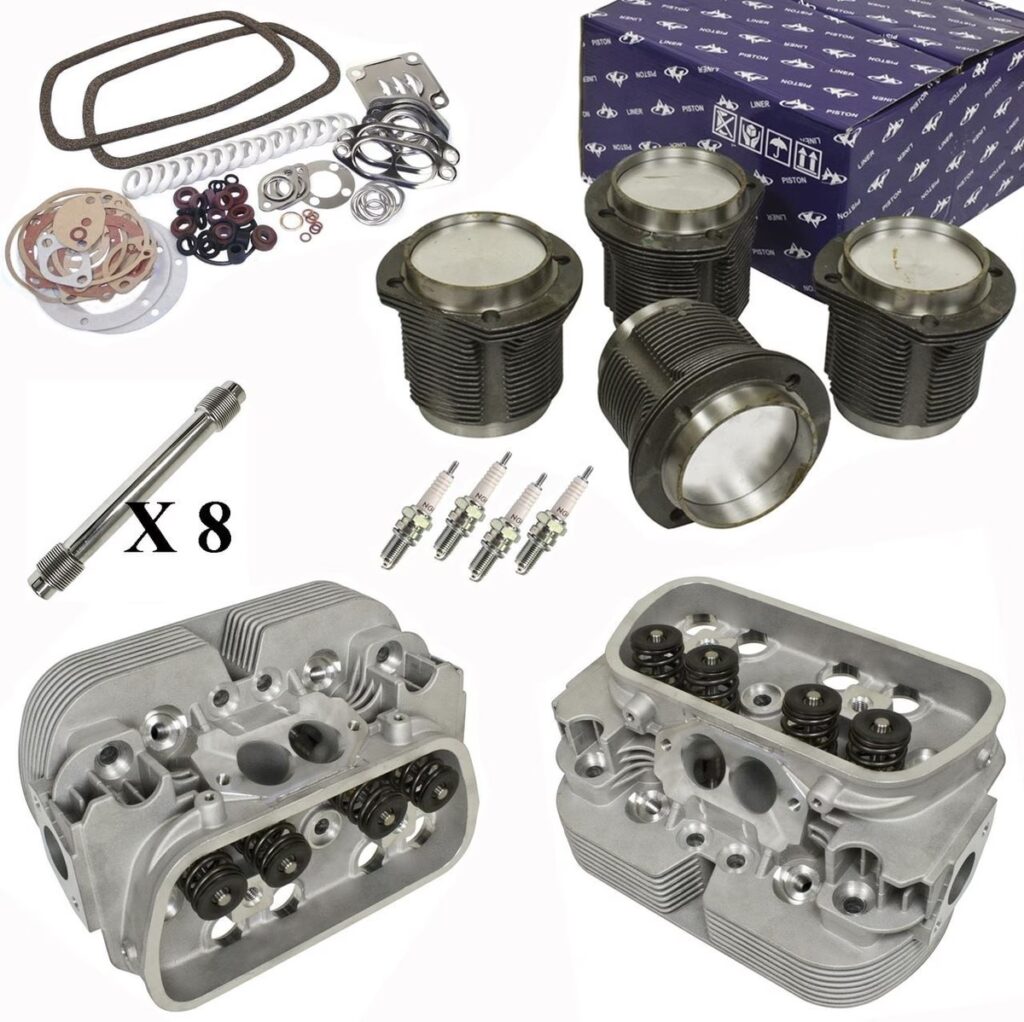

Unpacking the VW9050T1 Piston & Cylinder Kit

The VW9050T1 kit is a specific performance upgrade designed to transform a standard VW air-cooled Type 1 engine into a more potent 1776cc powerhouse. The designation '90.5 x 69mm' refers to the bore and stroke dimensions, crucial metrics that define an engine's displacement. With a 90.5mm bore and designed to pair with a 69mm crankshaft, this combination yields the popular 1776cc engine size, offering a noticeable bump in power and torque over stock configurations.

Let's break down what's inside this particular kit:

• Four Cylinders: As confirmed, the kit provides four cast iron cylinders, which are the sleeves into which the pistons move. The choice of cast iron for cylinders is a testament to its durability and excellent heat dissipation properties, vital for air-cooled engines.
• Four Pistons: Accompanying the cylinders are four hypereutectic pistons. Hypereutectic pistons are known for their high silicon content, which makes them harder, more wear-resistant, and less prone to thermal expansion compared to standard cast pistons. This material choice contributes to a more robust and reliable engine, especially under increased performance demands.
• One Set of Piston Rings: These rings are critical for sealing the combustion chamber, transferring heat from the piston to the cylinder wall, and regulating oil consumption. A complete set ensures optimal performance and longevity for all four pistons.
• Four Pins and Clips: These components secure the pistons to the connecting rods, allowing the rotational motion of the crankshaft to be translated into the linear motion of the pistons. Precision-engineered pins and clips are vital for preventing catastrophic engine failure.

One of the most significant aspects to note about the VW9050T1 kit is the explicit mention of machine work required. This isn't a bolt-on upgrade. To accommodate the larger 90.5mm cylinders, both the engine's cylinder heads and the engine case itself will need to be machined. This is a critical step that ensures proper fitment, optimal compression, and reliable operation. Failing to perform this machining correctly can lead to serious engine damage. The kit is designed to fit 90.5/92 cases and 90.5/92 heads, and its 39.8mm compression height is specifically engineered to work with small stroked cranks, typically 69mm, 74mm, and 76mm, offering flexibility for builders aiming for different performance characteristics.

Why Upgrade? The Benefits of a Big Bore Kit

Upgrading to a big bore kit like the VW9050T1 offers several compelling advantages for the air-cooled VW owner. The primary benefit is a substantial increase in engine displacement, directly translating to more horsepower and torque. A 1776cc engine provides a noticeable improvement in acceleration and overall driving experience compared to smaller, stock engines, making it a popular choice for those seeking a performance boost without venturing into extremely complex or costly modifications.

The additional displacement allows the engine to 'breathe' more effectively, drawing in and combusting a larger air-fuel mixture with each cycle. This not only enhances peak power but also improves the engine's mid-range torque, making the car more responsive and enjoyable to drive in various conditions, from city streets to country roads across the UK. For many, the thrill of a more powerful, yet still air-cooled, engine is a key motivator.

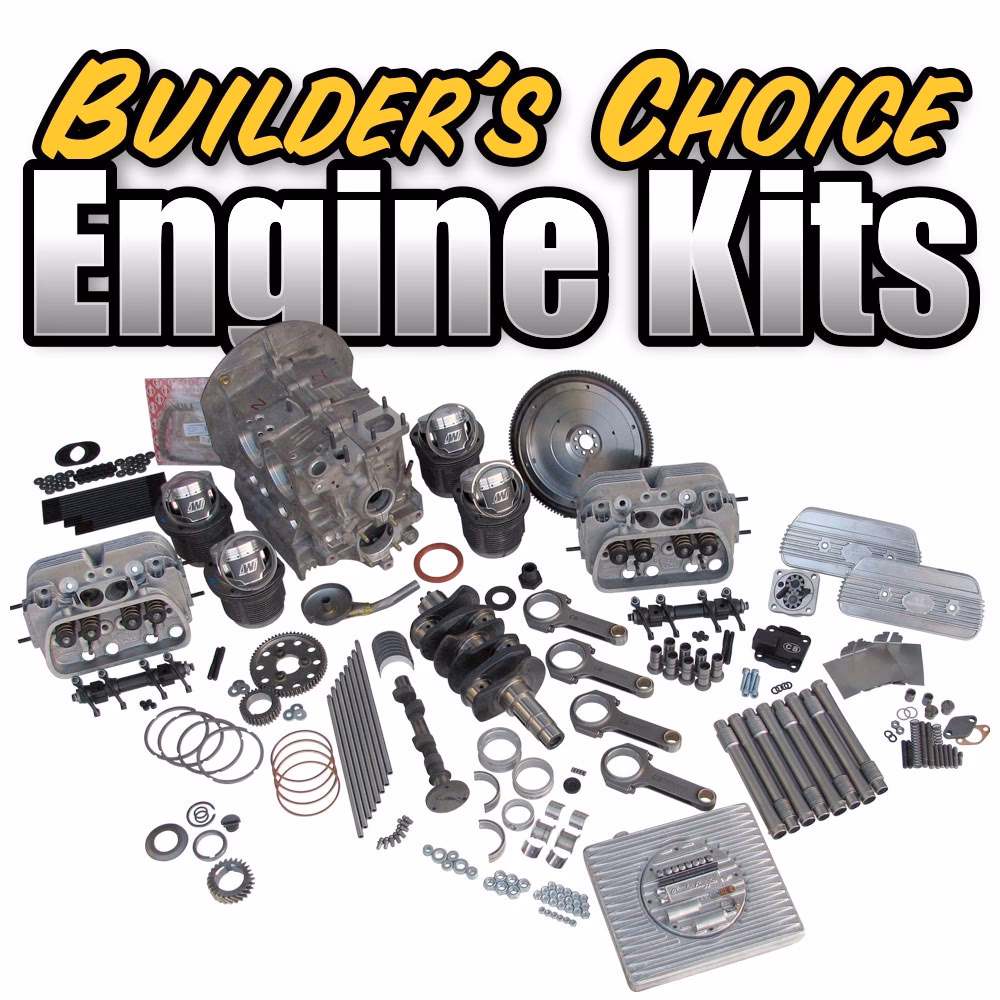

Demystifying the "Builder's Choice" Engine Kit

While the VW9050T1 is a specific piston and cylinder kit, the concept of a "Builder's Choice" engine kit represents a different, more comprehensive approach to engine construction. These kits are designed with the novice builder in mind, aiming to simplify the often-intimidating process of assembling an engine from scratch. The core philosophy is to eliminate the guesswork that traditionally plagues engine building, providing a curated selection of components that are guaranteed to work together harmoniously.

Key features and benefits of a typical "Builder's Choice" engine kit include:

• Predetermined Specifications: The kit comes with pre-selected compression ratios, connecting rod lengths, camshaft profiles, and cylinder heads. This means the builder doesn't need to spend hours researching component compatibility or performing complex calculations. The hard work of component matching is already done, ensuring a balanced and efficient engine.
• Optimised for Performance: These kits are often designed for a specific performance goal, such as "maximum power output on Regular Fuel." They're not just about getting an engine running, but about achieving a certain level of performance with readily available fuel.
• Comprehensive Guidance: Beyond the physical components, "Builder's Choice" kits frequently provide recommendations for complementary parts, such as the correct carburettor size, intake manifold, and exhaust type needed to achieve the advertised horsepower output. This holistic approach ensures that the entire engine system is optimised for performance.
• Simplified Assembly: By taking the guesswork out of component selection, these kits make engine assembly far more accessible. This empowers individuals who might not have extensive engine-building experience to undertake a significant project with confidence, fostering a deeper understanding and connection with their vehicle.

It's important to note that while "Builder's Choice" kits aim for completeness, they may not include every single component. For instance, due to availability issues, OEM Distributor Drive Pinions and Brass Distributor Drive Gears are no longer supplied in some kits. However, they typically come with standard inclusions like Black Oil Pump covers and lightweight flywheels, unless specified otherwise. Always check the exact contents of any kit before purchase.

VW Engine Kits: A Comparison

To further clarify the distinction, let's compare the specific nature of the VW9050T1 kit with the general philosophy of a "Builder's Choice" engine kit:

As the table illustrates, the VW9050T1 is a foundational component kit, a critical step in a larger engine build that requires careful planning and additional parts selection. A "Builder's Choice" kit, on the other hand, aims to be a more all-encompassing solution, guiding the builder towards a specific, pre-engineered outcome.

Essential Considerations Before Diving In

Embarking on an engine build or upgrade, whether with a specific piston and cylinder kit or a comprehensive "Builder's Choice" package, requires careful consideration and planning. For UK enthusiasts, understanding these points can save time, money, and frustration.

1. The Reality of Machine Work

For kits like the VW9050T1, the phrase "machine work required" cannot be overstated. This isn't a minor tweak; it involves precision machining of your cylinder heads and engine case. This work must be done by a reputable machine shop with experience in air-cooled VW engines. The cost of machining needs to be factored into your overall budget, as it can be a significant expense. Improper machining can lead to leaks, overheating, or even complete engine failure. Always get quotes and ensure the shop understands the specific requirements for 90.5mm cylinders.

2. Budgeting Beyond the Kit

Neither a piston and cylinder kit nor a "Builder's Choice" kit typically represents the entirety of an engine build cost. For the VW9050T1, you'll still need to consider the crankshaft, connecting rods, camshaft, cylinder heads (which need machining), carburettors, ignition system, exhaust, and all the necessary gaskets, seals, and hardware. Even "Builder's Choice" kits, while more comprehensive, may not include accessories like the alternator, starter, fan housing, or specific tinware. Create a detailed budget that accounts for every component, service, and unexpected contingency.

3. Skill Level and Resources

Be honest about your mechanical skill level. While "Builder's Choice" kits simplify the process, assembling an engine still requires a degree of mechanical aptitude, specialist tools (like a torque wrench, piston ring compressor, and engine stand), and a clean, organised workspace. If you're unsure, consider seeking guidance from experienced mechanics or joining local VW clubs. There's no shame in enlisting professional help for critical stages of the build, especially if it ensures a reliable and safe outcome. Proper preparation is paramount.

4. Choosing the Right Kit for Your Goals

Before purchasing any kit, clearly define your engine's purpose. Are you building a daily driver, a weekend cruiser, or a performance machine for track days? Your goals will dictate the best bore/stroke combination, camshaft profile, and carburetion setup. A 1776cc engine from the VW9050T1 kit is an excellent all-rounder, offering a good balance of power and reliability for street use. For more extreme applications, other kits or custom builds might be necessary. The "Builder's Choice" kits often specify their intended power output and fuel type, making them ideal for those with clear performance targets.

5. The Importance of Break-In

Once your engine is built, the break-in procedure is crucial for its longevity and performance. Follow the manufacturer's recommendations meticulously, which typically involve varying engine speeds, avoiding sustained high RPMs, and performing early oil changes. This process allows the piston rings to seat properly against the cylinder walls, ensuring optimal compression and reducing oil consumption in the long run.

Frequently Asked Questions (FAQs)

Q: How many cylinders are in the VW9050T1 kit?

A: The VW9050T1 kit includes four cylinders, along with four pistons, a set of piston rings, four pins, and clips, making it suitable for a standard four-cylinder air-cooled VW Type 1 engine.

Q: What does "machine work required" mean for the VW9050T1 kit?

A: It means that to fit the larger 90.5mm cylinders, both your existing engine's cylinder heads and the engine case will need to be professionally machined. This creates the necessary clearance and ensures a proper, tight fit for the new components.

Q: Is the VW9050T1 kit suitable for a completely stock engine build?

A: No, the VW9050T1 kit is an upgrade component. It's designed to increase the engine's displacement to 1776cc and requires significant modifications, including the aforementioned machine work and potentially other compatible performance parts like a suitable crankshaft and camshaft.

Q: What's the main advantage of a "Builder's Choice" engine kit?

A: The primary advantage is its simplicity and elimination of guesswork for the builder. These kits come with pre-selected, compatible components (crank, rods, pistons, cam, heads, etc.) that are designed to work together to achieve a specific performance goal, making engine assembly much more straightforward for novice builders.

Q: Do "Builder's Choice" kits include everything I need for a running engine?

A: While comprehensive, "Builder's Choice" kits typically include the core internal engine components. They often do not include external accessories like carburettors (though they may recommend them), exhaust systems, alternators, starters, or specific distributor components (e.g., drive pinions are often excluded now). Always review the exact contents list before purchasing.

Q: Can I use a VW9050T1 kit with any crankshaft?

A: The 39.8mm compression height of the pistons in the VW9050T1 kit is designed to work specifically with small stroked cranks, typically 69mm, 74mm, and 76mm. Using it with an incompatible crankshaft will result in incorrect compression or piston-to-head clearance issues.

Conclusion

The journey into upgrading or rebuilding an air-cooled VW engine is a rewarding one, offering the chance to imbue your classic with renewed vigour. The VW9050T1 kit, with its four robust cylinders and hypereutectic pistons, stands as a popular choice for those aiming for a 1776cc performance upgrade, though it critically demands professional machine work. In contrast, the "Builder's Choice" engine kit philosophy caters to a broader audience, simplifying the often-complex process of engine assembly by providing pre-matched components and expert guidance. Whether you opt for a targeted component upgrade or a more comprehensive solution, careful planning, a clear understanding of the requirements, and an honest assessment of your skills are key to a successful and satisfying build for your cherished Volkswagen.
