Vauxhall Vivaro Clutch Replacement: Your Guide

The Vauxhall Vivaro has, since its launch in 2001, cemented its reputation as one of the UK's most reliable and versatile medium vans. Known for its outstanding fuel economy, comfortable ride, and substantial payload capacity, it's a workhorse for many businesses and individuals alike. However, like any vehicle, even a robust Vivaro will eventually require maintenance, and one of the most significant components to consider is the clutch. If you've noticed a change in your Vivaro's performance, particularly concerning gear changes, you might be facing a clutch issue. This comprehensive guide will delve into everything you need to know about Vauxhall Vivaro clutch replacement, from identifying symptoms and understanding causes to the intricate replacement process and, crucially, how to find the best prices for this essential repair.

Understanding Your Vauxhall Vivaro's Clutch

In a combustion engine vehicle, the clutch serves a vital purpose: it acts as a mechanical link that disconnects the engine from the wheels. This disconnection is crucial for allowing you to change gears smoothly. Without a properly functioning clutch, shifting gears would be impossible, leading to jarring movements and potential damage to your vehicle's transmission. A car's clutch is designed for longevity, typically lasting anywhere between 60,000 and 150,000 miles, though this can vary significantly based on driving style and conditions.

It's worth noting that the Vauxhall Vivaro is an excellent example of a mutual venture in the automotive industry. Its platform is shared with the Renault Trafic and Nissan Primastar, meaning many components, including clutch systems, are often interchangeable or very similar. This shared lineage can sometimes simplify parts sourcing and mean that specialists familiar with one model can often service the others effectively.

Recognising Clutch Problems: Symptoms to Watch For

Your Vivaro's clutch system is designed for durability, but problems can arise. Being able to recognise the early warning signs of clutch wear or failure is crucial for preventing more severe and costly damage. Here are the most common symptoms indicating your Vivaro's clutch might need attention:

• Clutch Slipping: This is arguably the most common and tell-tale symptom. You'll notice that when you accelerate, the engine revs increase, but the vehicle doesn't gain speed proportionally. It feels like the power isn't fully reaching the wheels, often accompanied by a burning smell. This occurs because the clutch disc isn't fully engaging with the flywheel.
• Unusual Noises: A grinding noise when the clutch pedal is depressed often indicates metal-on-metal contact between the clutch plate and flywheel, likely due to a worn disc or contamination. Other noises might include a squealing or chirping sound from the release bearing.
• Clutch Chatter or Judder: If your Vivaro shudders or vibrates violently when you engage the clutch, particularly when starting from a standstill, this is known as clutch judder. It can be caused by a warped flywheel, a contaminated clutch disc, or worn components within the clutch assembly.
• Stuck Clutch Pedal: A clutch pedal that stays depressed after you push it, or feels exceptionally soft and spongy, suggests a problem with the hydraulic system, such as low fluid levels or air in the lines. Conversely, a pedal that feels unusually stiff or heavy to operate can indicate issues with the clutch mechanism itself, such as a lack of lubrication in the release mechanism.
• Difficulty Changing Gears: If you find it hard to shift into gear, or gears crunch when you try to engage them, this could be a sign that the clutch isn't fully disengaging the engine from the gearbox.

As soon as you notice any of these signs, it's advisable to book a car clutch repair or replacement. These symptoms will only worsen over time, potentially leading to a complete breakdown and leaving you stranded.

Common Causes of Vauxhall Vivaro Clutch Problems

Understanding the root causes behind clutch issues can help in both diagnosis and prevention:

• Worn Clutch Plate: Over time, friction material on the clutch disc naturally wears down due to normal use. This is the most common reason for clutch replacement, especially in vehicles that have covered high mileage or are frequently used for stop-start driving.
• Low or Contaminated Hydraulic Fluid: The Vivaro's clutch system is hydraulic. If the fluid level is too low due to a leak, or if the fluid becomes contaminated (e.g., with air or debris), the clutch may not engage or disengage properly.
• Contamination of Clutch Components: Oil or dirt can contaminate the clutch disc, reducing its friction and causing slipping. This can often happen due to leaks from engine or gearbox seals.
• Release Bearing Failure: A worn or seized release bearing can lead to noisy operation, difficulty in disengaging the clutch, or a heavy pedal. Often, a lack of lubrication contributes to this.
• Warped or Damaged Flywheel: The flywheel can suffer from heat stress, developing hairline fractures or cracks, or becoming warped. This can lead to judder and ineffective clutch engagement.
• Concentric Slave Cylinder (CSC) Issues: Being part of the hydraulic system and often integrated with the release bearing, a faulty CSC can cause fluid leaks, leading to a loss of hydraulic pressure and clutch disengagement problems.

Diagnosing and Solving Vivaro Clutch Problems

When faced with clutch issues, a systematic approach to diagnosis is key:

1. Know the Symptoms: As detailed above, being aware of how a failing clutch manifests can help narrow down the problem.
2. Check the Clutch Fluid: Inspect the clutch fluid reservoir. Low fluid levels can indicate a leak in the hydraulic system, which should then be investigated.
3. Inspect the Clutch System: For a more in-depth diagnosis, a mechanic will often need to inspect the components directly. This involves checking the pressure plate, clutch disc, flywheel, and master cylinder for wear or damage.

Once diagnosed, solutions can range from simple adjustments to full replacements:

• Clutch Adjustment: If your clutch is slipping or slow to engage, a simple adjustment might resolve the issue, though this is less common with hydraulic systems.
• Clutch Cable Replacement: While the Vivaro uses a hydraulic clutch, some older or different systems might use a cable. If present and worn, replacing it is a straightforward fix.
• Clutch Disc Replacement: If only the friction material is worn, replacing just the clutch disc might be an option, though often the entire assembly (disc, pressure plate, release bearing) is replaced to ensure longevity.
• Rebuild the Clutch Assembly / Full Replacement: For more severe issues, such as a worn pressure plate, faulty release bearing, or damaged flywheel, a full clutch assembly replacement is usually the most effective and recommended solution. This ensures all critical wear components are new.

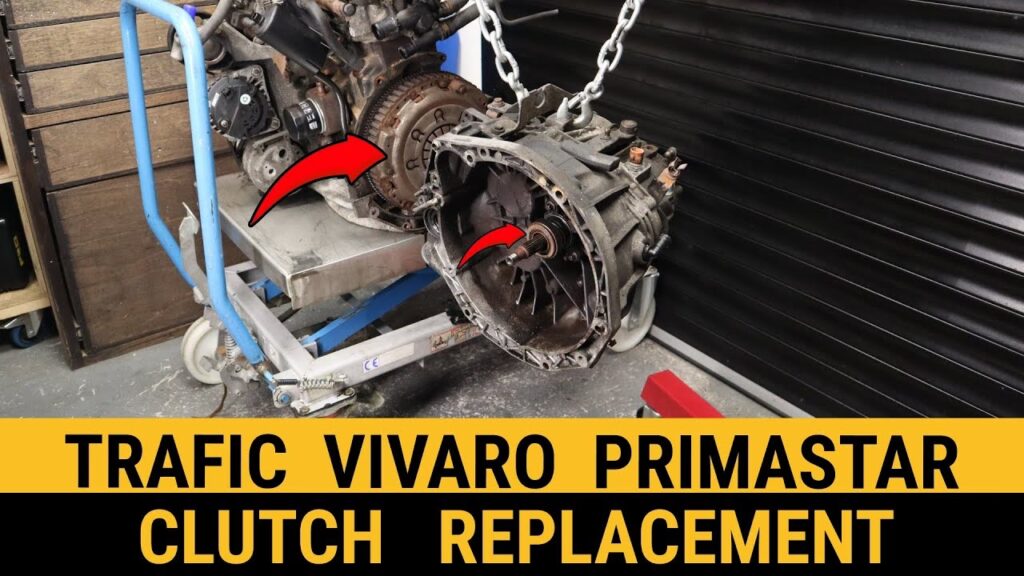

The Vauxhall Vivaro Clutch Replacement Process: A Detailed Insight

Replacing a Vauxhall Vivaro clutch is a complex procedure that typically takes two to six hours, depending on the mechanic's experience and the specific challenges presented by the vehicle. It requires specialised tools and expertise. Here's a general overview of the process:

1. Preparation and Initial Disassembly:
   • Secure the vehicle on a lift.
   • Disconnect the battery for safety.
   • Remove the engine cover, air filter housing, ducting, and relevant sensors (e.g., air mass meter, turbo boost pressure sensor) to gain access to the gearbox area.
   • Disconnect gear change cables, speedo, and reverse light switch multiplugs.
   • Clamp the hydraulic clutch pipe and disconnect it from the concentric slave cylinder (CSC).
   • Remove upper bell housing nuts and studs (if they come out).
2. Draining and Driveshaft Removal:
   • Slacken both driveshaft/hub nuts.
   • Raise the ramp and drain the gearbox oil.
   • Lower the ramp to waist height and suspend the front wheels.
   • Remove both front wheels, front hub nuts, and the nearside front wheel arch liner.
   • Release brake hoses from retaining points on front struts.
   • Remove strut-to-hub assembly bolts.
   • Lever hub assemblies out and remove driveshafts from the hub assemblies and then from the gearbox. Special care is needed for the off-side driveshaft, which locates through a support bearing.
3. Gearbox Removal:
   • Raise the ramp and remove the lower gearbox bell housing cover.
   • Remove starter motor bolts and bell housing bolts, including those around the oil filter housing.
   • Remove the remaining bell housing bolts, leaving one accessible bolt to support the gearbox temporarily.
   • Remove the lower engine pendulum mounting and attach an engine support.
   • Remove subframe bolts and steering rack bolts to allow the engine and gearbox to lower slightly, aiding gearbox removal.
   • Lower the ramp and remove the gearbox mounting from the chassis leg. Lower the engine slightly to access and remove the gearbox mounting, air conditioning pipe, and earth strap.
   • Support the gearbox with a transmission jack. Remove the final accessible bell housing bolt and carefully ease the gearbox back until it's free. This step can sometimes require force if the gearbox has seized on the location dowels. Clean dowels if necessary.
4. Clutch and CSC Replacement:
   • With the gearbox removed, the old clutch assembly (clutch plate, pressure plate) can be removed from the flywheel. Inspect for wear, especially the release mechanism's lubrication.
   • Inspect the flywheel for heat stress, hairline fractures, or cracks. Clean the flywheel face with Emery cloth and a suitable cleaner.
   • Remove the old concentric slave cylinder (CSC) from the gearbox bell housing. Inspect for oil leaks. Clean the bell housing and input shaft.
   • Mount the new CSC, ensuring the surface is clean. Do not 'dry squeeze' the CSC, as this can cause internal damage. Torque bolts to manufacturer's specifications.
   • Lightly smear high melting point grease on the input shaft. Mount the new clutch plate on the input shaft to ensure correct fitment and even grease distribution. Remove excess grease.
   • Using a clutch alignment tool, mount the new clutch (ensuring 'Gearbox Side' or 'Getriebe Seite' faces the gearbox) on the flywheel and tighten in an even, sequential manner.
5. Reinstallation and Bleeding:
   • At this point, it's good practice to change the clutch fluid in the hydraulic system. This removes contaminated fluid and prevents future bleeding problems or premature failure.
   • Install the gearbox in reverse order of removal. Ensure locating dowels are in place and undamaged.
   • Torque all bolts to the manufacturer's specification.
   • Remember to refill the gearbox with the correct grade and quantity of gearbox oil.
   • Bleeding the Clutch: The Vivaro's clutch system can be challenging to bleed. A recommended two-person process involves filling the reservoir, attaching a bleed bottle, slowly pressing the pedal to the floor, opening the bleed nipple until pressure exhausts, closing the nipple, and allowing the pedal to return slowly. This process should be repeated about 25 times, continuously topping up the reservoir. This method allows the clutch return system to do the work, rather than relying solely on foot pressure.

It's important to note that Vivaro models around late-2006 and early-2007 saw changes in gearbox designs. Later versions have the wiring loom positioned at the top of the gearbox, which needs to be removed to access top bell housing bolts.

Preventing Future Vauxhall Vivaro Clutch Issues

While clutch wear is inevitable, you can significantly extend your Vivaro's clutch life and prevent premature issues by following these tips:

1. Check the Clutch Fluid Regularly: Regularly monitor the hydraulic clutch fluid levels and top them up as needed. This ensures the system remains lubricated and functions correctly.
2. Monitor Clutch Wear: Pay attention to any changes in your clutch's behaviour. Early detection of symptoms can prevent minor issues from becoming major, costly repairs.
3. Regularly Service the Clutch: Include clutch inspection as part of your Vivaro's regular servicing schedule. A qualified mechanic can identify potential problems before they escalate.
4. Avoid Overloading: Do not overload your Vivaro beyond its specified weight limits. Excessive loads put immense strain on the clutch system, causing it to wear out much faster.
5. Use the Right Clutch Type: When a replacement is necessary, always ensure that the correct type of clutch assembly (and components like the CSC) is used for your specific Vivaro model. Using an incorrect part can lead to premature failure and costly re-repairs.

Finding the Best Vauxhall Vivaro Clutch Replacement Price

The cost of a Vauxhall Vivaro clutch replacement can vary widely based on labour rates, parts costs, and the complexity of the job. Labour time typically ranges from two to six hours, and parts can vary significantly in price depending on whether genuine Vauxhall parts or aftermarket alternatives are used. If you're concerned about the cost, you're in the right place.

The most effective way to find an affordable and reliable clutch specialist is to compare quotes. Many online platforms allow you to easily compare prices from a network of thousands of garages and mechanics across the UK. You simply input your vehicle details and the required service, and you'll receive multiple quotes, allowing you to choose the best price and instantly book online. Additionally, consider looking into mobile clutch repair services, where a specialist comes directly to your location, potentially saving you time and hassle.

While price is a significant factor, always prioritise quality and reliability. A cheaper repair might end up costing more in the long run if the work isn't done to a high standard or if inferior parts are used. Look for garages with good reviews and a strong reputation for clutch work on vans like the Vivaro.

Symptoms, Causes, and Solutions: A Quick Overview

Here's a handy table summarising common clutch issues for your Vauxhall Vivaro:

Frequently Asked Questions (FAQs)

How long does a Vauxhall Vivaro clutch last?

A Vauxhall Vivaro clutch typically lasts between 60,000 and 150,000 miles. However, this lifespan can be significantly impacted by driving habits, such as frequent stop-start driving, towing, or riding the clutch.

How long does a Vivaro clutch replacement take?

A professional Vauxhall Vivaro clutch replacement usually takes between 2 to 6 hours. This timeframe can vary depending on the specific Vivaro model, the complexity of the job, and the mechanic's experience.

Can a Renault Trafic or Nissan Primastar have a clutch replacement with Vivaro parts?

Given that the Vauxhall Vivaro shares its platform with the Renault Trafic and Nissan Primastar, many clutch components are indeed interchangeable or very similar. A specialist familiar with one model will generally be able to perform a clutch replacement on the others.

Is the Vauxhall Vivaro a mutual venture?

Yes, the Vauxhall Vivaro is a prime example of a mutual venture. It was developed in collaboration with Renault and Nissan, sharing its platform and many mechanical components with the Renault Trafic and Nissan Primastar. This collaboration has led to its widespread popularity and component commonality.

What are the signs of a failing clutch in a Vivaro?

Key signs include the clutch slipping (engine revs but vehicle doesn't accelerate), unusual grinding or squealing noises, clutch judder or vibration when engaging, a heavy or unusually light/spongy clutch pedal, and difficulty changing gears.

What is the typical cost of a Vauxhall Vivaro clutch replacement in the UK?

The cost for a Vauxhall Vivaro clutch replacement in the UK can vary significantly, often ranging from £400 to £800 or more, depending on the garage, location, labour rates, and the specific parts required (e.g., if the flywheel also needs replacing). It's always best to get multiple quotes from reputable garages to ensure you get a fair price.

In Summary

The clutch is an indispensable part of your Vauxhall Vivaro's drivetrain, essential for smooth and efficient operation. Recognising the symptoms of a failing clutch early, understanding the common causes, and knowing the detailed replacement process will empower you to make informed decisions about your vehicle's maintenance. While it's a significant repair, investing in a professional clutch replacement ensures your Vivaro continues to be the reliable workhorse you depend on. Don't delay addressing clutch issues; use online comparison tools to find competitive quotes from trusted mechanics across the UK and get your Vivaro back on the road with confidence.
