Unveiling the Triumph Tiger 800 XC's Modularity

The Triumph Tiger 800 XC, a celebrated machine in the adventure touring segment, is renowned not only for its formidable capability on and off the tarmac but also for its inherent modularity. This design philosophy empowers owners, whether they are keen DIY mechanics, customisation enthusiasts, or simply riders who value maintainability, to access, service, and modify various components. Understanding which parts can be removed from your Tiger 800 XC is key to unlocking its full potential, from routine servicing to significant upgrades or even just making it lighter for a specific off-road excursion.

The ability to remove parts is fundamental to a motorcycle's lifecycle. It facilitates everything from basic checks and fluid changes to complex engine rebuilds or accident repairs. For the Tiger 800 XC, a bike often subjected to demanding conditions, this modularity is particularly beneficial. Whether you're preparing for a long-distance tour, tackling a challenging trail, or simply keeping your bike in prime condition, knowing your way around its removable components is an invaluable skill.

Commonly Removed Parts for Routine Maintenance & Servicing

Regular maintenance is the bedrock of a long and reliable life for any motorcycle, and the Tiger 800 XC is no exception. Many routine service tasks necessitate the removal of specific parts to gain access or to replace wear-and-tear items. These are often the first components an owner learns to remove.

• Bodywork and Fairings: To access the engine, airbox, battery, and various electrical components, several panels of bodywork often need to be carefully removed. This includes side panels, the belly pan, and sometimes parts of the front fairing or headlight assembly. These are typically held on by a combination of bolts, clips, and sometimes plastic fasteners, designed for relatively straightforward removal and reinstallation.
• Seat: The rider's seat, and often the pillion seat, are designed for quick removal, usually via a key lock or a simple latch mechanism. This provides immediate access to the battery, fuse box, and sometimes the toolkit or under-seat storage space.
• Fuel Tank: While not a 'routine' removal for every service, the fuel tank must be lifted or completely removed for tasks like spark plug replacement, air filter inspection/replacement, or access to the fuel pump and injectors. This involves disconnecting fuel lines and electrical connectors, and often requires draining the tank to make it lighter and safer to handle.

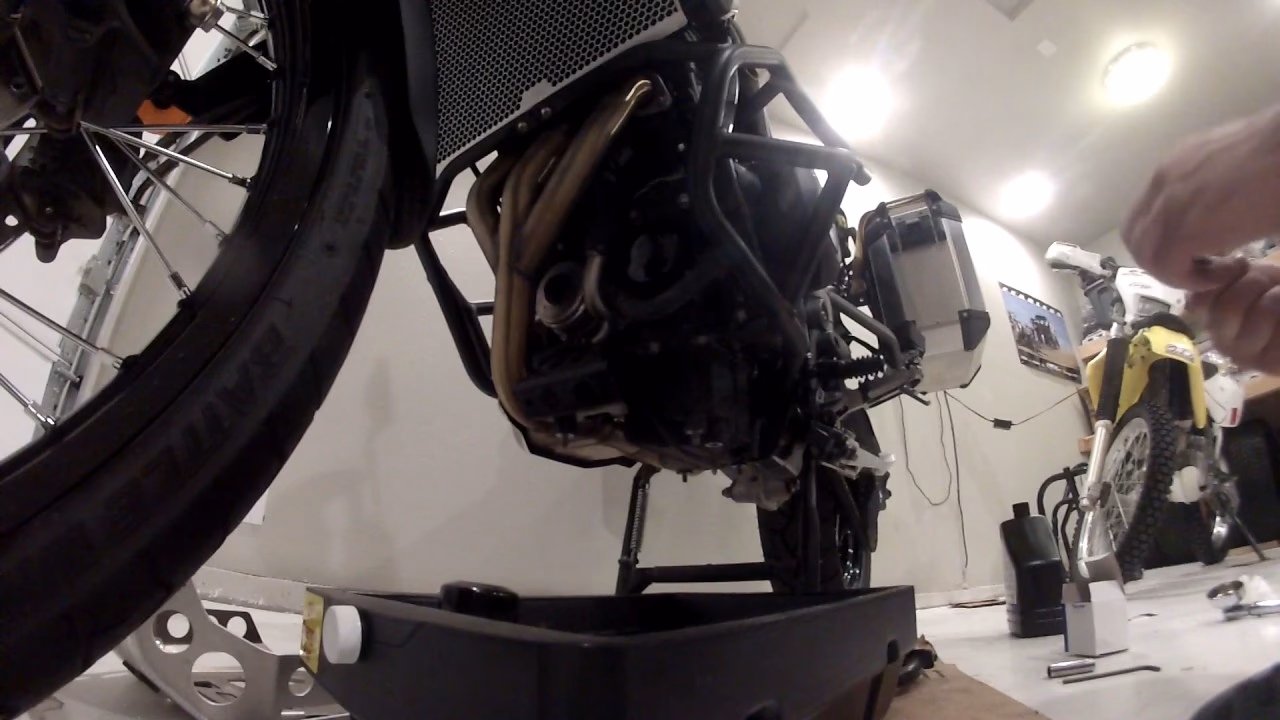

• Oil Filter and Sump Plug: These are removed during every oil change. The oil filter is a canister that screws onto the engine, and the sump plug is a bolt at the bottom of the oil pan that allows old oil to drain out. Both are crucial for maintaining engine lubrication.
• Air Filter: Housed within the airbox, the air filter is regularly inspected and replaced. Accessing it usually requires removing some bodywork and disassembling parts of the airbox itself. A clean air filter is vital for optimal engine performance and fuel efficiency.
• Spark Plugs: Essential for ignition, spark plugs need periodic inspection and replacement. On the Tiger 800 XC, accessing them typically involves lifting or removing the fuel tank and possibly other components to reach the cylinder head.
• Brake Pads and Discs: These are wear items that need frequent inspection and eventual replacement. Brake pads slide out of the calipers once the retaining pins are removed, while brake discs (rotors) are bolted to the wheel hub. Replacing them ensures effective stopping power.
• Wheels and Tyres: For tyre changes, puncture repairs, or bearing inspection, both the front and rear wheels can be removed. This involves loosening axle bolts and sometimes removing brake calipers to allow the wheel to slide out.
• Battery: The 12V battery, typically located under the seat, needs to be removed for charging, replacement, or during long-term storage to prevent discharge. It's connected by positive and negative terminals.

Parts Removed for Repair & Replacement

Beyond routine maintenance, various components may need removal due to damage, wear, or simply reaching the end of their service life. These often require more involved processes and specific tools.

• Levers and Mirrors: Brake and clutch levers, along with mirrors, are common casualties in minor tip-overs or accidents. They are usually bolted onto the handlebars and are relatively simple to replace.
• Handlebars: For ergonomic adjustments or replacement due to damage, the handlebars are secured by clamps on the top yoke. All controls (switches, throttle, brake master cylinder, clutch perch) must be disconnected or slid off first.
• Lights and Indicators: Headlights, tail lights, and turn indicators are modular units that can be unbolted and unplugged for replacement.
• Exhaust System: The entire exhaust system, from the headers to the silencer, can be removed. This might be for replacement due to damage, upgrading to an aftermarket system for performance or weight reduction, or to gain access to other engine components. It involves unbolting from the cylinder head and various hangers.
• Radiator and Cooling System Components: If the radiator is damaged or components like hoses, the thermostat, or the water pump need attention, they can be removed. This typically involves draining the coolant first.
• Suspension Components: Both the front forks and the rear shock absorber are removable units. Fork removal involves loosening triple clamp bolts, while the rear shock is usually held by upper and lower mounting bolts. This is often done for servicing, re-valving, or upgrading.
• Engine Covers: Various engine covers (e.g., clutch cover, stator cover) can be removed to access internal components for inspection or repair, such as replacing a clutch or stator. This usually involves draining engine oil and replacing gaskets upon reassembly.
• Drive Chain and Sprockets: The chain can be broken and removed for cleaning or replacement, and the front and rear sprockets are bolted to the output shaft and rear wheel hub, respectively.

Parts Removed for Customisation & Accessories

One of the joys of owning an adventure bike like the Tiger 800 XC is the ability to tailor it to your specific needs and adventures. Many aftermarket parts are designed for straightforward removal and installation.

• Luggage Systems: Pannier racks, top box mounts, and soft luggage frames are designed to be bolted onto the subframe and can be easily removed when not needed, reducing weight and width.
• Protection Components: Crash bars, engine guards, bash plates, and handguards are popular additions for off-road riding. These are typically bolted onto existing frame points and can be removed for servicing or if no longer desired.
• Windshields/Screens: Aftermarket screens of varying heights and designs are common. They are usually bolted to the front fairing and can be swapped out to suit different riding conditions or rider preferences.
• Auxiliary Lighting: Additional driving lights or fog lights are often mounted to crash bars or dedicated brackets and are wired into the bike's electrical system, but can be removed if necessary.
• Aftermarket Seats and Footpegs: Comfort seats or lower/higher footpegs can be easily swapped in place of the standard items to improve ergonomics for different riders.
• GPS Mounts and USB Chargers: These are typically bolted to the handlebars or dashboard and are easily removable.
• Performance Exhausts: As mentioned, the stock exhaust can be replaced with lighter, louder, or performance-oriented aftermarket systems.

Considerations When Removing Parts

While the Tiger 800 XC is designed for maintainability, certain considerations are paramount when removing or re-installing parts:

• Tools: Always use the correct tools. Metric spanners, sockets, Allen keys, and Torx bits are standard. A torque wrench is essential for re-tightening fasteners to the manufacturer's specified torque settings, preventing damage or loosening during operation.
• Service Manual: The official Triumph service manual (like the one referenced in the initial information) is your best friend. It provides detailed instructions, torque specifications, and exploded diagrams for every component.
• Fasteners: Keep track of all bolts, nuts, and washers. Note their size and location. Using a parts tray or labelling system can prevent frustration during reassembly.
• Gaskets and Seals: When removing components that seal fluids (e.g., engine covers, coolant hoses), be prepared to replace gaskets or O-rings to prevent leaks.
• Safety: Always ensure the motorcycle is stable on a paddock stand or centre stand. Disconnect the battery before working on electrical components. Wear appropriate personal protective equipment.

Table: Types of Removable Parts and Their Purpose

Frequently Asked Questions About Part Removal

Understanding the 'what' and 'why' often leads to questions about the 'how' and 'implications'.

Is it difficult to remove parts from a Tiger 800 XC?

The difficulty varies significantly depending on the part. Basic items like the seat or side panels are very easy. More complex components like the fuel tank or engine covers require more time, patience, and often specific tools. Triumph designs their bikes with a reasonable degree of accessibility for owner-maintenance, but some tasks are best left to experienced mechanics.

Do I need special tools to remove parts?

For most routine maintenance and accessory installation, standard metric hand tools (spanners, sockets, Allen keys, Torx bits, screwdrivers) are sufficient. However, a torque wrench is highly recommended for reassembly. For specific tasks like wheel removal, a large axle nut socket or specific tools for chain adjustment might be needed. Suspension work or internal engine work will likely require specialist tools.

Will removing parts void my warranty?

Generally, simply removing a part for inspection or maintenance will not void your warranty, provided you follow the manufacturer's procedures and use correct torque settings. However, if damage occurs due to improper removal/installation, or if you install an aftermarket part that causes a failure, the warranty claim related to that specific failure might be denied. Always consult your dealer or warranty terms if you have concerns.

Where can I find torque settings for re-installing parts?

The definitive source for all torque settings is the official Triumph Tiger 800/800XC Service Manual. This manual is an invaluable resource for anyone planning to do their own maintenance or repair work. Online forums and enthusiast groups can also be helpful, but always cross-reference with the official manual for critical fasteners.

Can I ride my Tiger 800 XC without certain parts, such as passenger pegs or mirrors?

Yes, you can remove non-essential parts like passenger footpegs, luggage racks, or even the rear pillion seat for weight reduction, especially for off-road riding. However, always ensure your bike remains road legal. For instance, riding without mirrors is often illegal on public roads in the UK, even if it might be practical for tight trails. Always check local regulations.

Conclusion

The Triumph Tiger 800 XC is a remarkably versatile and maintainable machine, largely thanks to its thoughtful modular design. From routine checks to extensive modifications, a wide array of parts can be removed, replaced, or upgraded. This inherent flexibility not only simplifies maintenance and repair but also allows owners to truly personalise their adventure steed. By understanding the various removable components and approaching the task with the right tools and knowledge – especially with the aid of the official service manual – Tiger 800 XC owners can confidently tackle nearly any mechanical challenge, ensuring their beloved bike remains ready for whatever adventure lies ahead.
