Ensuring your vehicle's wheels are perfectly aligned is paramount for a smooth, safe, and efficient driving experience. While many drivers are familiar with the concept of wheel alignment, the intricacies of different systems can be a source of confusion. This article delves into the world of all-in-one 4-wheel alignment systems, explaining what they are, how they work, and why they are a superior choice for modern vehicles. We’ll also touch upon their 2-wheel counterparts to highlight the advancements and benefits of a comprehensive approach.
Understanding Wheel Alignment
Wheel alignment, often referred to as a "tracking" check, is the process of adjusting your vehicle's suspension components so that your wheels are set to the optimal angles. This adjustment ensures that your tyres are making proper contact with the road surface. Misaligned wheels can lead to a host of problems, including uneven tyre wear, poor fuel efficiency, and compromised handling and steering control. Essentially, it’s about ensuring your car goes where you point it, without unnecessary resistance or deviation.
The Evolution: From 2-Wheel to 4-Wheel Alignment
Historically, many alignment checks focused primarily on the front wheels, often referred to as a 2-wheel alignment. This approach aimed to correct issues related to steering and basic tyre wear. However, with the evolution of vehicle design, particularly the advent of sophisticated suspension systems and rear-wheel steering capabilities in some models, a more holistic approach became necessary. This is where the all-in-one 4-wheel alignment system truly shines.
What is a 2-Wheel Alignment System?
A 2-wheel alignment system typically focuses on the front axle of a vehicle. These systems are designed to measure and adjust key angles such as:
- Toe: This is the angle of the wheels relative to the vehicle's longitudinal axis. If the wheels are pointing slightly inwards or outwards, it's called toe.
- Camber: This refers to the vertical tilt of the wheel inwards or outwards when viewed from the front. Positive camber means the top of the wheel is tilted outwards, while negative camber means it's tilted inwards.
- Caster: This is the angle of the steering axis when viewed from the side. It affects steering stability and returnability.
Our 2-wheel alignment system, a best-selling product, excels in measuring camber, caster, and toe with remarkable accuracy and affordability. It offers a robust solution for basic alignment needs. We also provide specialized camber gauges, accurate to 0.1 degrees, which can measure caster without the need for turn plates. These gauges come in both hand-held and hands-free variants, offering flexibility to mechanics.
Introducing the All-in-One 4-Wheel Alignment System
The all-in-one 4-wheel alignment system takes the concept of wheel alignment to a comprehensive level by measuring and adjusting all four wheels simultaneously. This is crucial because the alignment of the rear wheels can significantly impact the handling and stability of the vehicle, even if the steering is controlled by the front wheels. Modern vehicles often have adjustable rear suspension components, making a 4-wheel alignment indispensable.
Key Features of a 4-Wheel Alignment System

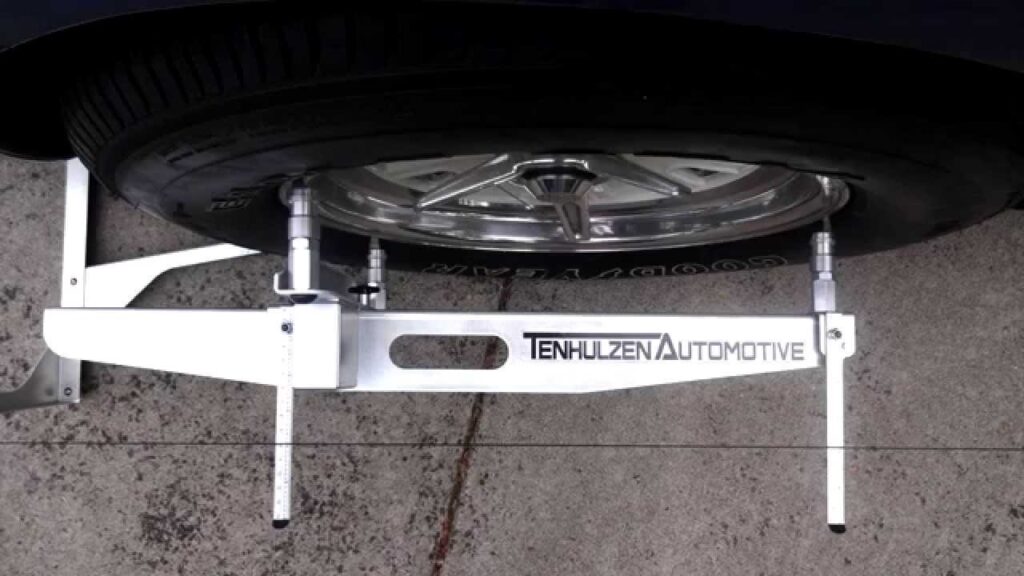

Our advanced 4-wheel alignment system is engineered to provide precise measurements for all four wheels. It typically employs a parallel frame structure, coupled with a hands-free gauge, to facilitate accurate 4-wheel alignment measurements. This setup ensures that the relationship between all wheels is taken into account, offering a complete picture of the vehicle's alignment status.
The benefits of using such a system include:
- Comprehensive Measurement: It measures toe, camber, and caster for all four wheels, providing a complete diagnostic.
- Improved Handling: Correcting rear-wheel alignment can drastically improve a car's tendency to "wander" or pull to one side, especially at higher speeds.
- Extended Tyre Life: By ensuring all tyres are tracking correctly, premature and uneven tyre wear is significantly reduced, saving you money on replacements.
- Enhanced Fuel Efficiency: When wheels are misaligned, they create more rolling resistance, forcing the engine to work harder and consume more fuel. Proper alignment can contribute to better MPG.
- Safer Driving: A properly aligned vehicle is more stable and predictable, making it safer to drive, especially in adverse conditions.
How Does a 4-Wheel Alignment System Work?
A typical 4-wheel alignment process using an advanced system involves the following steps:
- Vehicle Preparation: The vehicle is placed on a level surface, and tyre pressures are checked and adjusted to the manufacturer's specifications.
- Sensor Attachment: Special sensors or "targets" are attached to each wheel.
- Calibration: The alignment equipment is calibrated. For a 4-wheel system, this often involves using a "rolling compensation" or "lifted runout" procedure to account for any slight imperfections in the wheel rims or tyres.
- Measurement: The system then measures the toe, camber, and caster angles for all four wheels. It also checks "thrust angle" – the angle of the rear axle relative to the vehicle's centreline.
- Adjustment: Based on the measurements and the manufacturer's specifications, adjustments are made to the suspension components. Modern systems often display the "before" and "after" readings, making it easy to see the improvements.
The Importance of Adjustable Suspension Components
It's vital to note that for a 4-wheel alignment to be fully effective, the vehicle must have adjustable suspension components for both the front and rear axles. While most vehicles have adjustable front suspension, rear-wheel adjustability is not universal. However, even on vehicles with non-adjustable rear suspension, a 4-wheel alignment can identify if the rear axle is "out of square" (not parallel to the vehicle's centreline), which can still be corrected by adjusting the front end to compensate or by addressing the underlying issue.
Comparing 2-Wheel and 4-Wheel Alignment
To further illustrate the advantages, let's consider a comparative table:
| Feature | 2-Wheel Alignment System | 4-Wheel Alignment System |
|---|---|---|
| Focus | Front wheels only | All four wheels |
| Measurement Scope | Toe, Camber, Caster (Front) | Toe, Camber, Caster (Front & Rear), Thrust Angle |
| Vehicle Handling Impact | Addresses steering pull and front tyre wear | Addresses steering issues, all tyre wear, and rear axle stability |
| Ideal For | Older vehicles with non-adjustable rear suspensions, basic front-end corrections | Modern vehicles, vehicles experiencing rear-end instability, maximizing tyre life and fuel efficiency |
| Complexity | Simpler adjustments | More comprehensive adjustments, accounts for rear axle geometry |
Frequently Asked Questions (FAQs)
Q1: How often should I get a wheel alignment?
It's generally recommended to have your wheel alignment checked annually, or whenever you notice signs of uneven tyre wear, your vehicle pulls to one side, or after hitting a significant pothole or curb.
Q2: Can a 4-wheel alignment fix all my tyre wear problems?
While a 4-wheel alignment is crucial for preventing and correcting uneven tyre wear caused by misalignment, it won't fix issues caused by worn-out suspension components (like ball joints or bushings) or severely damaged tyres themselves. These issues would need to be addressed separately.
Q3: Is a 4-wheel alignment more expensive than a 2-wheel alignment?
Typically, yes. A 4-wheel alignment involves more complex measurements and adjustments, and therefore, it usually costs more. However, the long-term savings on tyres and improved fuel efficiency often justify the additional cost.
Q4: What is "thrust angle" and why is it important?
Thrust angle is the direction the rear wheels are pointing relative to the vehicle's centreline. If the thrust angle is off, the vehicle will try to steer itself in a direction different from where the driver is pointing the steering wheel, leading to "dog tracking" (the rear wheels not following the front wheels) and uneven tyre wear. A 4-wheel alignment system measures and corrects this.
Q5: Do I need special equipment for a 4-wheel alignment?
Yes, a professional 4-wheel alignment requires specialized equipment, such as the all-in-one 4-wheel alignment system described, which can accurately measure all relevant angles for all four wheels simultaneously.
Conclusion
In summary, while 2-wheel alignment systems offer a valuable service for front-wheel adjustments, the all-in-one 4-wheel alignment system represents the pinnacle of precision and comprehensive vehicle geometry correction. For modern vehicles, and indeed for anyone looking to maximize tyre life, improve fuel economy, and ensure optimal handling and safety, investing in a 4-wheel alignment is not just a recommendation, it's a necessity. Understanding these systems empowers you to make informed decisions about your vehicle's maintenance, ensuring it performs at its best for years to come.
