Subaru 4-POT Calipers: The WRX Braking Upgrade

For many enthusiasts of the Subaru Impreza WRX, particularly those driving models from the early to mid-2000s, the topic of braking performance often comes up. While these cars deliver exhilarating acceleration and superb handling, the factory braking system on certain models could sometimes leave a little to be desired, especially during spirited driving or track days. Fortunately, Subaru itself provided an excellent solution that has become a highly sought-after modification: the Subaru 4-POT front brake caliper setup, originally fitted to the 2006-2007 WRX. This upgrade is not just a cosmetic enhancement; it’s a significant improvement in safety, performance, and overall driving confidence that can transform your WRX experience.

Understanding the Original WRX Braking System and Its Limitations

Before delving into the benefits of the 4-POT upgrade, it's crucial to understand why many WRX owners felt the need for improved stopping power. Early WRX models, typically from 2002 to 2005 (often referred to as 'Bugeye', 'Blobeye', and 'Hawkeye' in the enthusiast community), came equipped with single-piston sliding calipers on the front. While adequate for daily driving, these calipers had inherent limitations when pushed hard.

The single-piston design means that clamping force is applied from one side of the rotor, relying on the caliper to 'slide' and press the outer pad against the rotor. This can lead to uneven pad wear and, more critically, a less consistent and powerful bite, especially as heat builds up. During repeated hard braking, such as on a track or through demanding B-roads, the stock system could experience noticeable brake fade. This phenomenon, where the brakes lose effectiveness due to excessive heat, not only reduces performance but can also be a significant safety concern. Drivers often reported a 'spongy' pedal feel and a lack of confidence in the car's ability to shed speed rapidly when truly needed. For a car renowned for its rally-bred performance, a robust braking system is paramount to match its acceleration and cornering capabilities.

The Subaru 4-POT Caliper: A Robust Solution

The 2006-2007 WRX marked a turning point in factory braking for the model, introducing a vastly superior front caliper design. These are the famed 'Subaru 4-POT' calipers – a fixed caliper design featuring four pistons, two on each side of the brake rotor. This design fundamentally improves braking performance in several key ways:

• Even Clamping Force: With pistons pushing from both sides, the brake pads are squeezed against the rotor with far more uniform pressure. This results in more effective braking, better pad wear, and a more predictable pedal feel.
• Increased Surface Area and Stiffness: The fixed design of the 4-POT caliper is inherently stiffer than a sliding caliper. This rigidity translates to less flex under pressure, meaning more of your pedal input is converted directly into stopping power.
• Improved Heat Dissipation: While the calipers themselves don't directly dissipate heat from the pads, their superior design allows for better modulation and consistency, reducing the likelihood of overheating the pads and fluid. They are also often paired with larger rotors, which significantly contribute to heat management.

These calipers are easily identifiable by their often-red finish and the prominent 'SUBARU' lettering. They are a direct factory upgrade that addresses the shortcomings of the earlier single-piston setup, providing a significant boost in braking confidence and capability.

Compatibility and the Retrofit Process for Your WRX

One of the most appealing aspects of the Subaru 4-POT calipers is their excellent compatibility with earlier WRX models. For most GD chassis WRXs (2002-2007, encompassing the Bugeye, Blobeye, and Hawkeye variants), the 4-POT front calipers are largely a direct bolt-on upgrade. This means the mounting points on the knuckle are the same, simplifying the installation considerably.

However, a successful retrofit involves more than just swapping calipers. To fully utilise the 4-POTs and ensure optimal performance, you will also need:

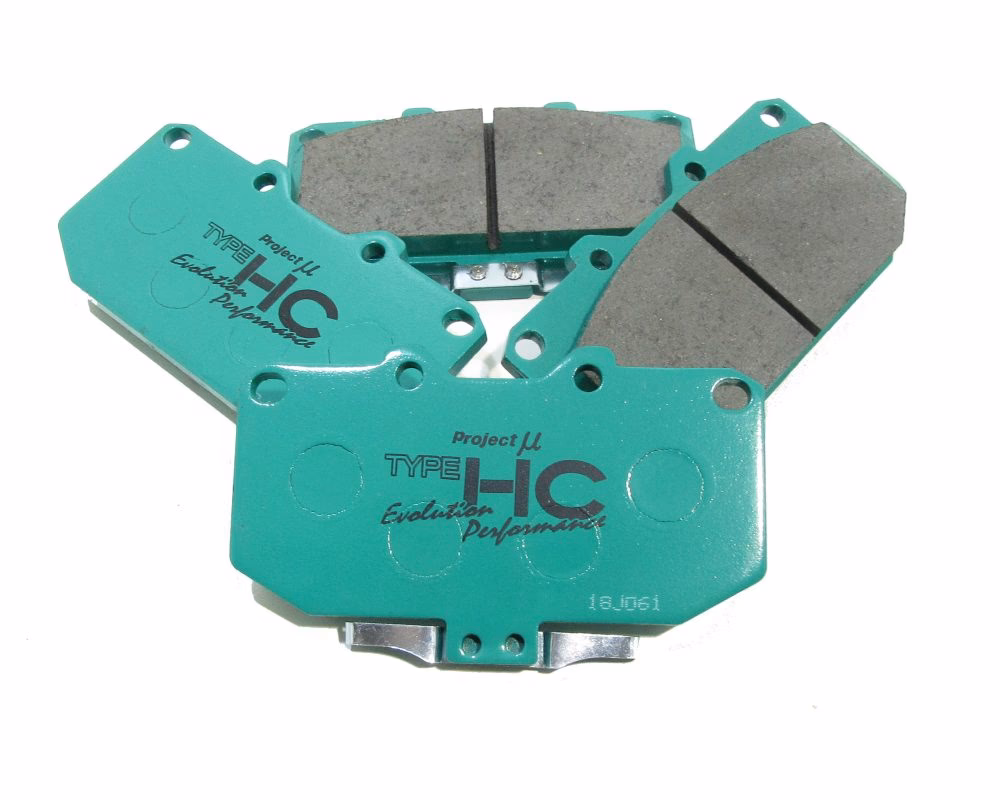

• 4-POT Specific Brake Pads: The pads for a 4-POT caliper are different in shape and size from those used in the single-piston calipers. Ensure you source pads specifically designed for the Subaru 4-POT setup.
• Larger Brake Rotors: The 4-POT calipers are designed to work with larger diameter rotors, typically 294mm or 300mm, depending on the exact caliper variant and the original application. Using your original smaller rotors will not work correctly, as the caliper will not align properly.
• Brake Fluid: Always a good idea to perform a full brake fluid flush when upgrading braking components. High-performance DOT 4 fluid is recommended.
• Brake Lines: While stock rubber lines can work, upgrading to braided stainless steel brake lines is highly recommended. These lines reduce expansion under pressure, leading to a firmer, more consistent pedal feel and further enhancing the benefits of the 4-POT calipers.
• Dust Shields: The original dust shields may interfere with the larger rotors and calipers. They can often be trimmed or, in some cases, removed entirely (though removal is generally not recommended for daily driven cars as they offer protection).

Installation Overview:

The installation process, while straightforward for a competent mechanic, involves critical safety steps:

1. Safely lift the vehicle and secure it on jack stands.
2. Remove the wheels.
3. Disconnect the old brake lines and remove the old calipers and rotors.
4. Install the new, larger rotors.
5. Mount the 4-POT calipers, connecting the brake lines.
6. Insert the new 4-POT specific brake pads.
7. Bleed the entire brake system thoroughly to remove all air.
8. Reinstall the wheels and torque them correctly.
9. Perform the brake pad bedding-in procedure as recommended by the pad manufacturer.

While many enthusiastic DIYers with the right tools and knowledge can perform this upgrade, if you are unsure at any stage, it is always best to consult or employ a professional mechanic. Braking systems are a critical safety component, and any errors can have serious consequences.

The Tangible Benefits of the 4-POT Upgrade

The decision to upgrade your WRX with Subaru 4-POT calipers brings a multitude of tangible benefits that elevate the driving experience:

• Dramatically Improved Stopping Power: This is the primary and most noticeable benefit. The increased clamping force and larger pads mean the car will shed speed much more effectively and quickly.
• Enhanced Pedal Feel and Modulation: With the fixed caliper design and even piston pressure, the brake pedal will feel firmer and more responsive. This allows for finer control over braking force, which is invaluable in performance driving scenarios.
• Reduced Brake Fade: The combination of larger rotors and a more efficient caliper design means the system can handle and dissipate heat more effectively, significantly reducing the likelihood of brake fade during repeated hard use. This translates to consistent performance lap after lap or during challenging road conditions.
• Increased Safety: Better brakes mean shorter stopping distances and more control, which directly contributes to a safer driving experience, both in everyday situations and emergencies.
• Aesthetic Enhancement: Let's be honest, those often-red calipers with 'SUBARU' emblazoned on them look fantastic peeking through your wheels. They visually signal a performance upgrade, adding to the car's aggressive stance.
• Longevity and Reliability: Being a factory Subaru part, these calipers are designed for durability and performance, offering a reliable upgrade path.

Considerations and Potential Downsides

While the 4-POT upgrade is overwhelmingly positive, there are a few considerations to keep in mind:

• Cost: While often more affordable than aftermarket big brake kits, sourcing good condition used 4-POT calipers, new rotors, pads, lines, and fluid can still add up. Factor in potential labour costs if you're not doing it yourself.
• Wheel Clearance: This is a crucial point. While most 17-inch and larger OEM WRX wheels will clear the 4-POT calipers without issues, some older or smaller (e.g., 16-inch) aftermarket wheels might not. It's essential to verify wheel spoke clearance before committing to the upgrade. A common test is to temporarily fit the caliper (without pads or rotor) to your hub and then try to mount your wheel to check for interference.
• Unsprung Weight: Larger calipers and rotors will add a small amount of unsprung weight to each corner. For most street applications, this difference is negligible, but it's a factor performance purists sometimes consider.
• Maintenance Costs: Replacement pads and rotors for the 4-POT setup might be slightly more expensive than for the original single-piston system, though the performance benefits usually outweigh this modest increase.

Ultimately, for the vast majority of WRX owners seeking a significant braking improvement, these 'downsides' are minor compared to the substantial performance and safety gains.

Comparative Table: Stock WRX vs. 4-POT Retrofit

To illustrate the clear advantages, here's a brief comparison between the stock early WRX front braking system and the 4-POT retrofit:

Frequently Asked Questions (FAQs)

Navigating any significant modification can bring up questions. Here are some of the most common queries regarding the Subaru 4-POT caliper upgrade:

Q: Will my stock 16-inch WRX wheels fit over the 4-POT calipers?
A: Generally, no. Most 16-inch wheels, especially factory ones, will not clear the larger 4-POT calipers. You will typically need 17-inch or larger wheels, and even then, some spoke designs might cause clearance issues. Always test fit if possible.

Q: Do I need to upgrade my master cylinder when installing 4-POT calipers?
A: For this specific upgrade (Subaru 4-POT front calipers on a WRX), a master cylinder upgrade is usually not required. The stock master cylinder has sufficient capacity to operate these calipers effectively. However, if you were to move to much larger, more aggressive brake setups (like full STI Brembos), a master cylinder brace or upgrade might be considered.

Q: Are these 4-POT calipers the same as the Brembo calipers found on the STI?
A: No, they are distinct. The Subaru 4-POT calipers are a factory Subaru part, typically found on 2006-2007 WRXs and some JDM models. STI models (especially from 2004 onwards) use larger, gold or silver Brembo calipers, which are a different design, bolt pattern, and are significantly more expensive and complex to fit to a standard WRX knuckle.

Q: Where can I find Subaru 4-POT calipers for my retrofit?
A: Common sources include online auction sites (eBay), specialist Subaru parts breakers, dedicated Subaru enthusiast forums, and occasionally new from a Subaru dealership (though this is typically the most expensive option). Always ensure they are in good working order if buying used.

Q: How long does the installation take?
A: For an experienced mechanic, the installation can typically be completed in 2-4 hours, including bleeding the system. For a DIY enthusiast, it might take longer, especially if encountering unexpected issues or if it's their first time working on brakes.

Q: Is it absolutely necessary to bleed the entire brake system after installing new front calipers?
A: While you could technically just bleed the front calipers, it is highly recommended to perform a full system bleed with fresh brake fluid. This ensures no air is trapped anywhere in the lines and that all old, potentially contaminated fluid is removed, maximising the performance and longevity of your braking system.

Q: Is the 4-POT upgrade worth the cost?
A: For most WRX owners who enjoy spirited driving or track days, the consensus is a resounding yes. The improvement in stopping power, pedal feel, and fade resistance dramatically enhances both performance and safety, making it one of the most impactful upgrades you can perform on your WRX.

Conclusion

The Subaru 4-POT front brake caliper retrofit for your WRX is more than just a popular modification; it's a highly effective and proven upgrade that genuinely transforms the vehicle's braking capabilities. By addressing the limitations of earlier stock systems, these calipers provide a level of stopping power, consistency, and pedal feel that aligns perfectly with the WRX's performance pedigree. Whether you're looking for increased confidence on winding roads or improved endurance on the track, the investment in this factory-engineered solution is one that pays dividends in both driving enjoyment and crucial safety. It’s a testament to Subaru's own engineering that the solution to an earlier model's braking 'issue' was found within their own parts bin, offering a straightforward path to a significantly enhanced WRX experience.
