Clutch Actuator Adjustment Guide

The clutch actuator plays a pivotal role in the smooth operation of your vehicle's transmission. It's the component responsible for engaging and disengaging the clutch, allowing you to change gears seamlessly. Over time, or due to wear and tear, the clutch actuator may require adjustment to maintain optimal performance. This guide will walk you through the process of adjusting a clutch actuator, offering detailed instructions and crucial safety precautions to ensure you can tackle this task with confidence. Understanding how to properly adjust your clutch actuator can save you money on repairs and prevent potential damage to your gearbox.

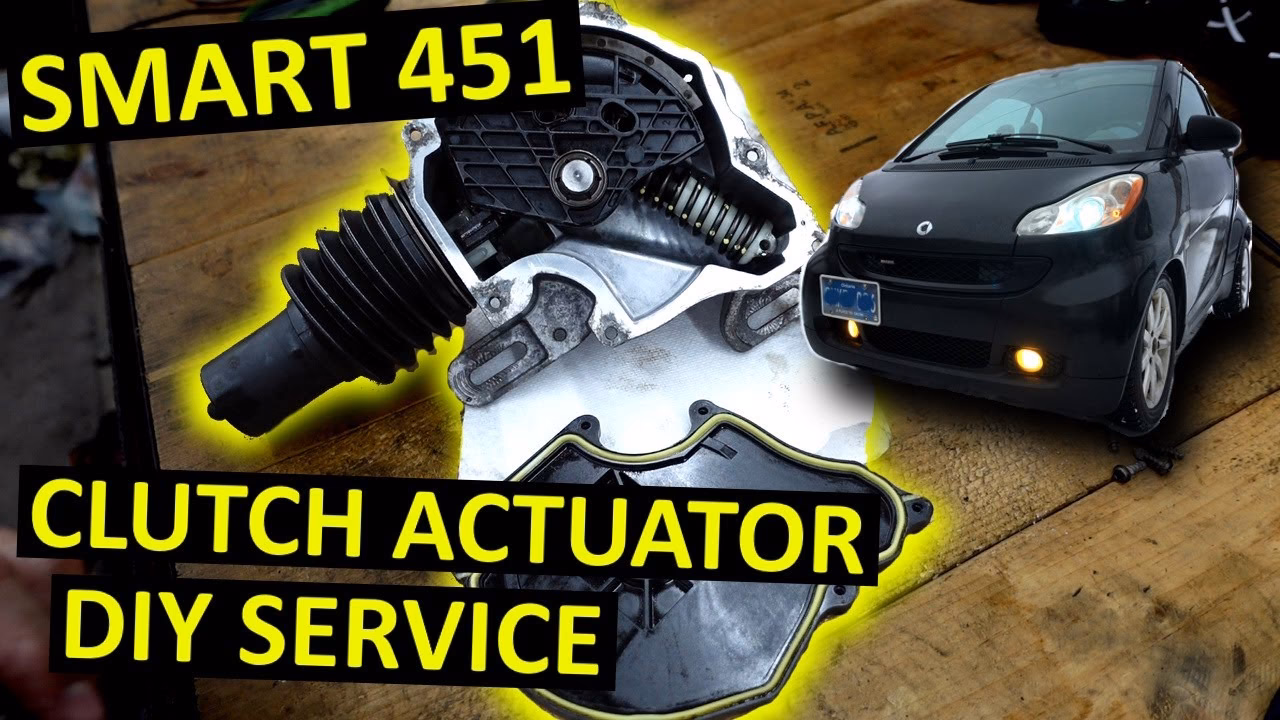

Understanding the Clutch Actuator

Before diving into the adjustment procedure, it’s helpful to understand what the clutch actuator does. In modern vehicles, especially those with manual transmissions or automated manual transmissions (AMTs), the clutch actuator is an electro-hydraulic or electro-mechanical device. It receives signals from the vehicle's computer and, in turn, operates the clutch mechanism. This ensures precise control over clutch engagement and disengagement, leading to smoother gear shifts and improved fuel efficiency. The actuator essentially takes over the role of the clutch pedal, automating the process.

When to Adjust Your Clutch Actuator

Several symptoms might indicate that your clutch actuator needs adjustment. These can include:

• Difficulty engaging or disengaging gears: If you find it hard to shift into gear, or if the gears grind, it could be a sign of improper clutch actuation.
• Slipping clutch: A clutch that slips won't fully engage, leading to a loss of power and a noticeable drop in acceleration, especially when going uphill.
• Unusual noises: Grinding, whining, or clunking sounds when shifting gears or operating the clutch can point to actuator issues.
• Illuminated warning lights: Modern vehicles often have warning lights on the dashboard that can indicate transmission or clutch problems.
• Inconsistent clutch pedal feel: If the clutch pedal feels spongy, too high, or too low, it might need an adjustment.

Crucial Precautions Before You Start

Working on your car's clutch system requires careful attention to detail and adherence to safety protocols. The following precautions are absolutely essential:

• Never touch the tappet or the rubber bellow of the clutch actuator. These parts are sensitive and can be easily damaged by improper handling.
• Never touch the electric connector. The servo motor sensor system is highly susceptible to static discharge, which can permanently destroy it. Always ensure you are properly earthed before touching any electrical components.
• Switch off the ignition. This is a fundamental safety step to prevent accidental starting or electrical hazards.
• Wait for the stopping time of the transmission control system. Modern systems require a brief period (approximately 60 seconds) after the ignition is switched off for all systems to power down safely.
• Ensure the clutch is completely closed. This condition is necessary for the actuator to be properly positioned and adjusted.

Removing the Clutch Actuator (If Necessary)

In some cases, you might need to remove the clutch actuator entirely before attempting an adjustment, especially if it's a more involved process or if the actuator itself needs cleaning or inspection. If removal is required, follow these steps:

1. Ensure the ignition is switched off and the 60-second stopping time has elapsed.
2. Confirm the clutch is fully closed.
3. Carefully disconnect the electrical connection from the servomotor. Handle this with extreme care to avoid static discharge.
4. Loosen the clutch actuator screws (typically labelled as 2, 3, and 5 in service manuals).

The Adjustment Process: Step-by-Step

The adjustment of a clutch actuator typically involves setting the correct pre-tensioning force. This is often done by repositioning the actuator within its mounting. Here’s a general procedure, though specifics can vary between vehicle models:

1. Positioning the Clutch Actuator

When installing or repositioning the clutch actuator, ensure it is correctly seated:

• Position the clutch actuator (often referred to as component 5) within the clutch bell housing (component 3).
• The tappet of the actuator must be lying securely on the tappet mount of the clutch release lever. This ensures proper contact and force transmission.

2. Attaching the Actuator

Secure the actuator to the transmission using the designated screws (2, 3, 5). At this stage, do not fully tighten them. The screws should allow the actuator to be moved slightly for adjustment. This is crucial for setting the pre-tensioning force.

3. Setting the Pre-Tensioning Force

This is the core of the adjustment process. Many actuators have visible scales on their slotted mounting holes. These scales are guides for setting the correct pre-tension:

• Locate the scales on the slotted holes (2, 3, 5).
• Press the clutch actuator (component 3) approximately 3 scale markings, which equates to about 6 mm, in the direction indicated by the arrow (refer to Fig. 1 in your service manual for the exact direction). This movement applies the necessary pre-tension.

4. Tightening the Screws

Once the pre-tension is set, you need to secure the actuator in its adjusted position:

• Tighten the screws in the specified order: first screw 3, then screw 2, and finally screw 5.
• The tightening torque is critical. Ensure you tighten them to 10 Nm (Newton-metres). Overtightening or undertightening can lead to improper function or damage.

5. Reconnecting and Initialisation

With the actuator physically adjusted and secured, the final steps involve reconnecting it electrically and initializing the system:

• Connect the electrical connection to the servomotor. Ensure it clicks securely into place.
• Set basics for the clutch actuator with the diagnostic unit. This is a vital step. Most modern vehicles require a diagnostic tool (like an OBD-II scanner with advanced capabilities) to communicate with the transmission control unit. This process initializes the actuator, allowing it to learn its new position and calibrate itself for optimal performance. Without this step, the clutch may not function correctly, or warning lights may persist.

Troubleshooting Common Issues

Even with careful adjustment, you might encounter issues. Here are some common problems and potential solutions:

Frequently Asked Questions (FAQs)

Q1: How often should a clutch actuator be adjusted?

A: A clutch actuator typically doesn't require routine adjustment. Adjustment is usually only necessary if you notice symptoms of clutch malfunction, after replacing the actuator, or after certain transmission repairs.

Q2: Can I adjust the clutch actuator without a diagnostic tool?

A: While you can physically adjust the actuator, most modern vehicles require a diagnostic tool to initialize and calibrate it after adjustment. Attempting to operate without this initialization can lead to poor performance or damage.

Q3: What happens if the clutch actuator is not adjusted correctly?

A: An incorrectly adjusted clutch actuator can lead to poor gear shifting, clutch slippage, premature wear of clutch components, or even complete failure of the transmission system. It is crucial to follow the specified procedure and torque settings.

Q4: Is it safe to touch the electrical connector?

A: Absolutely not. As stated in the precautions, the servo motor sensor system is extremely sensitive to static discharge. Always ground yourself and avoid touching the electrical connector unless you are disconnecting or reconnecting it as part of the procedure, and even then, do so with extreme caution.

Q5: What is the role of the diagnostic unit?

A: The diagnostic unit (or diagnostic tool) communicates with the vehicle's control modules. For the clutch actuator, it's used to perform an initialization or calibration routine, which teaches the system the actuator's new position and ensures it operates correctly with the rest of the transmission.

Adjusting a clutch actuator is a task that requires precision and a good understanding of the system. By following these step-by-step instructions and adhering strictly to the safety precautions, you can effectively adjust your clutch actuator and restore smooth, reliable gear changes to your vehicle. If you are unsure about any part of the process, it is always best to consult a qualified mechanic.
