Brake Wear Limits: Your Skoda Owner's Guide

As a fellow enthusiast with a fond appreciation for Skoda vehicles – from the reliable Fabia to the sophisticated Superb, and perhaps a past Octavia owner like yourself – understanding the vital signs of your car's braking system is paramount. It’s not just about keeping your beloved Skoda running smoothly; it’s about ensuring your safety and the safety of everyone else on the road. One of the most critical aspects of brake maintenance is knowing the minimum thickness for brake pads and discs. Ignoring these limits can lead to significantly reduced braking performance, increased stopping distances, and potentially catastrophic brake failure.

While your personal experience suggests a minimum front pad thickness of 10mm, including the backing plate, for some Skoda models, it's crucial to delve deeper into what these measurements truly mean and how they apply to both pads and discs, front and rear. This guide will walk you through the essential information you need to keep your Skoda's brakes in top condition.

Understanding Your Brake System's Core Components

Before we discuss specific measurements, let's briefly recap the two main wear components of your disc braking system: the pads and the discs.

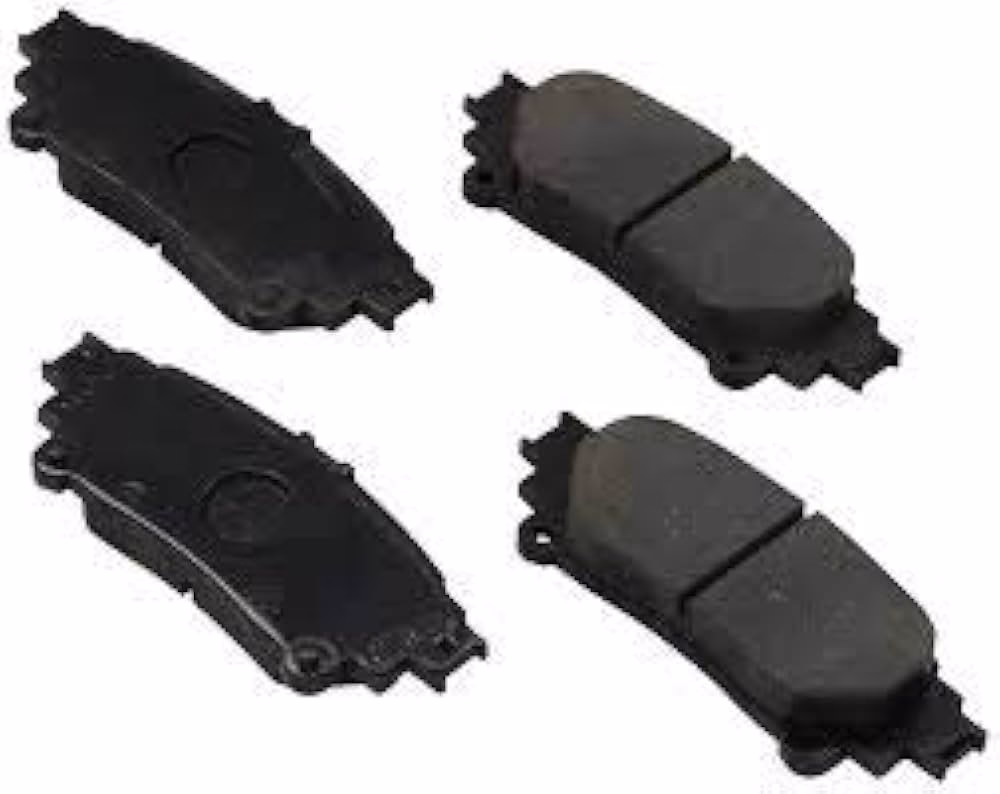

• Brake Pads: These are the friction material that presses against the brake disc to slow your vehicle. They consist of a friction compound bonded to a metal backing plate. As you brake, the friction material gradually wears away.
• Brake Discs (Rotors): These are the metal discs that rotate with your wheels. When the brake pads clamp down on them, friction is generated, converting kinetic energy into heat, thus slowing the car. Discs also wear down over time, becoming thinner and sometimes developing grooves or warping.

Both components are designed with specific operational limits to ensure optimal braking performance and safety. Exceeding these limits compromises your vehicle's ability to stop effectively.

The Critical Importance of Minimum Thickness

Why do manufacturers specify minimum thickness limits? There are several compelling reasons:

• Safety: This is the primary concern. Thinner pads have less friction material, leading to reduced braking efficiency and increased stopping distances. Thinner discs are less capable of dissipating heat, making them prone to warping, cracking, and brake fade, especially under heavy braking.
• Structural Integrity: As discs become thinner, their structural integrity is compromised. They become more susceptible to cracking under the immense heat and pressure generated during braking, which can lead to catastrophic failure.
• Heat Dissipation: Brake discs are designed to absorb and dissipate a tremendous amount of heat. A thinner disc has less mass and surface area, significantly reducing its ability to shed heat. This can lead to brake fade, where the brakes lose effectiveness due to overheating.
• Pad Retention: Extremely worn pads might lead to the metal backing plate coming into contact with the disc, causing severe damage to the disc and a complete loss of braking power.
• Legal Compliance: In many regions, driving with brakes below the manufacturer's specified minimum thickness is illegal and can result in MOT failure or roadside penalties.

Minimum Thickness for Brake Pads: What to Look For

Brake pads have two thickness measurements to consider: the overall thickness (including the backing plate) and the thickness of the friction material itself.

For the front brake pads on some Skoda models, as you've noted, a minimum thickness of around 10mm including the backing plate might be specified. This particular figure, while sounding substantial, is often a manufacturer's recommended replacement threshold that still provides a good margin of safety and performance. However, the absolute critical minimum for the *friction material* itself (excluding the backing plate) is typically much lower, often around 1.5mm to 3mm, depending on the manufacturer and specific pad type. When the friction material reaches this point, the pads are considered worn out and must be replaced immediately.

It's important to differentiate between a 'recommended replacement' thickness and an 'absolute discard' thickness. The 10mm figure you mentioned for front pads might fall into the former category, indicating that replacement is highly advisable at this point to maintain optimal performance and prevent reaching the more dangerous absolute minimum. Always consult your specific Skoda's owner's manual or a reputable workshop manual for the precise figures for your model and year.

How to Measure Brake Pad Thickness:

• Visual Inspection: You can often see the remaining friction material through the wheel spokes. Look for the thinnest part of the pad. If it looks very thin (e.g., less than the thickness of a pound coin), it's time for a professional check.
• Using a Ruler or Caliper: With the wheel removed, you can use a ruler or caliper to measure the thickness of the friction material. Ensure you measure only the friction material, not the backing plate, unless the specified minimum includes it.
• Wear Indicators: Many modern brake pads come with built-in wear indicators. These are small metal tabs that squeal when the pads are low, or electronic sensors that trigger a warning light on your dashboard.

Minimum Thickness for Brake Discs: The MDT

Brake discs also have a critical minimum thickness, often referred to as the Minimum Discard Thickness (MDT) or Minimum Thickness (MIN TH). This figure is typically stamped on the edge of the disc itself, making it easy to identify. It's usually a few millimetres less than the disc's original new thickness.

For example, a new Skoda brake disc might be 25mm thick, and its MDT could be 22mm. Once the disc wears down to 22mm, it must be replaced. This is non-negotiable for safety.

How to Measure Brake Disc Thickness:

Measuring disc thickness accurately requires a specific tool called a micrometer or a specialised brake disc caliper. A standard ruler is not precise enough.

• Clean the Disc: Ensure the disc surface is clean and free of rust or dirt that could affect the measurement.
• Measure at Multiple Points: Measure the disc thickness at several points around its circumference and at different distances from the centre. Take the smallest measurement as the true thickness.
• Compare to MDT: Compare your lowest measurement to the MDT stamped on the disc. If the measurement is at or below the MDT, the disc needs immediate replacement.

General Guidelines for Pad and Disc Thickness (Illustrative)

While specific figures vary greatly by Skoda model, engine size, and brake system type, here are some illustrative ranges to give you a general idea. Always refer to your car's manual or the markings on the components for precise figures.

Illustrative Brake Pad Thickness (Friction Material Only)

Note: The 10mm minimum you mentioned for front pads including the backing plate suggests that for some Skoda models, replacement is advised when the total pad thickness (friction material + backing plate) reaches this figure. This implies a significant amount of friction material (e.g., 4-6mm) may still be present, indicating a safety-conscious replacement threshold rather than an absolute wear-to-the-bone limit.

Illustrative Brake Disc Thickness (MDT)

Remember: The MDT is almost always stamped on the edge of the brake disc. If it's not visible due to rust or wear, consult a Skoda dealer or a professional mechanic.

Factors Affecting Brake Wear

Several factors influence how quickly your brake pads and discs wear down:

• Driving Style: Aggressive driving with frequent hard braking will wear brakes much faster than smooth, anticipatory driving.
• Type of Driving: City driving with stop-and-go traffic leads to more brake application and thus faster wear compared to motorway driving.
• Vehicle Weight: Heavier vehicles (like your Superb, especially if fully loaded) put more strain on the brakes, leading to quicker wear.
• Brake Pad Material: Different pad compounds (e.g., semi-metallic, ceramic, organic) have varying wear rates and performance characteristics.
• Terrain: Driving on hilly or mountainous terrain often requires more braking, accelerating wear.

When to Replace Beyond Thickness

While thickness is a primary indicator, it's not the only one. You should also consider replacing your brakes if you notice any of the following:

• Squealing or Grinding Noises: Often indicates worn pads (wear indicator) or metal-on-metal contact.
• Vibration or Pulsation: A common sign of warped or unevenly worn discs.
• Longer Stopping Distances: Your car feels like it takes longer to stop.
• Pulling to One Side: Can indicate uneven brake wear or a caliper issue.
• Soft or Spongy Pedal: Could be air in the lines, fluid leak, or extremely worn components.
• Dashboard Warning Light: If your car has electronic wear sensors, a light will illuminate when pads are critically low.

Frequently Asked Questions (FAQs)

Q1: How often should I check my Skoda's brakes?

It's generally recommended to have your brakes inspected at every service interval, typically every 10,000 to 20,000 miles, or at least once a year. However, if you notice any of the warning signs mentioned above, get them checked immediately.

Q2: Can I replace just the brake pads, or do I need to replace the discs too?

It depends. If the pads are worn but the discs are still above their minimum discard thickness (MDT) and are in good condition (no significant scoring, warping, or lip formation), you might be able to replace just the pads. However, it's highly recommended to replace both pads and discs together, especially on the same axle (front or rear). This ensures optimal performance, even wear, and prevents new pads from quickly wearing out due to an uneven disc surface. If discs are below MDT or show signs of significant wear, they must be replaced.

Q3: What are the consequences of driving with brakes below minimum thickness?

The consequences are severe: significantly increased stopping distances, risk of brake fade (loss of braking power due to overheating), warped or cracked discs leading to sudden brake failure, damage to other braking components (calipers), and potential accidents. It's a critical safety hazard.

Q4: Where can I find the precise minimum thickness specifications for my specific Skoda model?

The most accurate place to find this information is your Skoda's owner's manual or the official workshop manual for your vehicle. For brake discs, the Minimum Discard Thickness (MDT) is often stamped directly on the edge of the disc itself. If you can't find it, a qualified Skoda technician or reputable mechanic will have access to the correct specifications for your car.

Q5: Is it possible to 'machine' or 'skim' brake discs to restore them?

Yes, some brake discs can be machined (or skimmed) to remove minor imperfections and restore a flat surface. However, this process removes material, making the disc thinner. A disc can only be skimmed if, after machining, its thickness remains above the Minimum Discard Thickness (MDT). Many modern discs, particularly thinner rear discs, cannot be skimmed as they would fall below the MDT. It's a job for a professional with the right equipment.

Conclusion

Maintaining your Skoda's braking system is not just about adhering to service schedules; it's about understanding the critical limits that ensure your safety and the longevity of your vehicle. Knowing the minimum thickness for both pads and discs, coupled with regular inspections and prompt action when wear is detected, will keep your Fabia, Superb, or any other Skoda model stopping safely and reliably. Always consult your vehicle's specific manual or a trusted professional for precise measurements tailored to your car. Don't compromise on brake safety – it's the ultimate confidence booster behind the wheel.
