Unravelling the Sarich Orbital Engine Mystery

In the annals of automotive innovation, few designs have sparked as much intrigue and promise as the Sarich Orbital Engine. Heralded as a potential game-changer, this unique internal combustion engine captivated engineers and the public alike with its radical approach to power generation. Developed by the prodigious Australian inventor Ralph Sarich, it offered a compelling vision of lighter, more compact, and potentially more efficient vehicles. Yet, despite its early promise and significant investment, the Sarich Orbital Engine ultimately remained a fascinating footnote rather than a mainstream success. This article delves into the intricacies of this remarkable engine, exploring its design, the journey of its development, the technical hurdles it faced, and the enduring legacy of its creator.

What Exactly Is an Orbital Engine?

At its core, the Sarich Orbital Engine represents a departure from the conventional reciprocating piston engine and even the rotary Wankel design. Instead of pistons moving up and down within cylinders, or a rotor spinning within an epitrochoid housing, the orbital engine employs an 'orbiting' piston. This piston moves in a circular path around a central shaft, contained within fixed combustion chambers. The chambers themselves are divided by vanes that reciprocate, maintaining contact with both the engine walls and the orbiting piston.

The ingenuity of the design lay in its potential for extreme compactness and a favourable power-to-weight ratio. Early projections suggested the engine could be approximately one-third the size and weight of a comparable conventional piston engine. A significant advantage highlighted by its proponents was the absence of a high-speed contact area with the engine walls, a notorious wear problem in the Wankel engine's apex seals. However, this benefit was tempered by the challenge of sealing the reciprocating vanes. These vanes, crucial for dividing the combustion chambers, had to maintain contact with both the walls and the orbiting piston, presenting a complex sealing problem, especially given the eight corners of each combustion chamber.

While the patent for the engine described it primarily as a two-stroke internal combustion engine, it also hinted at the possibility of a four-stroke operation with a different valve mechanism. In practice, much of the development work focused on four-stroke versions, utilising both traditional poppet valves and innovative disk valve arrangements. Operating in two-stroke mode would necessitate a supercharger, as the compact design precluded the use of conventional crankcase pumping to charge the combustion chamber. Interestingly, the fundamental concept of an orbiting piston and reciprocating vane mechanism was not entirely new, having been researched and documented by Felix Wankel himself in his seminal work on rotary piston displacers.

The Visionary Behind the Machine: Ralph Sarich

The story of the Sarich Orbital Engine is inextricably linked with its brilliant inventor, Ralph Tony Sarich. Born in Western Australia in 1938, Sarich was an automotive engineer and businessman whose career trajectory was anything but conventional. Starting as a fitter and turner apprentice, he pursued engineering studies part-time, demonstrating an early aptitude for mechanical innovation. His diverse career included stints with the Western Australian Government Railways and Thiess Brothers, before he ventured into running his own engineering and service station business.

Sarich's dedication to research and development, particularly in new engine technologies, culminated in the first firing of his orbital engine in 1972. This achievement quickly brought him into the public spotlight, with an appearance on the popular ABC TV program 'The Inventors' that same year. He boldly claimed that his engine's compact design promised greater power, reduced emissions, and significant fuel economy – a trifecta that would revolutionise the automotive industry. The Royal Automobile Club of Western Australia even endorsed the technology in 1974, adding further credibility to Sarich's audacious claims.

The Journey of Development and Disruption

The development of the Sarich Orbital Engine was a testament to persistent engineering and significant financial backing. The Orbital Engine Company, founded by Sarich, received crucial funding from partners like BHP and substantial research and development grants from the Australian Federal Government. Their intensive work on the concept spanned over a decade, from 1972 until 1983.

During this period, they achieved notable success with a 3.5-litre four-stroke prototype engine. This engine demonstrated performance comparable to contemporary petrol car engines under typical road load conditions. A detailed technical paper outlining their progress was presented to the Society of Automotive Engineers (SAE) in 1982, solidifying its place in automotive engineering history.

A major factor contributing to the engine's impressive performance was the development of a unique and patented direct injection system. This system delivered fuel directly into the combustion chamber, creating what was known as a stratified charge combustion process. This advanced combustion technique allowed for very lean fuel mixtures, significantly improving efficiency and reducing emissions. It was this injection and combustion system, later named the Orbital Combustion Process (OCP), that proved to be the true commercial breakthrough.

Despite the orbital engine's promising performance, the path to commercialisation proved daunting. While several global automakers expressed keen interest, it became clear that an additional $100 million (AUD) or more would be required to bring the engine to mass production. This colossal investment was ultimately deemed too risky by the funding sources.

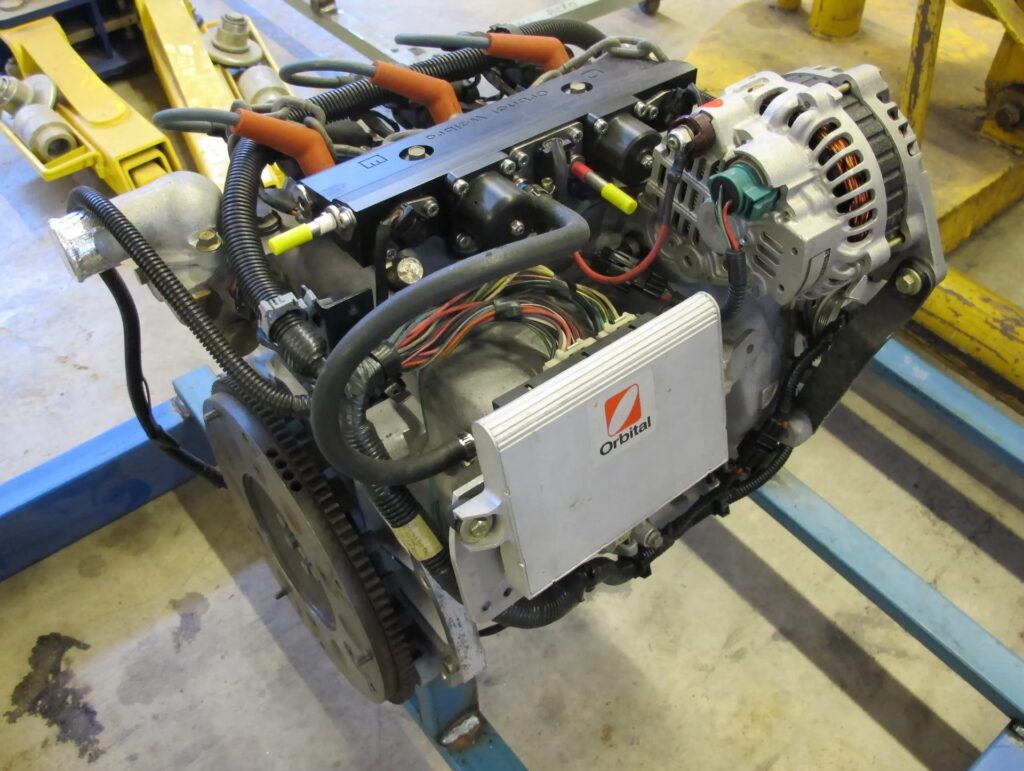

Consequently, the focus shifted. The Orbital Engine Company realised that the highly effective OCP injection and combustion system could be adapted to existing two-stroke and four-stroke petrol engines. This pivot was a pragmatic decision: rather than incurring the prohibitive costs of re-tooling manufacturing lines for an entirely new engine architecture, the OCP offered a way to enhance current engine designs, making it a far more cost-effective and attractive proposition for manufacturers. This strategic shift became the future of the company, with the OCP technology being licensed worldwide.

During the prototyping phase, the orbital engine was installed in a few test vehicles. A three-cylinder unit found its way into a Toyota Kijang, and a two-cylinder version was fitted into a Suzuki Karimun. More significantly, 100 Ford Festivas in Australia were equipped with the three-cylinder orbital unit, branded as the Festiva EcoSport. While these cars were reported to be somewhat more powerful than the standard Ford Festiva 1.3-litre model, they struggled to simultaneously meet emission compliance, efficiency targets, and acceptable levels of Noise, Vibration, and Harshness (NVH). This highlighted the inherent challenges of integrating a radical new engine design into production vehicles.

Navigating the Technical Hurdles

Despite its innovative design and the significant advancements made, the Sarich Orbital Engine grappled with several fundamental design issues that ultimately hindered its widespread adoption. These problems, ironically, shared some similarities with those that plagued the Wankel rotary engine:

• Large Surface-to-Volume Ratio: The combustion chambers in the orbital engine had a relatively large surface area compared to their volume. This characteristic leads to increased heat losses from the combustion process, as more heat dissipates into the engine's cooling system rather than being converted into mechanical energy. This phenomenon directly translates to a loss of power and reduced thermal efficiency. While the stratified combustion of the OCP helped mitigate this to a degree, it couldn't entirely overcome the inherent geometric disadvantage.
• Complex Sealing Paths: The design necessitated long sealing paths and multiple corner seals for the reciprocating vanes. This made it considerably harder to effectively contain the high-pressure gases generated during combustion. Any leakage of these gases past the seals would result in a loss of pressure, directly impacting the engine's power output and overall efficiency. Maintaining the integrity of these seals under extreme operating conditions proved to be a persistent engineering challenge.
• Cooling and Lubrication: Perhaps the most critical practical issues were the difficulties in adequately cooling and lubricating key internal components. The unique motion and high temperatures within the engine created zones that were hard to reach with conventional cooling and lubrication systems. This susceptibility to overheating and wear made the engine impractical for long-term reliability and mass production.

The Global Pursuit and Licensing Deals

Even as the direct development of the orbital engine itself faced increasing challenges, the underlying OCP technology gained significant international traction. The Orbital Engine Corporation, under Sarich's leadership, shifted its strategy to commercialising the intellectual property (IP) of the OCP rather than manufacturing the complete engine. This approach avoided the monumental re-tooling costs for vehicle manufacturers, making the technology a more palatable acquisition.

In the 1980s, the Jet Propulsion Laboratories (JPL) for NASA even described the OCP as the "cutting edge of world engine technology," a testament to its advanced nature. International emission testing laboratories confirmed the impressive results achieved in Australia, showcasing fuel economy advantages of up to 50% against the best outboard marine engines and 20-25% under typical automobile operating conditions, with further potential savings identified. Crucially, these savings were accompanied by a significant reduction in "direct engine out" emissions.

The OCP technology was successfully licensed to numerous automotive, marine, and motorcycle manufacturers worldwide. These licensing agreements were contingent upon the delivery of engines that met stringent emissions standards, fuel economy targets, and other technical criteria. Sarich proudly reported that all deliveries met these criteria prior to his retirement in 1992, ensuring no monetary penalties were incurred due to non-compliance.

Sarich's ambition extended to manufacturing the engine in Australia, for which he sought A$100 million in investment from the Australian Government. While the government offered an industry support package, Sarich declined it, opting instead to establish operations in the United States. In 1992, he successfully floated Orbital Engine Corporation in the US through an initial public offering, raising A$113.8 million and listing the company on the New York Stock Exchange.

The OCP's impact was evident in several high-profile collaborations: In 1992, General Motors showcased its innovative "Ultralite" concept car at the Detroit International Auto Show, featuring OCP technology as its centerpiece. Ford also entered into a nonexclusive licensing agreement in 1998 to develop and test a pilot for the manufacture of the orbital engine itself, though this did not lead to mass production. Other major manufacturers, including Fiat (1991), expressed interest and signed agreements. However, not all ventures were successful; Czechoslovakian manufacturer Škoda withdrew from negotiations in 1989 due to economic conditions, and Volkswagen terminated its agreement in 1993, citing a softer European sales market.

Beyond the Engine: Sarich's Enduring Legacy

Ralph Sarich's ingenuity extended far beyond the orbital engine. Throughout his career, he was credited with a diverse array of inventions, demonstrating his broad mechanical aptitude. These include an earth-moving scraper/scoop, an initial Australian Water Watcher device, a special orchard cultivator, a non-geared transmission for cars, a high-pressure orchard spray pump, the Security Cable Gate, a linear wind generator, and even the world's first two-speed reel for Marlin fishing. This breadth of innovation underscores his exceptional inventive spirit.

Despite initial doubts about the company's success since it primarily sold IP rather than manufactured engines, Orbital's financial performance under Sarich's leadership was robust. The company reported significant profits, with its capitalised value exceeding A$1 billion upon Sarich's retirement as CEO in 1992. Sarich himself sold his equity for a reputed A$100 million, cementing his financial success.

Following his retirement from Orbital, Sarich transitioned to Executive Chairman of Cape Bouvard Investments (CBI), a private family investment company. Under his guidance, and with his son Peter managing operations, CBI has diversified into numerous fields, including property investment and development, technology, and equities. Beyond his business ventures, Sarich has also been a prolific philanthropist, donating approximately A$65 million to various charitable organisations, including a substantial A$20 million gift in 2008 towards neuroscience medical research facilities in Perth. His net worth has consistently placed him among Australia's wealthiest individuals, reflecting the profound impact of his innovations.

Comparative Table: Orbital Engine vs. Others

To better understand the Sarich Orbital Engine's unique position, let's compare some of its characteristics with conventional piston engines and the Wankel rotary engine:

Frequently Asked Questions About the Sarich Orbital Engine

Is the Sarich Orbital Engine still in production?

No, the Sarich Orbital Engine itself never reached mass production for automotive applications. While prototypes were built and tested, the core engine hardware faced significant technical and commercial hurdles that prevented its widespread adoption. The Orbital Engine Company shifted its focus to licensing its Orbital Combustion Process (OCP) technology, which improved existing engine designs.

What is the Orbital Combustion Process (OCP)?

The Orbital Combustion Process (OCP) is a sophisticated direct fuel injection and combustion system developed by Ralph Sarich and the Orbital Engine Company. It creates a 'stratified charge' within the combustion chamber, allowing for very lean fuel mixtures to be efficiently burned. While initially developed for the orbital engine, its primary commercial success came from being adapted and licensed for use in conventional two-stroke and four-stroke petrol engines, significantly improving their fuel economy and reducing emissions.

Why didn't the Sarich Orbital Engine become widespread?

Several factors contributed to the engine's limited success. Key technical challenges included a large surface-to-volume ratio in the combustion chambers leading to heat loss, complex sealing paths for the reciprocating vanes that were difficult to maintain, and persistent issues with effectively cooling and lubricating critical internal components. Furthermore, the estimated $100 million (AUD) required for full commercialisation was deemed too high a risk by potential investors and manufacturers, leading to the strategic pivot towards licensing the OCP technology instead.

What were the main advantages promised by the orbital engine?

The Sarich Orbital Engine promised several compelling advantages: it was designed to be significantly more compact and lighter (potentially one-third the size and weight) than conventional piston engines, offering better packaging in vehicles. It also aimed to avoid the high-speed contact area with engine walls that caused wear problems in Wankel engines. With the development of the OCP, it also showed potential for excellent fuel economy and reduced emissions.

Did Ralph Sarich invent anything else besides the orbital engine?

Yes, Ralph Sarich was a prolific inventor with a wide range of innovations to his name. Beyond the orbital engine and OCP, his inventions include an earth-moving scraper/scoop, an initial Australian Water Watcher, a special orchard cultivator, a non-geared transmission for cars, a high-pressure orchard spray pump, the Security Cable Gate, a linear wind generator, and even the world's first two-speed reel for Marlin fishing, showcasing his diverse engineering talents.

The Sarich Orbital Engine stands as a fascinating testament to inventive ambition. While the engine itself did not reshape the automotive landscape, Ralph Sarich's legacy, particularly through the widely licensed Orbital Combustion Process, left an undeniable mark on engine technology, demonstrating the power of ingenious design to push the boundaries of what's possible.
