The Essential Guide to Changing Your Gearbox Oil

Keeping your car's gearbox running smoothly is paramount to its overall health and performance. The transmission, often referred to as the gearbox, is a complex piece of engineering responsible for transferring power from the engine to the wheels. Like any vital component, it requires regular maintenance, and one of the most crucial aspects of this is ensuring the correct level and type of gearbox oil is present. This guide will walk you through the process of changing your gearbox oil, providing you with the knowledge to tackle this task with confidence. We'll cover what you need, the step-by-step procedure, and important considerations to keep your transmission in tip-top condition.

Why is Gearbox Oil So Important?

Gearbox oil, also known as transmission fluid, is the lifeblood of your transmission. Its primary functions are to lubricate moving parts, reduce friction and wear, dissipate heat generated during operation, and protect against corrosion. Without adequate and clean oil, the gears, bearings, and synchronisers within the gearbox are subjected to extreme stress, leading to premature wear, costly damage, and potential failure. Regular oil changes ensure that the lubricating properties remain effective and that any microscopic metal particles, which inevitably occur through normal wear, are flushed out rather than recirculating and causing further damage.

Understanding Your Gearbox Oil Requirements

Before you even think about draining the old oil, it's crucial to understand the specific requirements for your vehicle. Not all gearboxes use the same type of oil, and using the wrong fluid can be detrimental. The information provided suggests a specific requirement: 'From dry the gearbox takes 2.1L of fluid (75w80)'. This tells us two critical pieces of information:

• Capacity: The gearbox requires approximately 2.1 litres of fluid when completely empty (dry). This is a useful benchmark, though it's important to note that a typical oil change rarely drains every last drop.
• Viscosity Grade: The recommended oil is 75w80. This is a common specification for manual transmissions, indicating a multi-grade oil that offers good flow at low temperatures (the '75w' part) and sufficient viscosity at higher operating temperatures (the '80' part).

Always consult your vehicle's owner's manual for the definitive oil specification. You can also find this information on manufacturer websites or by contacting a dealership. Using the correct oil ensures optimal performance, protection, and longevity for your gearbox.

What You'll Need: Essential Tools and Materials

Gathering the necessary tools and materials beforehand will make the process much smoother and more efficient. Here's a checklist:

• New Gearbox Oil: Ensure you have the correct type and quantity (at least 2.1 litres of 75w80 or as specified by your manufacturer).
• Wrench or Socket Set: You'll need the correct size to remove the fill and drain plugs.
• Drain Pan: A container large enough to hold at least 3-4 litres of old oil.
• Funnel: A long-necked funnel is essential for filling the gearbox through the fill hole.
• Gloves: To protect your hands from oil.
• Rags or Paper Towels: For cleaning up spills.
• Wheel Chocks: For safety, to prevent the vehicle from rolling.
• Jack and Axle Stands: If you need to raise the vehicle for access. Safety is paramount, so ensure you use jack stands on a stable surface.
• Torque Wrench (Optional but recommended): To tighten the drain and fill plugs to the manufacturer's specified torque.

Step-by-Step: Changing Your Gearbox Oil

With your tools and materials ready, you can proceed with the oil change. Here’s a breakdown of the process:

1. Prepare the Vehicle

Park your vehicle on a level surface. If you need to raise the vehicle for better access to the gearbox, use a jack and securely place axle stands under the designated jacking points. Engage the handbrake and place wheel chocks behind the rear wheels for added safety. Allow the engine and gearbox to cool down slightly, but the oil should be warm (not hot) to ensure it flows easily.

2. Locate the Fill and Drain Plugs

The gearbox is typically located between the engine and the drivetrain. You'll need to identify two key plugs:

• Drain Plug: This is usually located at the lowest point of the gearbox casing to allow all the old oil to drain out.
• Fill Plug: The provided information states, 'its located towards the front / top of the gear box. You fill it from the plastic wing nut'. This indicates a plastic wing nut serves as the fill plug, positioned towards the front and top of the gearbox. This is a slightly unusual but not unheard-of design.

It's crucial to locate these correctly. If you're unsure, consult your vehicle's workshop manual or a trusted mechanic.

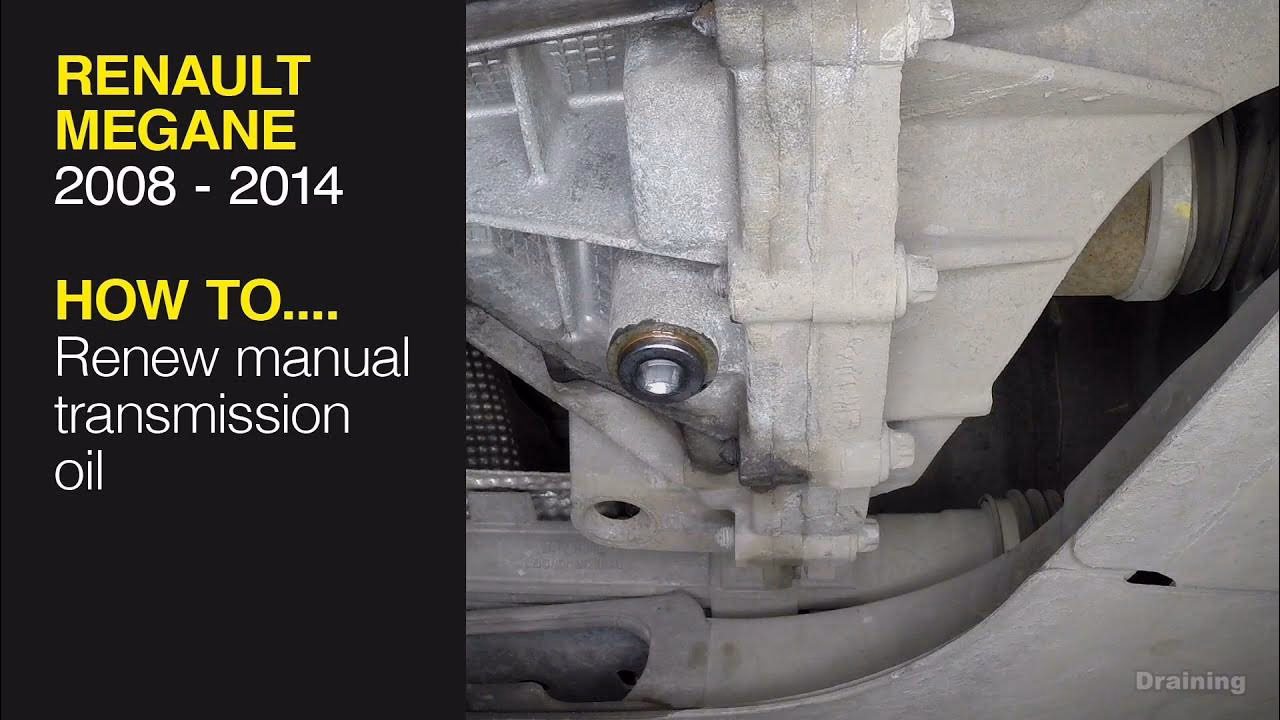

3. Drain the Old Oil

Place your drain pan directly beneath the drain plug. Using the appropriate wrench, carefully loosen and remove the drain plug. Be prepared for the oil to start flowing out immediately. Allow the oil to drain completely. This may take several minutes. Once the oil has finished draining, wipe the drain plug clean with a rag and reinstall it. If you have a torque wrench, tighten it to the manufacturer's specified torque. Overtightening can strip the threads, while undertightening can lead to leaks.

4. Fill with New Gearbox Oil

Now it's time to add the new 75w80 gearbox oil. Insert the long-necked funnel into the fill hole (the plastic wing nut). Begin pouring the new oil into the gearbox. The information states, 'You can normally get 2L in there, or until it starts flowing out of the fill hole. There is no dipstick.' This means you'll be filling until the oil reaches the level of the fill hole. Continue pouring until you see the oil start to trickle out of the fill hole. This indicates the gearbox is full to the correct level. Once oil starts to flow out, remove the funnel and quickly reinstall the fill plug (the plastic wing nut) to prevent any further oil loss.

Important Note on Filling: The instruction to fill until it flows out of the fill hole is a common method for gearboxes without a dipstick. It ensures the correct level is achieved. As the information suggests, you can expect to get around 2 litres in, but always rely on the 'flow' method to confirm the correct level.

5. Final Checks and Clean-up

Once the fill plug is securely in place, wipe away any spilled oil from the gearbox casing and surrounding areas. If you raised the vehicle, carefully lower it back down. Start the engine and allow it to run for a few minutes. While the engine is running, gently shift through all the gears (with the clutch pedal pressed down if it's a manual). This helps to circulate the new oil throughout the gearbox. Turn off the engine and check for any leaks around the drain and fill plugs. If everything looks good, you've successfully changed your gearbox oil!

Common Issues and Troubleshooting

While gearbox oil changes are generally straightforward, some issues can arise:

Frequently Asked Questions (FAQs)

Q1: How often should I change my gearbox oil?
This depends on your vehicle manufacturer's recommendations. For many manual gearboxes, it's often recommended every 60,000 to 100,000 miles, or every 5-7 years, whichever comes first. Always check your owner's manual.

Q2: Can I use a different type of oil if I can't find 75w80?
No, it's highly recommended to use the exact oil specification (75w80 in this case) recommended by your vehicle manufacturer. Using the wrong type of oil can cause significant damage to your gearbox.

Q3: Is it safe to drive with low gearbox oil?
No, driving with low gearbox oil can lead to severe internal damage and premature wear of components. It's crucial to maintain the correct oil level at all times.

Q4: What does '75w80' mean?
'75w' refers to the oil's viscosity at cold temperatures (the 'w' stands for winter), and '80' refers to its viscosity at operating temperatures. A lower 'w' number means better flow in cold conditions, and a higher second number means better protection at higher temperatures.

Q5: Do I need to change the gearbox oil if I only do short journeys?Even with short journeys, the gearbox still operates and generates heat. While the oil may not reach extremely high temperatures, regular oil changes are still important to remove contaminants and maintain lubrication effectiveness. Check your manufacturer's service schedule.

Conclusion

Changing your gearbox oil is a vital maintenance task that contributes significantly to the longevity and performance of your vehicle's transmission. By understanding the requirements, gathering the right tools, and following the steps carefully, you can successfully complete this job yourself. Remember, proper maintenance is key to avoiding expensive repairs down the line. If at any point you feel unsure or uncomfortable with the process, don't hesitate to seek assistance from a qualified mechanic. Your gearbox will thank you for it!
