Yamaha SR500 Engine: Unveiling the Enduring Single

The Yamaha SR500 stands as a testament to simplicity and rider engagement in an era increasingly dominated by multi-cylinder machines. Far from being a mere replica or an old-fashioned relic, this motorcycle carved its own niche, offering a pure, unadulterated riding experience centred around its distinctive engine. It wasn't born from market research but from the desires of enthusiasts who were already modifying Yamaha's dual-purpose XT500s into sporting road bikes. This article delves into the heart of the SR500, exploring its unique engine, its characteristics, and what makes it such a cherished machine for those who appreciate a hands-on approach to motorcycling.

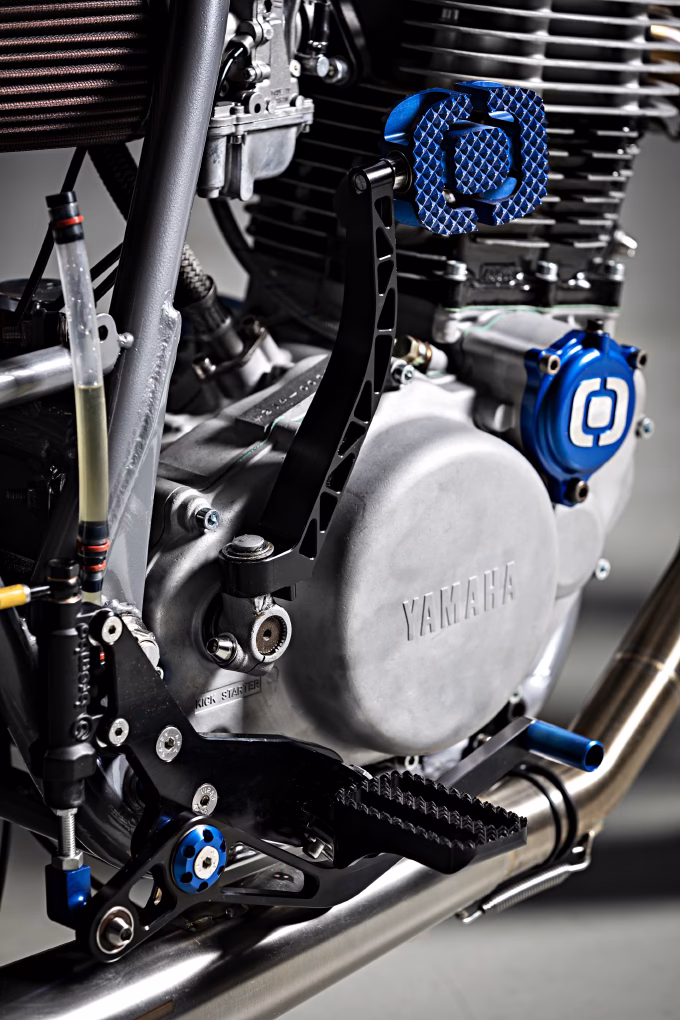

The Enduring Heart: What Powers the SR500?

At the core of the Yamaha SR500 is a straightforward yet characterful engine: a four-stroke Single, displacing 500 cubic centimetres. This configuration, once common generations ago, became a rarity on the market by the time the SR500 was introduced. Unlike many of its contemporaries, Yamaha opted for an overhead camshaft (OHC) design with two valves per cylinder. Crucially, the engine lacks counter-balancers, a deliberate choice that contributes significantly to its raw, tactile feedback. This design philosophy prioritises mechanical purity and a direct connection between rider and machine, embracing the inherent vibrations that define the "thumper" experience.

A Glimpse Under the Covers: Engine Construction and Lubrication

While sharing its fundamental design with the XT/TT500 dual-purpose models, the SR500's engine features several road-specific refinements. For instance, it boasts aluminium side covers instead of the lighter magnesium versions found on its dirt-oriented siblings. This choice reflects the SR500's road-only purpose, where minimal weight savings were less critical than on off-road machines. Additionally, the SR500 engine incorporates more cooling fins, ensuring optimal temperature management during sustained road use. Its dry sump lubrication system is noteworthy, with the oil capacity housed within the frame backbone, a design that contributes to the bike's clean lines and efficient packaging. For the 1980 model year, this oil capacity was slightly increased from 2.3 quarts to 2.5 quarts, offering improved thermal stability.

The Crankshaft Conundrum: Quick Revs vs. Momentum

The crankshaft is a critical component influencing an engine's character, and the SR500's evolution saw a significant change here. Earlier SR500 models featured their own crankshaft with a larger flywheel, designed to provide more flywheel effect and thus greater momentum. However, for the 1980 model year, Yamaha made a deliberate decision to equip the SR500 with the XT cranks, which have a smaller diameter (5.6 inches compared to the old unit's 5.9 inches). This modification was aimed at achieving a quicker-revving engine, enhancing its responsiveness and delivering more obvious power pulses. This change underscores Yamaha's commitment to refining the SR500's sporting road characteristics.

Fuel Delivery: The Carburettor and Its Lean Tendencies

The SR500 features its own carburettor design, complete with an accelerator pump to aid throttle response. A unique "starting button" was also incorporated, precisely cracking the throttle open to an optimal position for warm starts, a clever engineering solution to simplify ignition. However, the 1980 model year brought about changes driven by environmental regulations. New EPA rules led to a smaller carburettor venturi (reduced from 34mm to 32mm), a fixed idle jet, a one-position needle, and smaller main and pilot jets. These modifications, while necessary for compliance, often resulted in a leaner fuel mixture.

Indeed, the question of whether a 1980s Yamaha SR500 is lean is a common one among owners. The answer, based on anecdotal evidence and expert opinion, is a resounding yes. This lean running condition is a direct consequence of the era's emission regulations and is particularly noticeable during cold starts. Symptoms include persistent difficulty starting the bike when cold and spark plug insulators that appear white, indicating a lean burn. For owners struggling with this, a common recommendation is to enrich the idle jet slightly to improve cold-starting behaviour and overall running.

Mastering the Kick-Start: A Ritual, Not a Chore

Perhaps the most defining characteristic of the SR500, beyond its engine type, is its kick-start-only mechanism. This isn't an oversight; it's a deliberate design choice. Yamaha engineers opted against an electric starter to save weight and cost, confident that their meticulous design had rendered it unnecessary. Starting the SR500 is often described as a ritual rather than a chore, one that demands technique and understanding rather than brute force.

The Starting Procedure Explained:

• Piston Position Indicator: The SR500 is equipped with a piston position indicator, a small window or light that shows when the piston is at the optimal point for starting.
• Compression Release: A manual compression release lever allows the rider to easily turn the engine over until the piston is correctly positioned without fighting engine compression.
• Cold Starts: For a cold engine, the choke, which includes an extra notch for fast idle, is engaged. This provides a richer mixture for initial ignition, allowing the rider to move off full choke without fear of stalling.
• Warm/Hot Starts: When the engine is warm or hot, the aforementioned carburettor button is used to precisely crack the throttle, negating the need for the choke.
• The Golden Rule: Crucially, under no circumstances should the throttle be touched during the kick-start process. If the first kick doesn't fire, the next one usually will, provided the technique is correct.

This starting method differentiates the SR500 from most modern motorcycles, which often feature electric starters and automatic chokes. While it requires a certain temperament and willingness to engage with the machine, it's a rewarding process for enthusiasts. As the original road test noted, it's less about age and more about the rider's attitude: "Either you like kick start or you don't."

The Ride: Power Delivery and Vibrations

Riding the SR500 is an experience rich in character. The 500cc Single is inherently in imbalance, and its long stroke limits outright revs, dictating a redline around 7000 rpm. At lower RPMs (below 3500 rpm), the engine can feel rough and vibrate noticeably. However, its true strength lies in its fantastic mid-range, delivering satisfying thumping pulses between 3500 and 7000 rpm. This power band necessitates a gearbox that truly earns its keep.

Unlike multi-cylinder engines that offer broad power across a wide RPM range, the SR500 demands that the rider select the correct gear to keep the engine spinning in its sweet spot. First gear is low for easy starts and creeping through traffic. Second and third handle normal city riding, while fourth keeps the engine on the cam in urban environments. Fifth gear is for cruising, allowing the engine to turn at a comfortable 4500 rpm at an indicated 60 mph, without feeling overstressed. Despite the lack of counter-balancers, Yamaha made lavish use of rubber mounts for the handlebars, foot pegs, and even the head steady, effectively isolating the rider from most of the engine's inherent vibrations at legal speeds. The result is a ride that, while acknowledging the engine's presence, remains comfortable and engaging.

Efficiency and Endurance: The SR500's Frugal Nature

One of the less celebrated but highly practical advantages of the SR500's engine design is its impressive fuel efficiency. The philosophy of having a large piston moving relatively slowly, with the throttle more open, minimises pumping losses common in smaller, high-revving engines. This translates into exceptional mileage. The SR500 consistently returned a delightful 62 mpg, outperforming many multi-cylinder bikes and even some 400cc twins. While its shapely tank holds only 3.5 gallons, this frugal consumption allows for a substantial range of at least 160 miles before needing to switch to reserve. For those who appreciate economical travel without sacrificing character, the SR500 delivers.

1980 Model Year Refinements: Subtle Yet Significant

For 1980, the SR500 received several detailed changes, demonstrating Yamaha's continuous commitment to refining the model without altering its core philosophy. While some changes, like the switch from a rear disc brake to a drum (to reduce weight and improve wet weather performance), are not directly engine-related, they contribute to the bike's overall character and performance profile. Engine-specific changes included:

• Crankshaft: Adoption of the XT cranks for quicker revving.
• Carburettor: Smaller venturi (32mm), fixed idle jet, one-position needle, and smaller main/pilot jets due to EPA regulations.
• Oil Capacity: Increased dry sump oil capacity from 2.3 to 2.5 quarts in the frame backbone.
• Muffler: Shortened and revised to emulate the sound of old Singles, although legislative noise limits meant a softer, less clear sound.

Table: Key Engine Differences (Pre-1980 vs. 1980 SR500)

Frequently Asked Questions About the SR500 Engine

Q: Is the SR500 engine reliable?

A: Generally, yes. The SR500 engine is a robust, straightforward four-stroke single. Its simplicity often translates to good reliability, provided it's maintained correctly. Regular oil changes and adherence to the proper starting procedure are key.

Q: Why does the SR500 vibrate so much?

A: The SR500 engine is a large-displacement Single without counter-balancers. This design inherently produces more vibration than multi-cylinder engines. Yamaha mitigated this with rubber mounts for the handlebars and footpegs, but some vibration is a fundamental part of its character, particularly below 3500 rpm.

Q: Can I put an electric starter on my SR500?

A: The SR500 was designed without an electric starter to save weight and cost. While aftermarket conversion kits might exist, they are not common and would involve significant modifications to the engine and electrical system, potentially compromising the bike's original design philosophy and adding considerable weight.

Q: What kind of fuel economy can I expect from an SR500?

A: The SR500 is known for its excellent fuel efficiency. Riders can typically expect around 62 mpg (miles per gallon), making it a very economical choice for a 500cc motorcycle.

Q: Is it difficult to tune the SR500 carburettor?

A: The 1980 and later models, with their fixed idle jet and smaller venturi due to EPA regulations, can be a bit more challenging to tune for optimal performance and starting, especially if addressing a lean condition. Consulting a specialist or experienced mechanic familiar with these bikes is often recommended.

Conclusion: A Machine for Enthusiasts

The Yamaha SR500's engine is more than just a power plant; it's the very soul of the motorcycle. It's a machine for true enthusiasts, those who appreciate the tactile feedback, the ritual of the kick-start, and the unique character of a large single-cylinder engine. It demands attention and rewards with a deeply engaging riding experience. From its lean running characteristics (a nod to its era) to its robust mid-range power and surprising fuel efficiency, the SR500's engine offers a distinct alternative to the often-homogenized world of modern motorcycling. For those willing to embrace its quirks and master its demands, the SR500 remains one of the most satisfying bikes on the market, a timeless thumper that continues to captivate riders.
