08/12/2009
Unleashing the Power: A Deep Dive into Porsche 997 Tuning
The Porsche 997, a celebrated icon in the lineage of the 911, offers a sublime blend of performance, luxury, and driving engagement. However, for enthusiasts seeking that extra edge, the world of Porsche 997 tuning presents an exciting avenue to elevate an already exceptional machine. Whether you own a Carrera, a formidable GT3, or the potent Turbo variant, there's a wealth of potential waiting to be unlocked through carefully considered modifications. This isn't just about raw power; it's about refining the driving experience, sharpening responses, and tailoring the car to your specific desires.
At its core, much of the performance enhancement for the 997 Carrera, encompassing both the 3.6L and 3.8L engine variants, revolves around ECU tuning. The Electronic Control Unit (ECU) is the brain of your car, dictating how the engine operates. By reprogramming this vital component, tuners can meticulously adjust parameters such as the air-fuel mixture and ignition timing. These adjustments are not arbitrary; they are calculated to extract more horsepower and torque, making your 997 feel more responsive and potent across the rev range.
The Science Behind ECU Tuning
ECU tuning, often referred to as 'chipping' or 'remapping,' involves modifying the software stored within the ECU. Modern engines are incredibly complex, with numerous sensors feeding data to the ECU to ensure optimal operation under various conditions. Tuners leverage this data, along with their expertise and sophisticated diagnostic equipment, to create new software maps. These maps are designed to:
- Optimise Air-Fuel Ratio: Ensuring the correct amount of fuel is injected for the amount of air entering the cylinders is crucial for both power and efficiency. Tuning can adjust this for maximum combustion efficiency.
- Refine Ignition Timing: The precise moment the spark plug fires significantly impacts power output and engine smoothness. ECU tuning can advance or retard timing to suit the desired performance characteristics.
- Increase Boost Pressure (Turbo Models): For turbocharged variants like the 997 Turbo, tuning can safely increase boost levels, forcing more air into the engine for substantial power gains.
- Adjust Rev Limiter: While often left standard, some tunes can safely increase the engine's rev limit, allowing it to rev higher and access more power in the upper RPM range.
- Modify Torque Limiters: Manufacturers often impose electronic torque limiters to protect the drivetrain. Adjusting these can lead to a more immediate and linear power delivery, especially noticeable in lower gears.
- Remove Speed Limiters: For those seeking ultimate top-end performance, many tunes can raise or completely remove the factory-imposed electronic speed limiter.
Benefits Beyond Horsepower
While the allure of increased horsepower and torque is undeniable, the advantages of a well-executed 997 tune extend further. Many owners report an improved throttle response, making the car feel more eager and connected to the driver's inputs. For manual transmission cars, some tuning solutions can even be tailored to accommodate modifications like cat-delete pipes, ensuring the ECU is correctly calibrated for these changes. Furthermore, improvements in fuel efficiency can sometimes be a welcome side effect of a more optimised engine map, though this is highly dependent on driving style.
Reputable Tuning Partners
The Porsche tuning landscape is populated by numerous specialist companies, each with its own approach and expertise. Companies like Protomotive, VF Engineering, EVOMS, GIAC, Tronic, Upsolute, Powerchip, and ETG are well-respected names in the industry. Vivid Racing, for instance, highlights their extensive experience working with these and other tuning houses, often utilising their own VR Tuned software. The key to successful tuning lies in the validation process. Dyno testing provides measurable data on power and torque gains, while rigorous road testing ensures the tune is not only powerful but also reliable and drives well in real-world conditions. The convenience of OBDII (On-Board Diagnostics II) port flashing means that tuning can often be carried out quickly and efficiently without the need to physically remove and open the ECU.
Case Study: 991.2 Turbo Engine Tuning
The evolution of Porsche engines means that tuning strategies adapt. For the 991.2 generation, particularly the 3.0T engines found in the Carrera, Carrera S, and GTS models, the tuning approach remains focused on ECU recalibration. Litchfield, a prominent UK-based tuner, exemplifies this with their in-house development on a Maha Dyno, a benchmark for accuracy often used by Porsche themselves. Their approach prioritises creating a smooth and driveable car, not just a peaky power monster. This involves custom ECU mapping that significantly boosts both power and torque, often exceeding the gains from 'off-the-shelf' tunes.

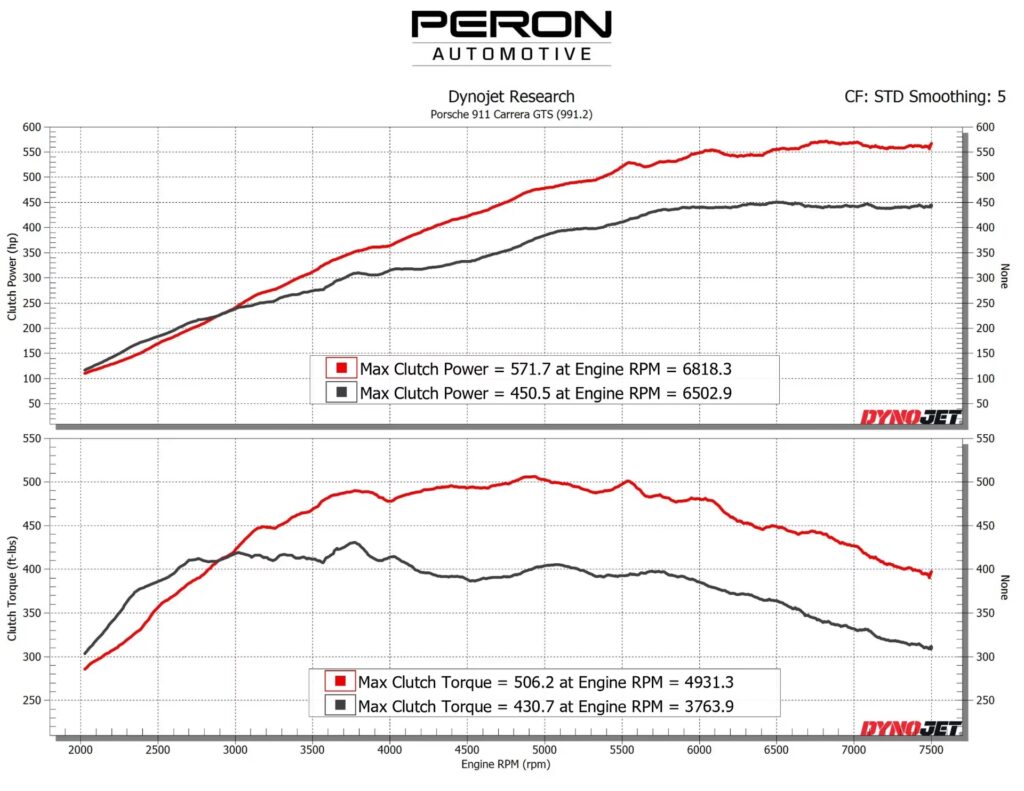

Performance Figures: 991.2 Carrera GTS Litchfield Remap
To illustrate the tangible benefits, consider the figures for a 991.2 Carrera GTS:
| Model | Configuration | Standard Power | Standard Torque | Litchfield Remap Power | Litchfield Remap Torque |
|---|---|---|---|---|---|
| Carrera GTS | 3.0 Turbo | 444 bhp (450 PS) | 406 lbft (550 Nm) | 553 bhp (560 PS) | 479 lbft (650 Nm) |
These figures demonstrate a substantial increase in both horsepower and torque, transforming the already rapid GTS into a supercar-slaying machine. The subtle differences between engine variants (e.g., compressor wheel size in Carrera S vs. GTS) are accounted for in the bespoke tuning process.
Modern ECU Upgrades: 911 Carrera S/4S/GTS (991.2 Generation)
For the later 991.2 generation Carrera S, 4S, and GTS models, ECU software upgrades offer a compelling package of enhancements. AMR Performance, for example, details an upgrade that targets significant power and torque gains, often in the region of +95-105hp and +115-125tq, depending on the specific model and octane used. Such upgrades are engineered to:
- Optimise Fuel Mapping: Tailored fuel curves for 91, 93 octane, or European 95 and 98 RON fuels.
- Optimise Timing Curve: Ensuring peak performance and knock prevention.
- Remove Speed Limiter: Allowing the car to achieve its maximum potential on unrestricted roads or tracks.
- Improve Turbocharger Response: Reducing lag and making the power delivery more immediate.
- Eliminate Low RPM Hesitation: Creating a smoother, more consistent acceleration from a standstill.
- Enhance Power Band: Providing a broader and stronger spread of power throughout the rev range.
- Smoother Transmission Shifts: For automatic or PDK transmissions, software can refine shift patterns for faster, more decisive gear changes.
These advancements transform the car from a capable grand tourer into a more focused and exhilarating performance vehicle, often referred to by tuners as a "torque-filled throttle happy warrior." The ability to tune directly via the OBD port offers flexibility, allowing for quick software updates or a return to the original factory settings if required.
Frequently Asked Questions about Porsche 997 Tuning
Q1: Is Porsche 997 tuning safe for the engine?
Yes, when carried out by reputable tuners using proven software and with appropriate supporting modifications if necessary, 997 tuning is generally safe. It's crucial to choose tuners who understand the intricacies of Porsche engines and don't push parameters beyond safe limits.
Q2: Will tuning void my Porsche warranty?
This is a common concern. In many regions, a tuner cannot void your entire warranty simply because the ECU has been remapped. However, if a specific engine failure can be directly attributed to the tune, Porsche may refuse warranty coverage for that particular repair. It's advisable to discuss warranty implications with your chosen tuner and dealer.
Q3: Can I tune my Porsche 997 myself?
While the tools and software exist, ECU tuning requires a deep understanding of engine management, combustion, and the specific Porsche ECU architecture. Incorrect tuning can lead to severe engine damage. It is highly recommended to have tuning performed by experienced professionals.
Q4: What's the difference between a 'flash' tune and a 'chip' tune?
Historically, 'chip' tuning involved physically replacing a chip on the ECU's circuit board. Modern 'flash' tuning involves reprogramming the ECU's existing memory via the OBDII port or other direct connections. Flash tuning is far more common and convenient today.
Q5: How much performance gain can I expect from a 997 Carrera tune?
Typical gains for a naturally aspirated 997 Carrera tune can range from 15-30 horsepower and a similar increase in torque. Turbocharged models, like the 997 Turbo, can see much larger gains, often 50-100+ horsepower, depending on the tune and supporting modifications.
Conclusion: Elevate Your 997 Experience
The Porsche 997 is a masterpiece of automotive engineering, but the pursuit of enhanced performance is a driving force for many enthusiasts. ECU tuning, combined with a thoughtful approach to other modifications, offers a powerful and effective way to unlock your 997's full potential. By partnering with reputable specialists and understanding the nuances of engine management, you can transform your Porsche into an even more exhilarating and potent machine, perfectly tailored to your driving passions.
