Understanding the P0171 Code on Your Chevy

The P0171 code on your Chevrolet vehicle is a clear indicator that your engine's fuel trim system on Bank 1 is experiencing a lean condition. In simpler terms, this means that the air-fuel mixture inside your engine is imbalanced, with too much air and not enough fuel. This imbalance can lead to a variety of performance issues and, if left unaddressed, can even cause further damage to your engine. Understanding this code is the first step towards getting your Chevy running smoothly again.

What Does P0171 Actually Mean?

When your car's onboard computer, the Powertrain Control Module (PCM), detects that the air-fuel ratio is not within the optimal range, it will illuminate the Check Engine Light and store a diagnostic trouble code (DTC). The P0171 code specifically tells you that 'System Too Lean' on 'Bank 1'. Bank 1 refers to the side of the engine that contains cylinder number one. The ideal air-fuel ratio for most petrol engines is approximately 14.7 parts of air to 1 part of fuel (stoichiometric ratio). If the PCM detects too much air or too little fuel entering the combustion chamber, it will try to compensate by increasing the fuel delivery (positive fuel trim). If, even after attempting to add more fuel, the mixture remains too lean, the P0171 code is triggered.

Common Culprits Behind the P0171 Code

Several factors can contribute to a lean condition in your Chevy's engine. Identifying the root cause is crucial for an effective repair. Here are some of the most frequent culprits:

Vacuum Leaks

This is perhaps the most common cause. Vacuum leaks allow unmetered air to enter the engine after the Mass Airflow (MAF) sensor. This extra air isn't accounted for by the PCM, leading to a lean mixture. Common sources include cracked or loose vacuum hoses, a faulty PCV (Positive Crankcase Ventilation) valve, leaking intake manifold gaskets, or even a loose gas cap.

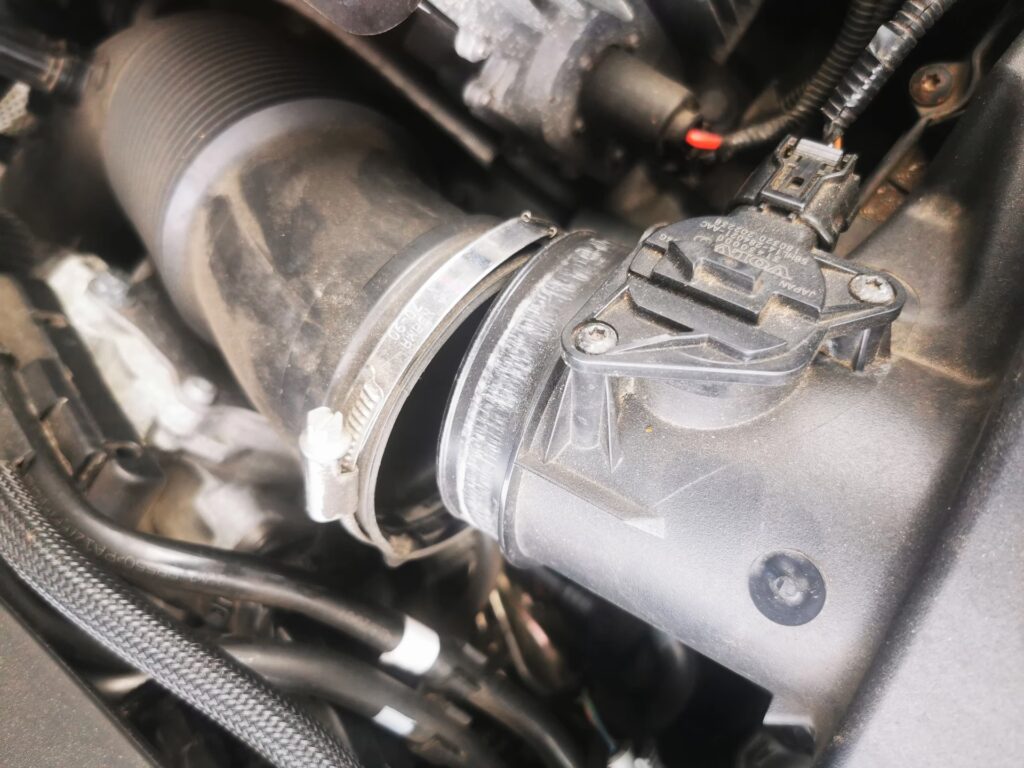

Faulty Mass Airflow (MAF) Sensor

The MAF sensor measures the amount of air entering the engine. If it's dirty, clogged, or malfunctioning, it will send incorrect data to the PCM, leading to an inaccurate calculation of the required fuel. A dirty MAF sensor is a very common issue, and often cleaning it can resolve the P0171 code.

Oxygen (O2) Sensor Issues

Oxygen sensors monitor the amount of unburnt oxygen in the exhaust gases. The upstream O2 sensor (before the catalytic converter) plays a vital role in adjusting the fuel mixture. If this sensor is faulty, slow to respond, or contaminated, it can send incorrect readings to the PCM, causing it to incorrectly adjust the fuel mixture, potentially leading to a lean condition.

Clogged Fuel Filter or Weak Fuel Pump

If the fuel system isn't delivering enough fuel, the engine will run lean. A clogged fuel filter restricts fuel flow, and a weak fuel pump may not be able to maintain adequate fuel pressure. This can result in insufficient fuel being injected into the cylinders.

Faulty Fuel Injectors

Similarly, if fuel injectors are clogged or not spraying fuel correctly, the engine won't receive the proper amount of fuel. This can lead to a lean condition, especially if multiple injectors are affected.

Exhaust Leaks

Leaks in the exhaust system before the upstream oxygen sensor can draw in outside air, which the O2 sensor then interprets as too much oxygen in the exhaust, leading the PCM to believe the mixture is lean and to add more fuel unnecessarily. This can also skew the O2 sensor readings.

Other Potential Causes

Less common causes can include a faulty Manifold Absolute Pressure (MAP) sensor, issues with the Exhaust Gas Recirculation (EGR) system, or even problems with the Engine Control Module (ECM) or Powertrain Control Module (PCM) itself, though these are rare.

Symptoms of a P0171 Code

While the Check Engine Light is the most obvious sign, other symptoms can accompany a P0171 code, indicating your engine is struggling:

• Rough Idle: The engine may shake or run unevenly when idling, sometimes to the point of stalling.
• Hesitation or Stumbling: You might notice a lack of responsiveness or a jerky feeling when accelerating.
• Loss of Power: The vehicle may feel sluggish, especially during acceleration or when climbing hills.
• Decreased Fuel Efficiency: The engine may consume more fuel as it tries to compensate for the perceived lean condition.
• Engine Knocking or Pinging: In severe cases, the lean mixture can cause the fuel to ignite prematurely under load, creating a knocking sound.
• Stalling: The engine may shut off unexpectedly, particularly when it's warm.
• Emissions Test Failure: A lean condition can lead to increased NOx emissions, causing your vehicle to fail an emissions test.

Can You Drive with a P0171 Code?

While you can technically drive your Chevrolet with a P0171 code, it is strongly advised against, especially if the Check Engine Light is flashing. A flashing light indicates a severe misfire, which can quickly lead to catalytic converter damage. Even if the light is steady, continuing to drive with a lean condition can cause:

• Increased Engine Wear: Running lean can lead to higher combustion temperatures, potentially damaging pistons, valves, and the catalytic converter.
• Catalytic Converter Damage: Over time, the unburnt fuel and increased heat can overheat and destroy the catalytic converter, a very expensive repair.
• Poor Performance: You'll likely experience reduced power and fuel economy.

It's best to address the issue as soon as possible to prevent further complications.

Diagnosing the P0171 Code: A Step-by-Step Approach

Diagnosing a P0171 code requires a systematic approach. Here’s a common diagnostic process:

1. Scan for Codes and Review Data

Use an OBD-II scanner to confirm the P0171 code and check for any other related DTCs. Pay close attention to the freeze-frame data, which captures engine conditions at the moment the code was set. Also, observe the fuel trims (short-term and long-term). High positive fuel trims (e.g., greater than +15%) indicate the PCM is adding a lot of fuel to compensate for a perceived lean condition.

2. Inspect the Gas Cap

It sounds simple, but a loose, damaged, or missing gas cap can cause a lean code. Ensure it's tightened properly and that the seal is in good condition.

3. Check for Vacuum Leaks

This is a critical step. You can visually inspect all vacuum hoses and intake components for cracks or disconnections. A more effective method is using a smoke machine. This device introduces smoke into the intake system, and any leaks will be visible as wisps of smoke escaping.

4. Test the Mass Airflow (MAF) Sensor

Carefully remove the MAF sensor and inspect it for dirt or oil contamination. If it appears dirty, use a dedicated MAF sensor cleaner to clean it. Do not use any other type of cleaner, as it can damage the sensor. If cleaning doesn't resolve the issue, the MAF sensor may need to be replaced. You can also check its voltage readings with a multimeter or scan tool to see if they are within specification.

5. Inspect Oxygen Sensors

While less common than MAF or vacuum leaks, a faulty upstream O2 sensor can cause this code. A mechanic can test the O2 sensor's response time and voltage output using a scan tool. Look for signs of contamination or damage.

6. Verify Fuel Pressure

Use a fuel pressure gauge to ensure the fuel pump is delivering the correct pressure. Compare the readings to your vehicle's specifications. A weak pump or a faulty fuel pressure regulator can cause a lean condition.

7. Check for Exhaust Leaks

Inspect the exhaust manifold and pipes before the upstream O2 sensor for any signs of leaks. A smoke test can also help identify these.

8. Inspect Spark Plugs

While not a direct cause, spark plugs can show signs of a lean condition. If they have a white or greyish appearance, it can indicate a lean burn.

Repairing the P0171 Code

The repair process will depend entirely on the diagnosed cause:

• Vacuum Leaks: Replace damaged vacuum hoses, gaskets, or PCV valves.
• MAF Sensor: Clean or replace the MAF sensor.
• Oxygen Sensor: Replace the faulty upstream O2 sensor.
• Fuel System: Replace the fuel filter, fuel pump, or fuel injectors as needed.
• Exhaust Leaks: Repair or replace the leaking exhaust components.

It's important to address the specific component causing the lean condition. Simply replacing parts without proper diagnosis can lead to wasted money and time.

Cost of Repairing a P0171 Code

The cost of repairing a P0171 code can vary significantly:

• DIY Repairs: Cleaning a MAF sensor or tightening a gas cap might cost very little. Replacing a vacuum hose or a MAF sensor could range from £50 to £200 depending on the part.
• Professional Repairs:
  • MAF Sensor Replacement: £150 - £400
  • Oxygen Sensor Replacement: £150 - £400
  • Vacuum Leak Repair: £100 - £600 (depending on the complexity)
  • Fuel Filter Replacement: £50 - £150
  • Fuel Pump Replacement: £300 - £800+
  • Fuel Injector Replacement: £300 - £1000+ (depending on the number of injectors)
  • Catalytic Converter Replacement: £500 - £2,500+ (if damaged)

Diagnostic labour costs can add another £50-£150, so it's always wise to get a quote after a thorough inspection.

Preventing Future Fuel System Issues

Regular maintenance is your best defence against fuel system problems:

• Scheduled Maintenance: Adhere to your Chevy's recommended service schedule, including air filter replacements. A dirty air filter can sometimes contribute to MAF sensor issues.
• Use Quality Fuel: Stick to reputable fuel stations.
• Inspect Hoses and Lines: Periodically check for visible signs of wear or damage on vacuum hoses and fuel lines.
• Address Minor Issues Promptly: Don't ignore small problems like rough idling or hesitation, as they could be early indicators of a developing lean condition.

Importance of Timely Repairs

Ignoring a P0171 code can lead to a cascade of problems. The lean condition puts extra stress on your engine components, especially the catalytic converter. Addressing the issue promptly ensures optimal performance, better fuel economy, and prevents potentially much more expensive repairs down the line. Think of it as a small stitch in time saving nine!

Frequently Asked Questions

Can a P0171 Code Cause Damage to My Engine?

Yes, a persistent lean condition can lead to engine damage, including overheating, detonation (pinging), and accelerated wear on components like valves and piston rings. It can also severely damage the catalytic converter.

How Long Does It Take to Diagnose and Repair a P0171 Code?

Diagnosis typically takes 1-2 hours for a professional mechanic, depending on the complexity. The actual repair time can vary from less than an hour for a simple fix like cleaning a MAF sensor to several hours for more involved repairs like replacing a fuel pump or injectors.

Will a P0171 Code Affect My Vehicle’s Emissions Test?

Absolutely. A lean fuel mixture can lead to increased emissions of nitrogen oxides (NOx), which are harmful pollutants. Your vehicle will likely fail an emissions test with this code active.

Will Cleaning the MAF Sensor Fix P0171?

If the MAF sensor is simply dirty, cleaning it can indeed fix the P0171 code. However, if the sensor is faulty internally, cleaning will not resolve the issue, and it will need to be replaced.

Are Some Chevrolets More Susceptible to P0171?

While P0171 is a generic code, certain models or engine types might have common failure points. For example, older vehicles might be more prone to vacuum leaks due to aging rubber components. It's always worth checking model-specific forums for common issues.

Conclusion

The P0171 code on your Chevrolet signifies a lean fuel mixture on Bank 1. While it can be caused by a variety of issues, from simple vacuum leaks to more complex sensor failures, it's essential to diagnose and repair it promptly. By understanding the potential causes, symptoms, and diagnostic steps, you can either tackle the problem yourself or communicate effectively with your mechanic to get your Chevy back to its optimal performance. Don't ignore that Check Engine Light – it's your vehicle's way of telling you something needs attention!
