Discovery 4 Suspension Bush Replacement Explained

The Land Rover Discovery 4, a vehicle renowned for its robust off-road capabilities and comfortable ride, relies heavily on its suspension system to deliver this performance. A crucial, yet often overlooked, component within this system is the suspension bush. These seemingly small rubber or polyurethane components play a vital role in absorbing shock, isolating vibrations, and ensuring the smooth operation of your vehicle's suspension. However, due to the demanding nature of off-roading and general wear and tear, suspension bushes on Discovery 4 models can wear out faster than on many other vehicles. This article delves into what happens when a suspension bush needs replacing on a Discovery 4, the common symptoms to look out for, and the implications for your vehicle's handling and longevity.

Understanding Suspension Bushes and Their Function

Suspension bushes are typically made from rubber or a more durable synthetic material like polyurethane. They are strategically placed at various pivot points within the suspension system, such as on suspension arms and anti-roll bars. Their primary functions include:

• Shock Absorption: They absorb the minor impacts and vibrations from the road surface, preventing them from being transmitted directly to the vehicle's chassis and cabin.
• Vibration Damping: They isolate different suspension components, reducing noise and vibration for a more comfortable ride.
• Alignment and Control: They maintain the correct geometry of the suspension, ensuring that wheels remain properly aligned and the vehicle handles predictably.
• Flexibility: They allow for controlled movement within the suspension system, accommodating the forces encountered during driving, cornering, and braking.

On a Discovery 4, replacing a suspension bush often involves removing the suspension arm from the vehicle. The old, worn bush is then pressed out, and a new one is pressed in. While this sounds straightforward, the difficulty can increase significantly if the old bush is seized or if access is limited, sometimes necessitating the cutting out of the entire suspension arm.

Common Symptoms of Worn Suspension Bushes on a Discovery 4

When suspension bushes begin to wear out, they can manifest in several noticeable ways, impacting both the driving experience and the safety of your Discovery 4. It's important to be aware of these signs:

1. Clonking or Knocking Sounds

One of the most prevalent symptoms of worn suspension bushes is a distinct clonking or knocking sound emanating from the suspension. This is particularly noticeable at low speeds, especially when maneuvering or applying brakes. A simple test involves driving the vehicle forward and then in reverse at a slow speed while gently applying the brakes. If a clonk is heard immediately upon braking, it strongly suggests worn bushes, often in the lower suspension arms.

2. Vague or Unresponsive Steering

Worn bushes, especially those in the anti-roll bar, can lead to a feeling of vagueness or a lack of responsiveness in your steering. The steering might feel 'woolly,' and the vehicle may not feel as planted as it should, particularly when cornering. This reduces driver confidence and can make the vehicle feel less secure on the road.

3. Vehicle Instability During Cornering

When the bushes that connect the anti-roll bar to the chassis wear out, they can cause the vehicle to feel less stable during cornering. You might notice the vehicle leaning more than usual, or experiencing a slight 'jump' or sideways movement in the opposite direction of the turn. This is because the anti-roll bar is not being effectively controlled by its mounting bushes.

4. Uneven Tyre Wear

One of the more insidious consequences of worn suspension bushes is uneven tyre wear. This is often a sign of misaligned suspension components. For example, worn rear upper suspension arm bushes or rear suspension spindle connecting rods can cause the tyres to scrub on the inside edge. This not only leads to premature tyre replacement but also compromises the vehicle's handling and grip.

5. Rattling Noises

Worn bushes in components like suspension drop links (also known as tie bars) can result in a light metal rattle. This is often heard when the vehicle travels over speed bumps or potholes. These drop links connect the suspension arm to the anti-roll bar and are crucial for maintaining stability.

Specific Suspension Components and Their Bush Replacements

The Discovery 4 has several key suspension components where bushes are critical. Understanding these areas can help pinpoint the source of problems:

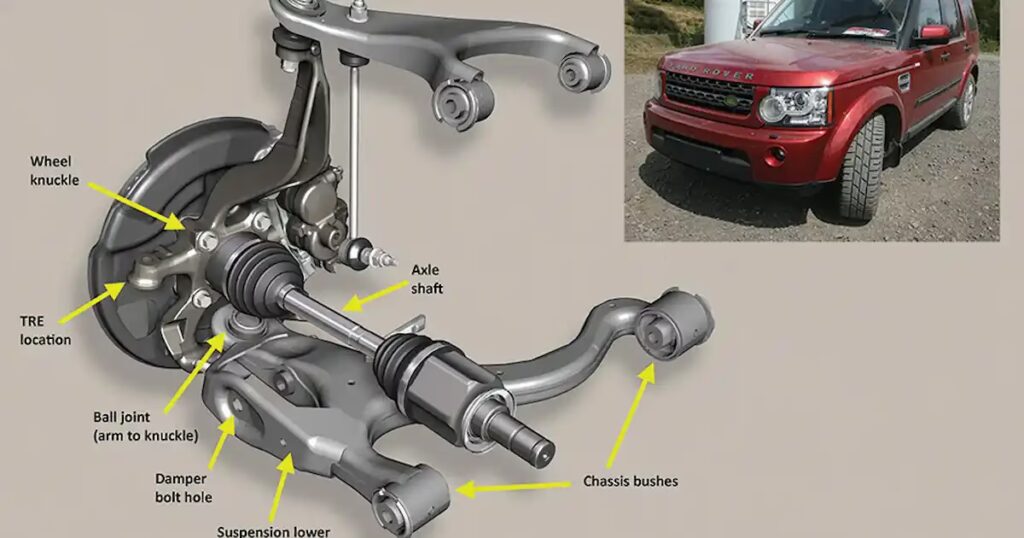

Front Lower Suspension Arms

These are a very common area for wear on the Discovery 4. A worn lower suspension bush is often cited on MOT failure sheets. While it's technically possible to press out and replace just the bush, it's significantly easier and often more cost-effective to replace the complete suspension arm. This is because removing the old bush and pressing in a new one perfectly straight can be a challenging task. Following the replacement of front lower suspension arms, a four-wheel alignment is essential to ensure correct toe and camber settings, preventing pulling to one side and premature tyre wear.

Front Anti-Roll Bar Bushes

The anti-roll bar (or stabilizer bar) has two rubber bushes that secure it to the chassis. Wear in these bushes is indicated by a clunk when cornering or a feeling of the vehicle moving or jumping further when cornering.

Front Suspension Tie Bars (Drop Links)

These small rods connect the upper suspension arm to the anti-roll bar. Worn bushes here can cause rattling noises over bumps. Replacing them can be complicated by seized bolts.

Rear Upper Suspension Arms

Worn bushes in the rear upper suspension arms are a frequent MOT failure. Symptoms include scrubbed tyres on the inside and a feeling of insecurity when cornering or driving over uneven surfaces. Replacing these arms is challenging due to seized bolts and limited access, often requiring the arms to be cut out. A four-wheel alignment is crucial after replacement.

Rear Anti-Roll Bar Bushes

Similar to the front, worn rear anti-roll bar bushes can cause a clunk when cornering and a vague feeling from the rear of the vehicle. Replacement involves the bushes that secure the anti-roll bar to the chassis.

Rear Suspension Spindle Connecting Rods

These components can cause slight rear-end movement over rough ground and, critically, uneven rear tyre wear (inside scrubbing). A four-wheel alignment is recommended after their replacement.

Rear Suspension Tie Bars (Drop Links)

Like their front counterparts, worn rear drop links can lead to rattling noises and affect stability. Replacement can be hampered by seized bolts.

What Happens If Suspension Bushes Are Not Replaced?

Ignoring worn suspension bushes can lead to a cascade of problems:

• Accelerated Wear on Other Components: The increased play and shock transmitted by worn bushes will put extra stress on other suspension parts, such as ball joints, shock absorbers, and steering components, leading to their premature failure.
• Compromised Handling and Safety: As bushes wear, the suspension geometry changes, leading to poor handling, reduced braking effectiveness, and an increased risk of losing control, especially during emergency maneuvers.
• Tyre Degradation: Uneven tyre wear will significantly reduce the lifespan of your tyres, costing you more in the long run.
• Increased Noise and Vibration: The ride comfort will deteriorate, with more road noise and vibrations entering the cabin.
• Failed MOT: Worn suspension bushes are a common reason for a vehicle to fail its MOT test.

Other Common Discovery 4 Issues

While focusing on suspension bushes, it's worth noting other common issues that can affect the Discovery 4, as these can sometimes be mistaken for suspension problems or may occur concurrently:

• Throttle Body Clogging: Can cause 'restricted performance' messages and issues with DPF regeneration.
• Inlet Manifold or Rocker Cover Cracks: Also contribute to restricted performance, especially under load.
• Air Suspension Faults: Various components like compressors, height sensors, and valves can fail, leading to the vehicle not raising or lowering correctly.
• Brake Wear: Due to the vehicle's weight and power, brake discs and pads can wear relatively quickly.
• Handbrake Issues: Seized actuators or collapsing shoes can cause screeching or the handbrake failing to release.

Frequently Asked Questions

Q1: How often should suspension bushes be checked on a Discovery 4?

A1: It's advisable to have your suspension checked during regular servicing, typically every 12,000 miles or 12 months. Any unusual noises or changes in handling should prompt an immediate inspection.

Q2: Is it worth replacing just the bushes or the whole suspension arm?

A2: For many components, particularly the front lower suspension arms, replacing the complete arm is often more practical and cost-effective due to the difficulty of pressing bushes in accurately. For other components like anti-roll bar bushes, replacing just the bushes is standard practice.

Q3: What is the cost of replacing suspension bushes on a Discovery 4?

A3: Costs vary depending on the specific component and whether you use OEM or aftermarket parts. As per the estimates above, replacing front lower suspension arms with OEM parts and alignment can cost around £310, while anti-roll bar bushes might be around £157 for the front and £300 for the rear.

Q4: What is the consequence of a worn suspension bush on the MOT?

A4: Worn suspension bushes are a common cause of MOT failure, as they directly affect the vehicle's roadworthiness and safety. Items like worn suspension arm bushes or anti-roll bar bushes will result in an immediate failure.

Q5: Does replacing suspension bushes require a wheel alignment?

A5: Yes, it is highly recommended to perform a four-wheel alignment after replacing suspension arms or any components that affect the wheel geometry, such as tie bars or spindle connecting rods. This ensures proper handling and prevents uneven tyre wear.

Conclusion

The suspension bushes on your Discovery 4 are critical for maintaining safe and comfortable driving. When they wear out, they can lead to a range of audible symptoms and compromised handling. Proactive inspection and timely replacement of worn bushes, particularly in the suspension arms and anti-roll bars, are essential for the longevity of your vehicle and your peace of mind on the road. Regular servicing and addressing any suspicious noises or handling characteristics promptly will help keep your Discovery 4 performing at its best.
