DIY Sterndrive Gear Lube Change: A UK Guide

Maintaining your boat's sterndrive is paramount for its longevity and performance, and one of the most critical, yet often overlooked, tasks is the regular replacement of the lower unit gear lubricant. For Mercury® MerCruiser® sterndrives, this vital service should be performed annually or after every 100 hours of operation, whichever comes first. This proactive approach removes diminished additives and harmful contaminants that accumulate over time, ensuring the gears and bearings remain properly lubricated and protected. Furthermore, changing the lubricant provides an invaluable opportunity to inspect the used oil for any signs of water ingress, which can signal a more serious underlying issue with your drive's seals. For many boat owners across the UK, this essential gear lube change is a cornerstone of the annual service routine, often carried out alongside an engine oil and filter replacement before the boat is laid up for winter or the off-season.

While it might seem like a daunting task, changing the gear lube with a quality product like SAE 90 Quicksilver® High Performance Gear Lube is a perfectly manageable task for the competent do-it-yourself boat owner. This guide will walk you through the process, providing detailed steps and insights to ensure a successful and thorough job, helping you keep your MerCruiser drive in peak condition.

The Critical Role of Sterndrive Gear Lube

Your sterndrive's lower unit houses a complex array of gears and bearings that are constantly subjected to immense forces and friction. The gear lubricant acts as the lifeblood of this system, performing several crucial functions:

• Lubrication: It creates a protective film between moving parts, reducing friction and preventing metal-on-metal contact.
• Cooling: It helps to dissipate the heat generated by the gears, preventing overheating and premature wear.
• Cleaning: It carries away microscopic wear particles and other contaminants that can damage components.
• Corrosion Protection: Modern gear lubes contain additives that protect internal components from rust and corrosion, especially important in marine environments.

Over time, the demanding conditions within a sterndrive cause the lubricant to break down. Its additives deplete, and it becomes contaminated with microscopic metal particles from normal wear, as well as potential water ingress. Neglecting to change the gear lube can lead to excessive wear, pitting of gears, bearing failure, and ultimately, costly repairs or even complete drive unit replacement. Regular changes ensure the drive operates smoothly, quietly, and efficiently, extending its operational life significantly.

When and Why to Perform This Vital Service

As previously mentioned, the general recommendation for MerCruiser sterndrives is to change the gear lube either annually or every 100 hours of operation. Adhering to this schedule is not merely a suggestion; it's a critical preventative measure. Performing the service before winter or off-season lay-up is particularly beneficial. This ensures that the drive is stored with fresh, clean lubricant, free from any accumulated moisture or corrosive elements that could cause damage during periods of inactivity. If there's any water present in the old lube, it will be removed, preventing freezing and expansion damage in colder climates.

The act of changing the lubricant also serves as an important diagnostic opportunity. By observing the condition of the drained oil, you can gain valuable insights into the health of your sterndrive. A clear, amber-coloured fluid is ideal. Any deviation from this, such as a milky appearance, indicates the presence of water ingress, which demands immediate investigation. Similarly, the presence of metal shavings, especially larger ones, can signal significant internal wear that requires professional attention before it escalates into a catastrophic failure.

Gathering Your Essential Tools and Quality Materials

Before you begin, ensure you have all the necessary tools and materials at hand. Being prepared will make the process much smoother and prevent unnecessary delays. Here’s what you’ll need:

• Basic Hand Tools: A suitable wrench or socket set to remove the drain and fill screws (often a 5/8-inch or 16mm wrench, but check your manual). A flat-head screwdriver might also be useful for prying off old seals.
• Oil Catch Pan: A clean pan with sufficient capacity to collect the old gear lube.
• Container for Used Oil: An empty container (e.g., old oil bottles) for proper disposal of the waste lubricant. Remember, never pour used oil down drains or onto the ground; dispose of it responsibly at a local recycling centre or marine service shop.
• Rags or Paper Towels: For cleaning up spills and wiping down components.
• Quicksilver® High Performance Gear Lube: This is the recommended lubricant for MerCruiser drives. It features a specialised marine additive package specifically designed to outperform standard automotive gear oil in the demanding marine gearcase applications. It's formulated to meet or exceed manufacturer specifications for use in engines from MerCruiser and other leading brands. Using the correct lubricant is crucial for optimal protection and performance.
• Quicksilver Gear Lube Pump Kit: This invaluable tool threads directly into the lower drain/fill hole of your MerCruiser drive, allowing you to easily pump fresh lube into the unit from the bottom up. This method ensures that the drive is completely filled and helps prevent air pockets.
• Quicksilver Drain and Fill Screw Seals: These small, yet critical, seals (often fibre washers) create a watertight seal around the drain and fill screws. They are designed for single use and must be replaced every time the screws are removed to prevent leaks.

A Step-by-Step Guide to Changing Your Gear Lube

While specific steps might vary slightly depending on your particular MerCruiser drive model (e.g., Alpha One® Gen II, Bravo series), the general procedure remains consistent. Always consult your specific owner's manual for precise instructions for your drive/engine combination.

Step 1: Preparation

Ensure your boat is securely supported, either on a trailer or in the water (if you have appropriate access to the sterndrive). The engine should be completely shut down and cool. Position your oil catch pan directly beneath the sterndrive's lower unit, ready to collect the old lubricant.

Step 2: Draining the Old Lube

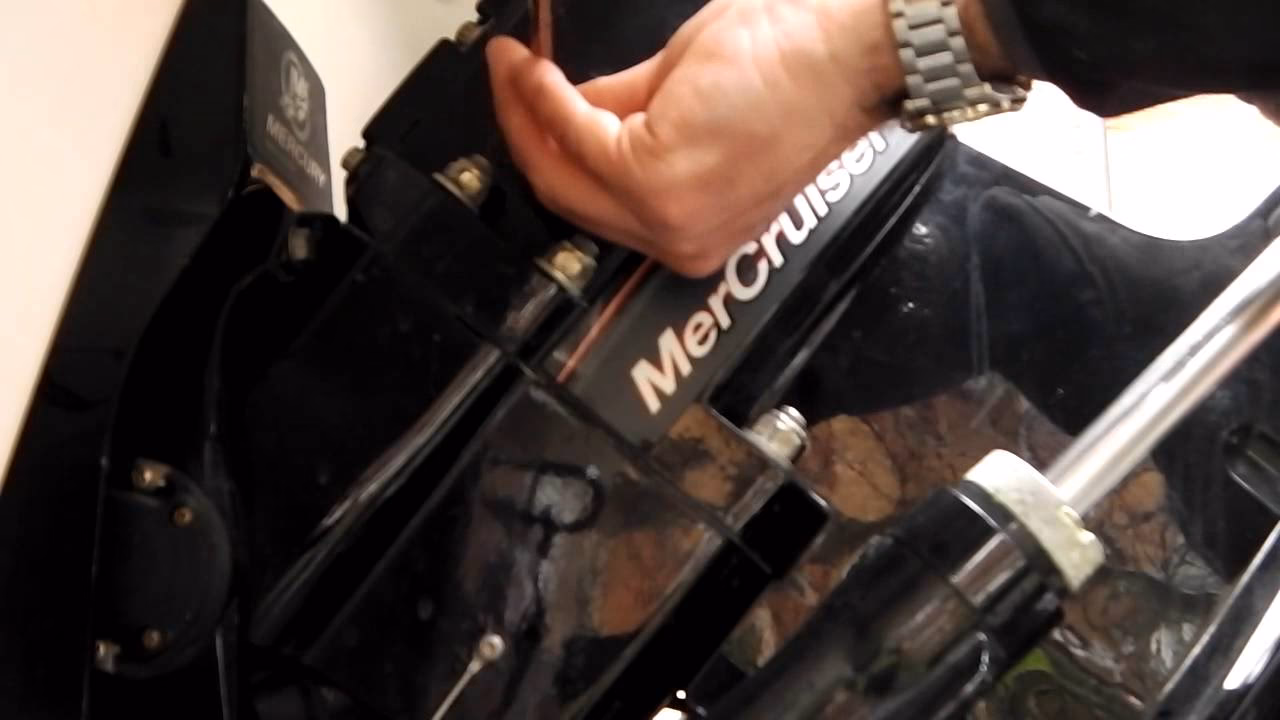

1. Locate the Drain and Vent Screws: On most MerCruiser drives, there are two screws: a lower drain/fill screw and an upper vent/fill screw. The lower screw is typically near the propeller, and the upper screw is higher up on the drive, often on the side or near the cavitation plate.
2. Remove the Vent Screw First: Using your appropriate wrench, carefully remove the upper vent/fill screw. This allows air to enter the system, preventing a vacuum and ensuring the lubricant drains completely.
3. Remove the Drain Screw: With the vent screw removed, place your catch pan directly under the lower drain/fill screw and carefully remove it. The old gear lube will begin to drain out. Allow ample time for all the lubricant to drain completely. This might take 10-20 minutes, especially if the oil is cold.

Step 3: Inspecting the Used Lube

As the old lubricant drains, pay close attention to its appearance. This is a critical diagnostic step:

• Clear/Amber: Ideal. Indicates normal wear and tear.
• Dark/Black: Normal, especially after prolonged use, but indicates the lubricant has done its job collecting impurities.
• Milky/Cloudy (like coffee with cream): A definitive sign of water ingress. This means water is getting into your drive, likely due to a faulty seal (e.g., propeller shaft seal, shift shaft seal, or O-rings). This requires immediate investigation and repair by a qualified technician to prevent severe internal damage.
• Metal Shavings/Particles: Small, fine metallic flakes are typically normal wear. However, if you observe larger chunks, glitter-like particles, or excessive amounts of metal, it indicates significant internal component wear and necessitates professional inspection.

Step 4: Replacing Seals

Once the old lubricant has drained, inspect the drain and fill screws. Remove the old fibre washers or O-rings from both screws. It is imperative to replace these with new Quicksilver drain and fill screw seals every time. Reusing old, compressed seals significantly increases the risk of leaks.

Step 5: Refilling with Fresh Lube

This process requires filling from the bottom up to ensure all air pockets are expelled.

1. Attach the Pump: Thread the hose fitting from your Quicksilver gear lube pump kit securely into the lower drain/fill hole. Ensure it's hand-tight to prevent leaks during pumping.
2. Begin Pumping: With the pump attached and the bottle of fresh Quicksilver High Performance Gear Lube connected, begin pumping the new lubricant into the drive. You will see the level in the gear lube monitor (if your drive has one) gradually rise. Continue pumping until the fresh lubricant begins to emerge cleanly from the upper vent/fill hole.
3. Install the Vent Screw: While the fresh lubricant is still flowing out of the upper vent hole, quickly insert and tighten the upper vent/fill screw with its new seal. This traps the lubricant inside.
4. Remove the Pump and Install Drain Screw: Immediately after tightening the top screw, swiftly remove the pump from the lower hole and quickly insert and tighten the lower drain/fill screw with its new seal. A small amount of lubricant may spill during this quick transition, which is normal.

Step 6: Initial Check and Topping Up

Once both screws are tightened, you're almost done. For the most accurate level check:

1. Run the Engine Briefly: If the boat is in the water or hooked up to flush muffs, briefly start the engine and engage the drive in forward and reverse for a minute or two. This circulates the new lubricant throughout the system and allows any trapped air to rise.
2. Allow to Cool: Shut down the engine and allow the drive to cool completely (at least an hour, preferably longer).
3. Check the Gear Lube Monitor: Locate the gear lube monitor bottle, usually mounted in the engine compartment. The lubricant level should be within the marked operating range. If it's low, top it up to the full mark using the same Quicksilver gear lube. Remember, the oil level in the gear lube monitor will rise and fall slightly during drive operation; always check the oil level when the drive is cool and the engine is shut down for the most accurate reading.
4. Periodically Inspect: Make it a habit to periodically inspect the lubricant in the monitor for any signs of water (milky appearance) to ensure that drive unit seals are not leaking between annual services.

Understanding Your Gear Lube Monitor

Many MerCruiser sterndrives are equipped with a gear lube monitor bottle, typically located in the engine compartment. This transparent reservoir provides a convenient way to check the lubricant level without having to remove the drain screws. It also allows for quick visual inspection of the lubricant's condition. While the shape and location may vary between models, its purpose remains the same. The level in this monitor will fluctuate slightly during operation as the lubricant expands with heat and contracts when cool. It is crucial to always check the level when the drive is cool and the engine is shut down to get an accurate reading. Regularly glancing at this monitor for signs of a milky appearance can be an early warning system for water ingress, potentially saving you from extensive damage.

Troubleshooting Common Gear Lube Issues

Even with regular maintenance, issues can arise. Knowing what to look for can help you identify problems early:

• Milky or Foamy Lube: This is almost always a sign of water in the gearcase. Water can enter through worn propeller shaft seals, shift shaft seals, O-rings, or even cracks in the casing from impact. If you see milky lube, do not operate the boat further without investigation. Water emulsifies with the oil, significantly reducing its lubricating properties and leading to rapid corrosion and wear. A professional inspection is highly recommended.
• Excessive Metal Shavings: While some fine metallic particles are normal, large flakes or significant amounts of metal indicate internal damage to gears or bearings. This requires immediate professional attention to diagnose and repair the source of the wear.
• Consistently Low Lube Level (without visible leaks): If you find yourself frequently topping up the gear lube without obvious external leaks, it could indicate a slow internal leak, possibly into the boat's bilge or through a seal that only leaks under pressure.
• Burning Smell: A burnt odour from the drained lubricant suggests extreme heat within the gearcase, possibly due to low lubricant levels, incorrect lubricant, or excessive friction from worn components.

By being vigilant and understanding these signs, you can address potential problems before they escalate into major repairs.

Table: Decoding Your Used Gear Lube

Frequently Asked Questions (FAQs)

How often should I change my MerCruiser sterndrive gear lube?

The general recommendation is annually or every 100 hours of operation, whichever comes first. Always refer to your specific MerCruiser owner's manual for the precise schedule tailored to your model.

Can I use standard automotive gear oil in my MerCruiser sterndrive?

No, it is strongly advised against. Automotive gear oils lack the specialised marine additive package found in products like Quicksilver High Performance Gear Lube. Marine environments are much harsher, with unique demands for corrosion protection and extreme pressure resistance. Using automotive oil can lead to premature wear and failure of your sterndrive.

What does it mean if my gear lube looks milky or cloudy?

Milky or cloudy gear lube is a clear indication of water ingress into the gearcase. This is a serious issue that requires immediate attention, as water significantly reduces the lubricant's protective properties and can lead to severe internal corrosion and damage. You should stop using the boat and have the drive inspected by a qualified marine technician to find and repair the source of the leak.

Is this gear lube change process the same for all MerCruiser drives?

The general principles and steps are very similar across most MerCruiser Alpha One® and Bravo series drives. However, the exact location of drain/fill screws, the shape of the gear lube monitor, and specific torque specifications may vary. Always consult your specific owner's manual for the most accurate and detailed instructions for your particular drive model.

Where can I dispose of my used gear lube?

Used oil must be disposed of responsibly and in an environmentally friendly manner. Do not pour it down drains or onto the ground. Most local authority recycling centres, marine service centres, or auto parts stores offer facilities for proper waste oil disposal.

Is changing the gear lube a difficult DIY task?

For a boat owner with basic mechanical aptitude and the right tools (especially the gear lube pump), changing the sterndrive gear lube is a straightforward and manageable DIY task. The most important aspects are following the steps carefully, using the correct lubricant and new seals, and properly interpreting the condition of the old lubricant.

By diligently performing this annual or 100-hour service, you are taking a crucial step in safeguarding your investment and ensuring countless hours of trouble-free boating. It's a small effort with significant returns in terms of reliability and preventing expensive repairs down the line.
